Numerical Simulation Study on Underwater Continuous Launch of the Multi-vehicles in Single Launching Tube

doi:10.3969/j.issn.1009-086x.2024.06.017

Abstract

Abstract:

In the process of underwater continuous vertical launch of the multi-vehicles in single launching tube， the gas overflowing between the built-in neighbouring launch tube interacts with the water to form a complex form of gas bubbles， and the expansion-contraction characteristics of the gas bubbles affect the flow field of the underwater continuous launching. In order to investigate the variation laws of the pressure field near outlet and its impact on the fluid load characteristics during the continuous launching process of the vehicle， numerical simulations are conducted using the VOF multiphase flow model and dynamic mesh technology controlled by user-defined functions， with a launching interval of 2 seconds for the continuous launching process of two vehicles. The simulated results show that when the first vehicle leaves the launch-tube， going through 1s time course， the pulsation of the launch outlet pressure field is significantly weakened， and after the secondary vehicle leaves the cylinder， the launcher flow field shows an obvious asymmetric distribution； The outlet bubble formed when the first vehicle leaving the launcher，which creates an air curtain environment on the subsequent vehicle launch channel， it reduces the axial load F_x of the secondary vehicle and also reduces the load of the adjacent equipment of the barrel mouth， but the asymmetric development of the outlet bubble leads to violent oscillations in the deflection force and deflection moment of the voyage， which will affect the initial trajectory of the vehicle. The research results may provide reference in the field of demonstration of underwater common frame launch scheme for engineering application.

Key words: underwater continuous launch, gas bubble, pressure field near outlet, load characteristics, gas screen load reduction, numerical simulation

摘要：

一筒多航行体水下连续垂直发射过程中，内置发射邻筒之间溢出的燃气与水交互形成复杂形态燃气泡，而燃气泡的膨胀-收缩特性会对水下连续发射流场产生影响。为了研究航行体连续发射过程中筒口压力场及其对弹体流体载荷特性影响变化规律，利用VOF多相流模型和用户自定义函数控制的动网格技术，取发射间隔为2 s，两发航行体连续发射过程进行数值模拟。仿真结果表明，首发航行体离筒后，经历1 s时间历程，筒口压力场的脉动明显减弱，次发航行体离筒后，筒口流场呈现明显的非对称分布；首发航行体离筒形成的筒口气泡为后续航行体发射通道上创造气幕环境，使得次发航行体轴向载荷Fx减小，以及对筒口的相邻设备亦起到了降载效果，但筒口气泡的不对称发展导致了航行受到的偏转力与偏转力矩出现剧烈震荡，从而将影响航行体初始弹道。该研究结果可以为一筒多航行体水下发射方案论证提供参考。

关键词: 水下连续发射, 燃气泡, 筒口压力场, 载荷特性, 气幕降载, 数值仿真

CLC Number:

Xizhao DU, Xiaochuan QIAN, Zeping CHEN, Kaiyu DU, Yao SHI, Xiaobin QI. Numerical Simulation Study on Underwater Continuous Launch of the Multi-vehicles in Single Launching Tube[J]. Modern Defense Technology, 2024, 52(6): 129-138.

杜喜昭, 钱小川, 陈泽平, 杜凯育, 施瑶, 祁晓斌. 一筒多航行体水下连续发射数值仿真研究[J]. 现代防御技术, 2024, 52(6): 129-138.

Figures/Tables 14

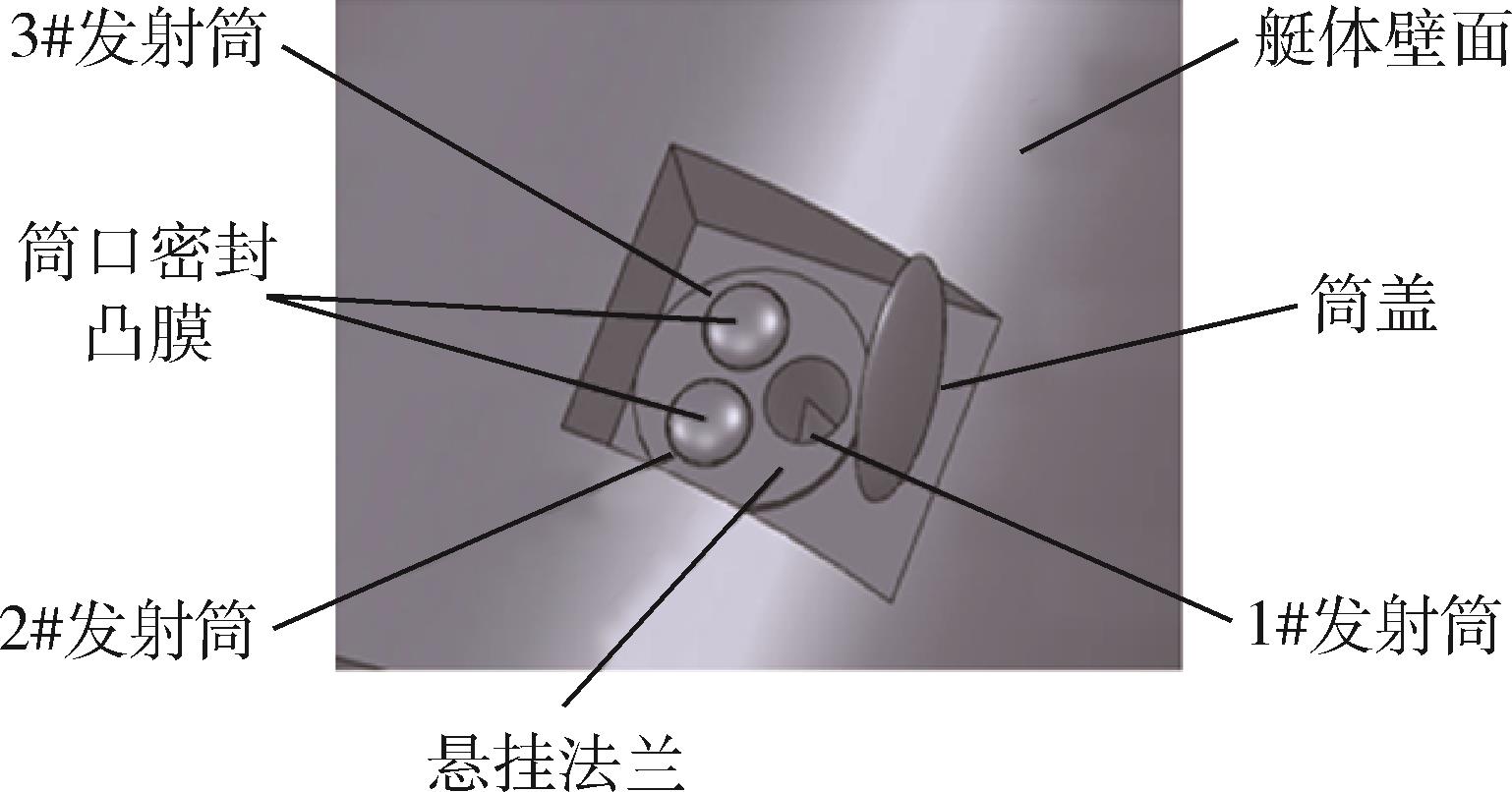

Fig. 1 Layout diagram of the model

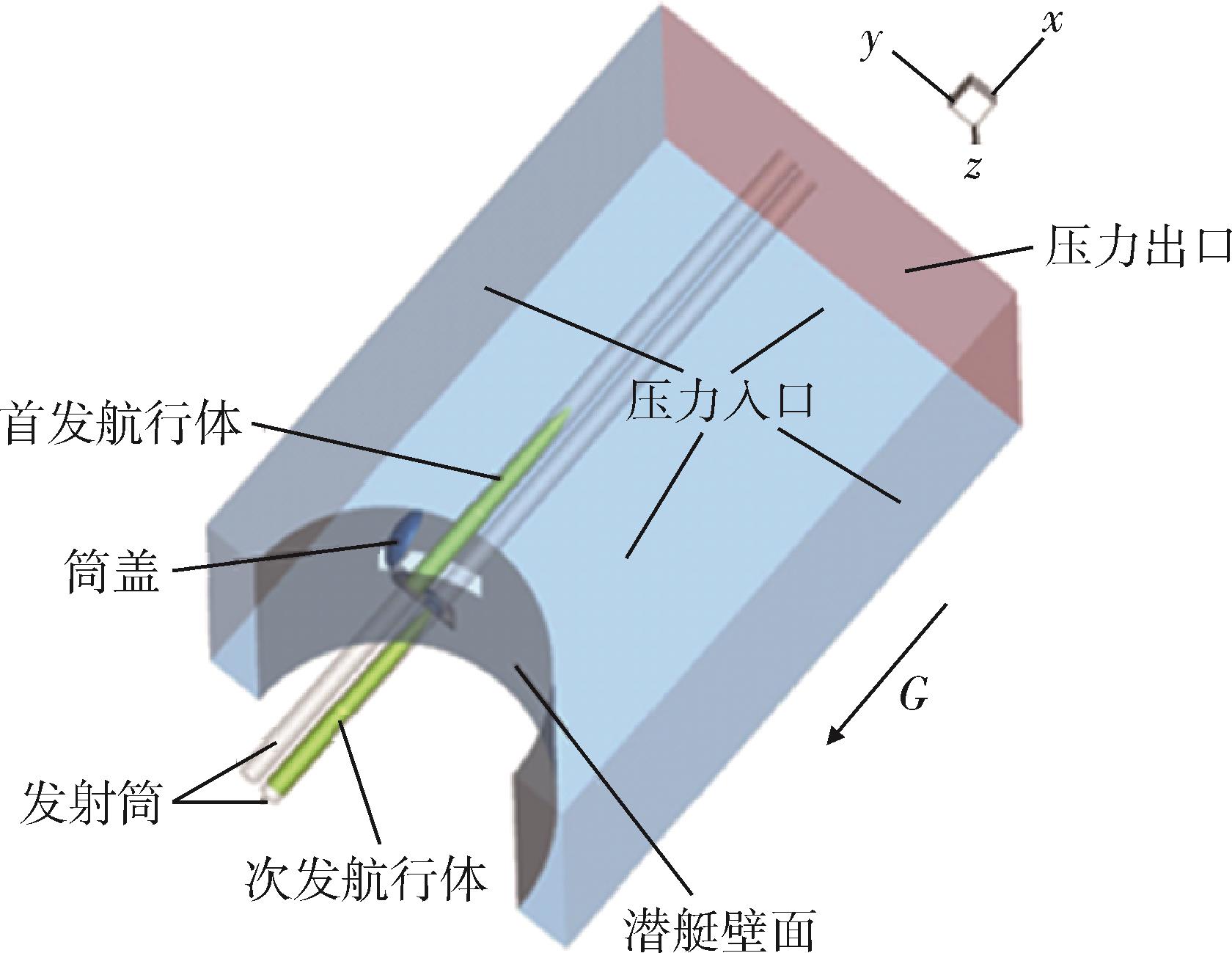

Fig. 2 Computational domain

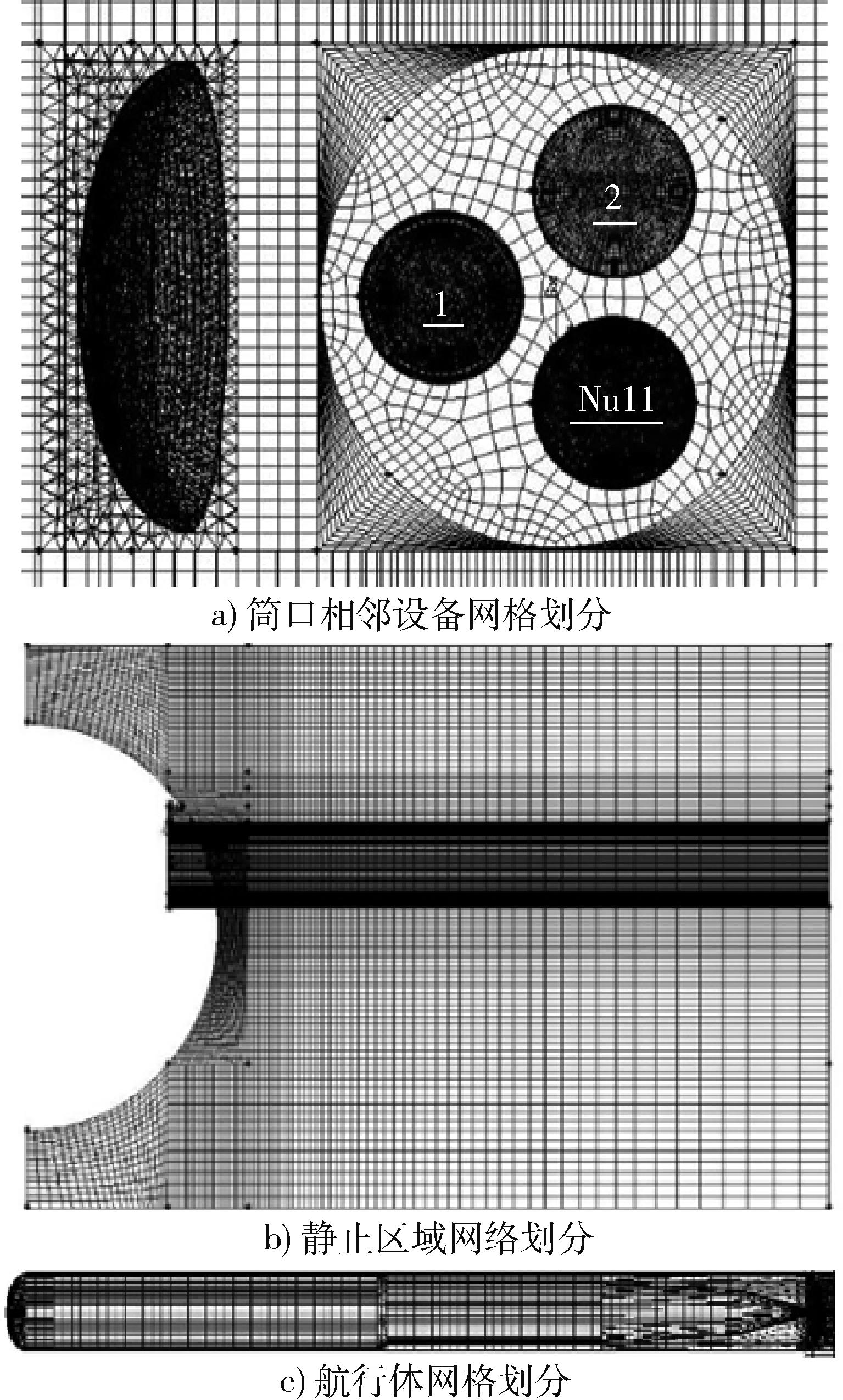

Fig. 3 Grid divison

Table 1 The setting of launch parameters

流场参数	数值
气体常数R/（J·（kg·K）^-1）	329
燃气比热比k	1.3
平均分子量M	26
出筒时刻筒内压力p/MPa	0.90
出筒时刻筒内温度T/K	600
出筒速度v/（m·s^-1）	30
发射水深h/m	50
发射时间间隔Δt/s	2

Table 2 Working condition table

编号	网格类型	网格数量
Grid 1	稀疏网格	160
Grid 2	标准网格	240
Grid 3	加密网格	320

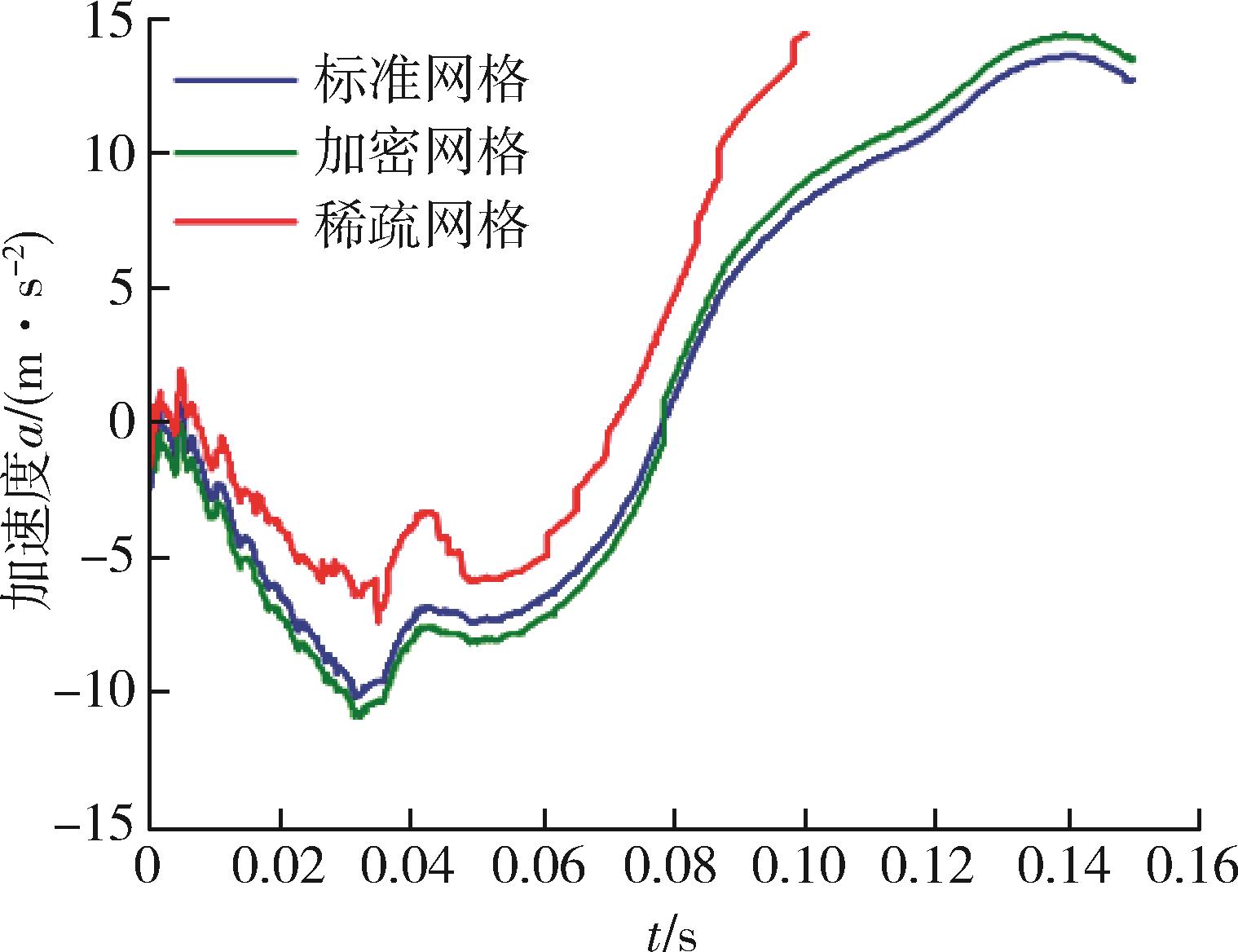

Fig. 4 Impact of the number of grids

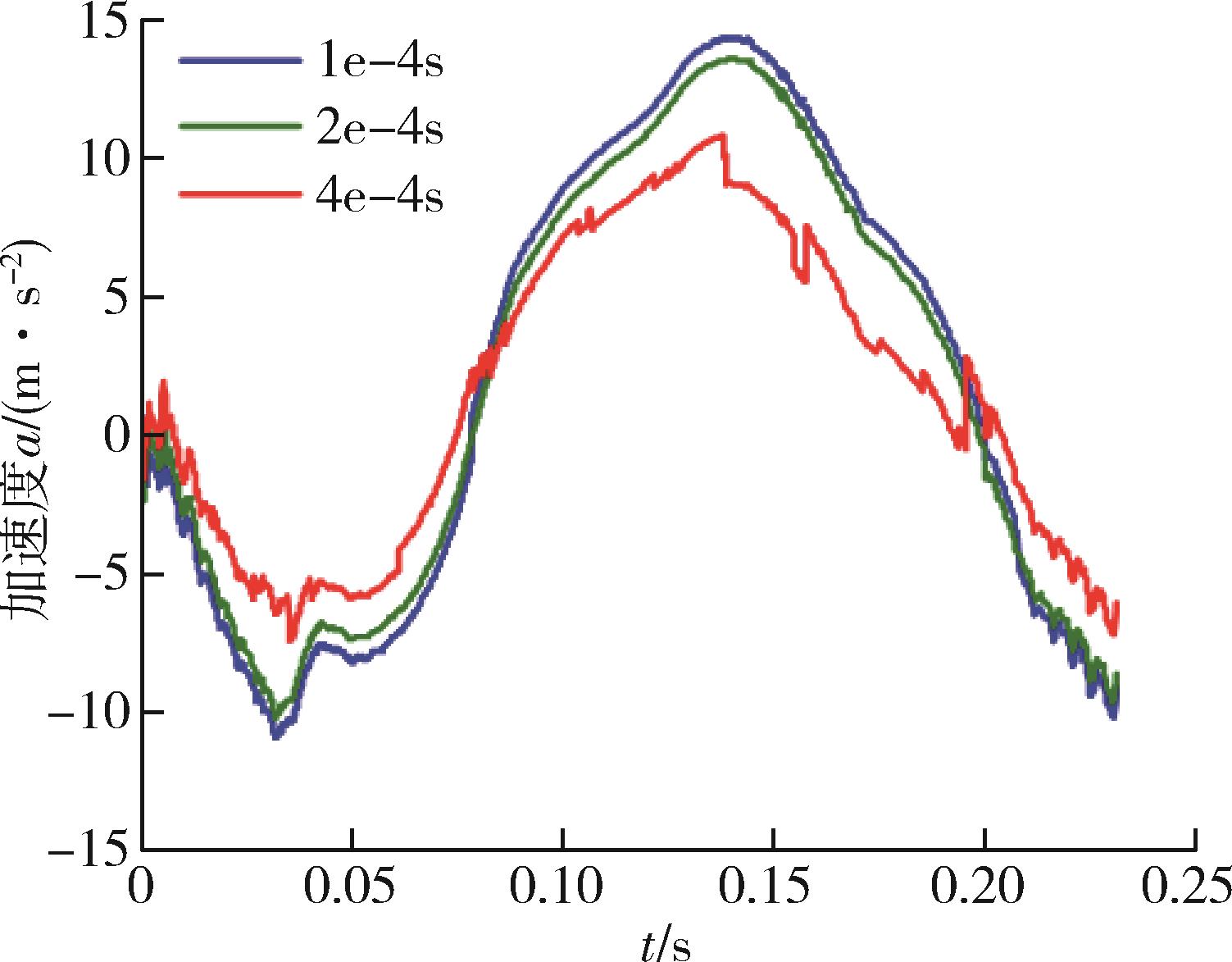

Fig. 5 Influence of calculation step size

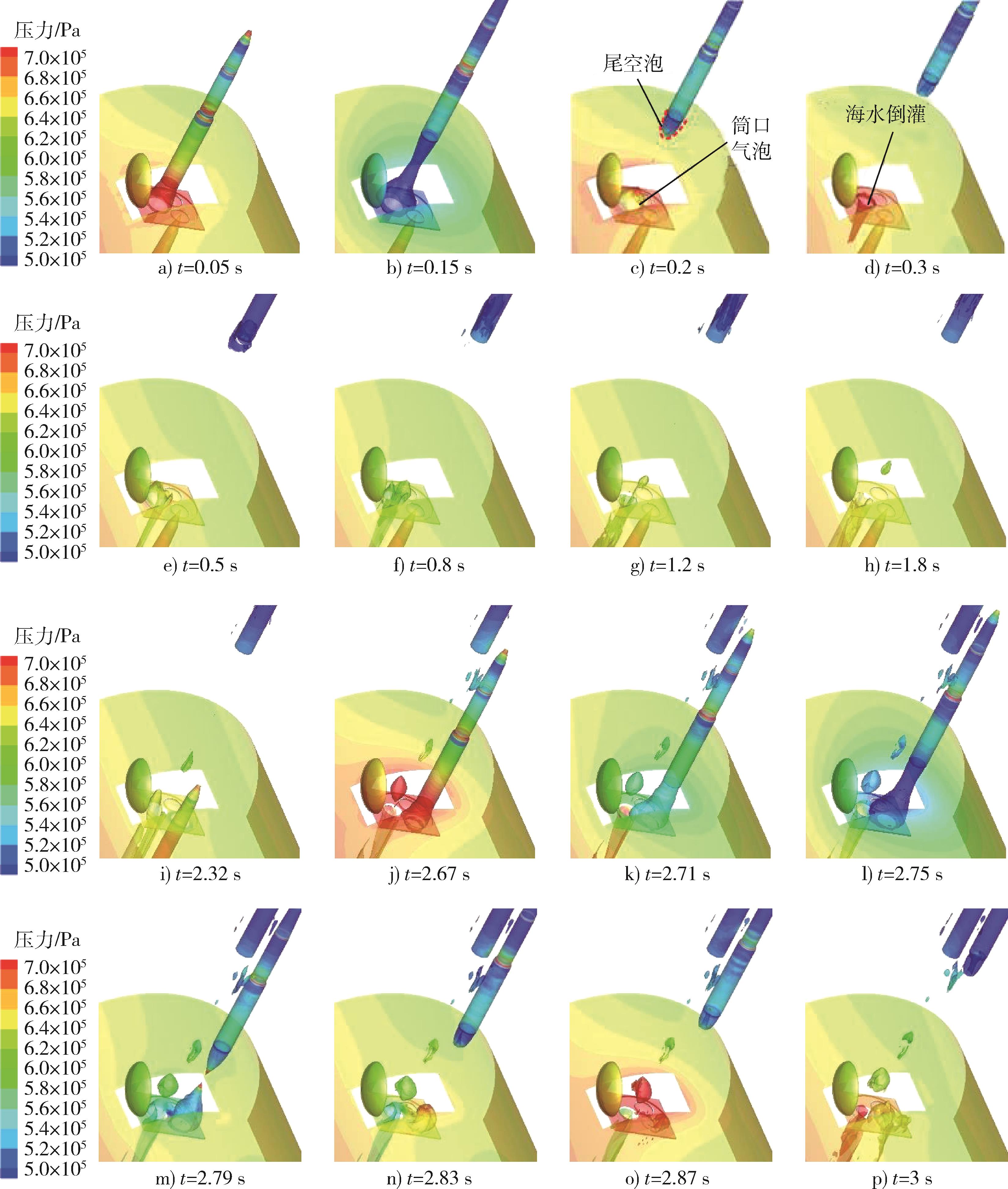

Fig. 6 Morphological evolution of bubbles at tube outlet

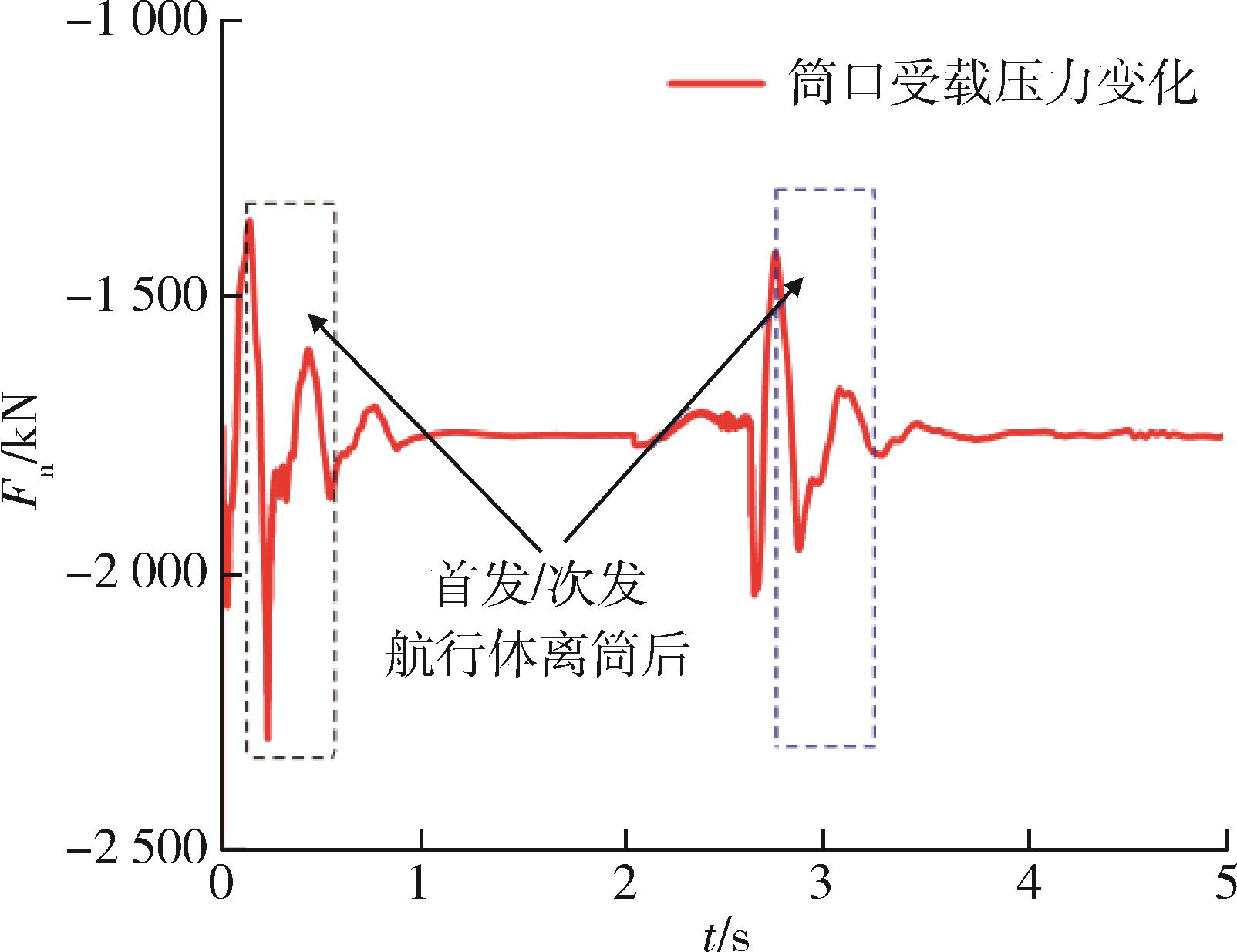

Fig. 7 Load of launch outlet vs. time

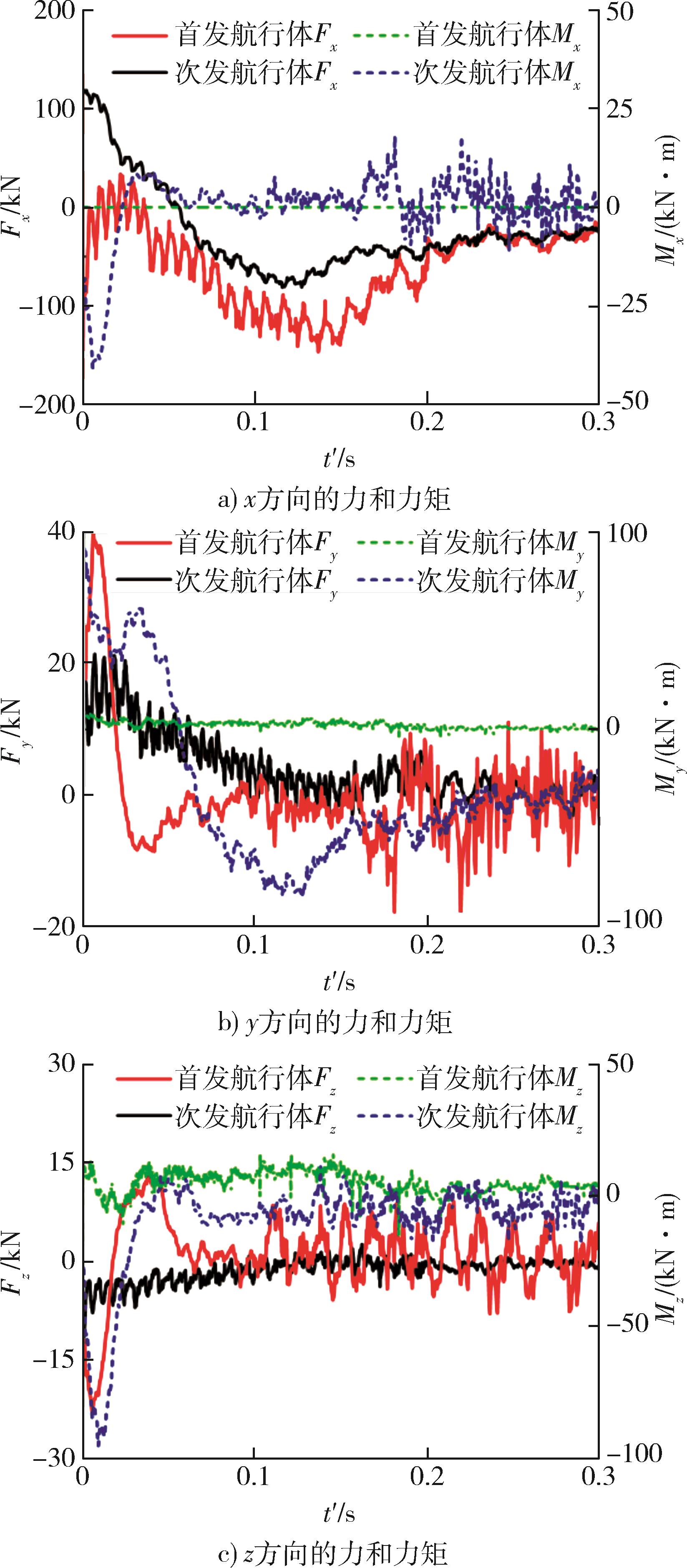

Fig. 8 Load of missile vs. time

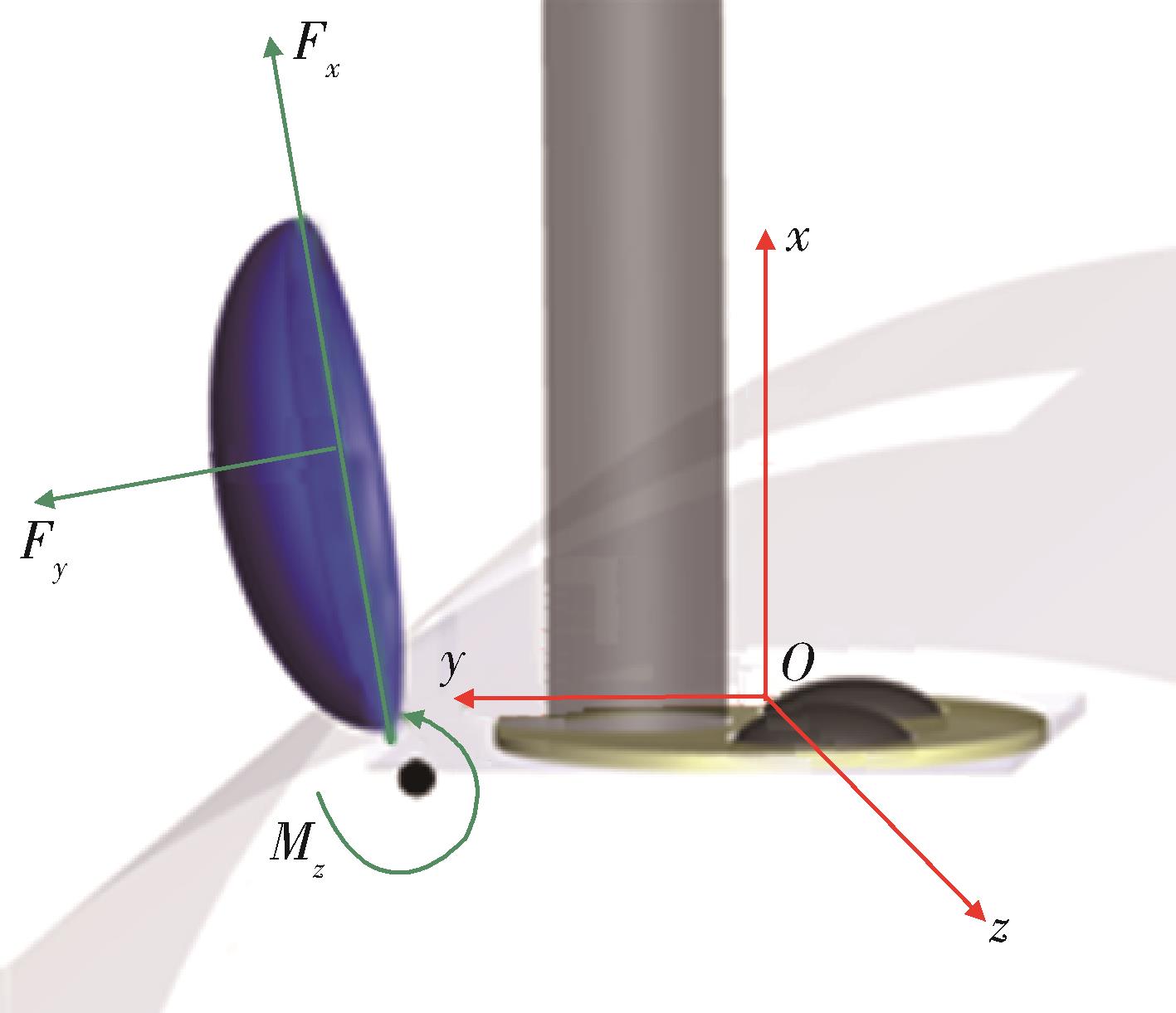

Fig. 9 Coordinate system definition diagram

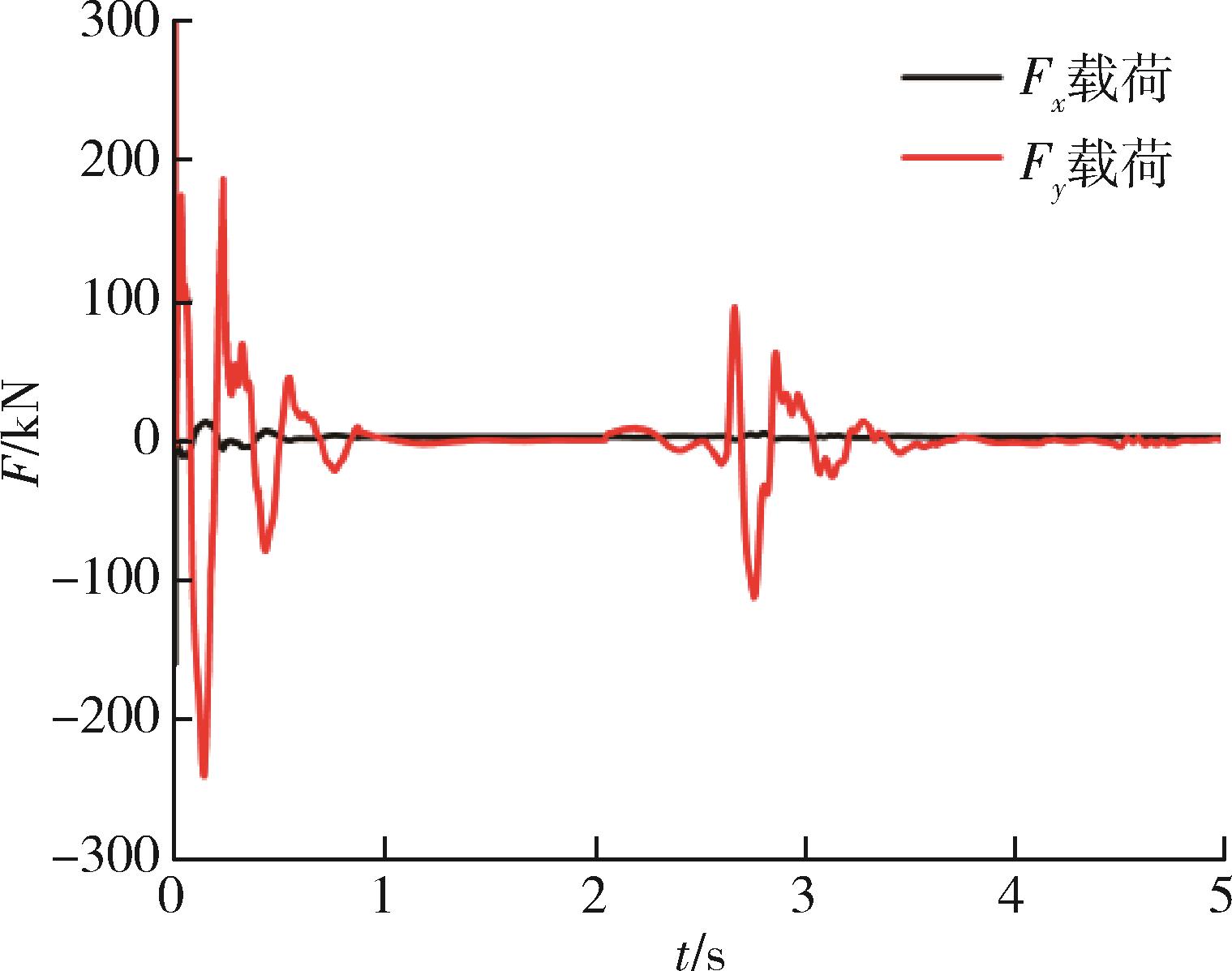

Fig. 10 Load of cover vs. time

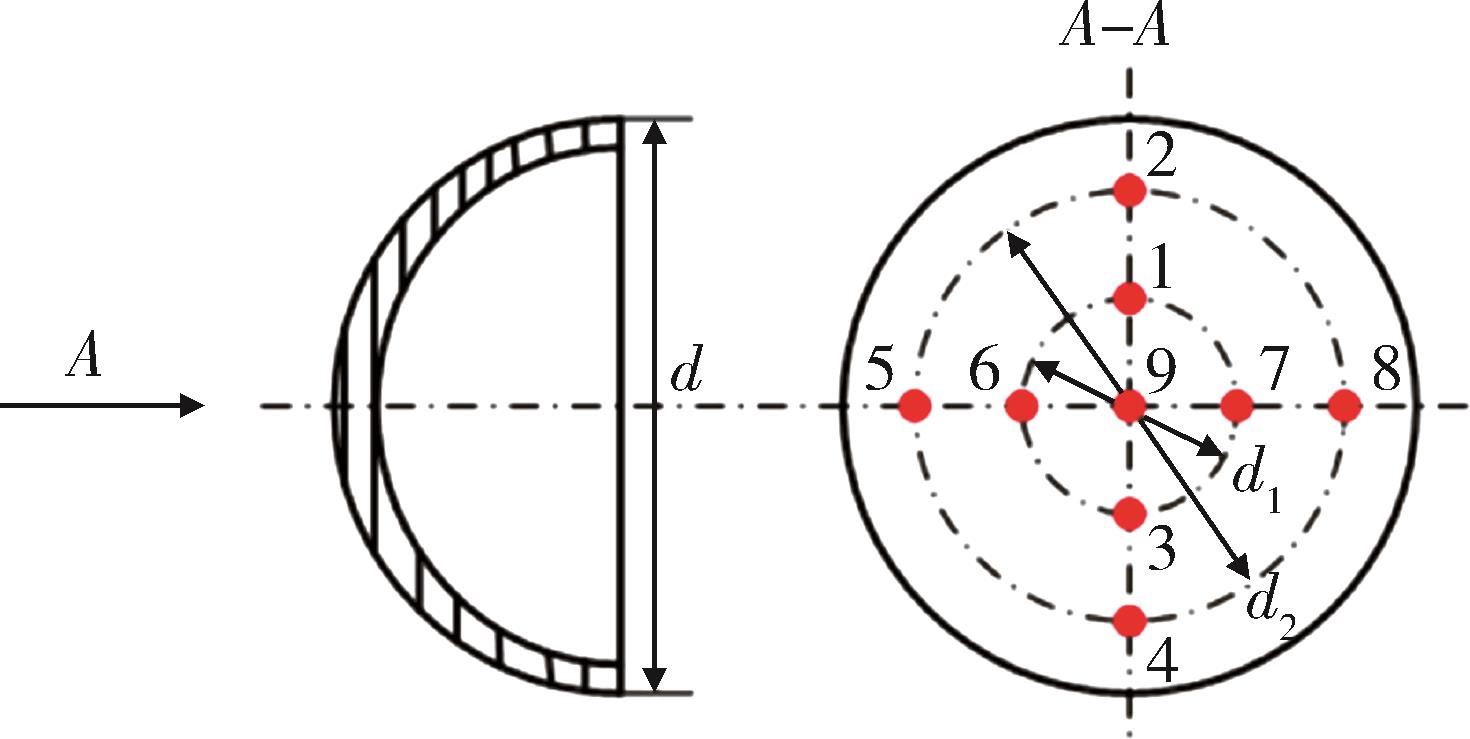

Fig. 11 Layout of monitor position

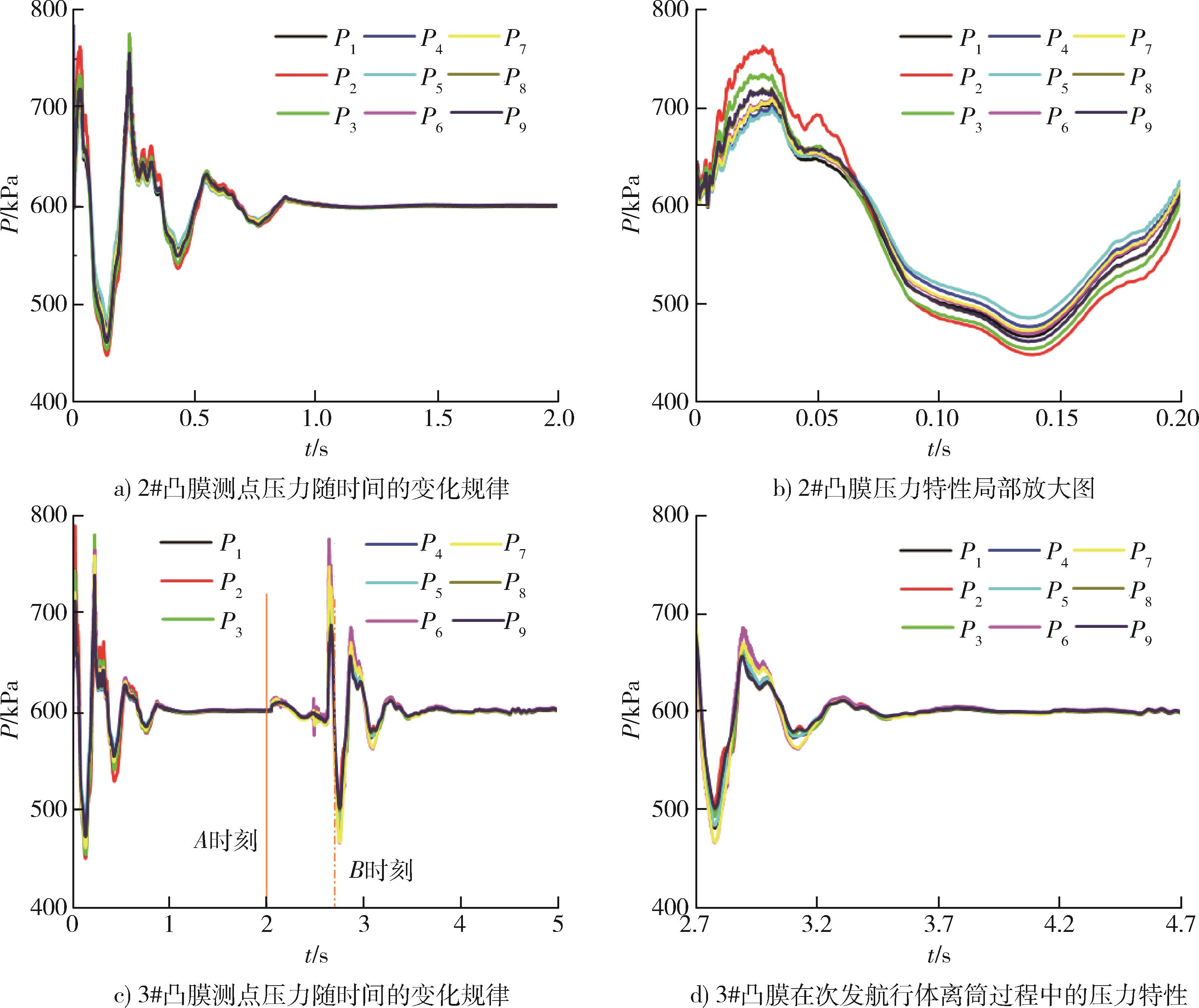

Fig. 12 Variation law of measuring point pressure vs.time
