Multi-target Tracking Algorithm Based on Information Association and Weighting

doi:10.3969/j.issn.1009-086x.2025.01.003

Abstract

Abstract:

A probability hypothesis density filtering algorithm based on information association weighting is proposed to address the two issues of decreased accuracy in multi-target state estimation and overestimation of the number of multi-targets， which are caused by asynchronicity and high-density clutter aliasing in passive and active radar detection information across multiple platforms. Firstly， a multi-target tracking model is constructed， and the mechanism of why existing algorithms are susceptible to clutter is analyzed. Secondly， a multi-target tracking algorithm based on information association weighting is derived. The tolerance time parameter is set according to the target speed and tolerable error， and the detection information with a short asynchronous time is approximated as synchronous information. The association algorithm is used to select passive and active radar information from the same target， and the minimum variance weighted fusion is used to improve detection accuracy. The randomly distributed clutter is filtered out， due to its association difficulties caused by large differences in angle values. Finally， simulation analysis shows that the proposed algorithm improves the accuracy of multi-target state estimation and reduces the overestimation of the number of multi-targets compared to existing algorithms.

Key words: multi-target tracking, cooperative detection, probability hypothesis density（PHD）, information association, minimum variance weighting

摘要：

针对多平台被动、主动雷达探测信息异步和高密度杂波混叠导致多目标状态估计精度下降与多目标数量过度估计的问题，提出基于信息关联加权的概率假设密度滤波算法。构建多目标跟踪模型，并分析了现有算法易受杂波影响的机理。推导了基于信息关联加权的多目标跟踪算法，根据目标速度和可容忍误差设置容忍时间参数，将异步时间较短的探测信息近似为同步，利用关联算法筛选来源于同一目标的被动、主动雷达信息，利用最小方差加权融合提升探测精度，而随机分布的杂波由于角度数值差距较大导致难以关联而被剔除。仿真分析表明，所提算法相比于现有算法提升了多目标状态估计精度，减少多目标数量过度估计情况。

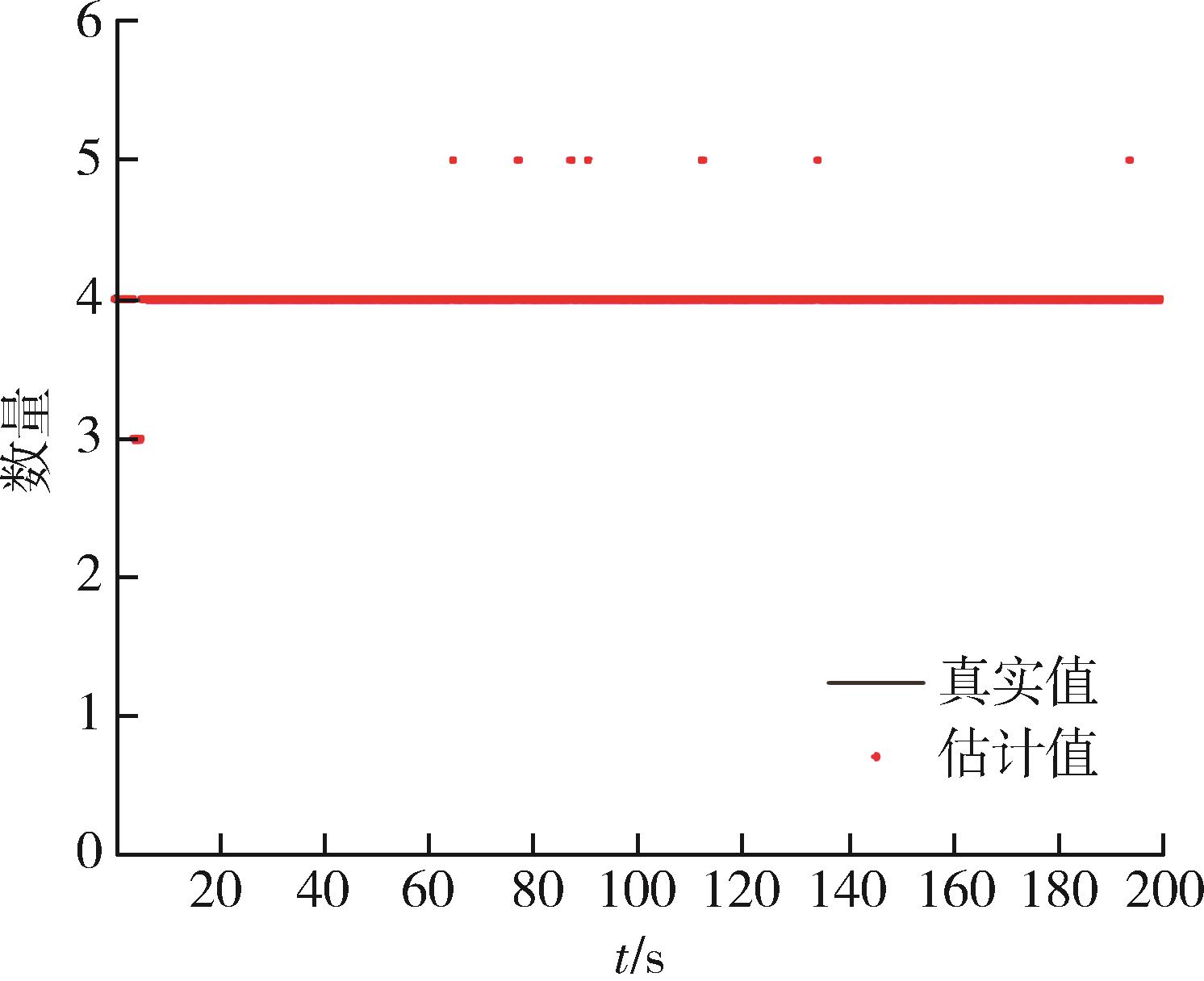

关键词: 多目标跟踪, 协同探测, 概率假设密度滤波, 信息关联, 最小方差加权

CLC Number:

TJ76

Yongzheng YU, Wei WANG, Zhiwei PU. Multi-target Tracking Algorithm Based on Information Association and Weighting[J]. Modern Defense Technology, 2025, 53(1): 23-36.

于勇政, 王伟, 蒲治伟. 基于信息关联加权的多目标跟踪算法[J]. 现代防御技术, 2025, 53(1): 23-36.

Figures/Tables 29

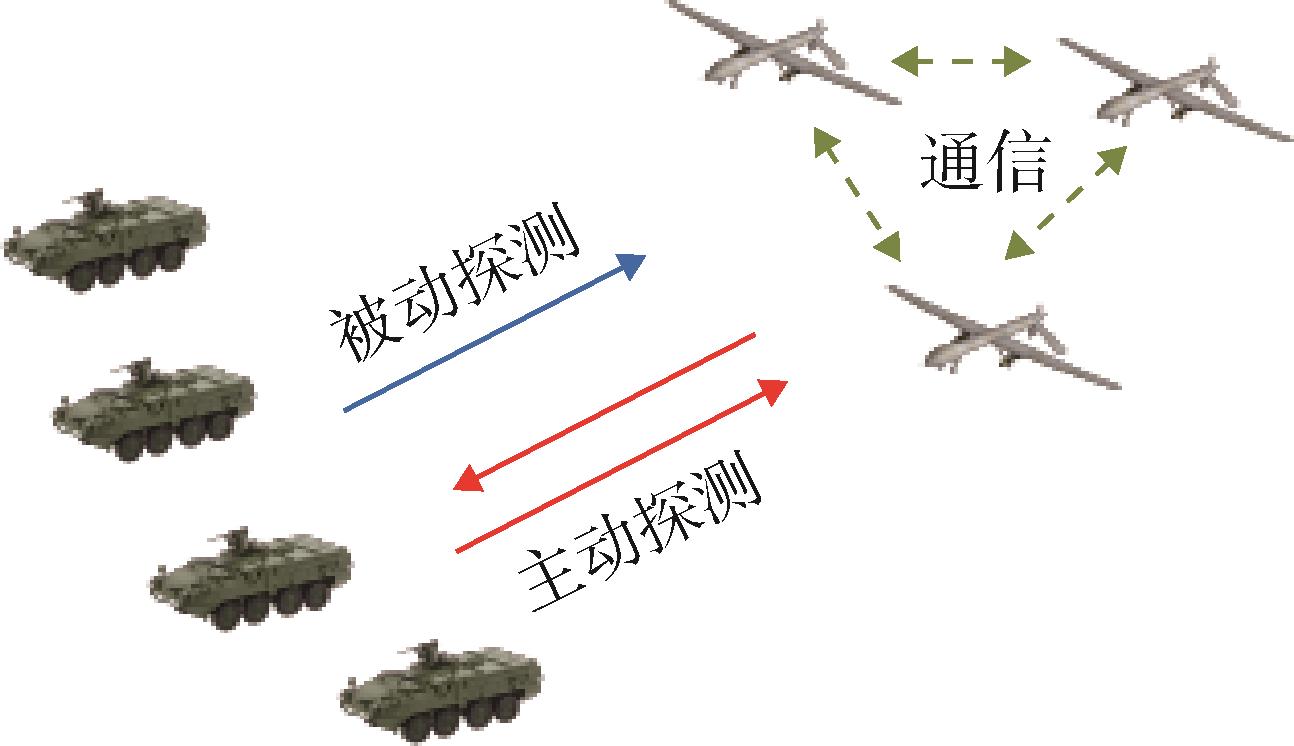

Fig. 1 Illustration of multi-target tracking model

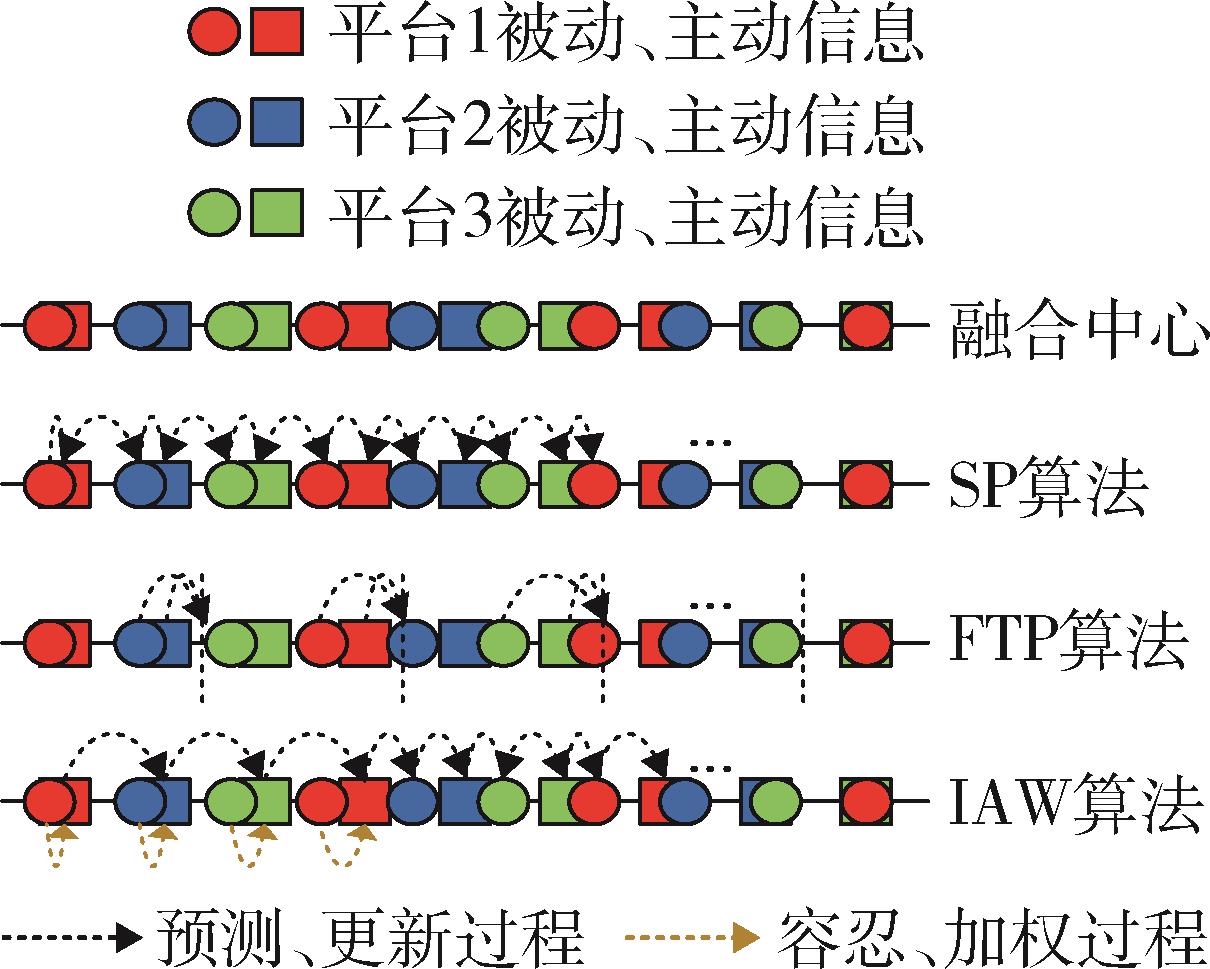

Fig. 2 Illustration of multi-target tracking algorithm

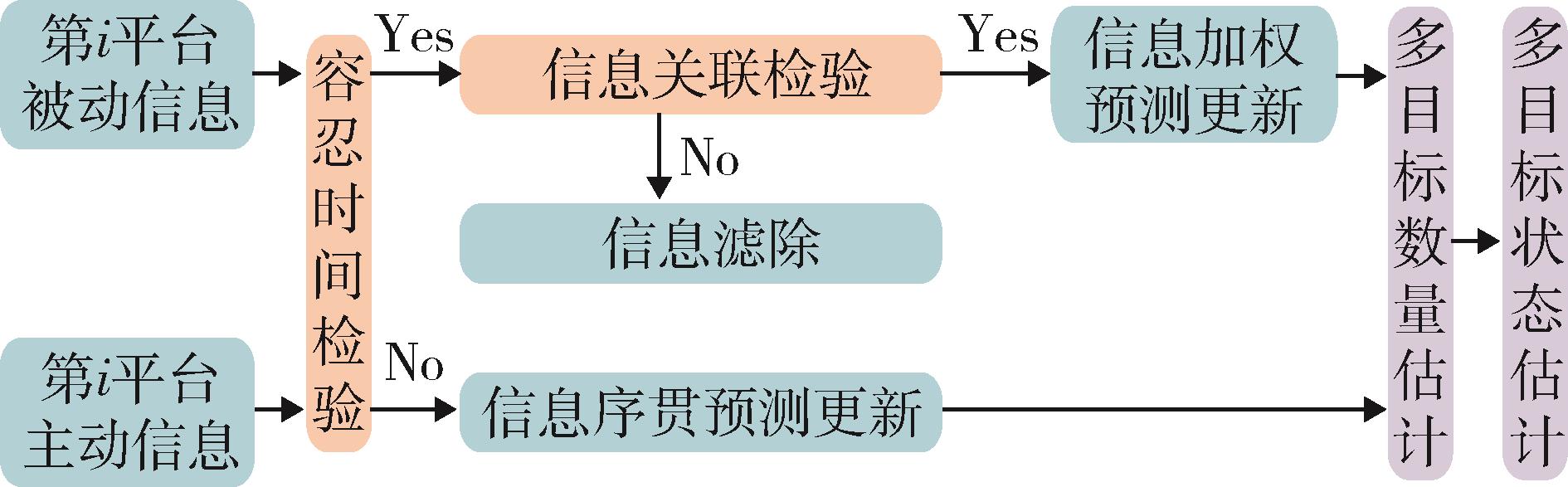

Fig. 3 Flowsheet of IAW algorithm

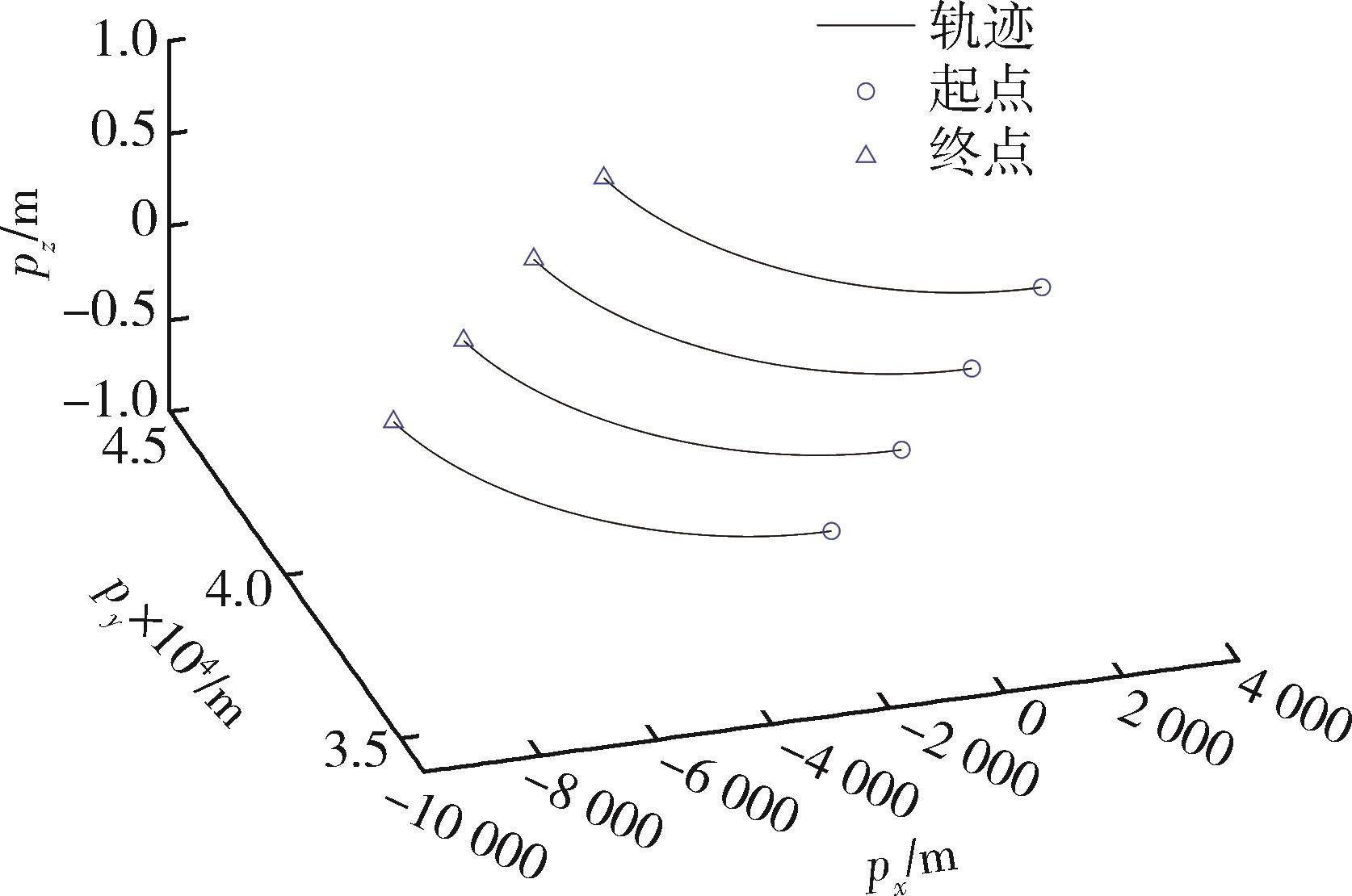

Fig. 4 Real trajectory of multi-target

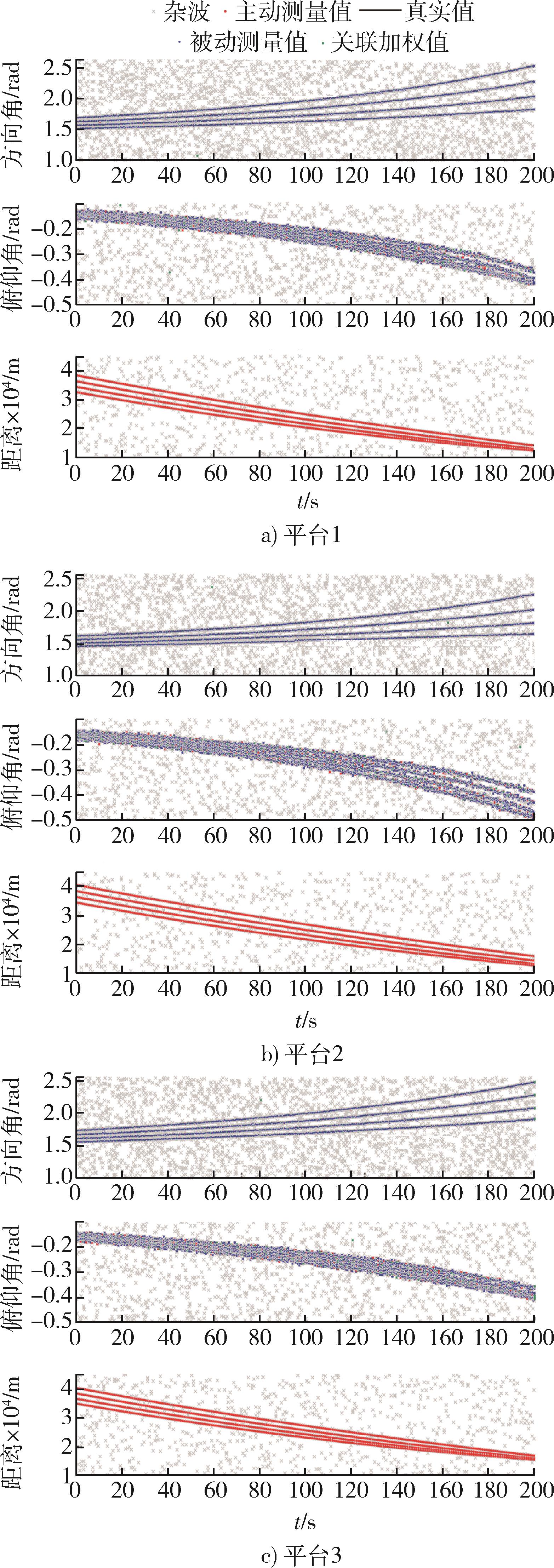

Fig. 5 Detection information with P(10)

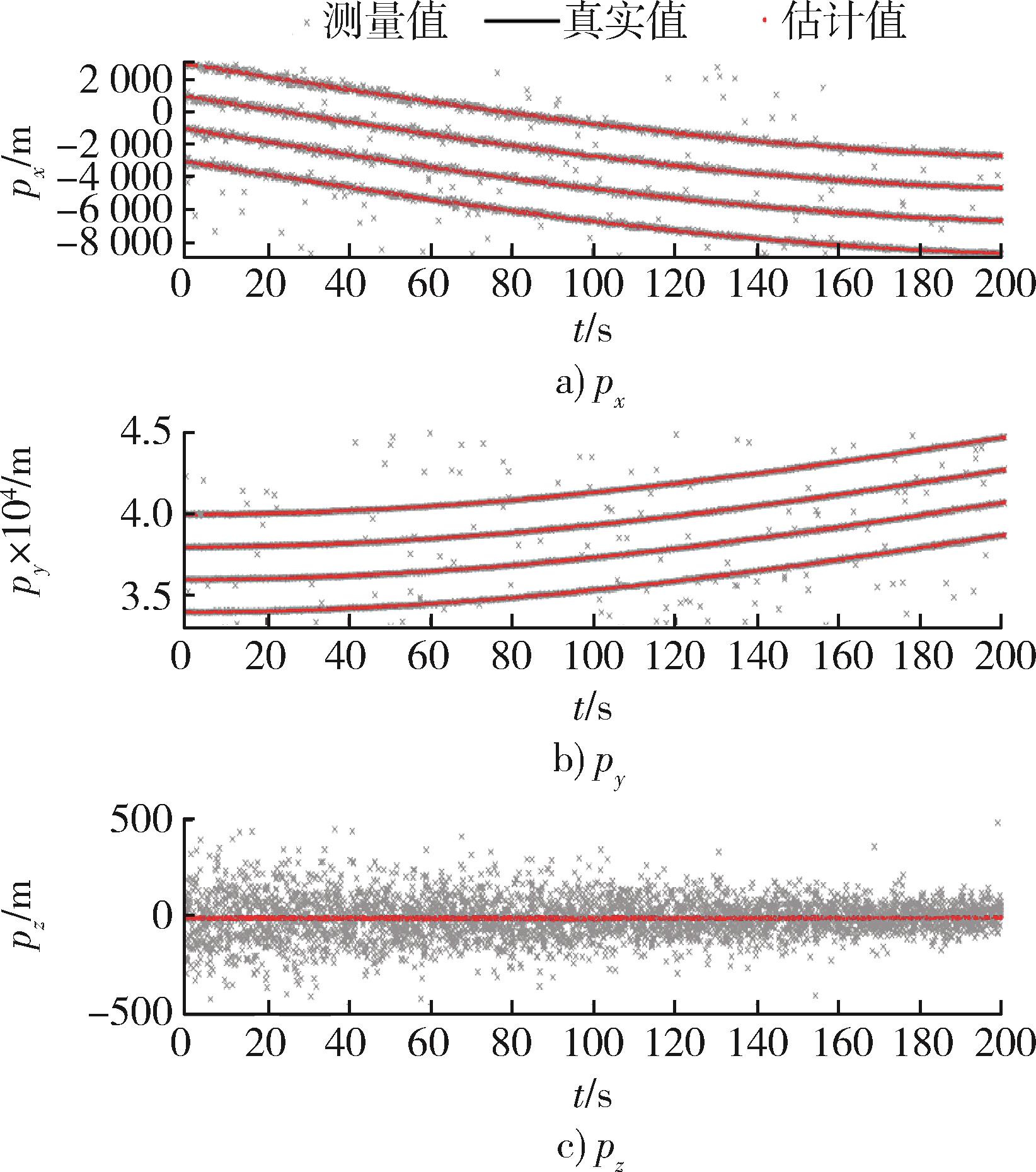

Fig. 6 Multi-target position states estimation under P（10）

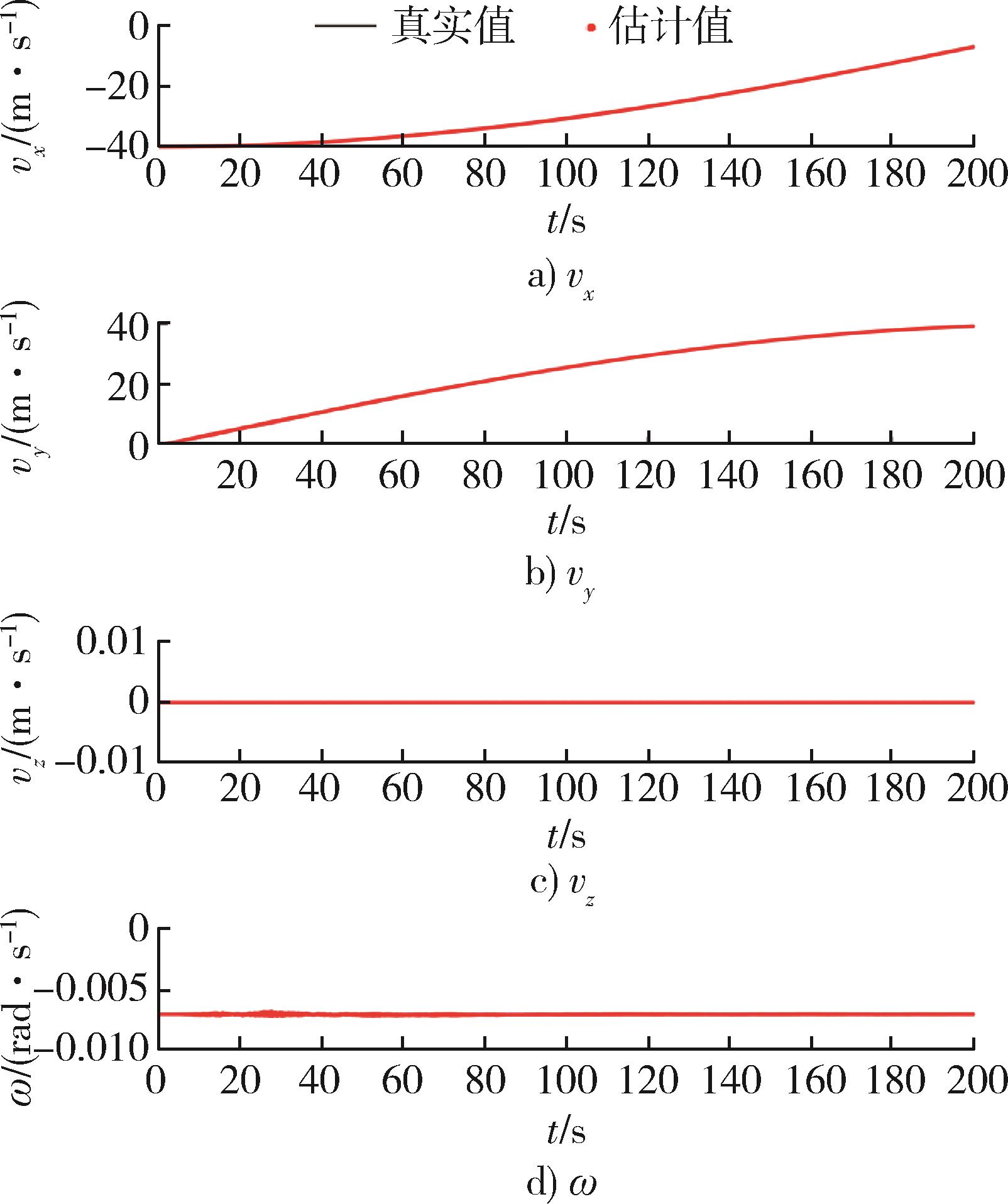

Fig. 7 Multi-target speed states estimation under P（10）

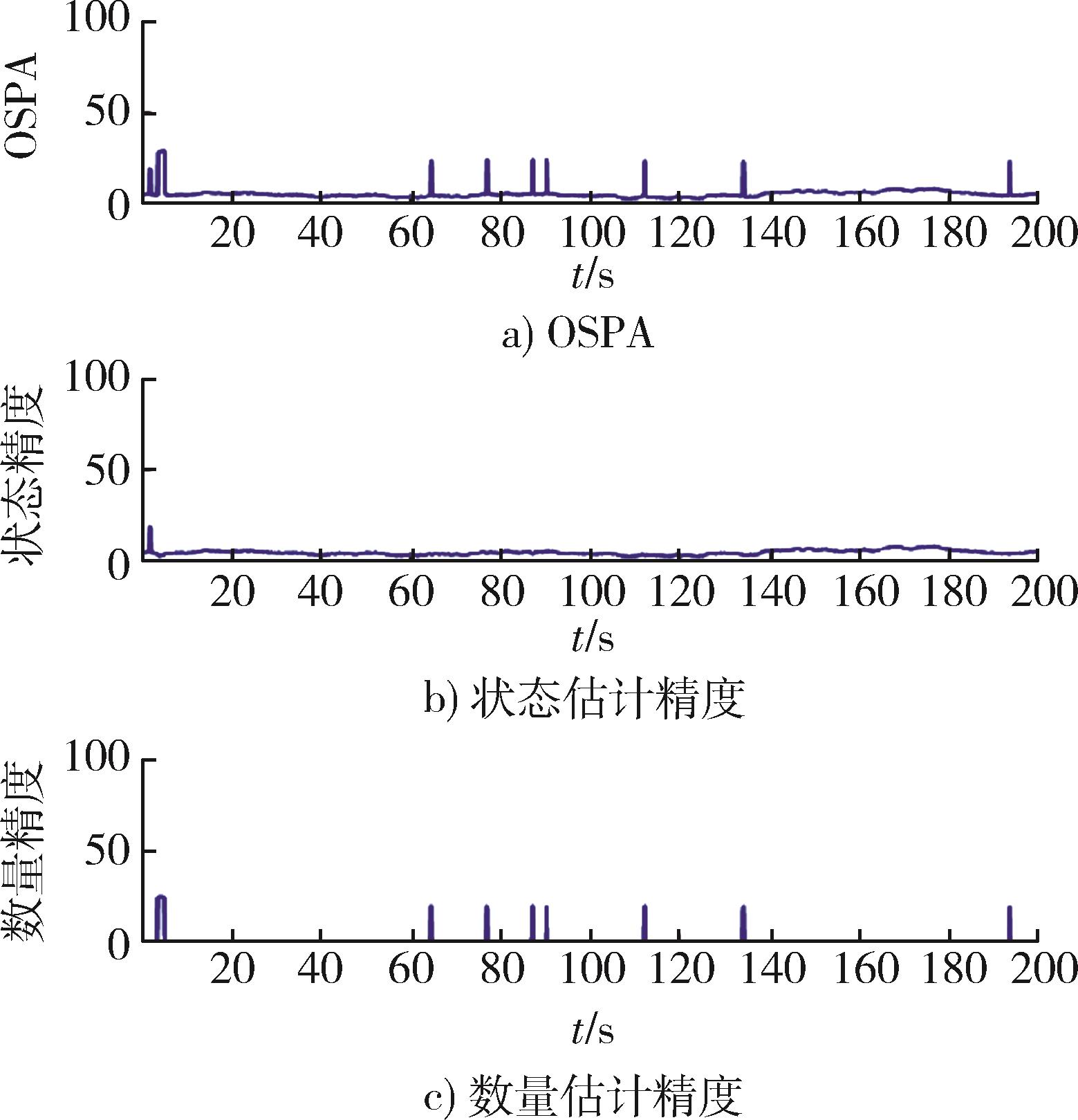

Fig. 8 OSPA under P（10）

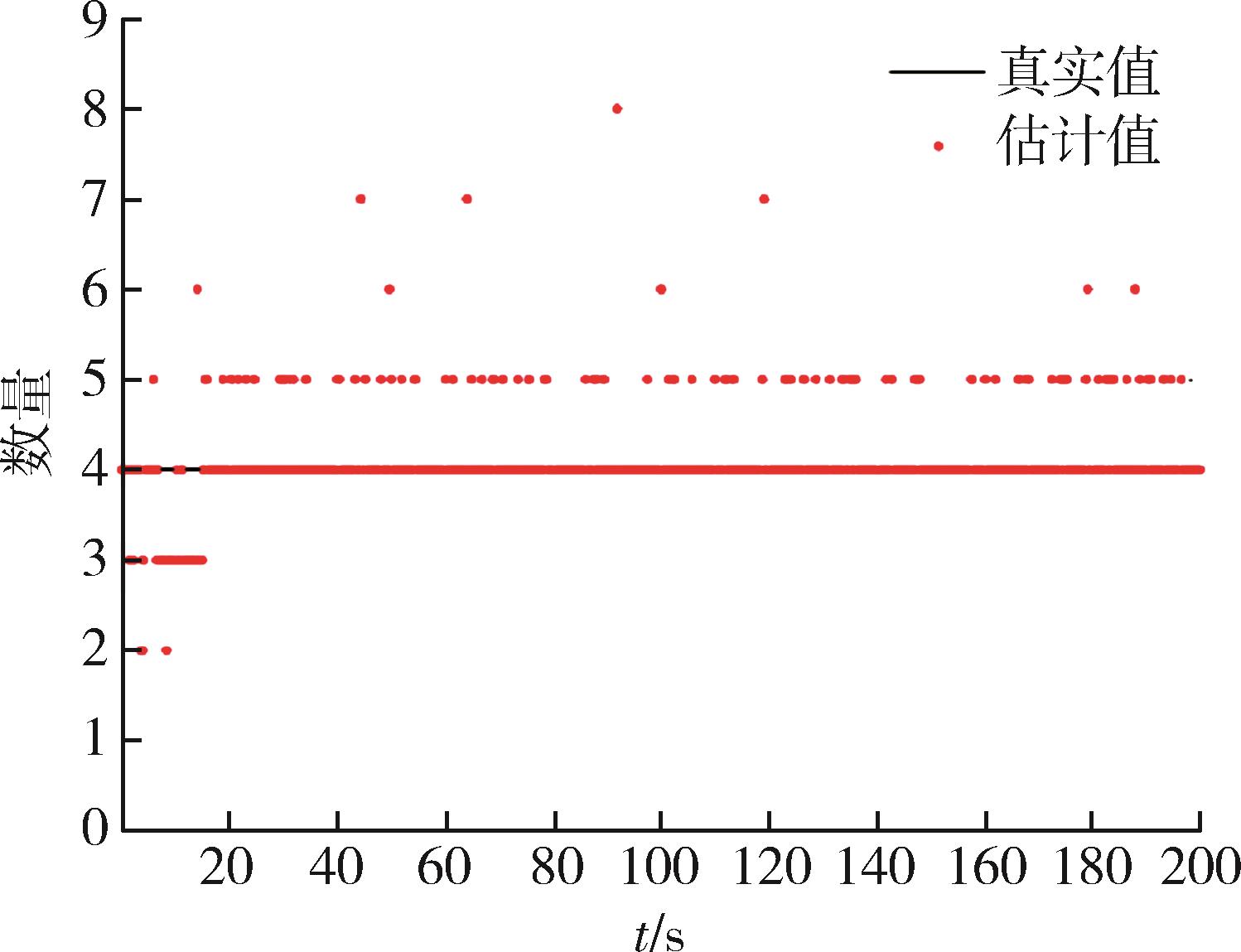

Fig. 9 Multi-target quantity estimation under P（10）

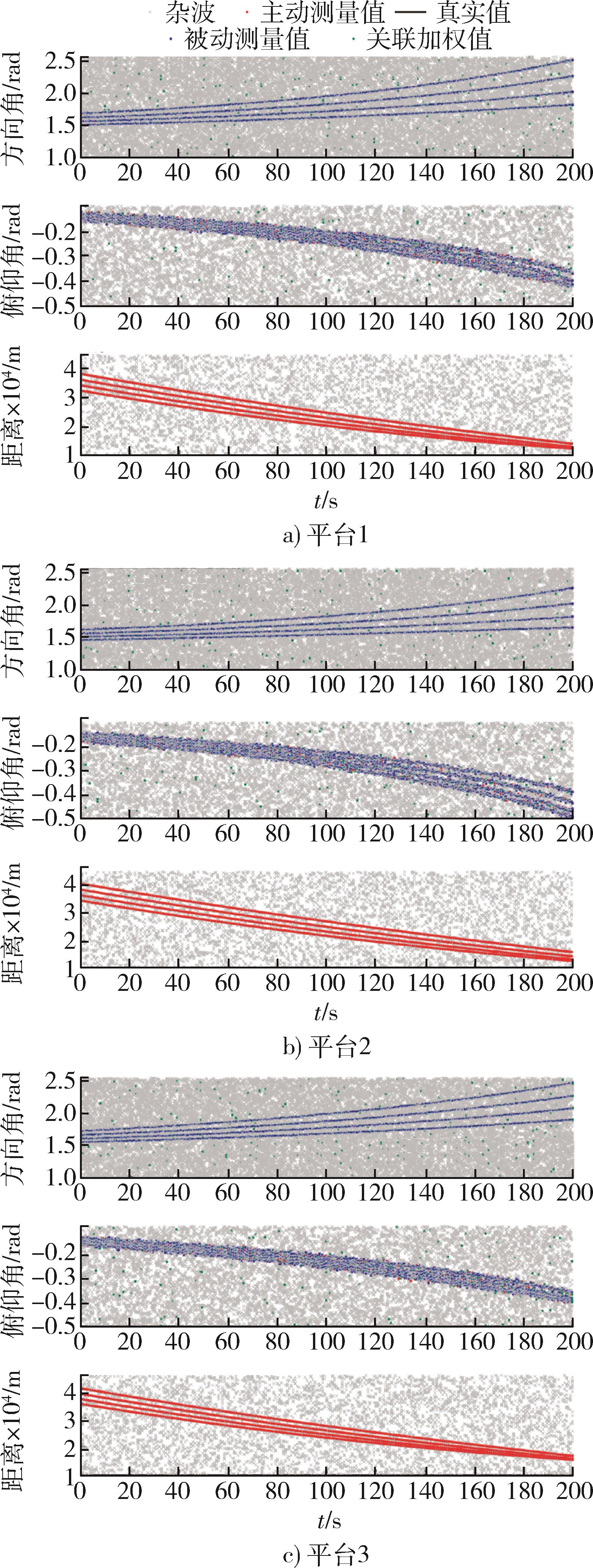

Fig. 10 Detection information under P(40)

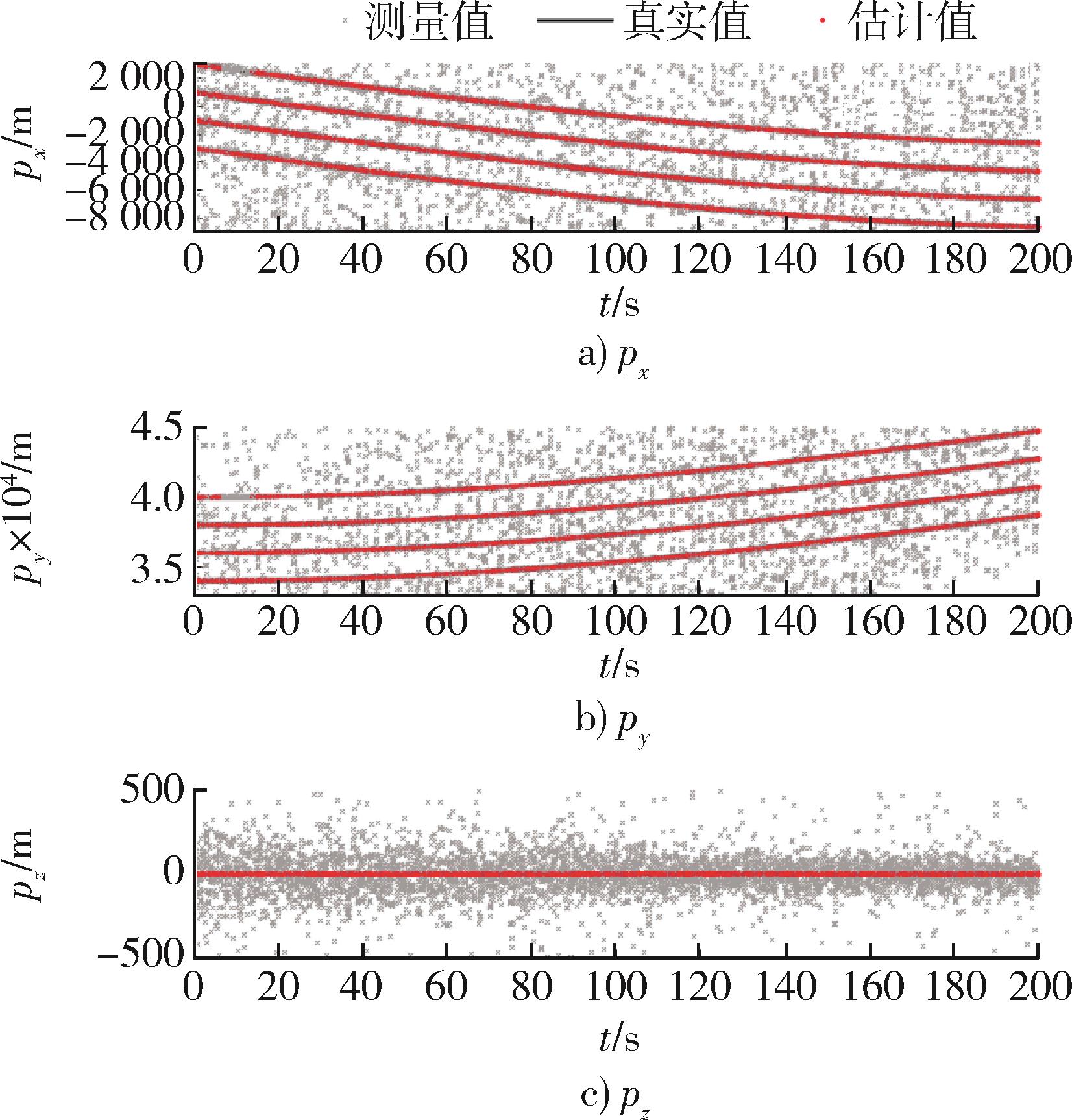

Fig. 11 Multi-target position states estimation under P（40）

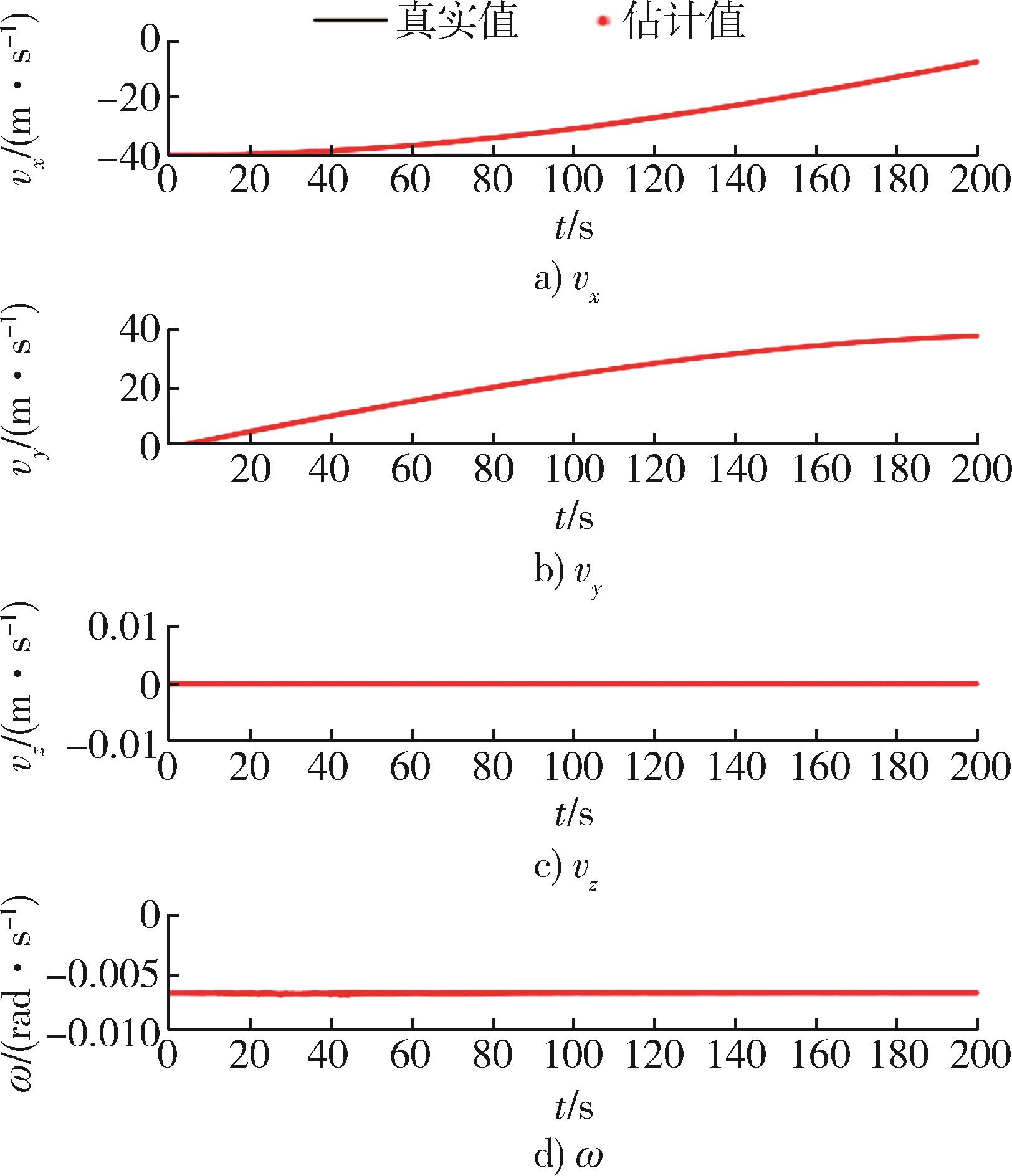

Fig. 12 Multi-target speed states estimation under P（40）

Fig. 13 OSPA under P（40）

Fig. 14 Multi-target quantity estimation under P（40）

Fig. 15 Comparison of OSPA with different algorithms under P（10）

Fig. 16 Comparison of multi-target quantity with different algorithms under P（10）

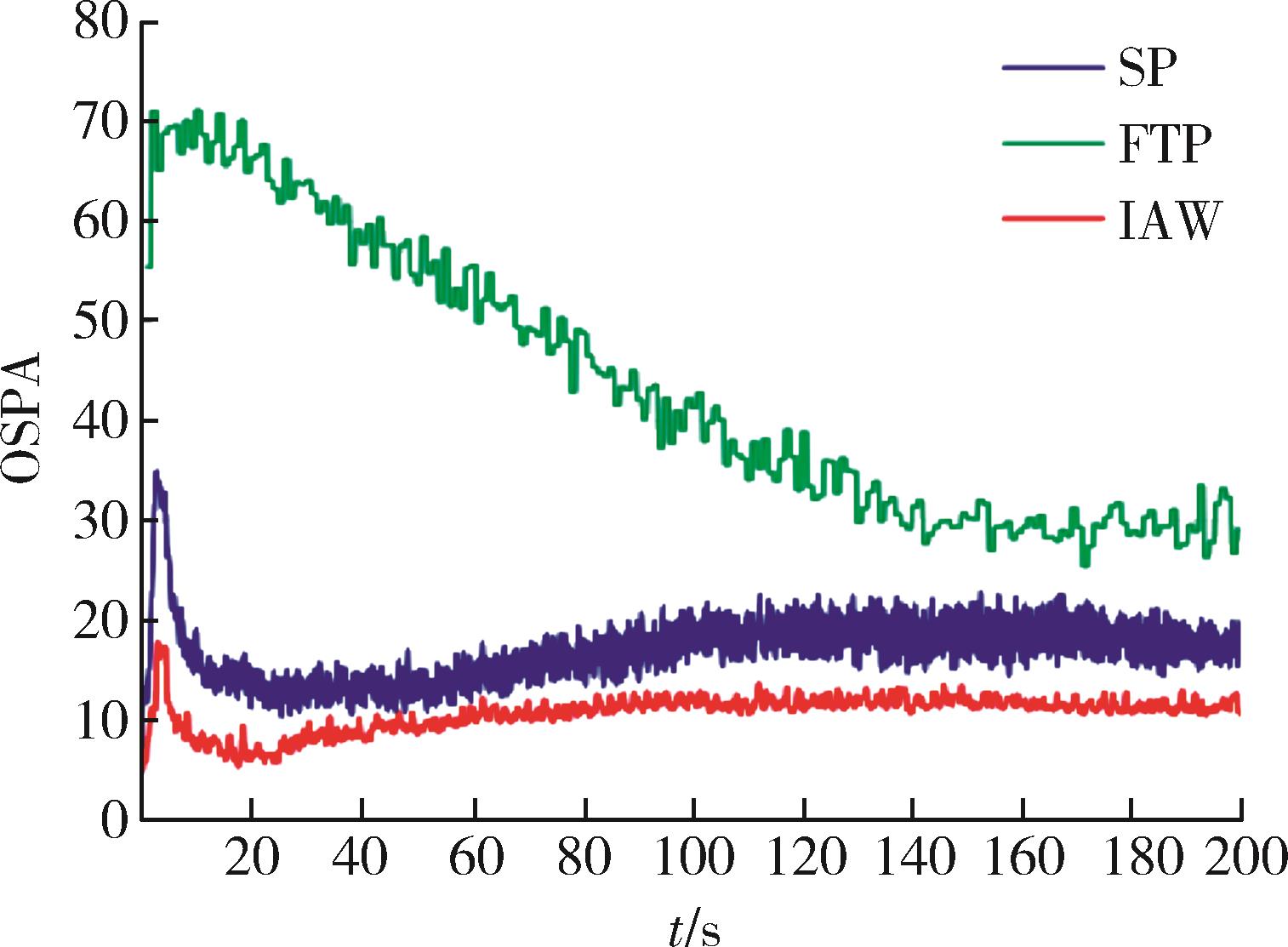

Fig. 17 Comparison of OSPA with different algorithms under P（40）

Fig. 18 Comparison of multi-target quantity with different algorithms under P（40）

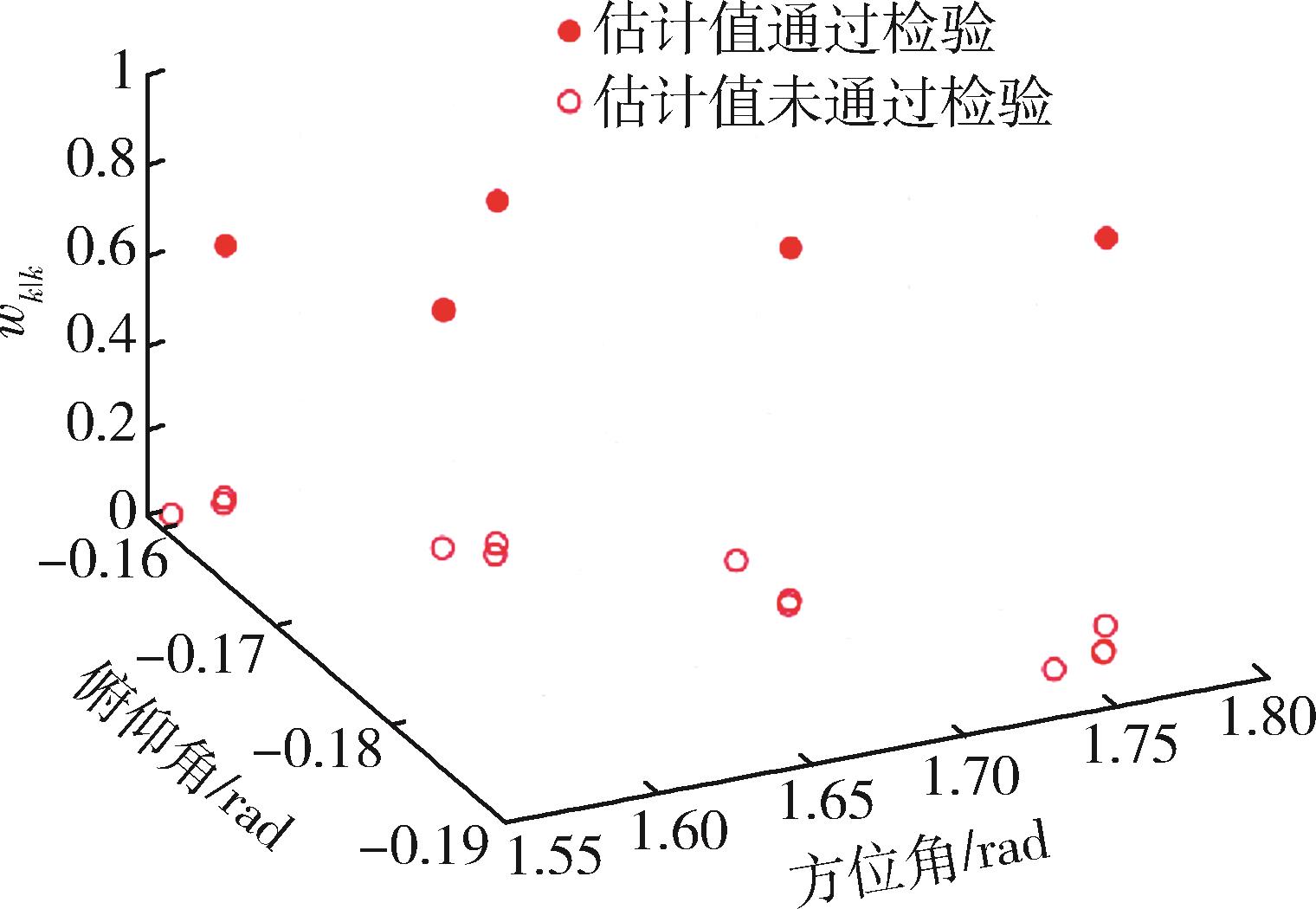

Fig. 19 Correct estimation weight test results

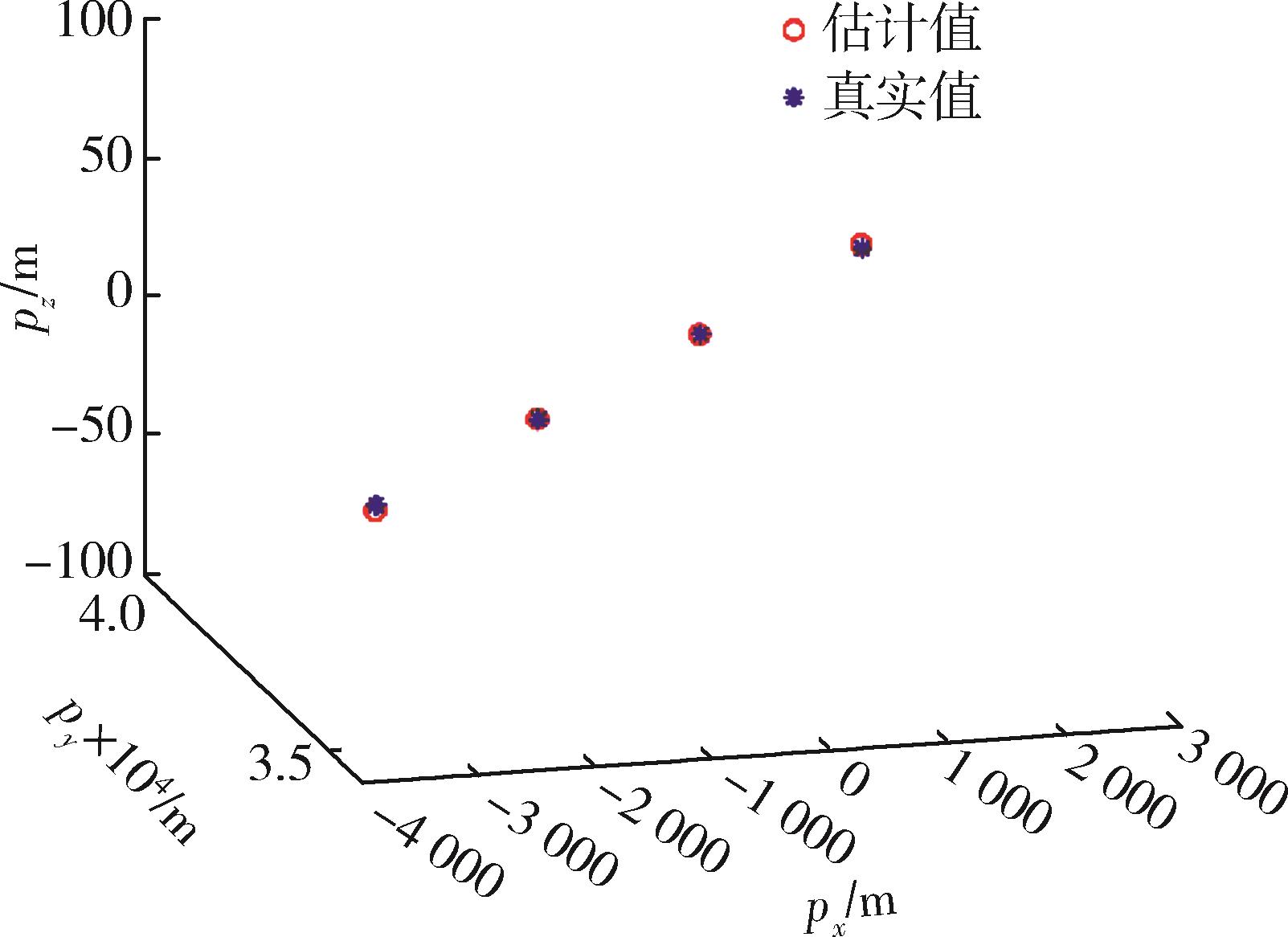

Fig. 20 Comparison between correct estimation target state values and true values

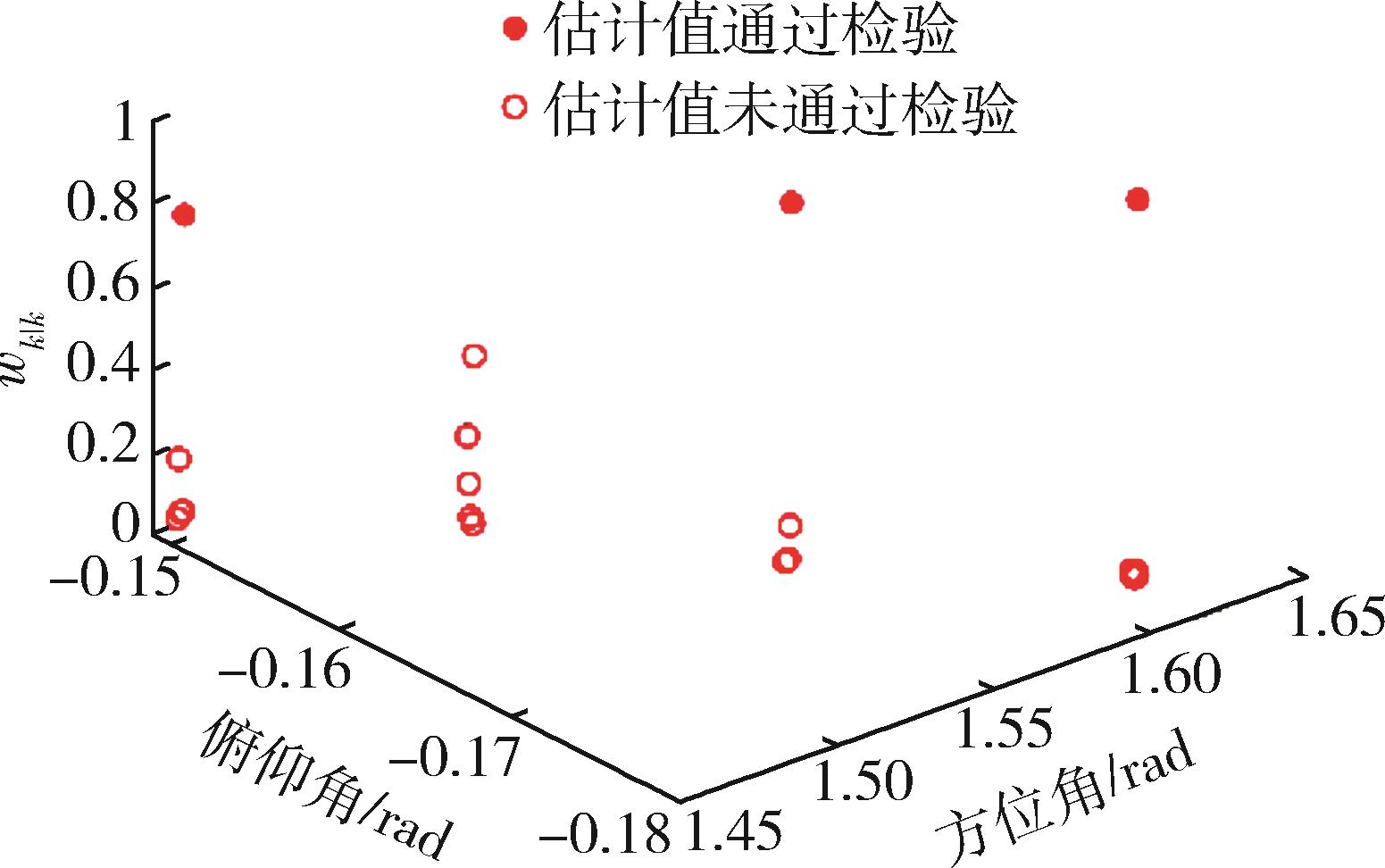

Fig. 21 Conservative failure estimation weight test results

Fig. 22 Comparison between conservative failure estimation target state values and true values

Fig. 23 Conservative loss estimation weight test results

Fig. 24 Comparison between conservative loss estimation target state values and true values

Fig. 25 Excessive error estimation weight test results

Fig. 26 Comparison between excessive error estimation target state values and true values

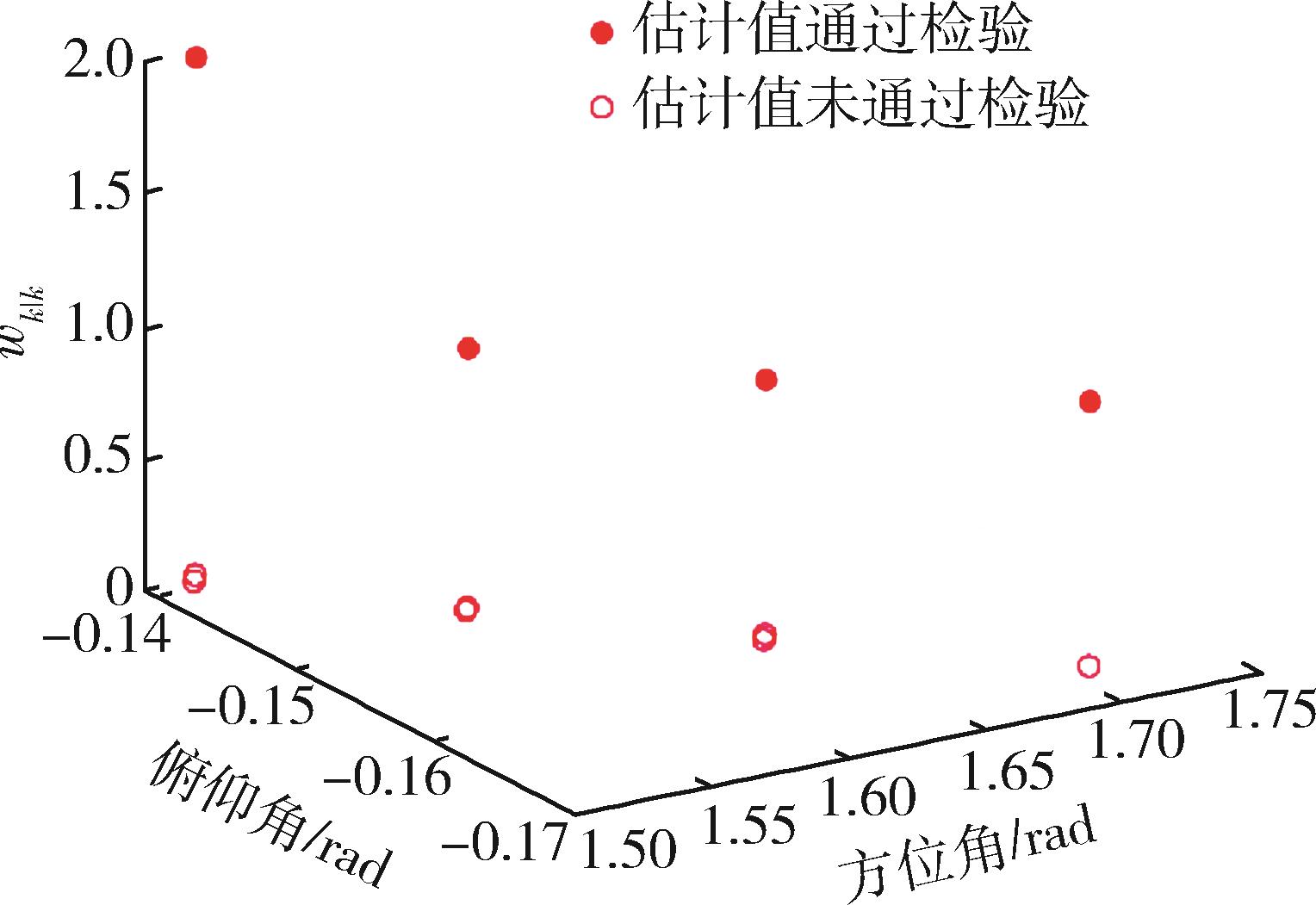

Fig. 27 Excessive repeated estimation weight test results

Fig. 28 Comparison between excessive repeated estimation target state values and true values

Table 1 Computational complexity and time of different algorithms

计算结果	SP	FTP	IAW
计算复杂度	—	O（N²）	N²·O（mn²）
P（0）计算时间/s	145.254 7	40.849 2	153.628 3
P（10）计算时间/s	194.110 0	82.050 9	211.257 7
P（20）计算时间/s	270.940 1	204.400 0	348.798 7
P（40）计算时间/s	421.762 9	632.969 2	960.758 4
