Estimation Method of Future Point of Unpowered Glide Targets

doi:10.3969/j.issn.1009-086x.2025.03.019

Abstract

Abstract:

With the development of ammunition intelligence， the unpowered glide munitions represented by JDAM are widely used in modern warfare. Accurately predicting the future trajectory of such targets is the key problem of modern air defense fire control solution. In this paper， a method of future point prediction for unpowered glide targets based on attitude solution is proposed. Kalman filter is used to estimate the position， velocity and acceleration of the target present point. The target attitude coordinate system is established according to the state information of the target， and the state transition matrix is updated based on the force analysis under the attitude coordinate system. The state transition matrix is used to predict the future position of the target point. The experimental results show that compared with the traditional method， the accuracy of the proposed method is improved by 29%-63%.

Key words: guided bombs, extended Kalman filter, maneuvering target prediction, fire control calculation, attitude coordinate system, future point prediction

摘要：

随着弹药智能化的发展，以JDAM为代表的无动力滑翔类弹药被广泛应用于现代战争中，准确预测该类目标的未来轨迹，是现代防空火控解算的关键问题。提出了一种基于姿态解算的无动力滑翔类目标未来点预测方法。利用卡尔曼滤波估计目标现在点的位置、速度及加速度等信息；结合目标状态信息建立目标姿态坐标系，并基于姿态坐标系下的受力分析更新状态转移矩阵；利用状态转移矩阵的逐步迭代预测目标未来点位置。实验结果表明，相较于传统方法，该方法对目标未来点预测的精度提高了29%~63%。

关键词: 制导炸弹, 扩展卡尔曼滤波, 机动预测, 火控解算, 姿态坐标系, 未来点预测

CLC Number:

E926.4

Shoufeng WANG. Estimation Method of Future Point of Unpowered Glide Targets[J]. Modern Defense Technology, 2025, 53(3): 167-173.

王守峰. 无动力滑翔类目标未来点估计方法[J]. 现代防御技术, 2025, 53(3): 167-173.

Figures/Tables 12

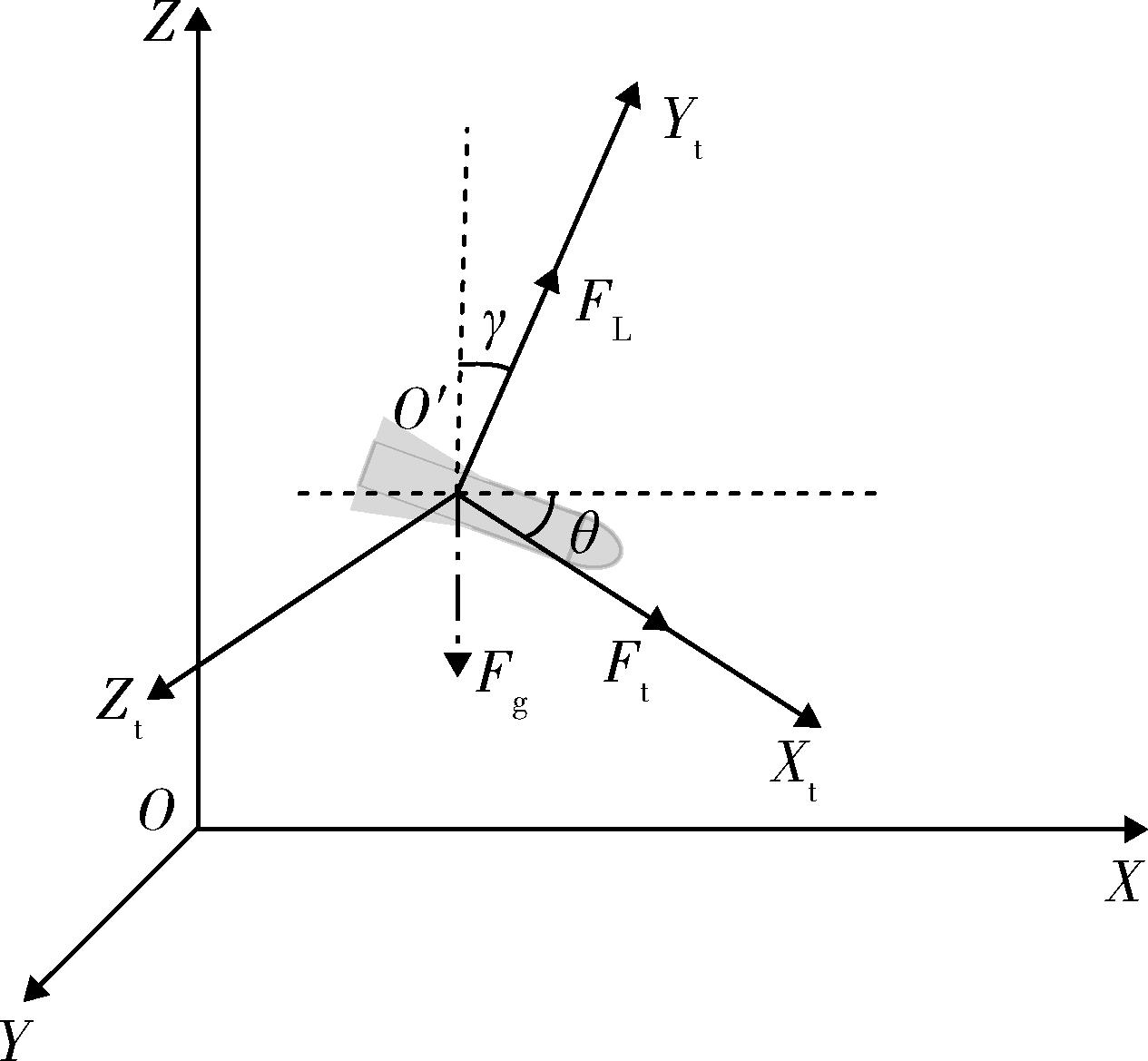

Fig. 1 Target attitude coordinate system diagram

Table 1 Simulated route parameter settings

参数类型	航路1	航路2
目标类型	JDAM	火箭弹
起始高度/km	12	1
起始距离/km	10	9
初始速度/（m·s^-1）	280	840
仿真时间/s	64.4	12.5

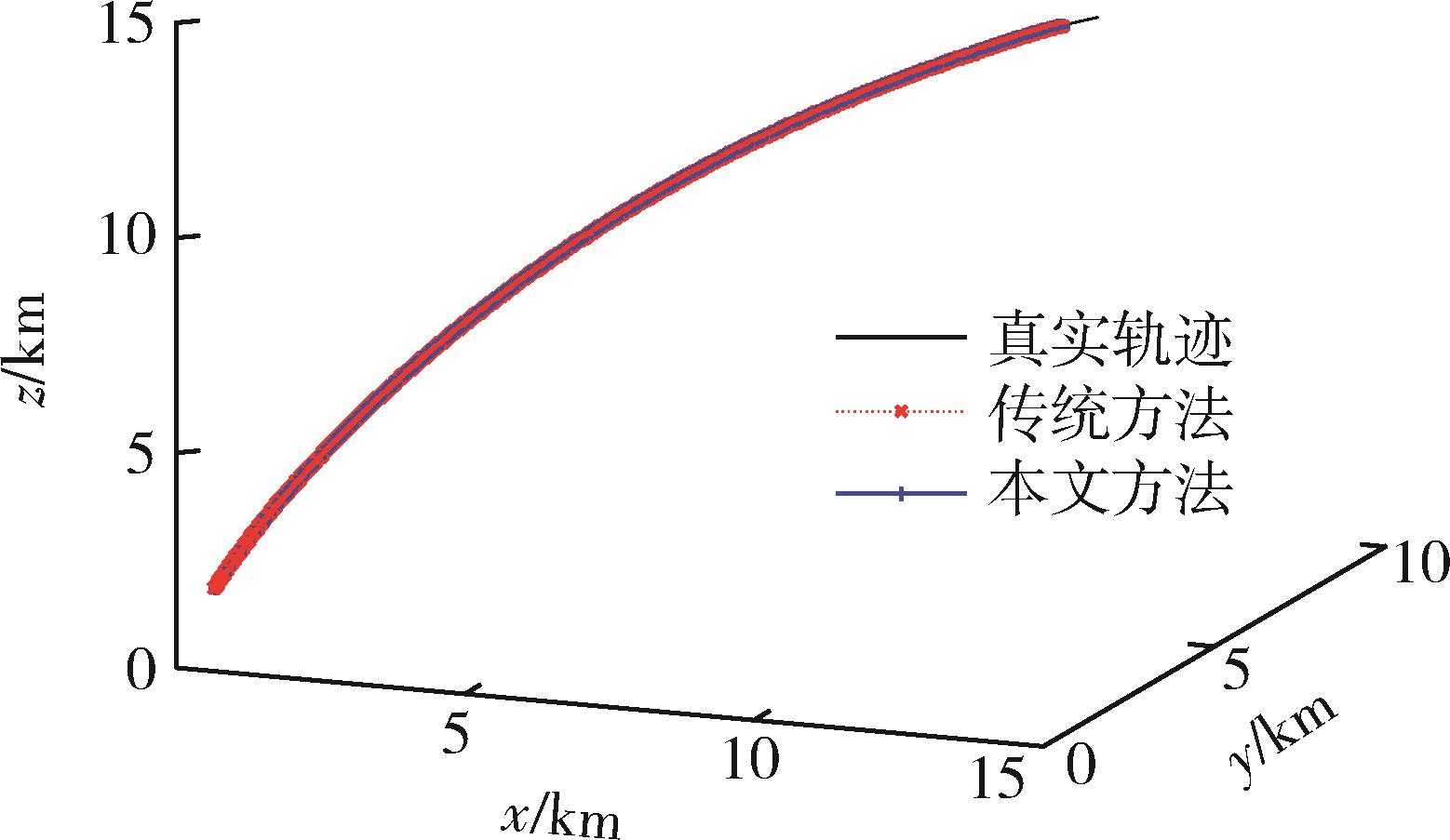

Fig. 2 Target route 1 and forecast result chart

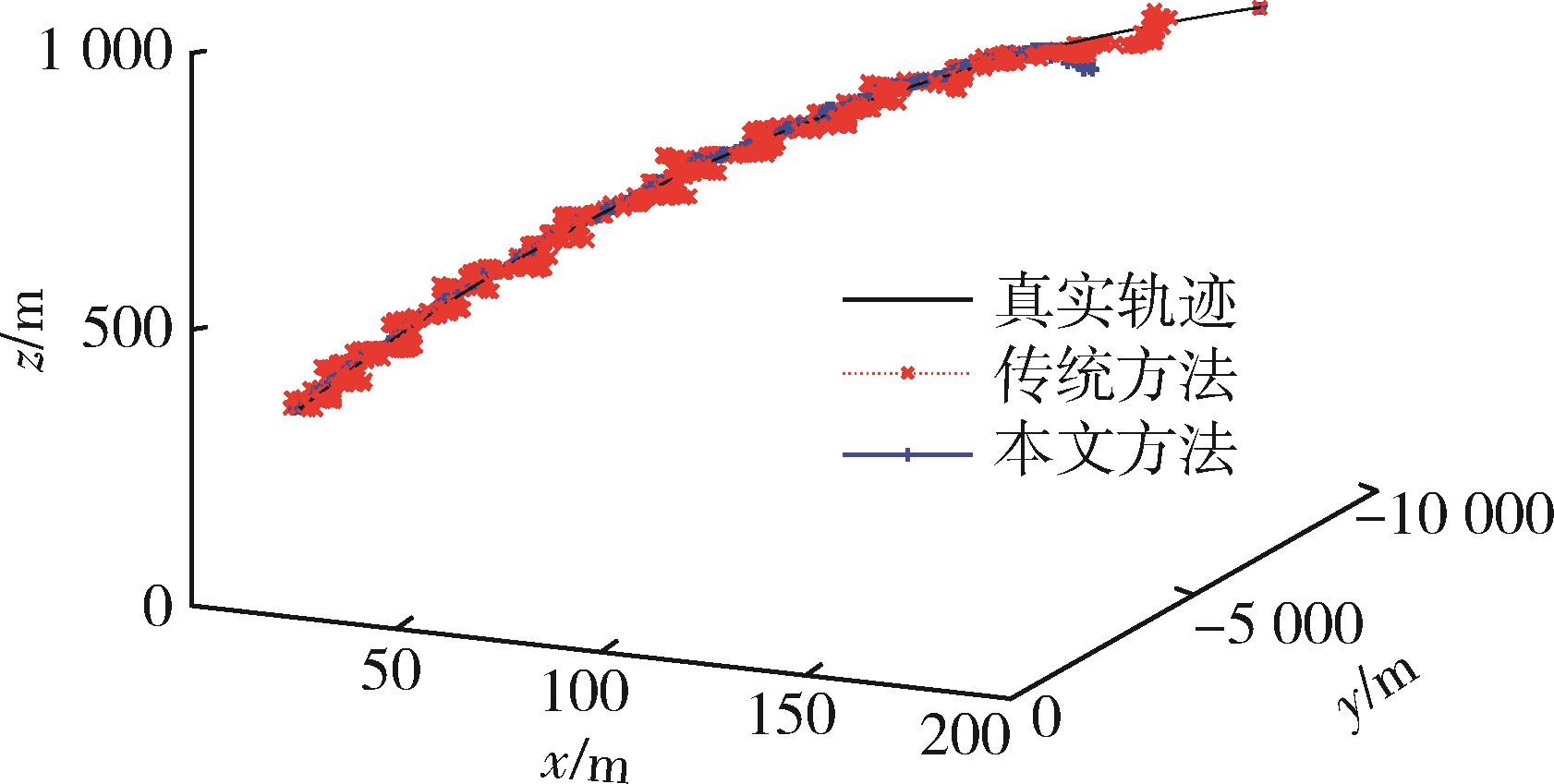

Fig. 3 Target route 2 and forecast result chart

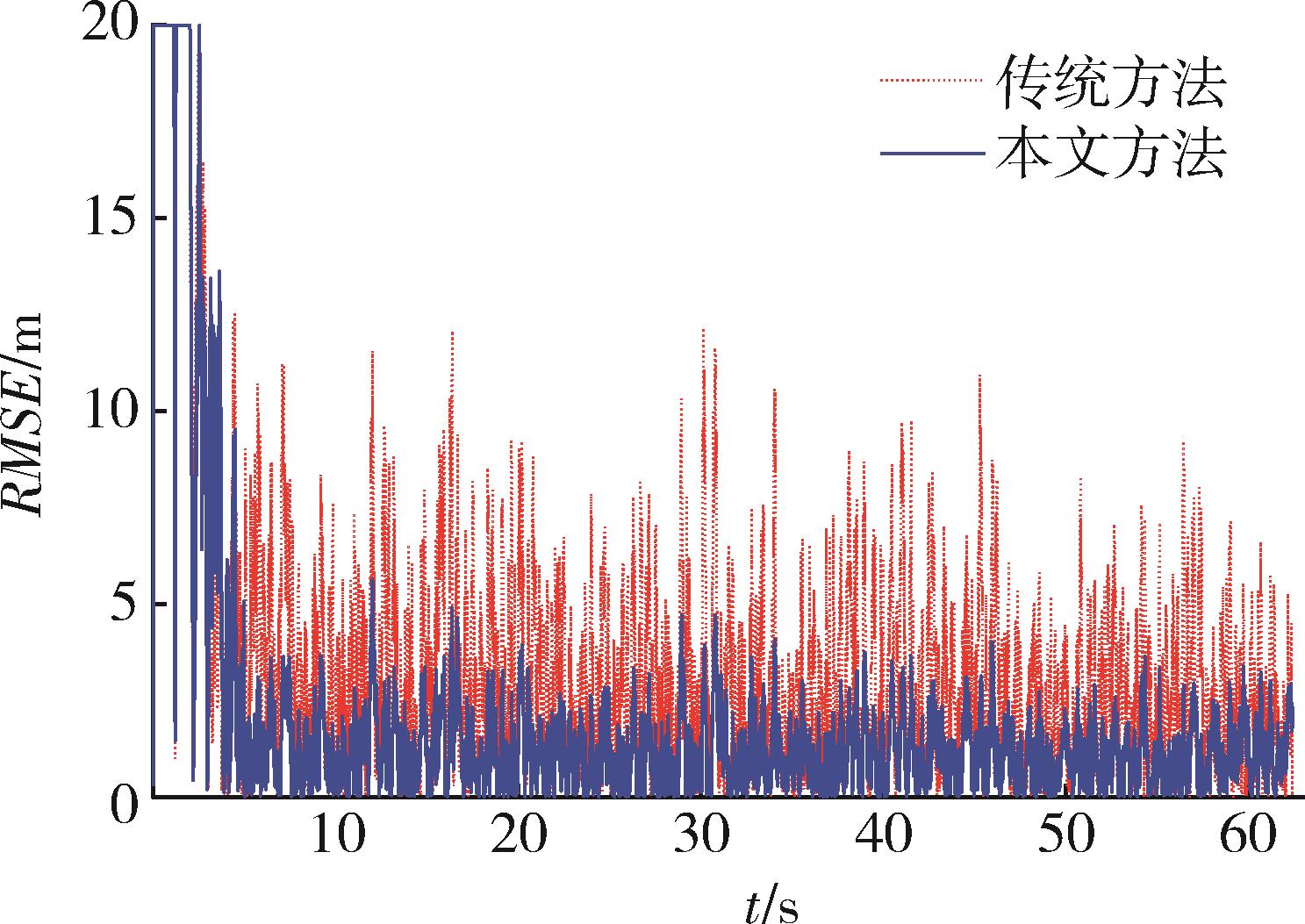

Fig. 4 RMSE value in the X- direction for target route 1

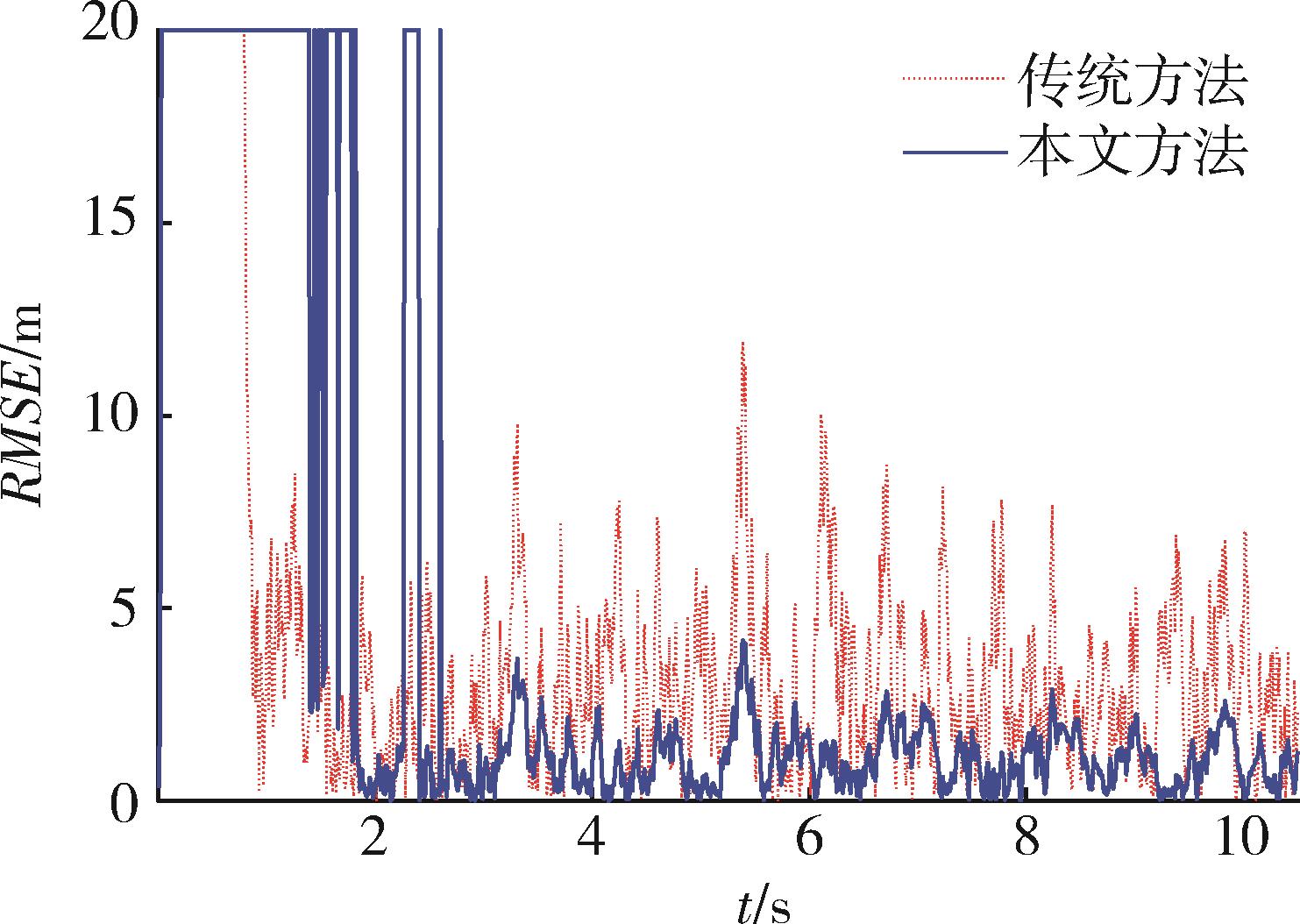

Fig. 5 RMSE value in the X- direction for target route 2

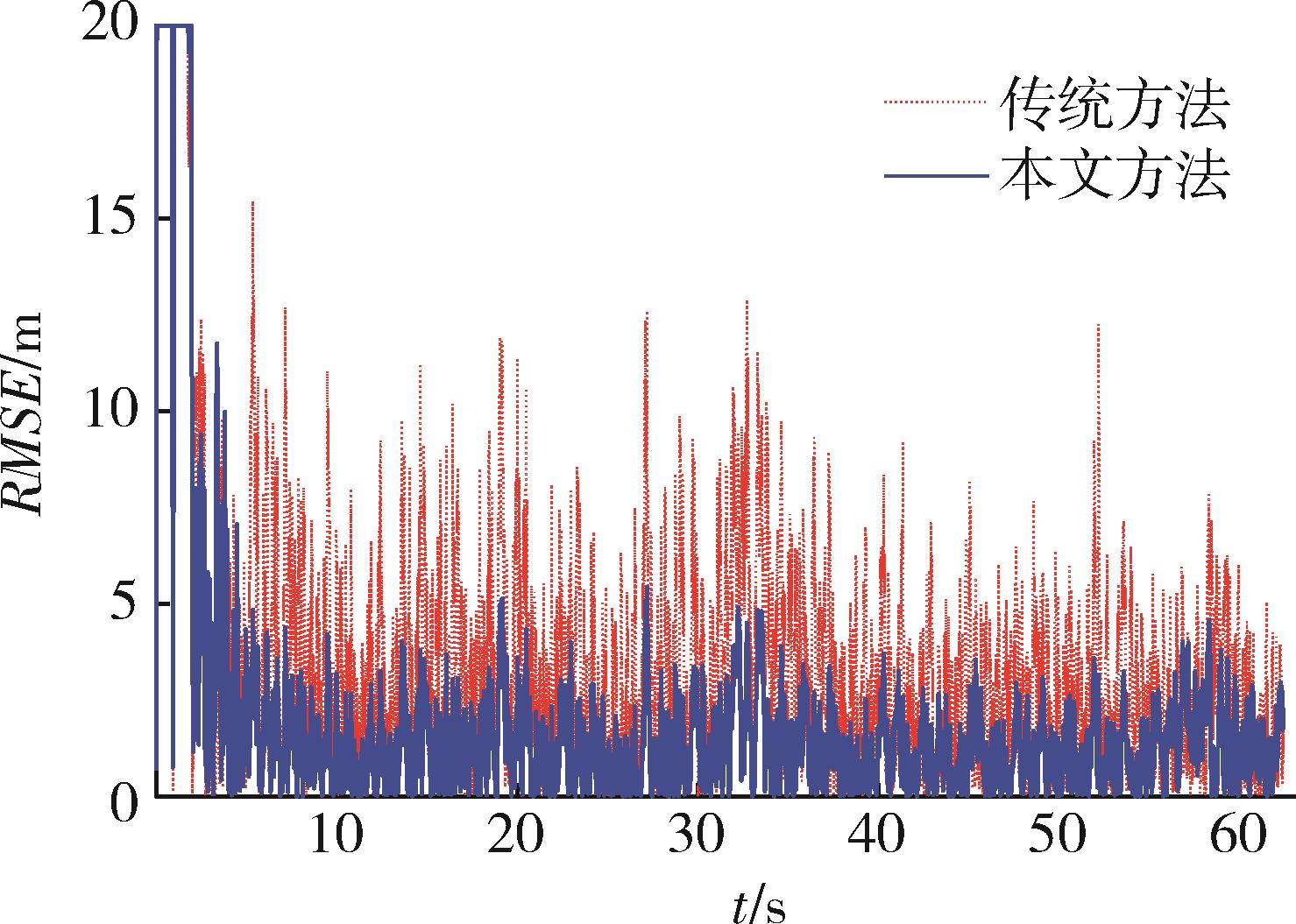

Fig. 6 RMSE value in the Y- direction for target route 1

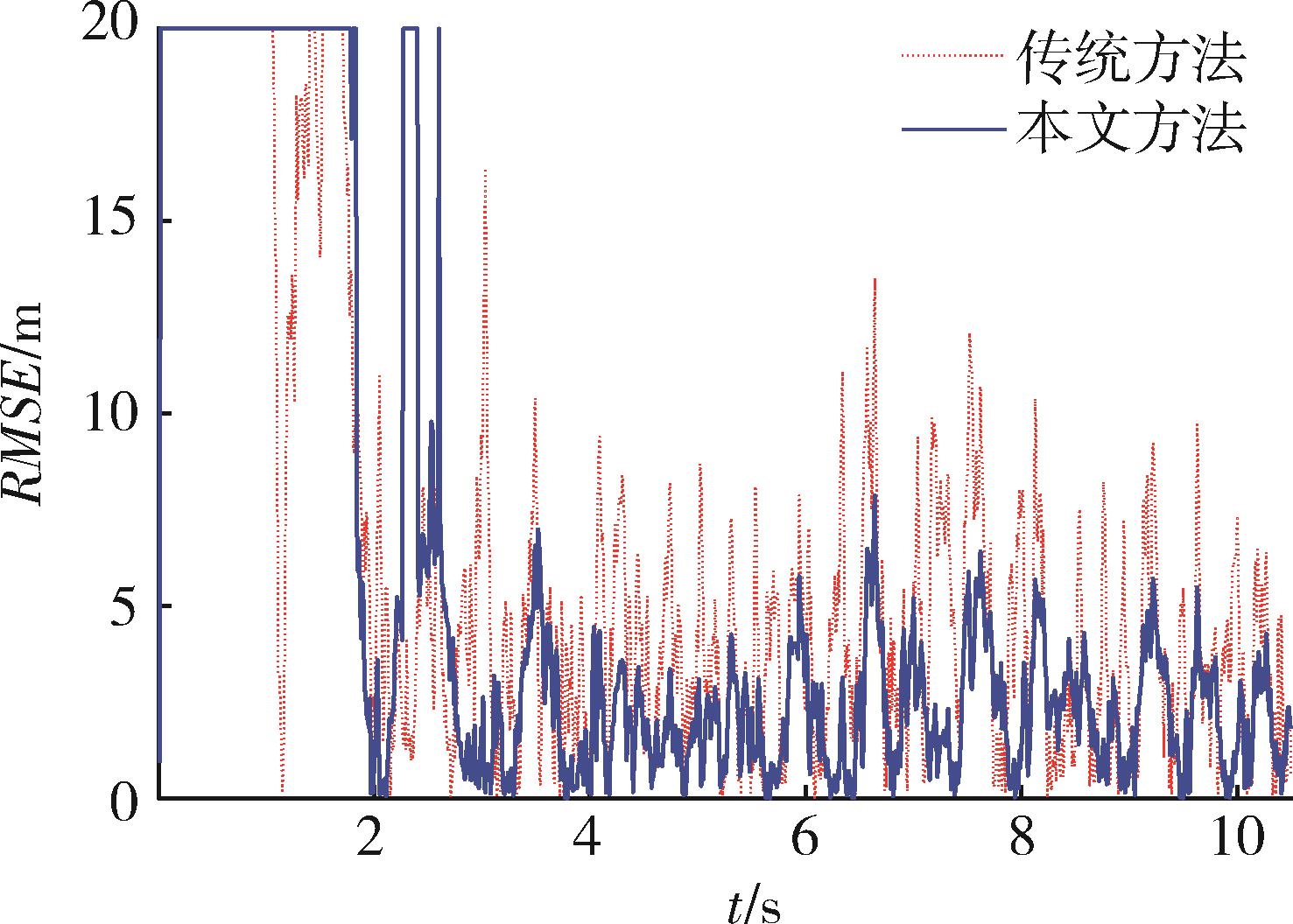

Fig. 7 RMSE value in the Y- direction for target route 2

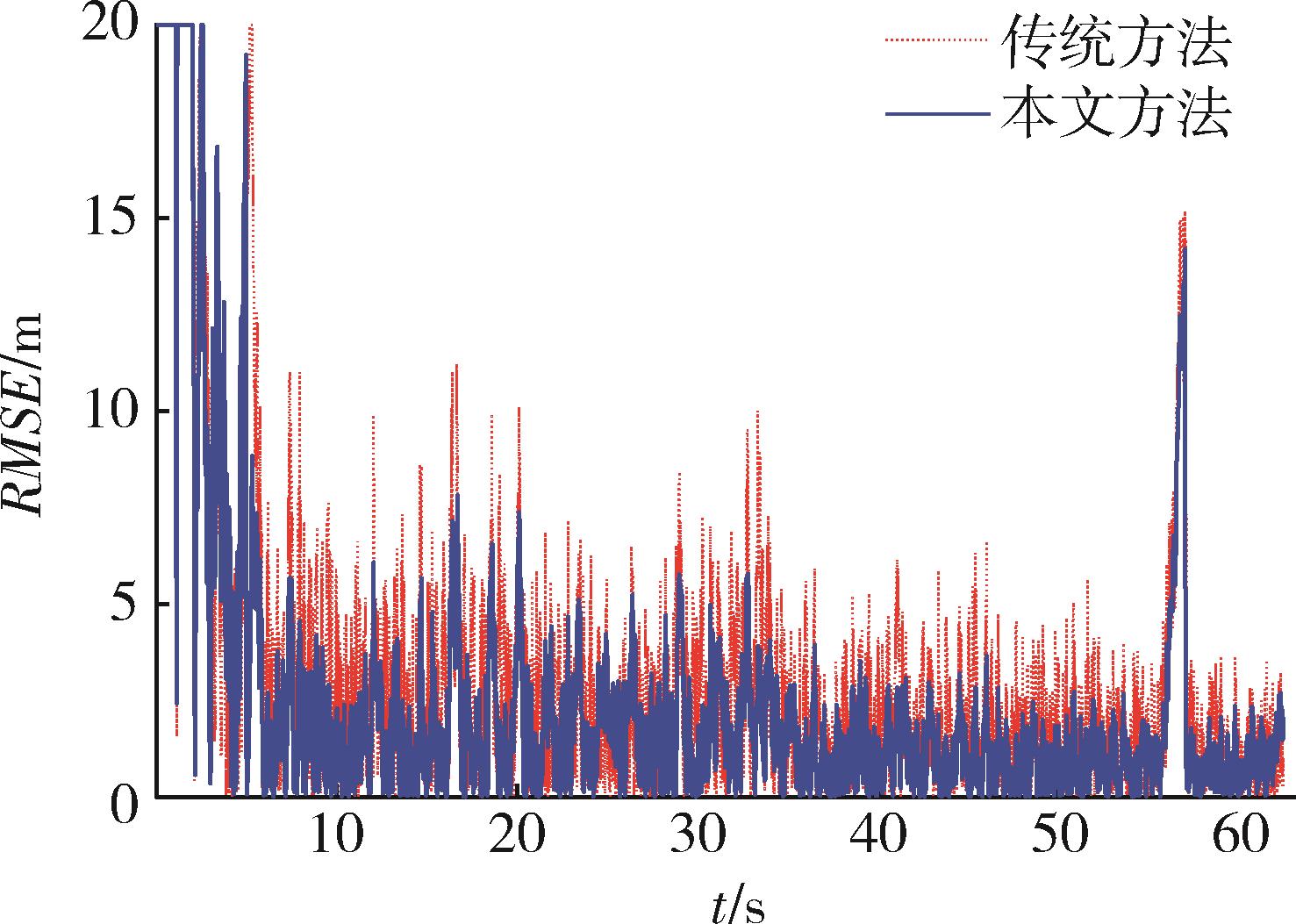

Fig. 8 RMSE value in the Z- direction for target route 1

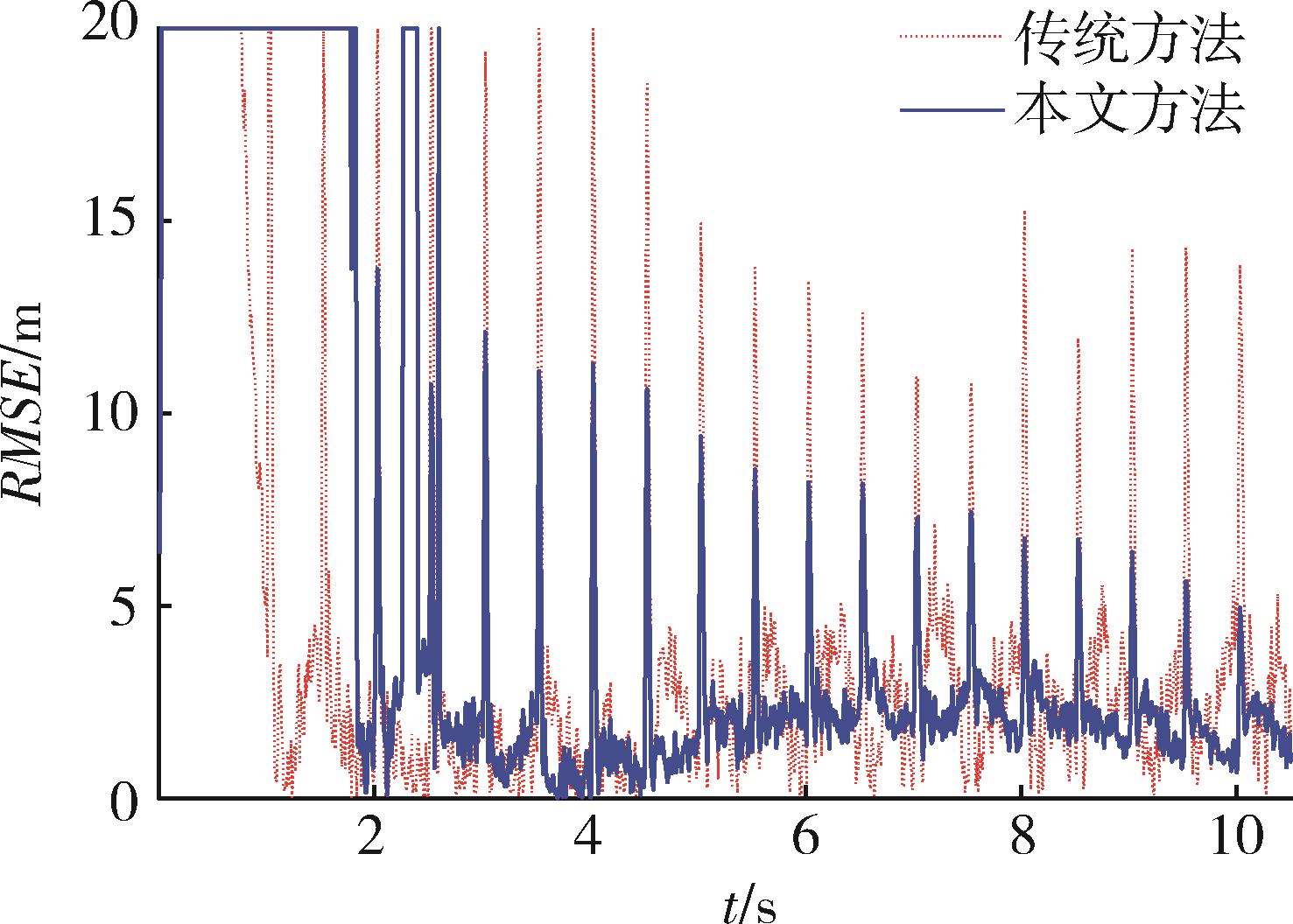

Fig. 9 RMSE value in the Z- direction for target route 2

Table 2 The TRMSE of position for target route 1

方法类	X	Y	Z
传统方法	3.904	3.726	3.408
本文方法	2.305	2.168	2.757

Table 3 The TRMSE of position for target route 2

方法类	X	Y	Z
传统方法	2.162	2.184	2.778
本文方法	1.537	0.803	1.573

References 17

1	朱豪坤，鱼小军，罗艳伟，等. 2021年国外航空炸弹发展综述［J］. 航空兵器， 2022， 29（5）： 21-27.
	ZHU Haokun， YU Xiaojun， LUO Yanwei， et al. Summary of the Development of Foreign Aerial Bomb in 2021［J］. Aero Weaponry， 2022， 29（5）： 21-27.
2	徐国亮，王勇. 舰炮反导火控原理［M］. 北京：北京理工大学出版社， 2018.
	XU Guoliang， WANG Yong. Principles of Naval Gun Anti Missile Fire Control［M］. Beijing： Beijing Institute of Technology Press， 2018.
3	JULIER S J， UHLMANN J K. Unscented Filtering and Nonlinear Estimation［J］. Proceedings of the IEEE， 2004， 92（3）： 401-422.
4	张恒，高敏，徐超. 改进的强跟踪容积卡尔曼滤波的机动目标跟踪［J］. 现代防御技术， 2015， 43（6）： 142-147， 152.
	ZHANG Heng， GAO Min， XU Chao. Maneuvering Target Tracking Algorithm Based on Improved Strong Tracking Cubature Kalman Filters［J］. Modern Defence Technology， 2015， 43（6）： 142-147， 152.
5	孙照强，魏巍，王志贵，等. 弹道目标跟踪滤波方法研究［J］. 现代防御技术， 2022， 50（1）： 67-73.
	SUN Zhaoqiang， WEI Wei， WANG Zhigui， et al. Research on Tracking and Filtering Method of Ballistic Target［J］. Modern Defence Technology， 2022， 50（1）： 67-73.
6	AIDALA V J. Kalman Filter Behavior in Bearings-Only Tracking Applications［J］. IEEE Transactions on Aerospace and Electronic Systems， 1979， AES-15（1）： 29-39.
7	SHAHAM S， KOKSHOORN M， DING Ming， et al. Extended Kalman Filter Beam Tracking for Millimeter Wave Vehicular Communications［C］∥2020 IEEE International Conference on Communications Workshops （ICC Workshops）. Piscataway： IEEE， 2020： 1-6.
8	KULIKOV G Y， KULIKOVA M V. The Accurate Continuous-Discrete Extended Kalman Filter for Radar Tracking［J］. IEEE Transactions on Signal Processing， 2016， 64（4）： 948-958.
9	JIA Shuyi， ZHANG Yun， WANG Guohong. Highly Maneuvering Target Tracking Using Multi-parameter Fusion Singer Model［J］. Journal of Systems Engineering and Electronics， 2017， 28（5）： 841-850.
10	周宏仁，敬忠良，王培德. 机动目标跟踪［M］. 北京：国防工业出版社， 1991.
	ZHOU Hongren， JING Zhongliang， WANG Peide. Tracking of Maneuvering Targets［M］. Beijing： National Defense Industry Press， 1991.
11	李君龙，周荻，王冠，等. 临近空间目标跟踪与预报技术研究［J］. 现代防御技术， 2021， 49（3）： 1-12， 29.
	LI Junlong， ZHOU Di， WANG Guan， et al. Research on Tracking and Prediction Technology of Near Space Target［J］. Modern Defence Technology， 2021， 49（3）： 1-12， 29.
12	GUO Qiang， TENG Long. Maneuvering Target Tracking with Multi-model Based on the Adaptive Structure［J］. IEEJ Transactions on Electrical and Electronic Engineering， 2022， 17（6）： 865-871.
13	MAZOR E， AVERBUCH A， BAR-SHALOM Y， et al. Interacting Multiple Model Methods in Target Tracking： a Survey［J］. IEEE Transactions on Aerospace and Electronic Systems， 1998， 34（1）： 103-123.
14	ZHANG Wanying， YANG Feng， LIANG Yan. Robust Multi-target Tracking Under Mismatches in Both Dynamic and Measurement Models［J］. Aerospace Science and Technology， 2019， 86： 748-761.
15	王超尘，吴盘龙，薄煜明，等. 一种基于自适应去偏转换滤波的机动目标跟踪［J］. 中国惯性技术学报， 2017， 25（1）： 136-140.
	WANG Chaochen， WU Panlong， BO Yuming， et al. Maneuvering Target Tracking with Adaptive Debiased Converted Measurement Filter［J］. Journal of Chinese Inertial Technology， 2017， 25（1）： 136-140.
16	李丘. 仿杰达姆型制导航空炸弹制导控制律设计及数学仿真［D］. 长沙：国防科学技术大学， 2016.
	LI Qiu. Guidance and Control Law Design and Mathematical Simulation for the Imitation of GBU-38［D］. Changsha： National University of Defense Technology， 2016.
17	吕帅，王金柱，仲伟君，等. 某型制导火箭弹弹道仿真［J］. 国外电子测量技术， 2011， 30（12）： 69-71.
	Shuai LÜ， WANG Jinzhu， ZHONG Weijun， et al. Trajectory Simulation for Guided Rocket［J］. Foreign Electronic Measurement Technology， 2011， 30（12）： 69-71.
