Simulation Study on Optimization Method of Design Parameters for Transwave Stealth Wing Skin

doi:10.3969/j.issn.1009-086x.2022.02.007

Abstract

Abstract:

In order to obtain good aerodynamic and stealth performance at the same time， based on the principle of combining shape stealth technology with material stealth technology， a design scheme of wing skin based on wave transmission is proposed. In order to balance the relationship between the lift force and the electromagnetic stealth performance of the wave transmitting wing， a surrogate model based strategy is adopted to optimize the geometric parameters of the wave transmitting wing. The results show that after optimization， the transonic wing can maintain good RCS （radar cross section） reduction characteristics in frequency domain and spatial domain and have enough lift conditions. The proposed proxy model has high accuracy， and can be used as an effective means to balance interdisciplinary problems in engineering.

Key words: wave transparent wing, stealth, radar cross section （RCS）, lift force, surrogate model, optimization

摘要：

为同时获得良好的气动和隐身性能，基于外形隐身技术与材料隐身技术相结合的原理，提出了一种以透波为主的机翼蒙皮设计方案；为平衡透波机翼升力与机翼电磁隐身性能之间的关系，采用一种基于代理模型的策略，对透波机翼外形几何特征参数进行了优化设计。研究结果表明，经过优化后，透波机翼在频域、空域范围内保持良好的雷达散射截面（RCS）减缩特性的同时可具备足够的升力条件。所提出的代理模型精准度高，在工程上平衡跨学科领域问题时，可作为一种有效手段。

关键词: 透波机翼, 隐身, 雷达散射截面（RCS）, 升力, 代理模型, 优化

CLC Number:

V218

Tian-li YU, Wen-feng DONG, Wen-jian LIU, Ya FAN. Simulation Study on Optimization Method of Design Parameters for Transwave Stealth Wing Skin[J]. Modern Defense Technology, 2022, 50(2): 45-52.

于天立, 董文锋, 刘文俭, 范亚. 透波隐身机翼蒙皮设计参数优化方法仿真研究[J]. 现代防御技术, 2022, 50(2): 45-52.

Figures/Tables 14

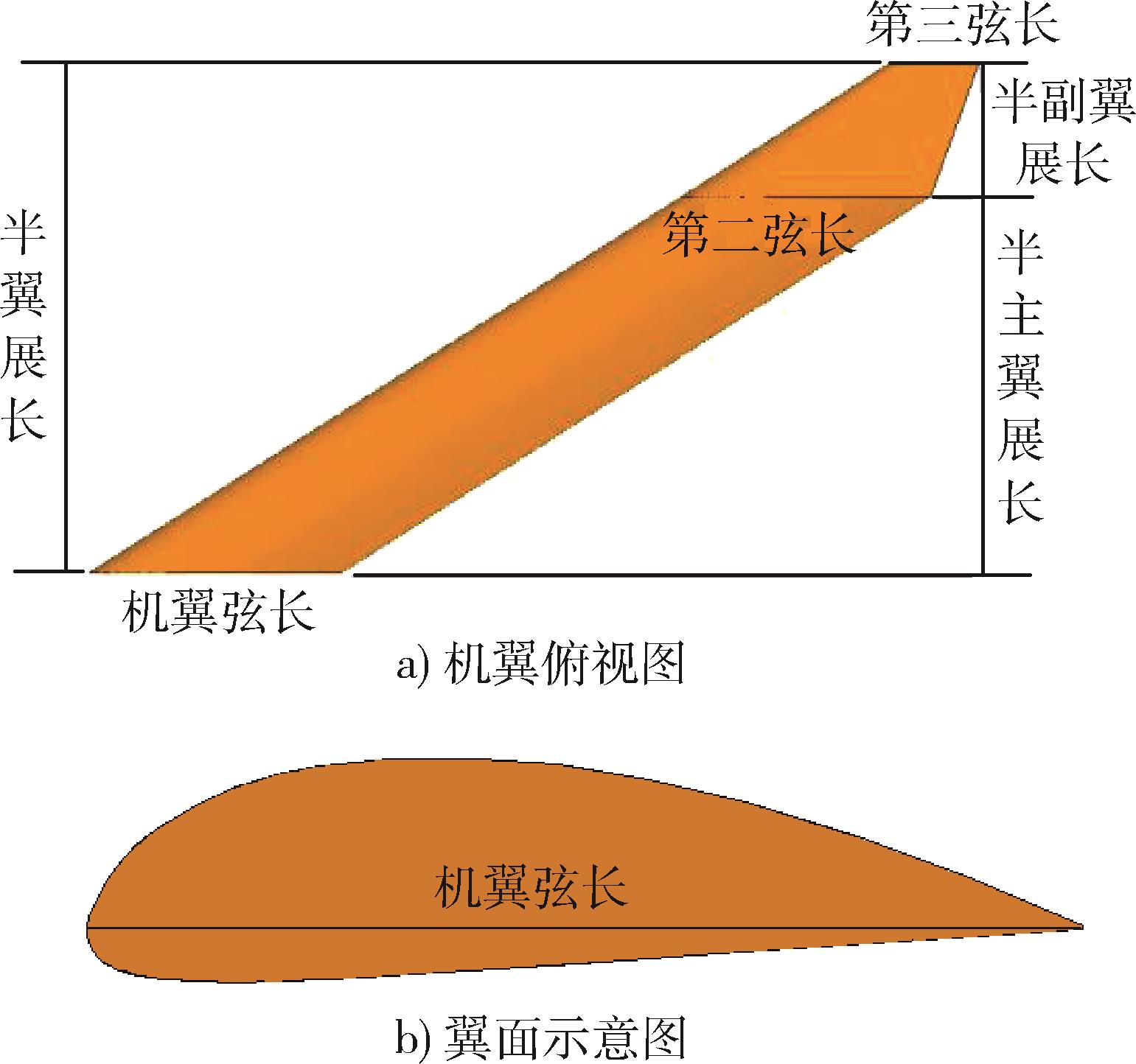

Fig.1 Wing diagram

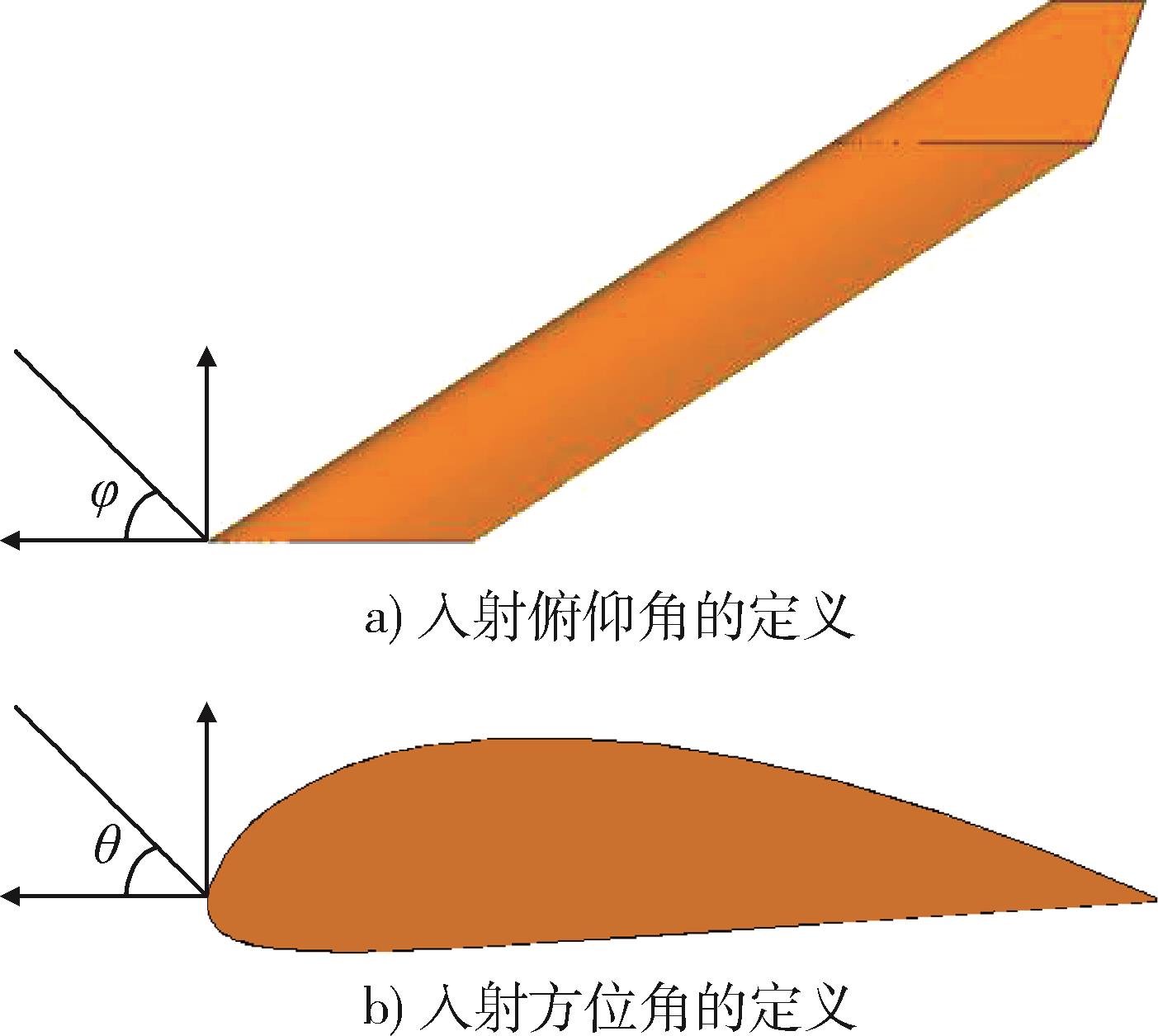

Fig.2 Schematic diagram of incidence angle

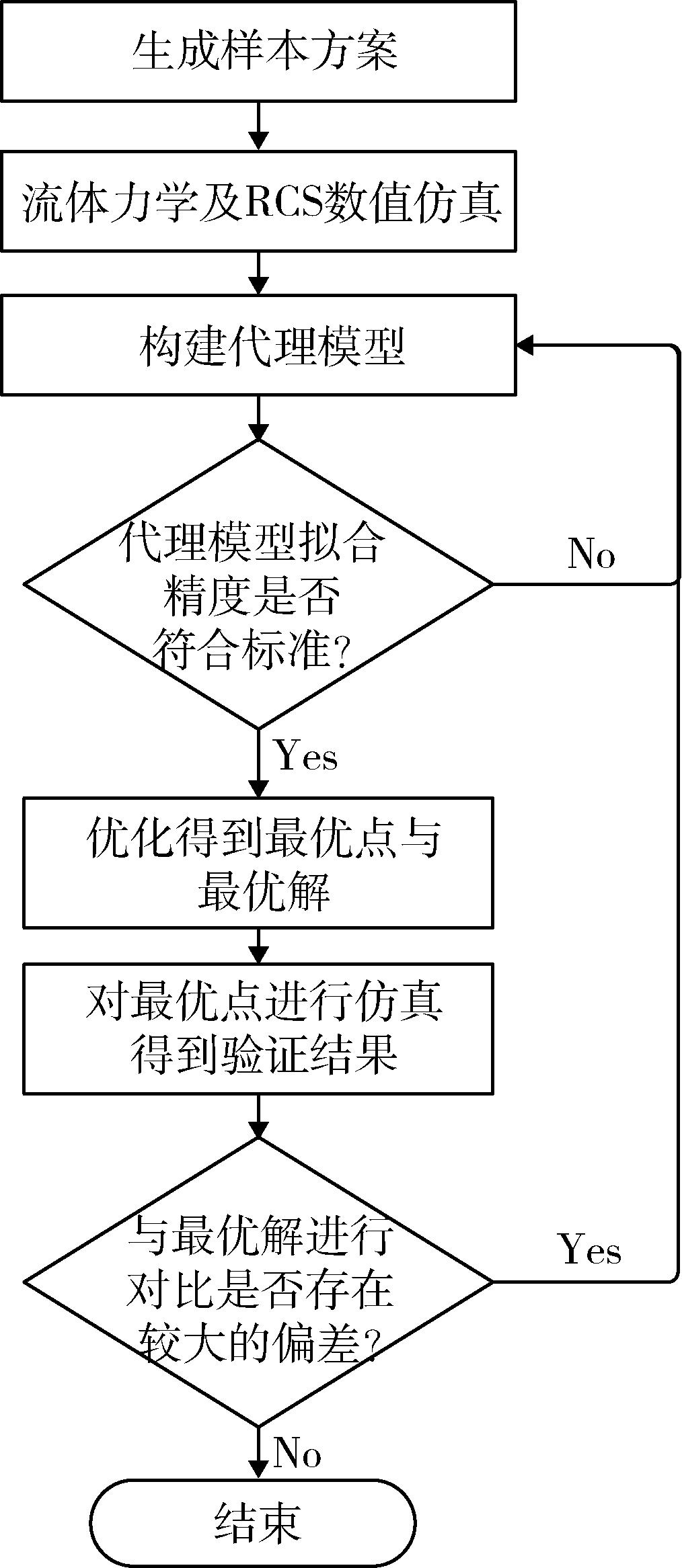

Fig.3 Flow chart of geometric parameter optimization method for wave transparent wing based on surrogate model

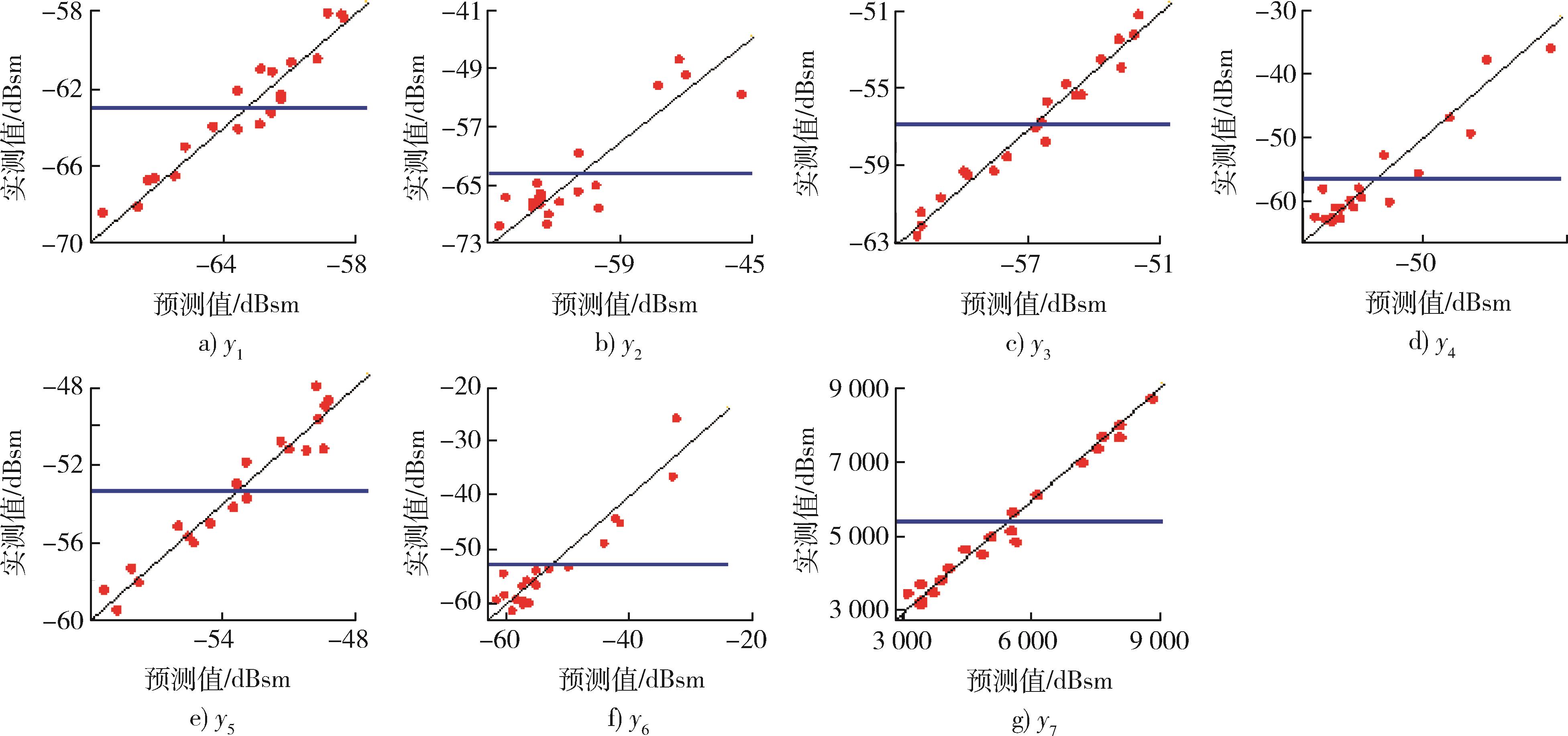

Fig.4 Linear regression relationship between the predicted value of surrogate model and the measured value of sample scheme

Table1 Root mean square error analysis after normalization

目标变量	y₁	y₂	y₃	y₄	y₅	y₆	y₇
L	0.086 3	0.144 6	0.053 8	0.104 7	0.073 2	0.085 6	0.047 8

Table2 Values of variables after optimization

设计变量	x₁/m	x₂/m	x₃/m	x₄/m	x₅/m	x₆/（°）
优化后取值	0.834 4	0.819 8	0.291 9	1.249 4	0.438 2	57.421 8

Table3 Comparison of optimization results and verification results

目标变量	y₁/dBsm	y₂/dBsm	y₃/dBsm	y₄/dBsm	y₅/dBsm	y₆/dBsm	y₇/N
优化结果	-66.69	-71.92	-62.89	-63.30	-59.65	-60.11	5 114.74
验证结果	-66.19	-68.88	-60.97	-63.37	-58.01	-60.12	5 023.84
差值	0.50	3.04	1.92	0.07	1.64	0.01	90.90

Table4 Comparison between optimization results and RCS simulation data of metal wing

目标变量	y₁/dBsm	y₂/dBsm	y₃/dBsm	y₄/dBsm	y₅/dBsm	y₆/dBsm
优化结果	-66.69	-71.92	-62.89	-63.30	-59.65	-60.11
金属机翼	-13.52	-7.95	-19.05	-18.91	-24.10	-24.53
差值	53.17	63.97	43.84	44.39	35.55	35.58

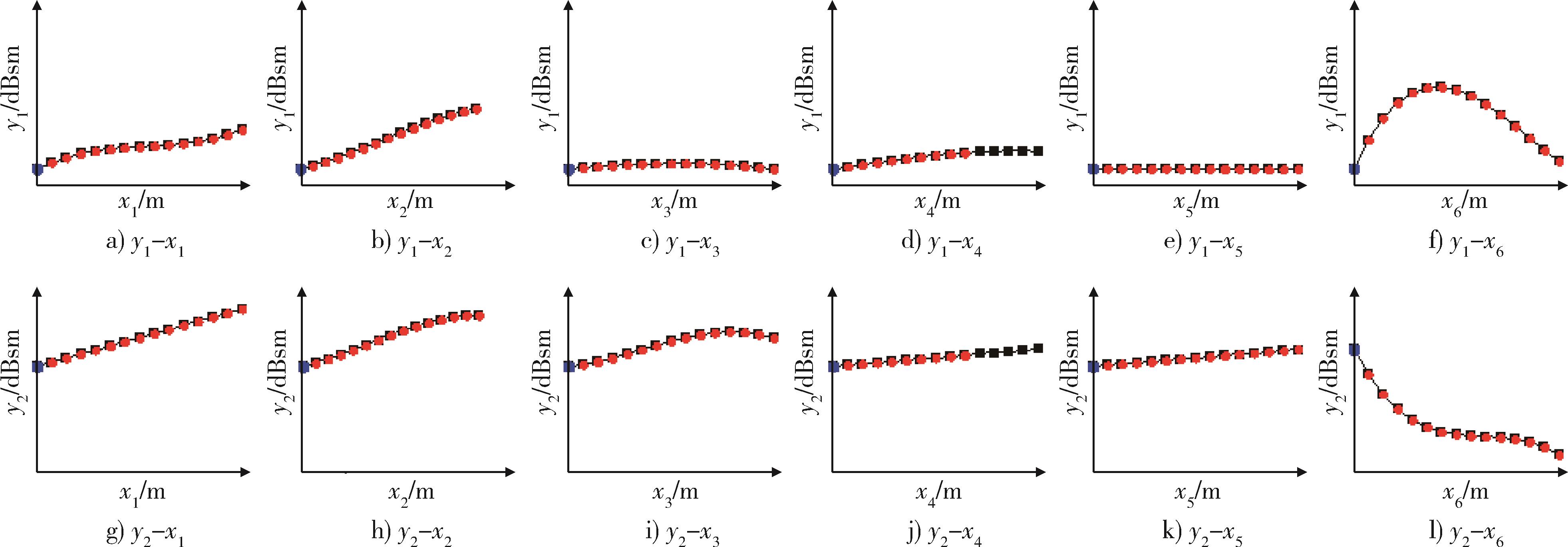

Fig.5 Relationship between design variables and RCS at 0.5GHz

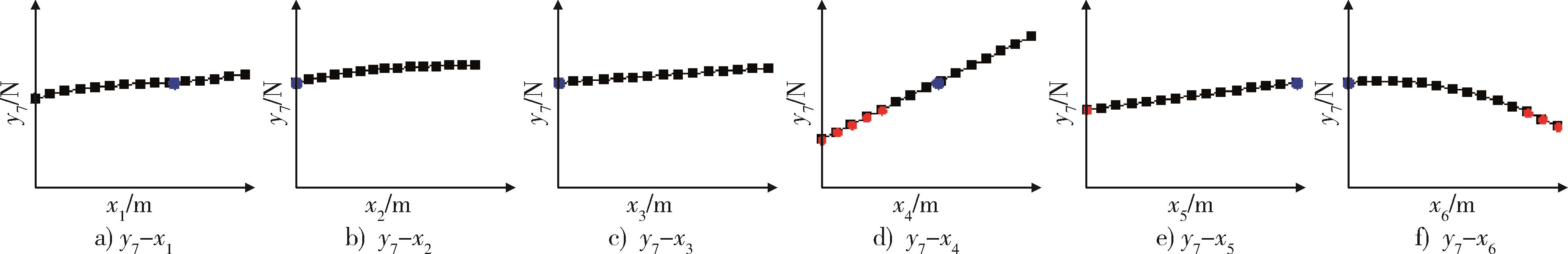

Fig.6 Relationship between lift and design variables

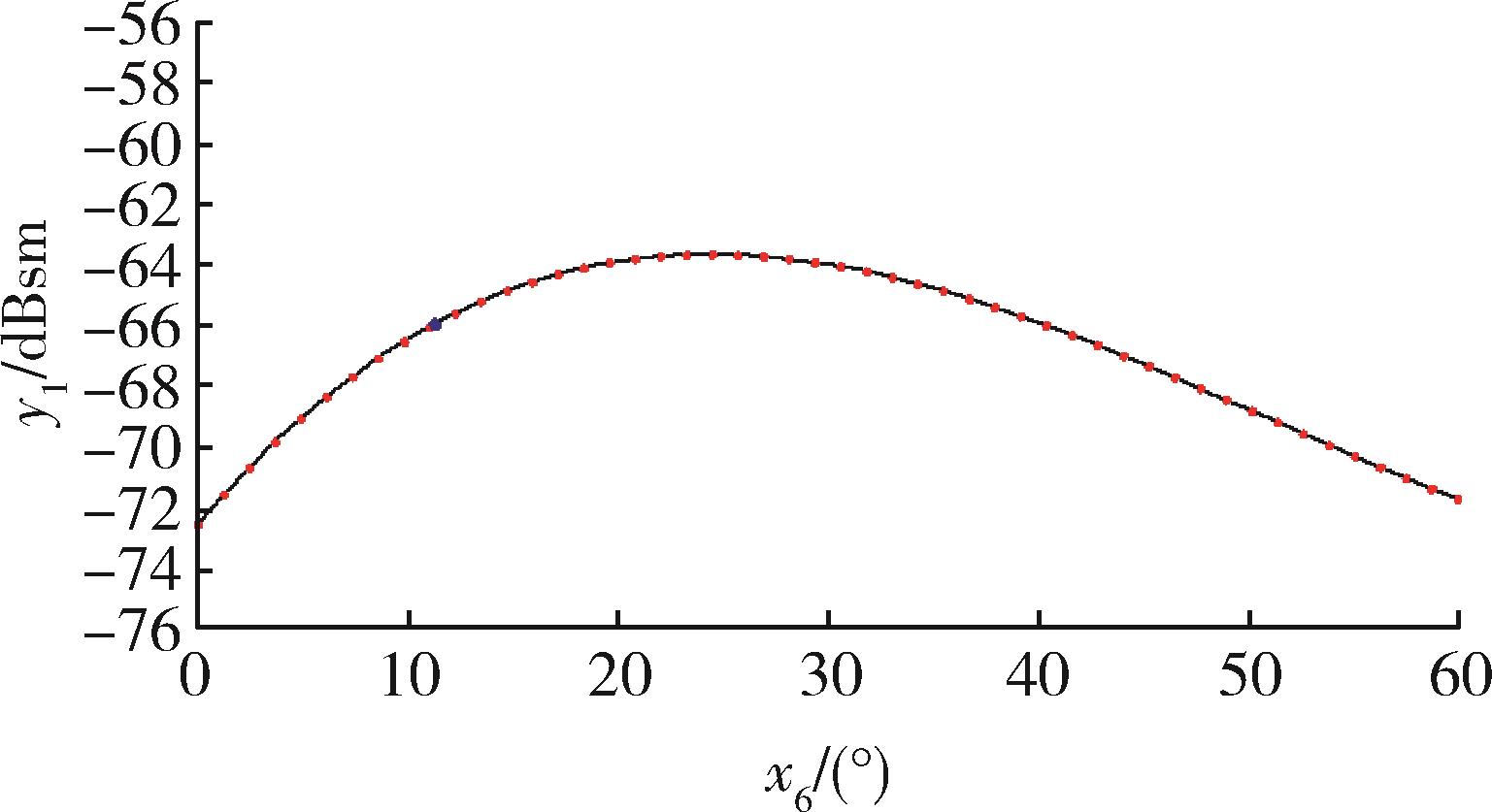

Fig.7 Relationship between RCS and sweep angle in azimuth incidence range at 0.5 GHz

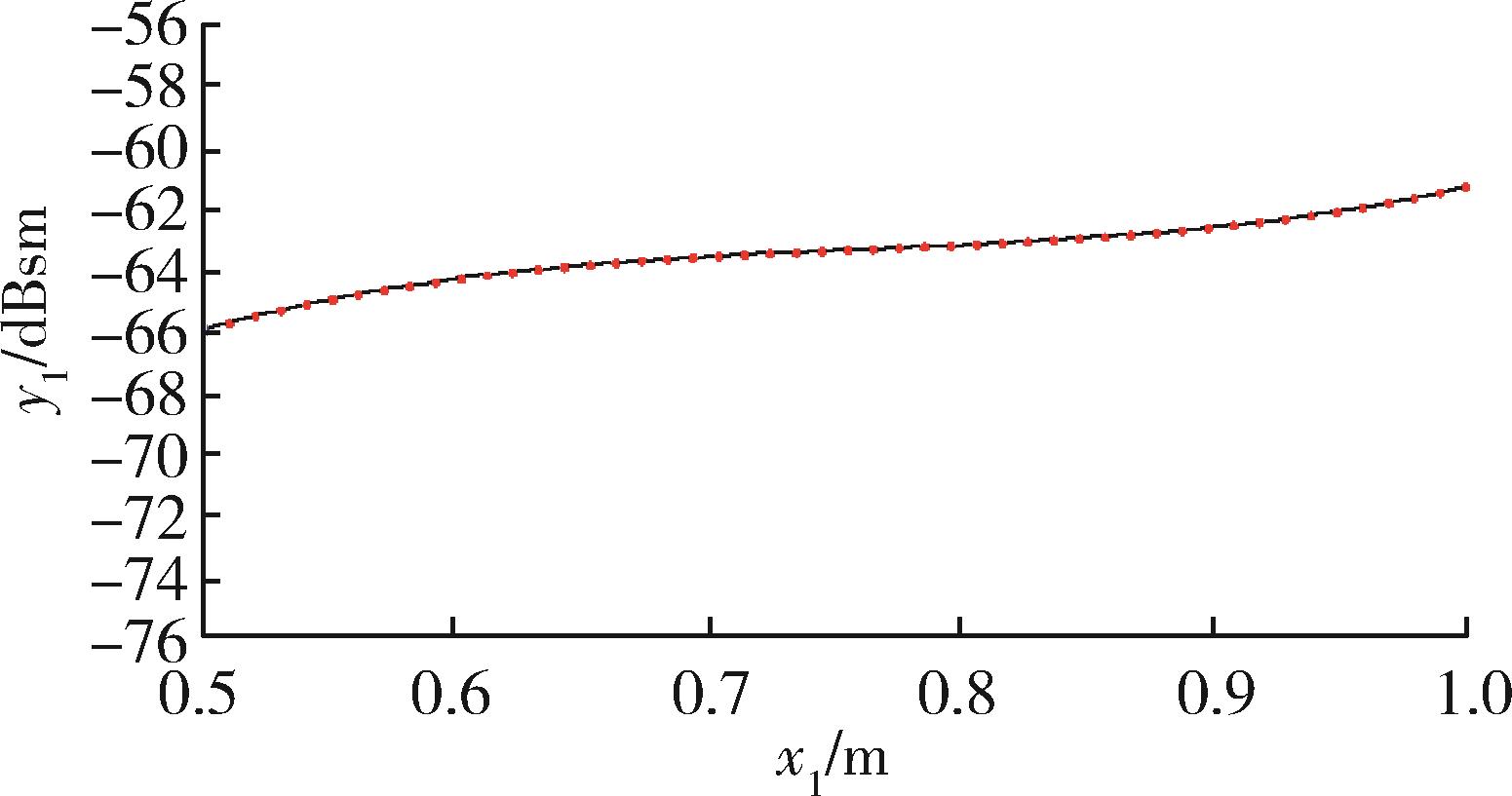

Fig.8 Relationship between RCS and wing chord length in azimuth incidence range at 0.5 GHz

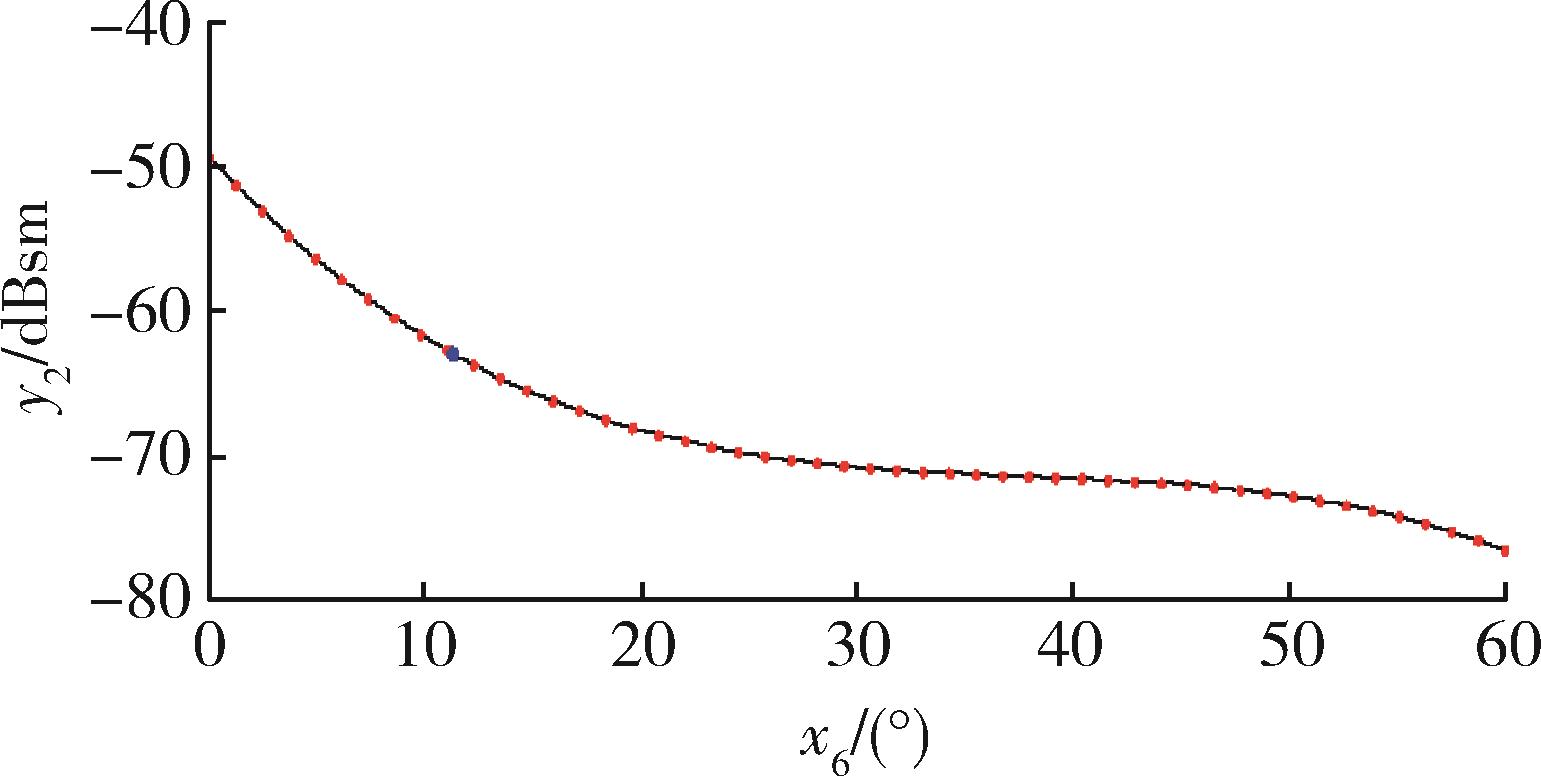

Fig.9 Relationship between RCS and sweep angle at 0.5 GHz

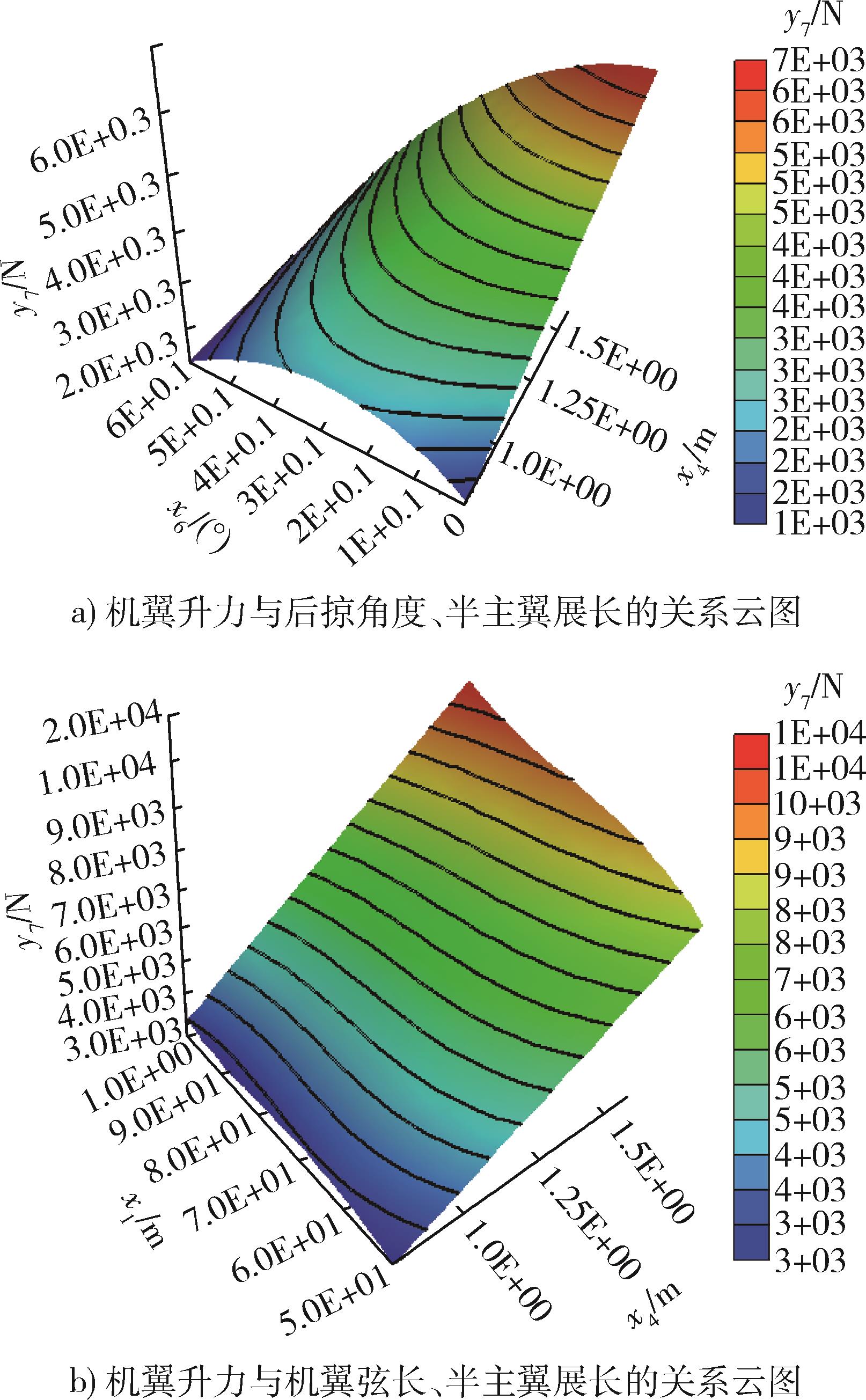

Fig.10 Relationship between wing lift and design variables

References 15

1	刘祥萱.雷达波吸收材料设计与特性分析［M］.北京：国防工业出版社，2018：5-20.
	LIU Xiang-xuan. Design and Characteristic Analysis of Radar Wave Absorbing Materials ［M］. Beijing： National Defense Industry Press， 2018：5-20.
2	黄爱凤.飞行器翼面隐身结构电磁散射特性设计优化［D］.南京：南京航空航天大学，2005：1-11.
	HUANG Ai-feng. Design Optimization of Electromagnetic Scattering Characteristics of Aircraft Wing Stealth Structure ［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2005：1-11.
3	姬金祖，黄沛霖，马云鹏，等.隐身原理［M］.北京：北京航空航天大学出版社，2018：1-20.
	JI Jin-zu， HUANG Pei-lin， MA Yun-peng， et al. Stealth Principle ［M］. Beijing： Beijing University of Aeronautics and Astronautics Press， 2018：1-20.
4	桑建华.飞行器隐身技术［M］.北京：航空工业出版社，2013：130-155.
	SANG Jian-hua. Aircraft Stealth Technology ［M］. Beijing： Aviation Industry Press， 2013：130-155.
5	阮颖铮.雷达截面与隐身技术［M］.北京：国防工业出版社，1998：261-280.
	RUAN Ying-zheng. Radar Cross Section and Stealth Technology ［M］. Beijing： National Defense Industry Press， 1998：261-280.
6	李南.外形设计对飞机隐身性能影响分析［J］.电子工程师，2007，33（12）：11-17.
	LI Nan. Analysis of the Influence of Shape Design on Stealth Performance of Aircraft ［J］. Electronic Engineer， 2007，33 （12）： 11-17.
7	昂海松，余雄庆.飞行器先进设计技术［M］.北京：国防工业出版社，2014：21-33.
	Hai-song ANG， YU Xiong-qing. Advanced Design Technology of Aircraft ［M］. Beijing： National Defense Industry Press， 2014：21-33.
8	聂毅，余雄庆.翼面隐身结构优化设计［J］.南京航空航天大学学报，2008，40（4）：465-468.
	NIE Yi， YU Xiong-qing. Optimization Design of Wing Stealth Structure ［J］. Journal of Nanjing University of Aeronautics and Astronautics，2008，40（4）：465-468.
9	聂毅，余雄庆.翼面隐身结构在飞航导弹模型上的数值仿真研究［J］.航空学报，2006，27（6）：1369-1372.
	NIE Yi， YU Xiong-qing. Numerical Simulation of Wing Stealth Structure on Cruise Missile Model ［J］. Acta Aeronautica Sinica， 2006，27 （6）： 1369-1372.
10	聂毅，余雄庆.翼面隐身结构电磁散射特性稳健优化设计研究［J］.航空学报，2007，28（增1）：104-108.
	NIE Yi， YU Xiong-qing. Study on Robust Optimization Design of Electromagnetic Scattering Characteristics of Wing Stealth Structure ［J］. Acta Aeronautica Sinica， 2007，28 （S1）： 104-108.
11	GIUNTA A A， WOJTKIEWICZ S F， ELDRED M S. Overview of Modern Design of Experiments Methods forComputational Simulations ［R］.AIAA，2003-0649，2003.
12	赖宇阳.Isight参数优化理论与实例详解［M］.北京：北京航空航天大学出版社，2012：88-95.
	LAI Yu-yang. ISIGHT Parameter Optimization Theory and Example Explanation ［M］. Beijing： Beihang University Press， 2012：88-95.
13	QUEIPO N V， HAFTKA R T， SHYY W，et al.Surrogate-Based Analysis and Optimization［J］.Progress in Aerospace Sciences，2005，41（1）：1-28.
14	潘雪增.并行工程原理及应用［M］.北京：清华大学出版社，1997：70-90.
	PAN Xue-zeng. Principle and Application of Concurrent Engineering ［M］. Beijing： Tsinghua University Press， 1997：70-90.
15	徐江，李艳，纪晶华.统计学基础［M］.北京：机械工业出版社，2016：55-110.
	XU Jiang， LI Yan， JI Jing-hua. Fundamentals of Statistics ［M］. Beijing： China Machine Press， 2016：55-110.
