Scenario-Driven and Intelligent Optimization of Disposition Scheme for Air Defense

doi:10.3969/j.issn.1009-086x.2023.03.001

Abstract

Abstract:

Aiming at the complex battlefield situation and diversified weapons and equipments in the modern battlefield， a typical air defense scene model is constructed. Mathematical model and the program， and the pre-optimization design scheme of the defense resources deployment under multiple constraints are obtained by using intelligent solution algorithm. Optimization design and solution are carried out in typical scenarios by using the nested genetic algorithm for the coverage issues of the detecting perceptual resources, and the intercepting and striking resources. The results show that the nested optimization algorithm can optimize the deployment of operational elements of air defense in typical scenes in a short time. Compared with traditional experience-based methods， the resource deployment scheme given by the optimization design has a higher value of space coverage ratio.

Key words: air defense operation, resources deployment, nested genetic algorithm, space coverage ratio

摘要：

针对现代化战争复杂的战场态势和多样化的武器装备，构建了典型的防空场景模型并将其数学化和程序化，采用智能求解算法获得了多约束条件下防御资源部署的优化设计方案。采用多层嵌套遗传算法，针对典型场景下的探测感知资源和拦截打击资源的空间覆盖问题进行了优化求解。研究结果表明采用智能优化算法可以在相对较短的时间内对典型场景的防空作战要素部署方案进行优化设计。与基于经验的方法对比，优化后的部署方案具有更高的空间覆盖率。

关键词: 防空作战, 资源部署, 嵌套遗传算法, 空间覆盖率

CLC Number:

Mingnan TANG, Chenglong ZHANG, Qiang ZHAO, Linlin LI. Scenario-Driven and Intelligent Optimization of Disposition Scheme for Air Defense[J]. Modern Defense Technology, 2023, 51(3): 1-9.

唐明南, 张承龙, 赵强, 李林林. 任务场景驱动的防空资源部署方案智能生成与优化方法[J]. 现代防御技术, 2023, 51(3): 1-9.

Figures/Tables 12

Fig. 1 Schematic diagram of optimized disposition scheme for detecting perceptual resources

Fig. 2 Schematic diagram of optimized disposition scheme for intercepting and striking resources

Fig. 3 Schematic diagram of joint deployment scheme of two types of resources

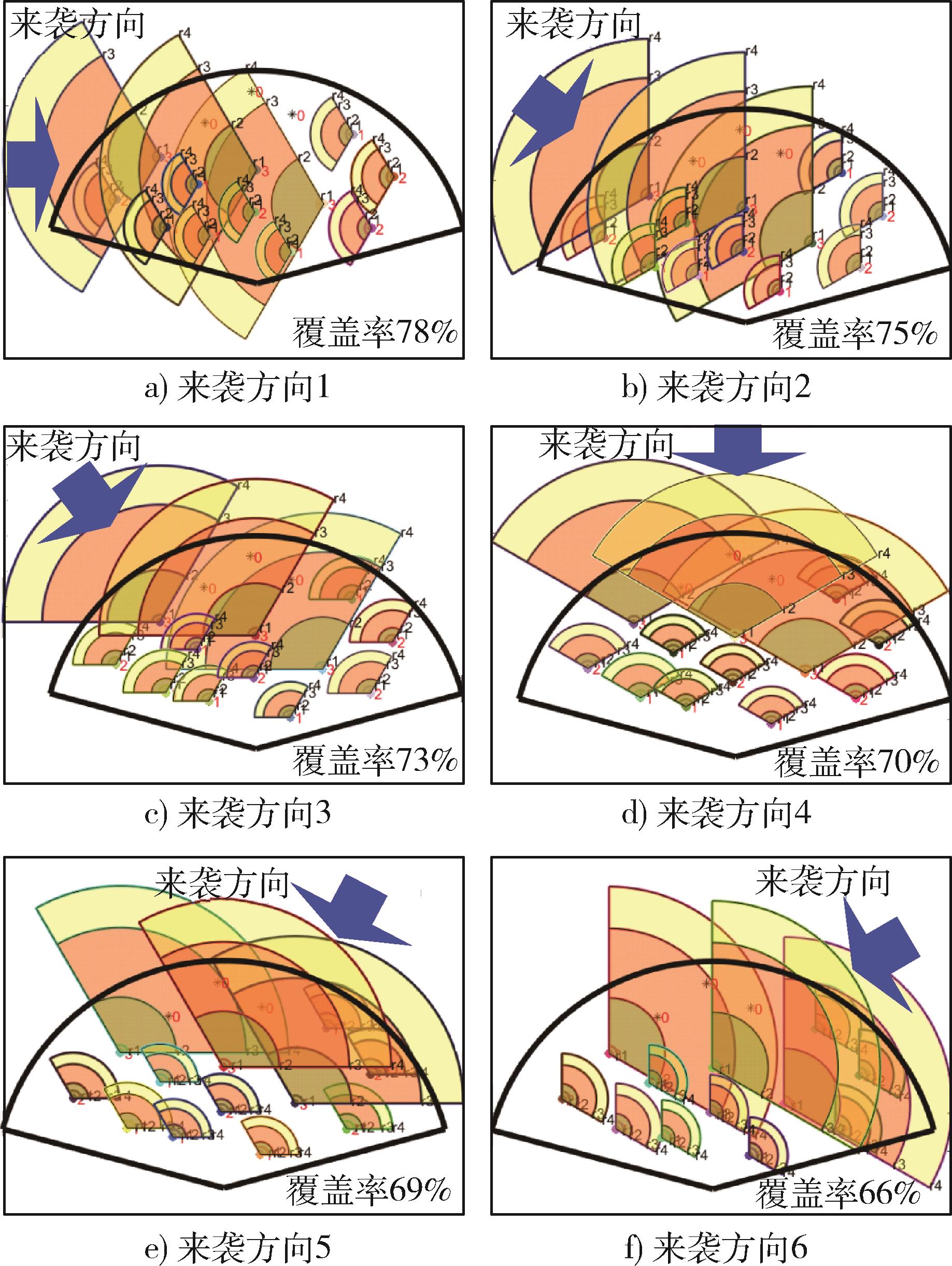

Fig. 4 Schematic diagram of optimized disposition scheme for different interception directions （west attack as an example）

Fig. 5 Diagram of intelligent generation of resources deployment plan for air defense

Fig. 6 Flowchart of nested genetic algorithm

Table 1 Values of optimization function of intercepting and striking resources

计算代数	嵌套遗传算法	遍历法
500	0.42	0.31
2000	0.44	0.31
10⁴	—	0.35
5×10⁴	—	0.37
10⁵	—	0.38
2×10⁵	—	0.38

Fig. 7 Thermal diagram of the number of detecting perceptual resources covering random sampling points

Fig. 8 Thermal diagram of the number of intercepting and striking resources covering random sampling points

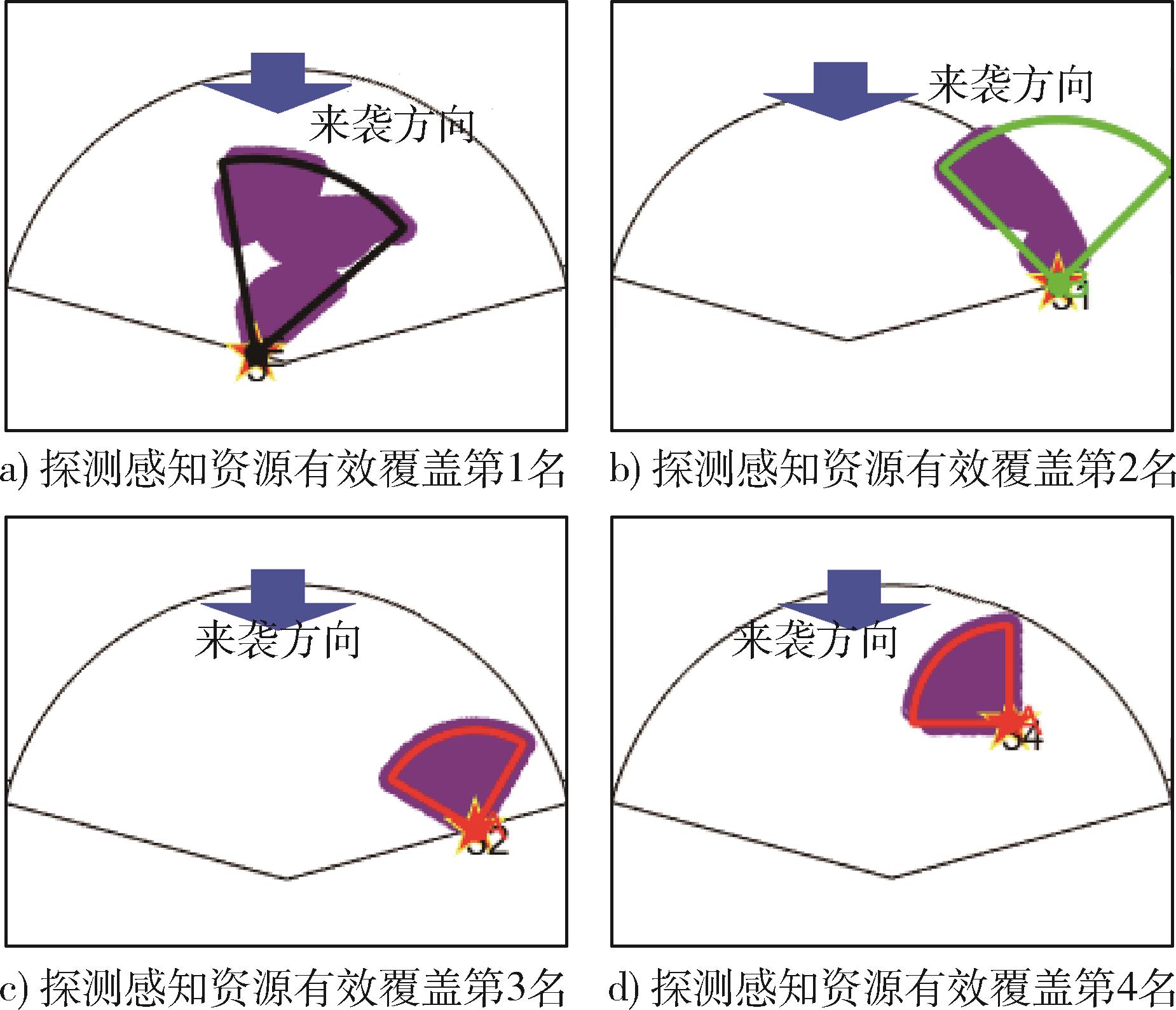

Fig. 9 Sequence diagram of actual effect of detecting perceptual resources

Fig. 10 Sequence diagram of actual effect of intercepting and striking resources

Fig. 11 Intercepting and striking resources deployment at 30° discrete angle for the unknown attacking direction

References 10
