Research on Jamming Mechanism of Interferometer

doi:10.3969/j.issn.1009-086x.2023.06.015

Abstract

Abstract:

Multi-baseline interferometer （MBI） receiver is a kind of important sensor for electronic reconnaissance， which is widely used in radio direction finding （RDF） with the advantages of high accuracy of angle measurement and fast processing speed. A jamming strategy of multiple overlapping signals is proposed according to the working principle of the interferometer direction finding， and the jamming mechanism of multiple signals on interferometer direction finding is studied. Modeling and simulation are carried out to evaluate the jamming strategy. The simulation results show that the multiple overlapping signals can significantly jam the interferometer direction finding and make the interferometer fail to obtain the true direction of the radio frequency （RF） target and output the wrong indication of simultaneous arrival signals at the same time.

Key words: radio direction finding, multi-baseline interferometer, simultaneous arrival signals, multiple overlapping signal jamming, angle of arrival error

摘要：

多基线相位干涉仪接收机是电子侦察中非常重要的一种传感器资源，其主要优点是测角精度高、处理速度快，在射频测向应用较为广泛。结合相位干涉仪测向的工作原理，提出了基于多信号交叠干扰的策略，研究了多信号对干涉仪测向的干扰机理，并通过建模仿真对上述干扰策略进行了评估。仿真结果表明：交叠的多信号对相位干涉仪测向的干扰十分明显，使其无法获得射频目标的真实方位，并输出同时到达信号的错误指示。

关键词: 射频测向, 多基线相位干涉仪, 同时到达信号, 多交叠信号干扰, 到达角误差

CLC Number:

TN973

Lei WANG, Hongxun WANG, Xinmiao LIN, Honglei WANG, Kan CHEN, Tao MENG. Research on Jamming Mechanism of Interferometer[J]. Modern Defense Technology, 2023, 51(6): 123-132.

王磊, 王洪迅, 林鑫淼, 王洪雷, 陈侃, 孟涛. 对干涉仪干扰机理的研究[J]. 现代防御技术, 2023, 51(6): 123-132.

Figures/Tables 19

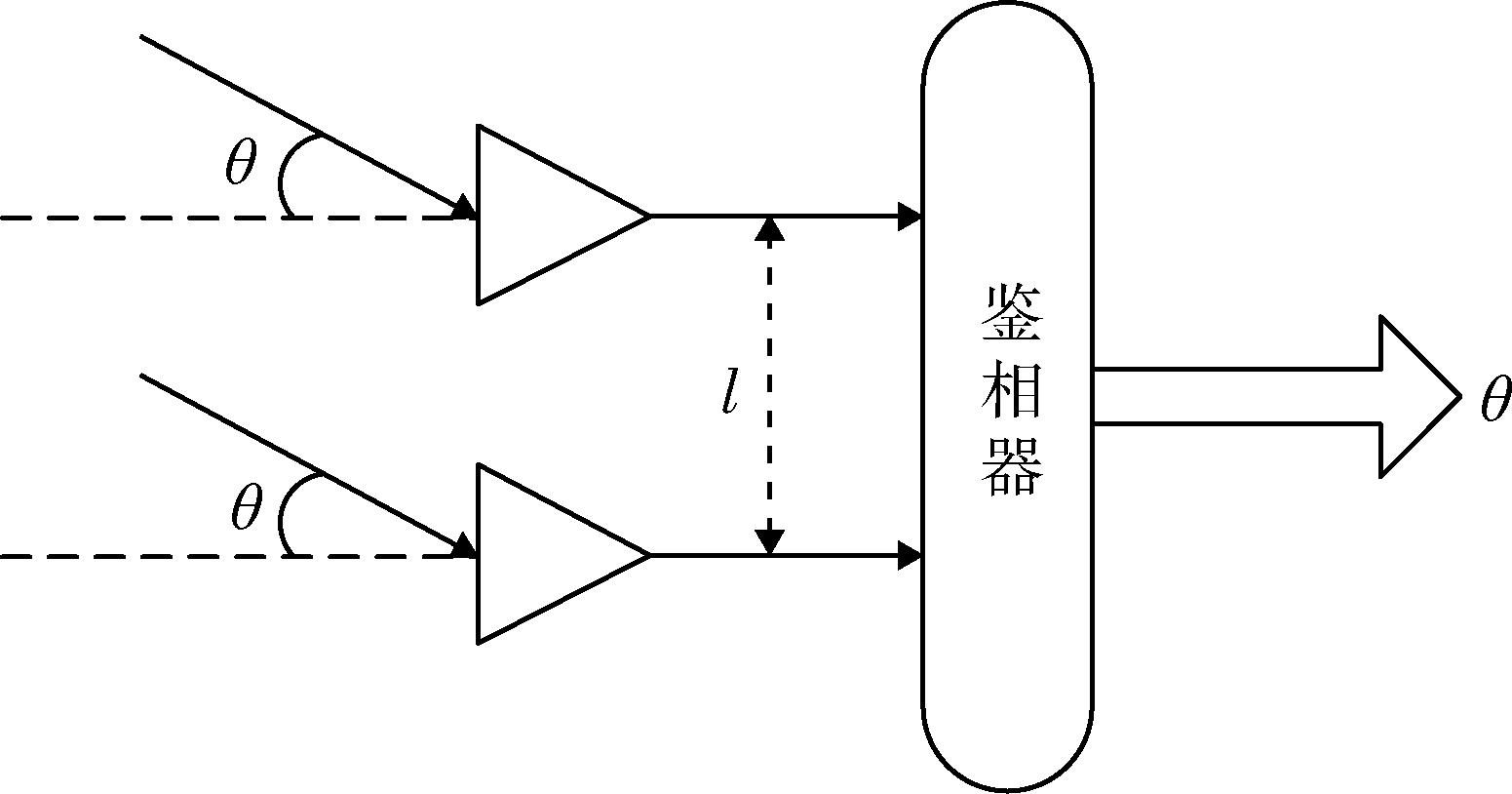

Fig. 1 Single baseline interferometer

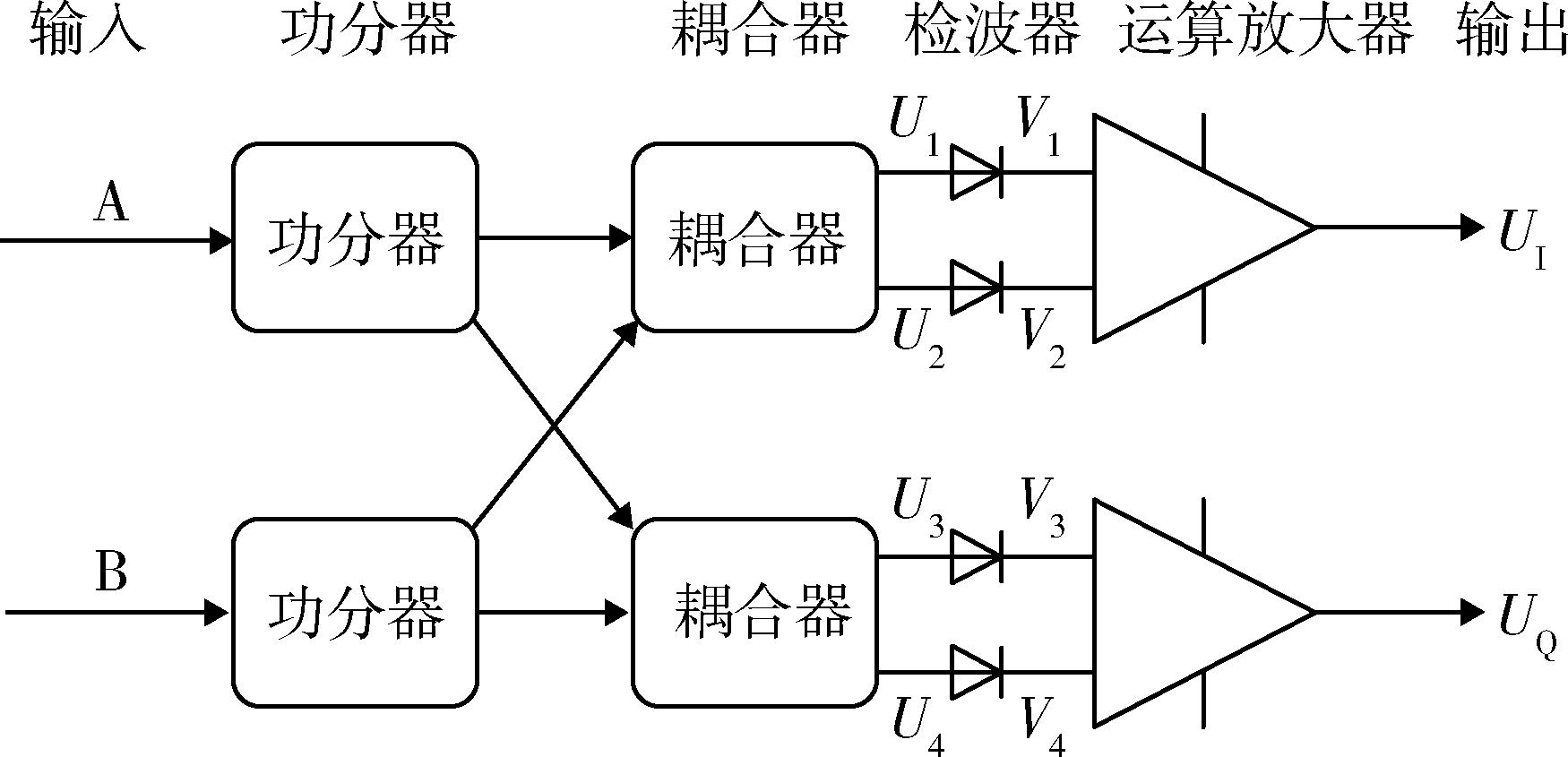

Fig. 2 Phase extraction principle by simulation

Fig. 3 One-dimensional three-baseline interferometer

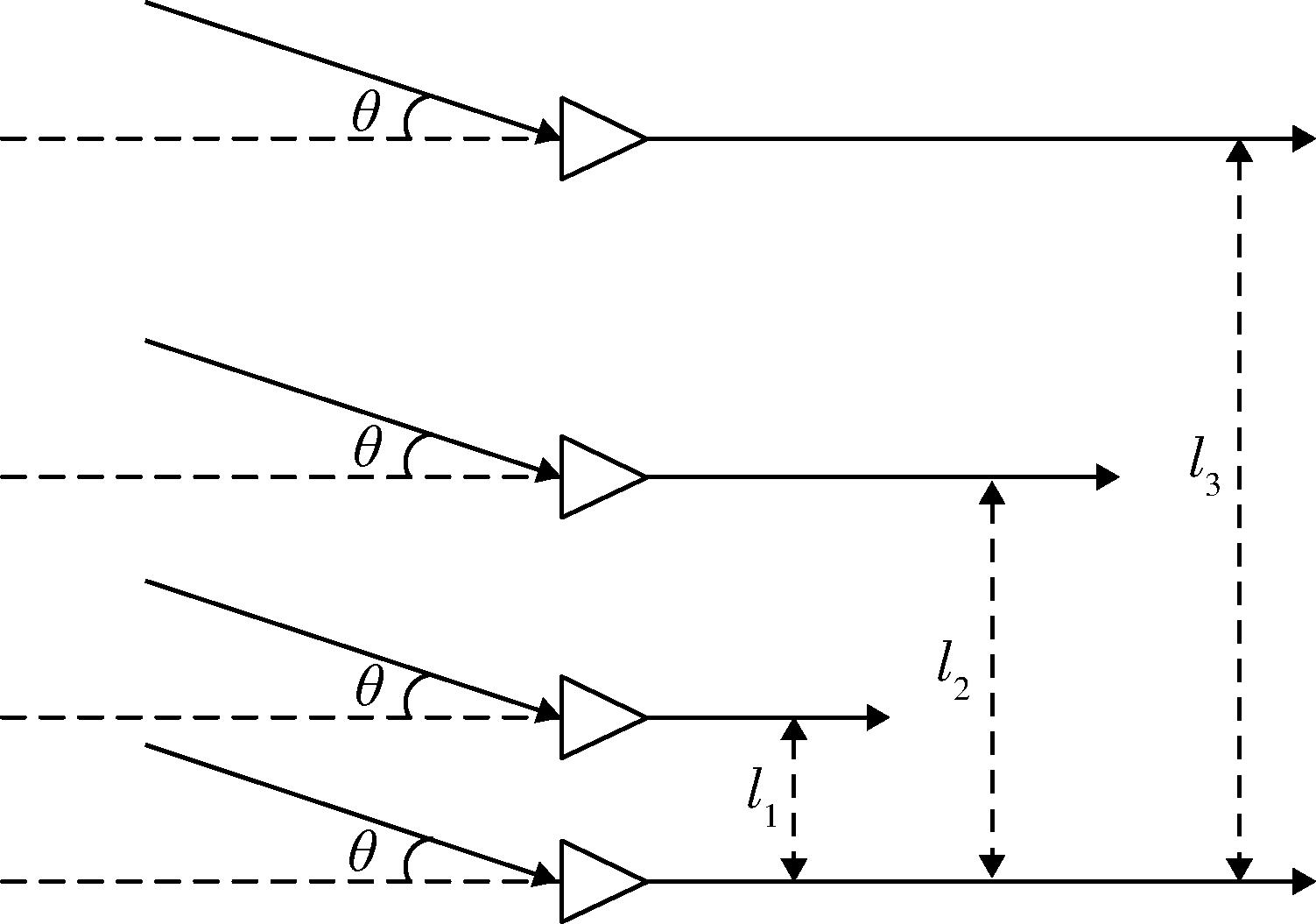

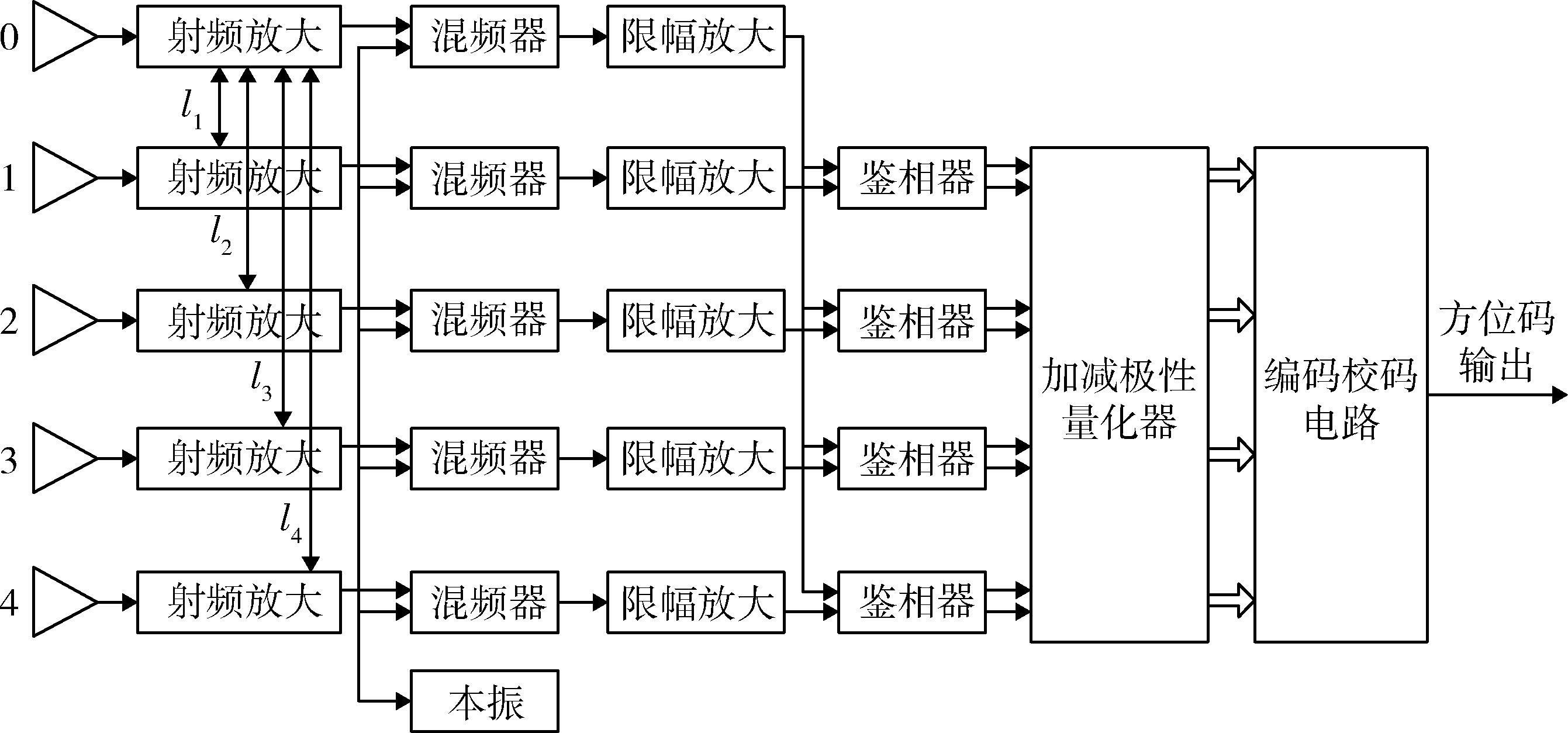

Fig. 4 Parallel structure of multiple baselines

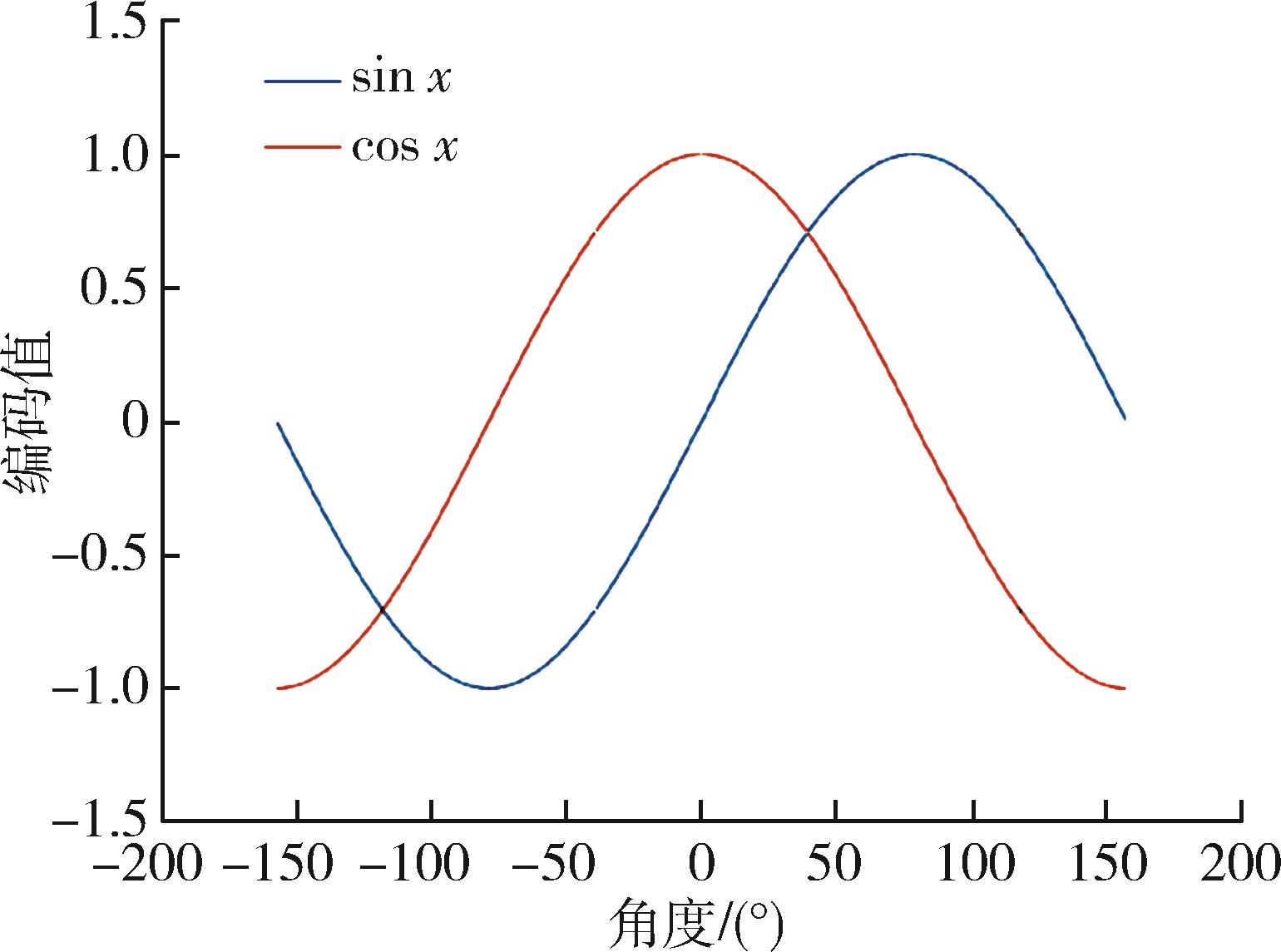

Fig. 5 Phase coding of each channel

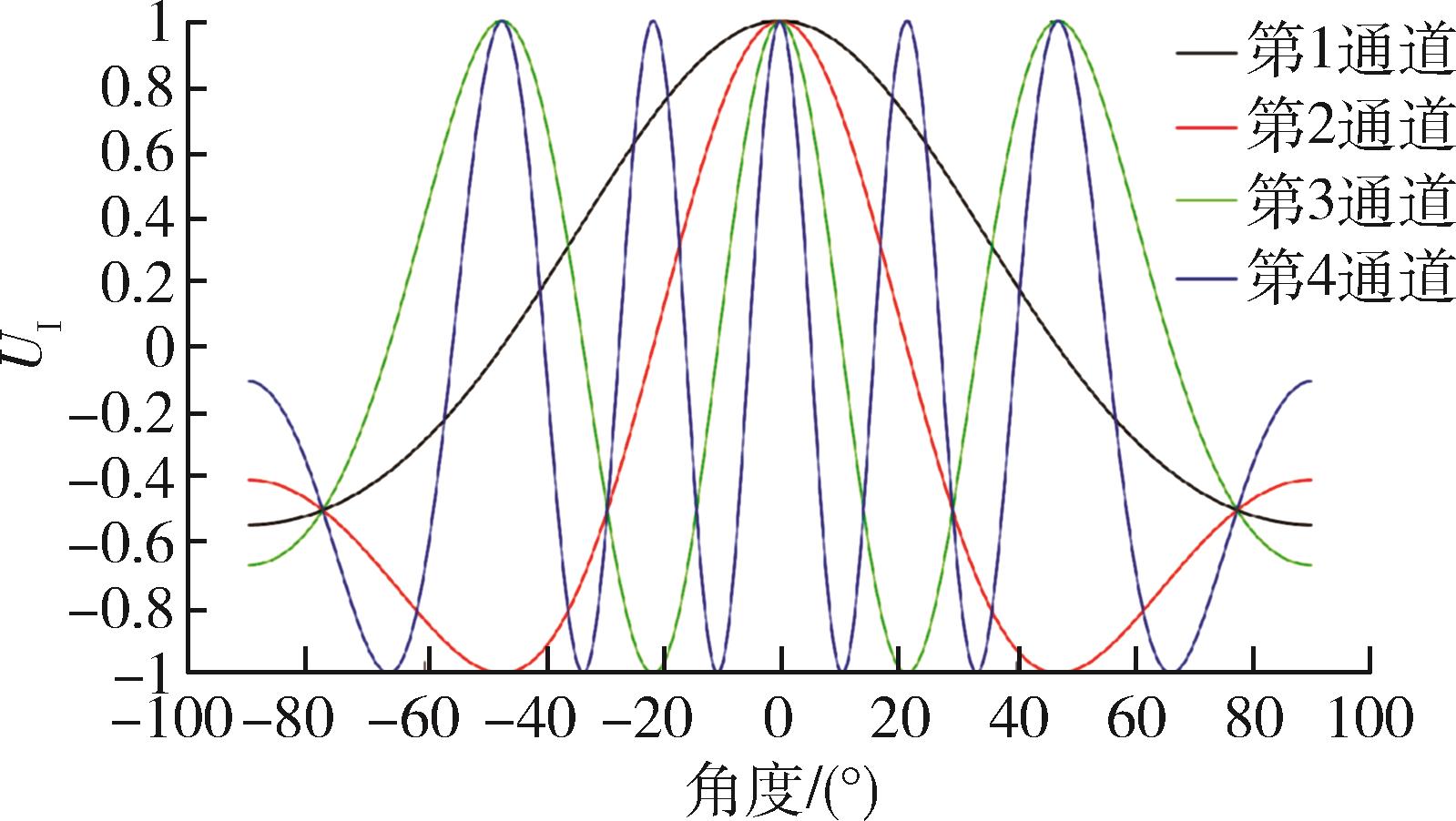

Fig. 6 UI curves output by four channels

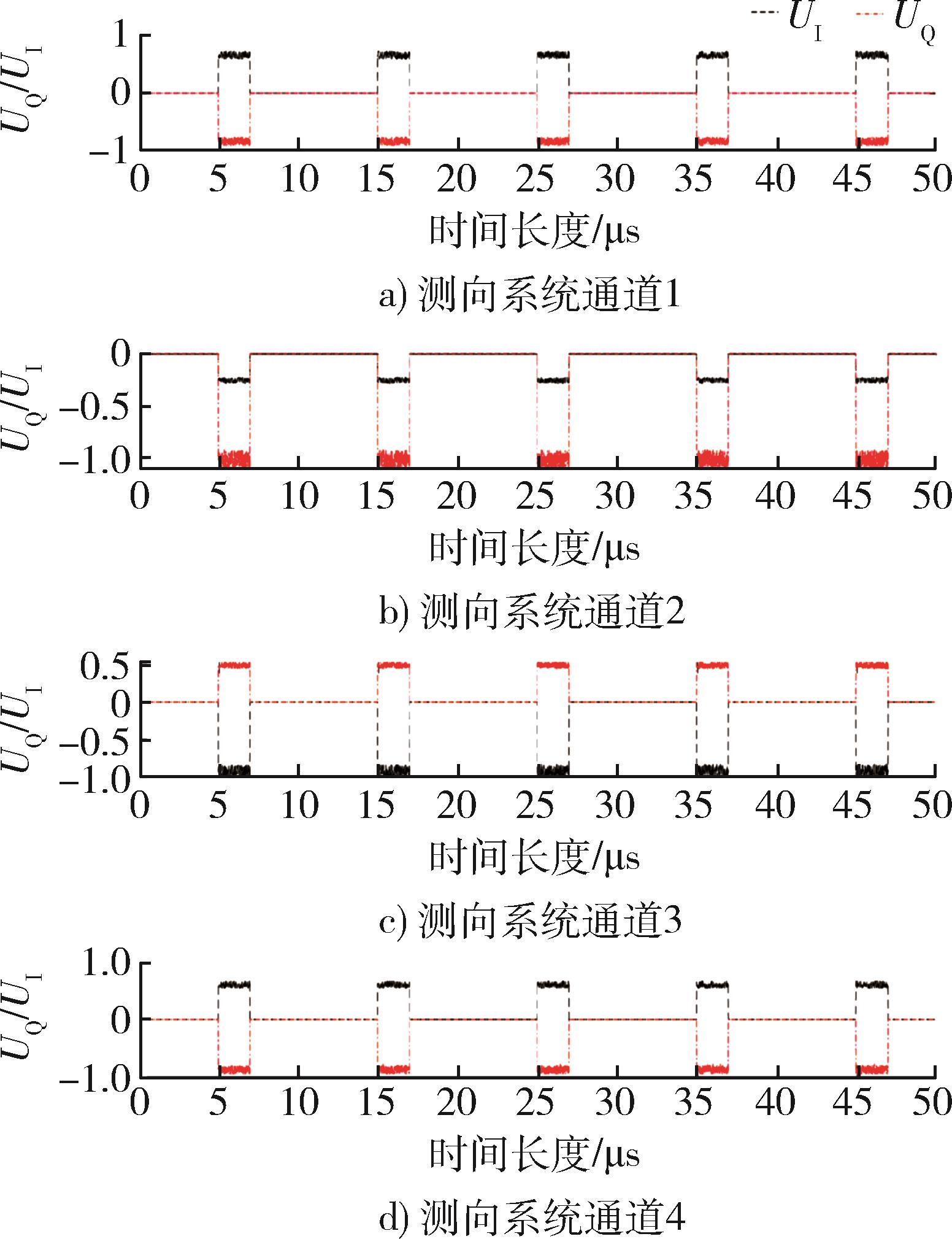

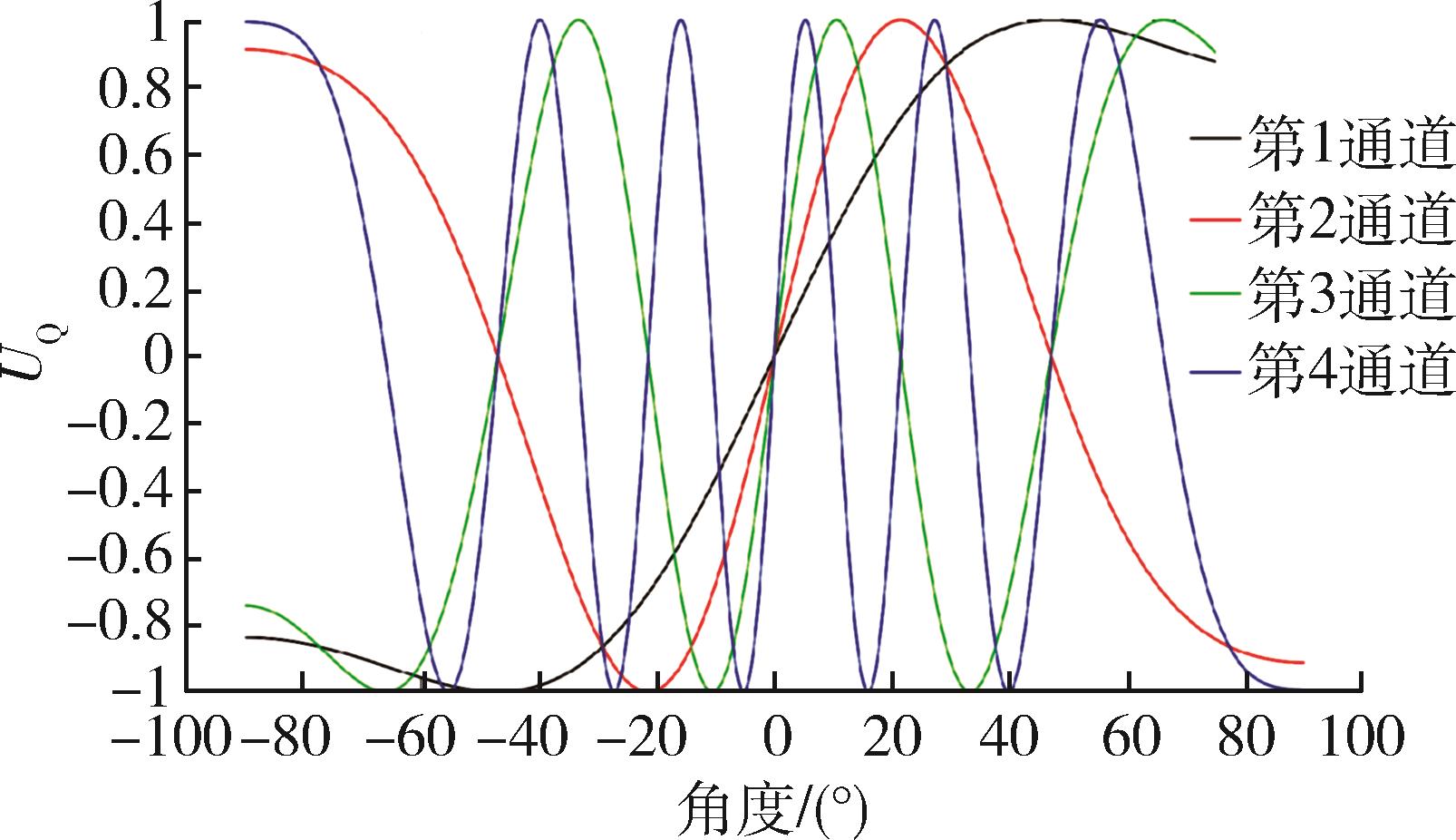

Fig. 7 UQ curves output by four channels

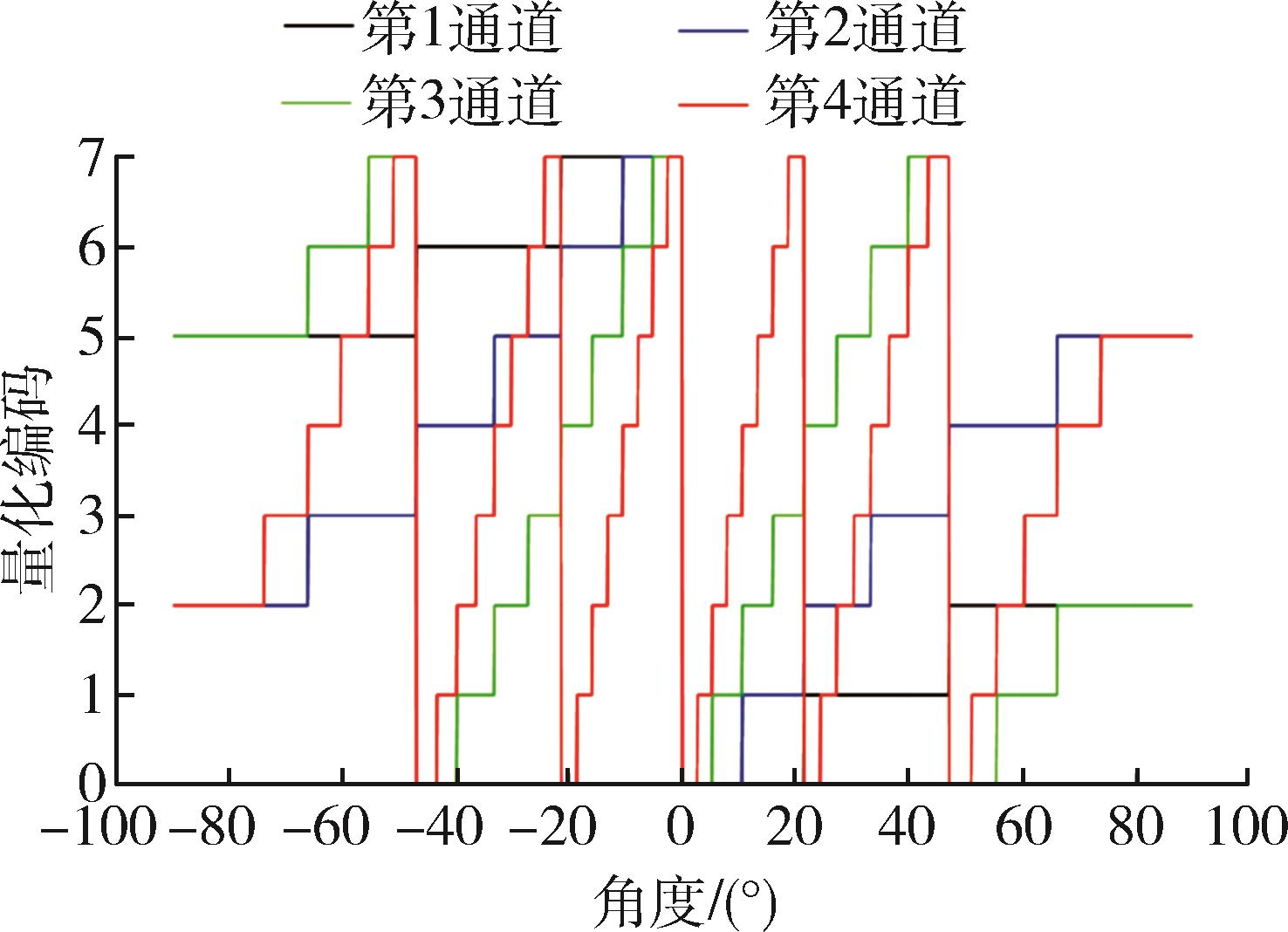

Fig. 8 Phase quantization coding

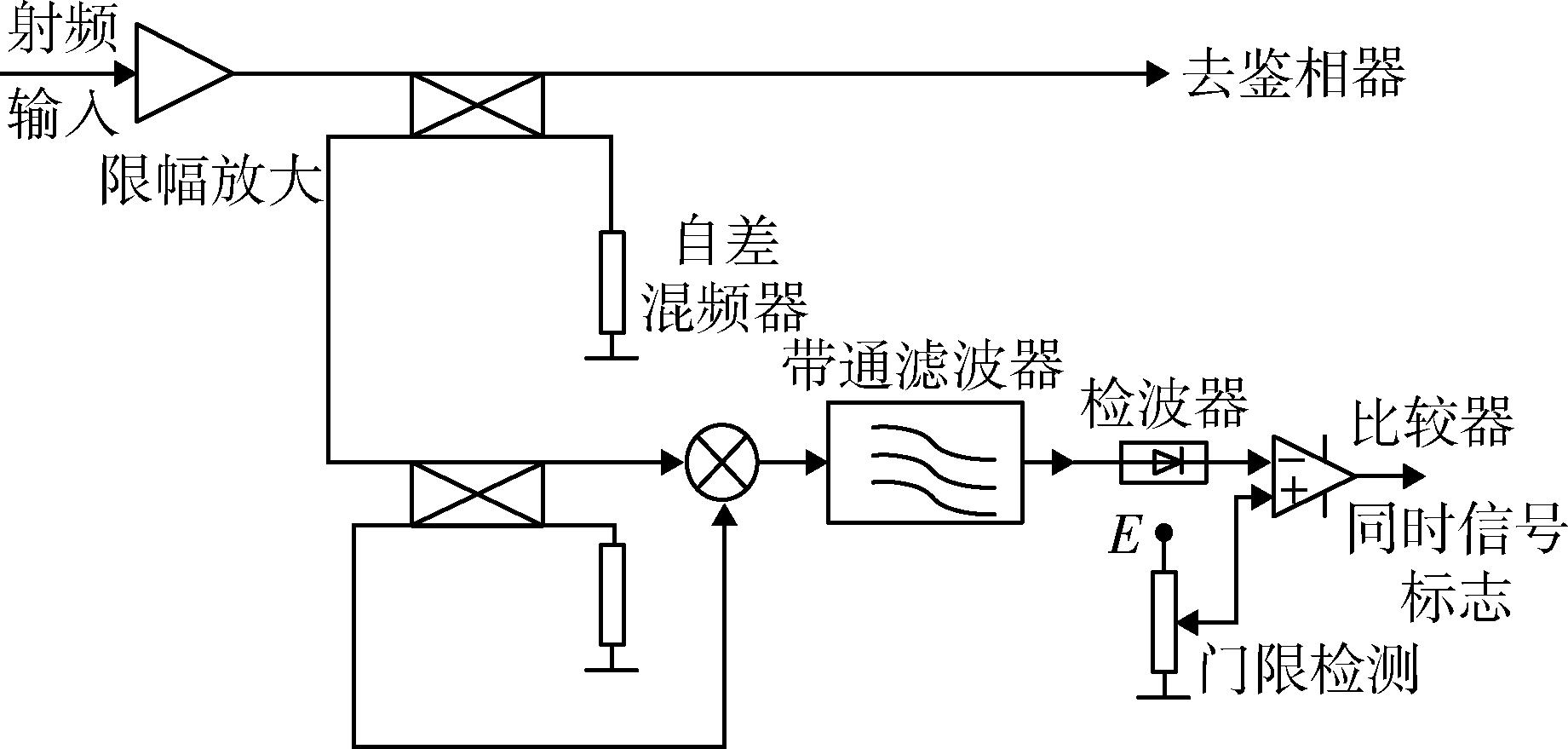

Fig. 9 Circuit logic of simultaneous arrive signal detection

Table 1 Related parameters of radar and jamming signals

辐射源	幅度（P.A）	频率/MHz	脉宽/μs	周期/μs	延迟/μs	DOA/（°）
雷达	1	4 100	2	10	随机	-25
干扰1	1.4	2 800	4	10	0	30
干扰2	1.8	3 900	6	10	0	30
干扰3	1.6	4 300	6	10	4	30
干扰4	1.2	4 800	4	10	6	30

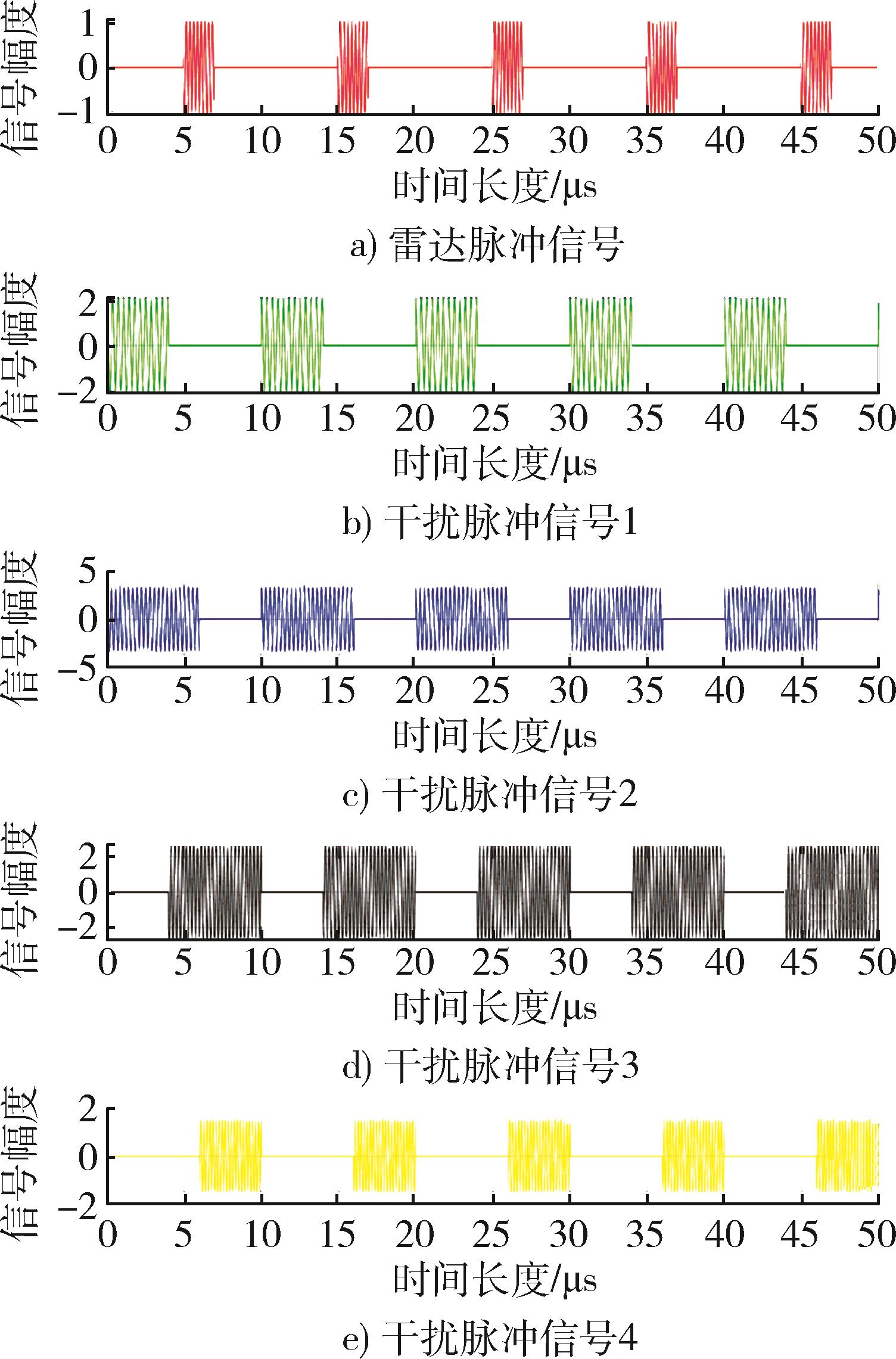

Fig. 10 Pulse signals

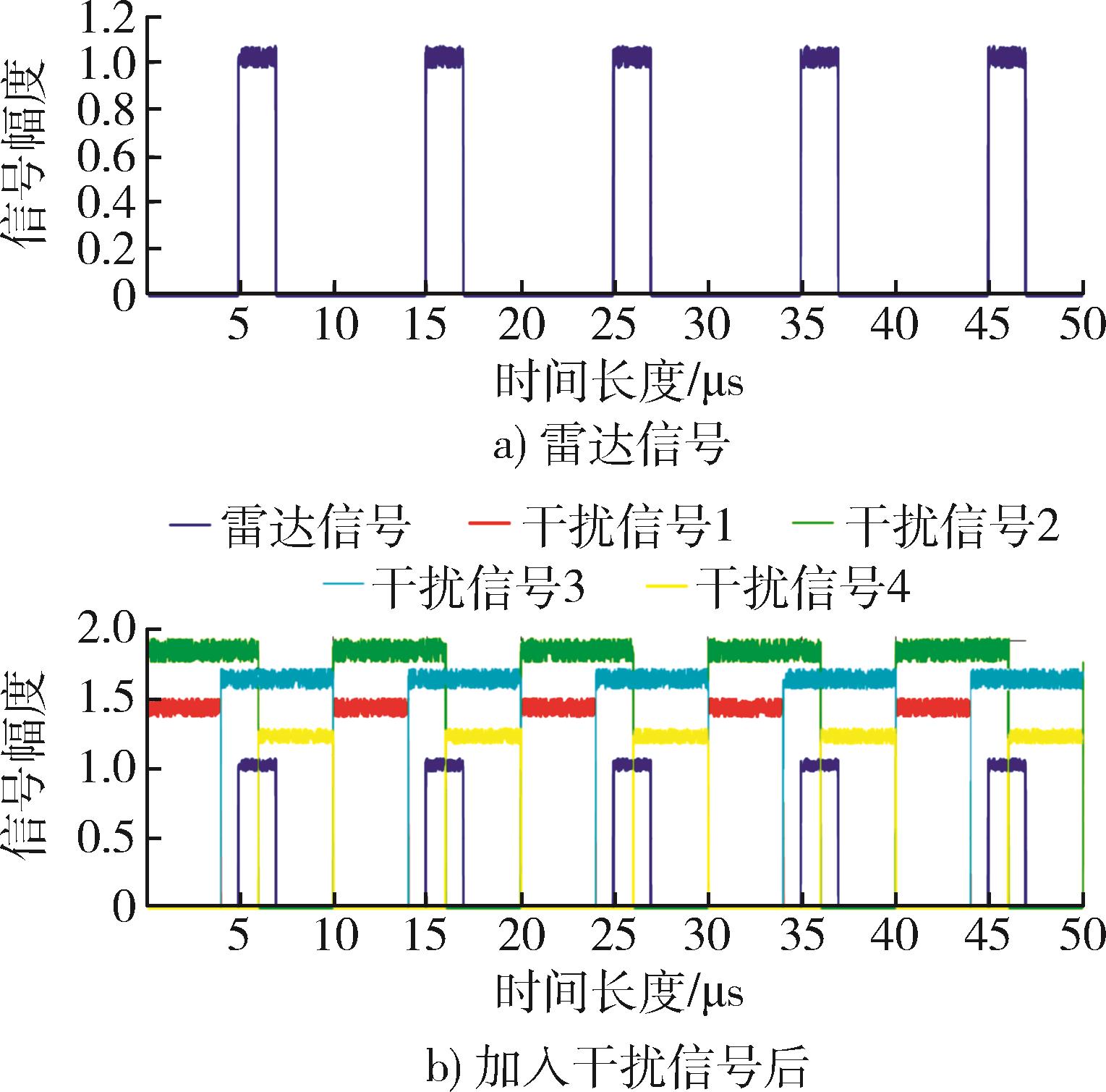

Fig. 11 Amplitudes of radar and four jamming signals

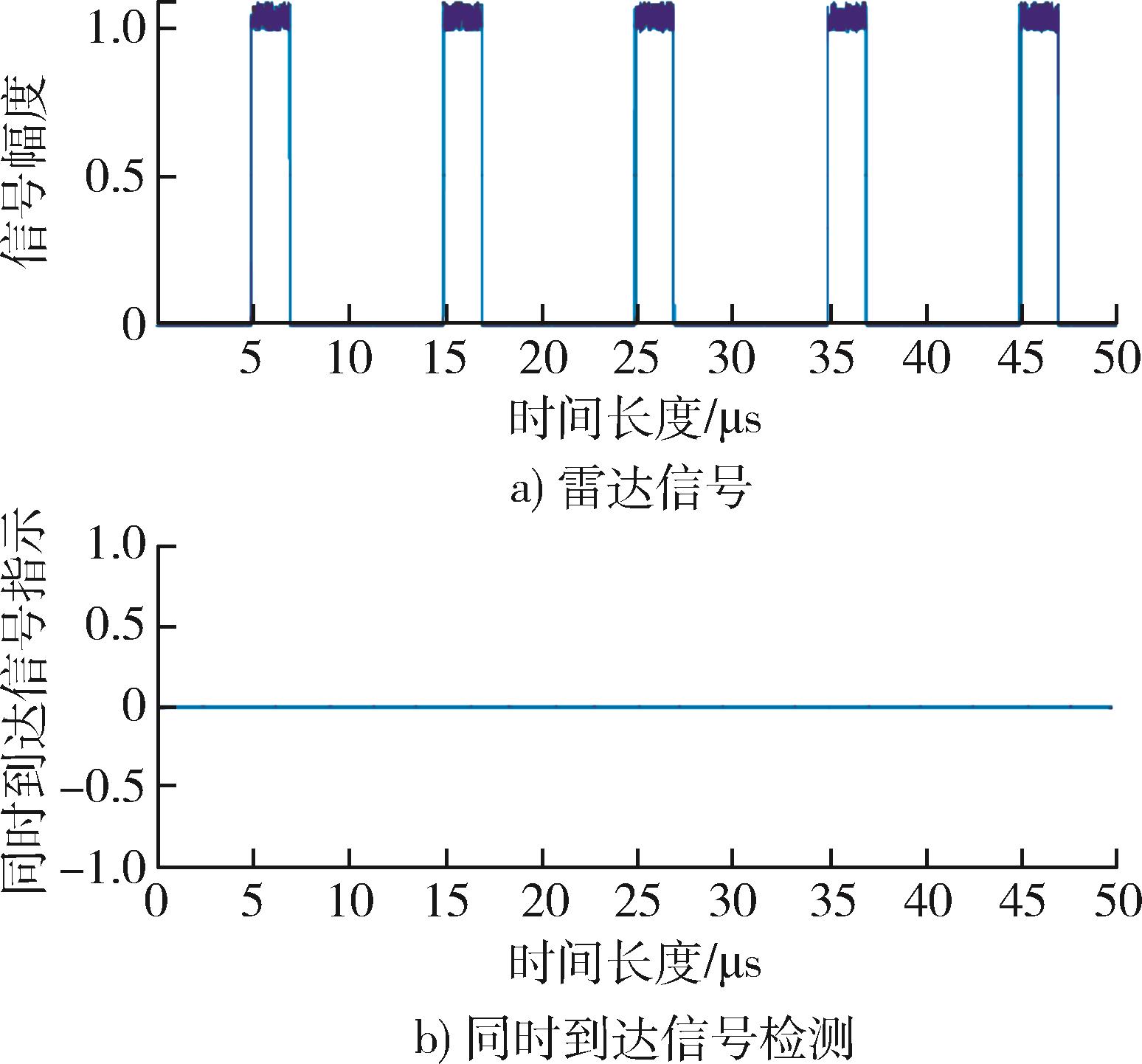

Fig. 12 Simultaneous arrival signals indication in scenario of single radar

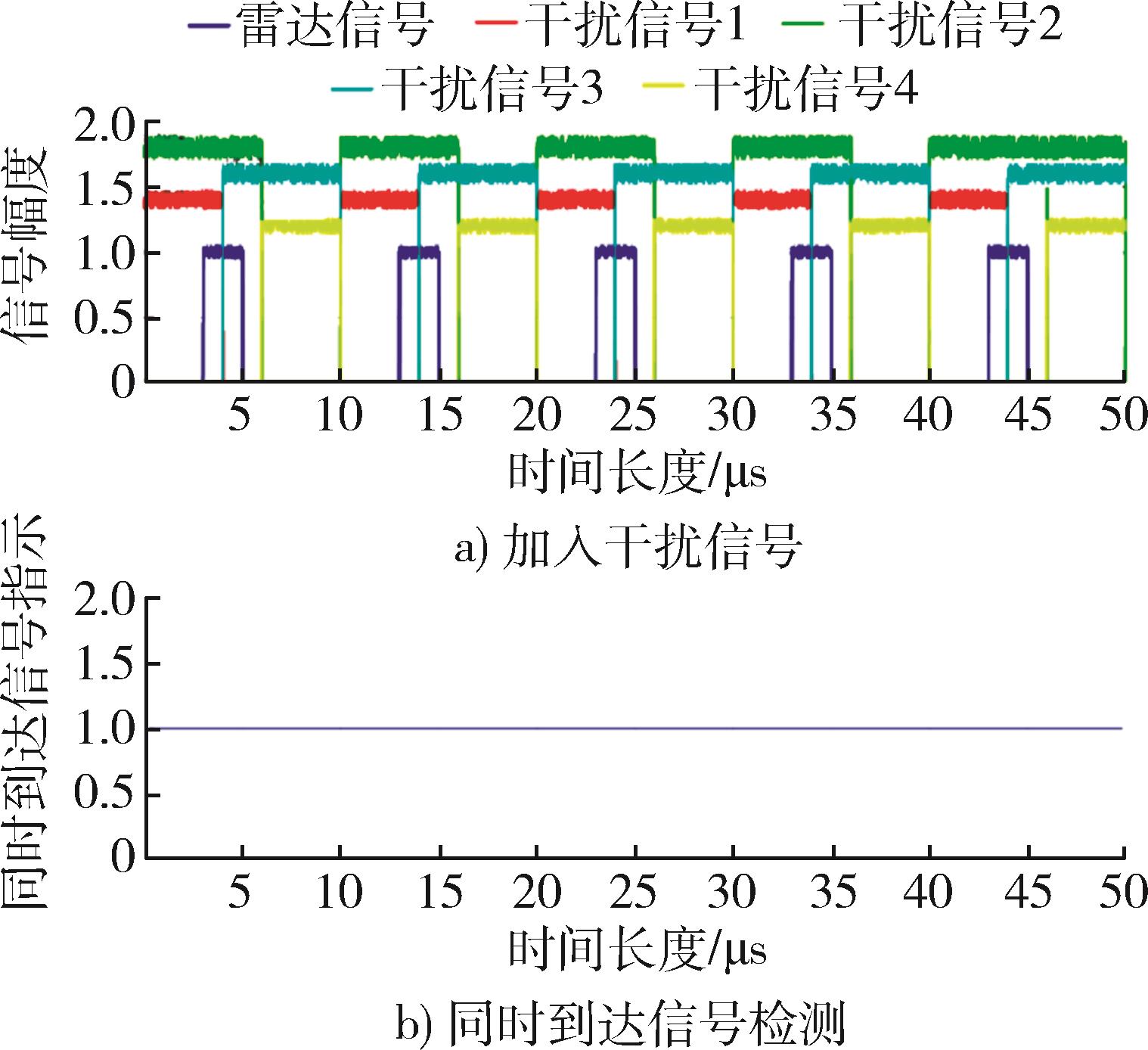

Fig. 13 Simultaneous arrival signals indication in scenario of multi-jamming signals

Fig. 14 UI（t） and UQ（t） outputs in channels of radar signals

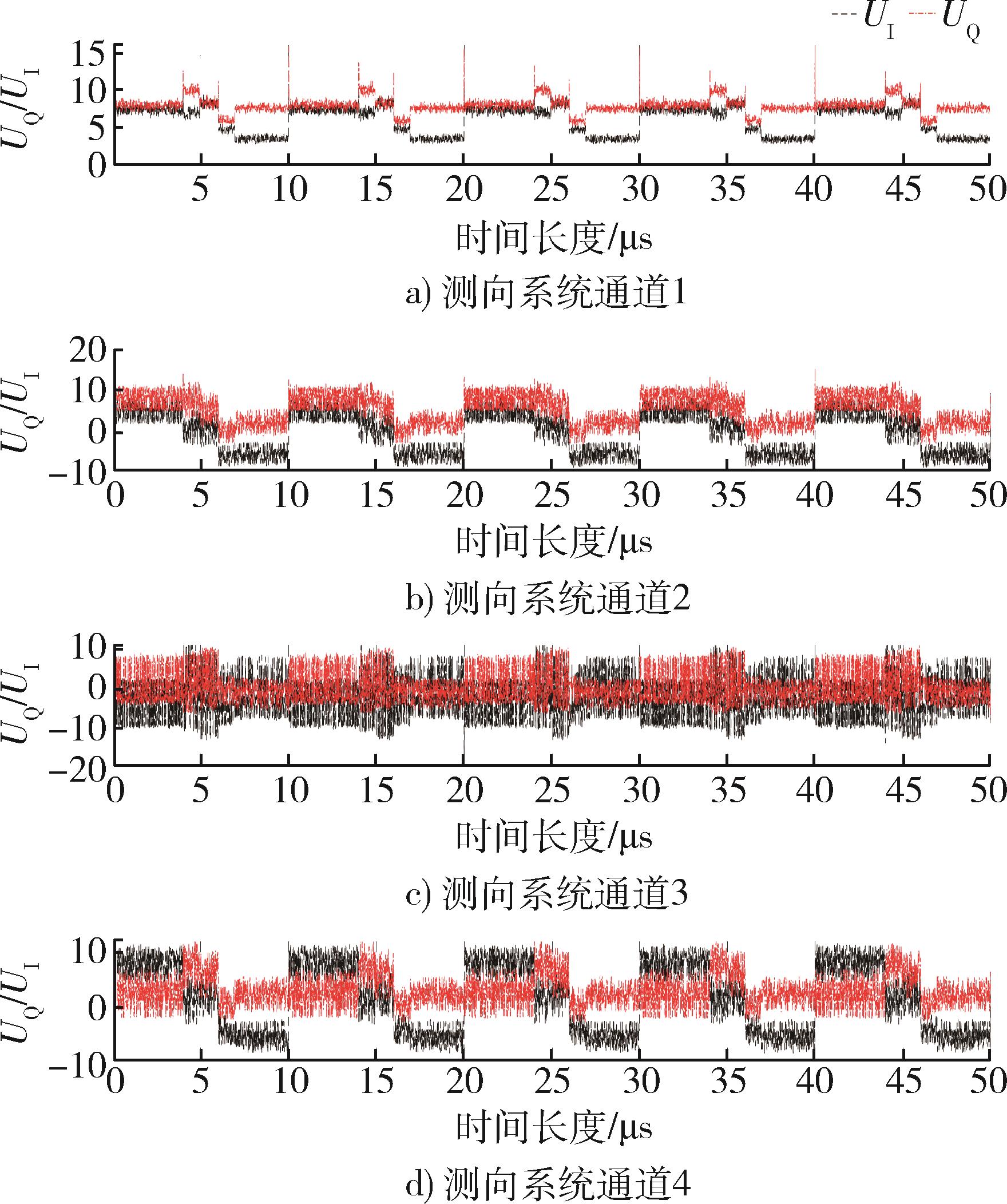

Fig. 15 UI（t） and UQ（t） outputs in channels of five overlapping signals

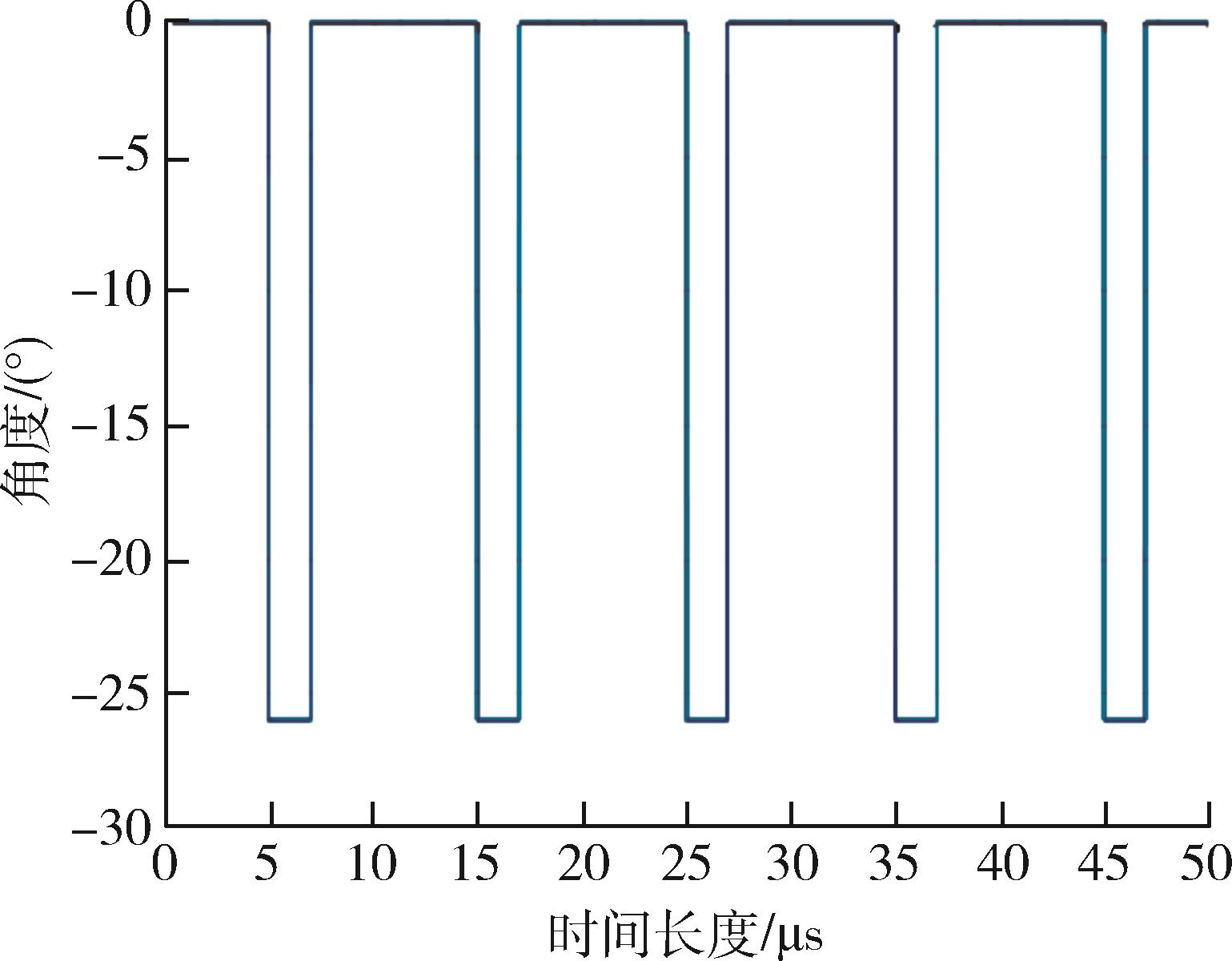

Fig. 16 Direction value of radar signals

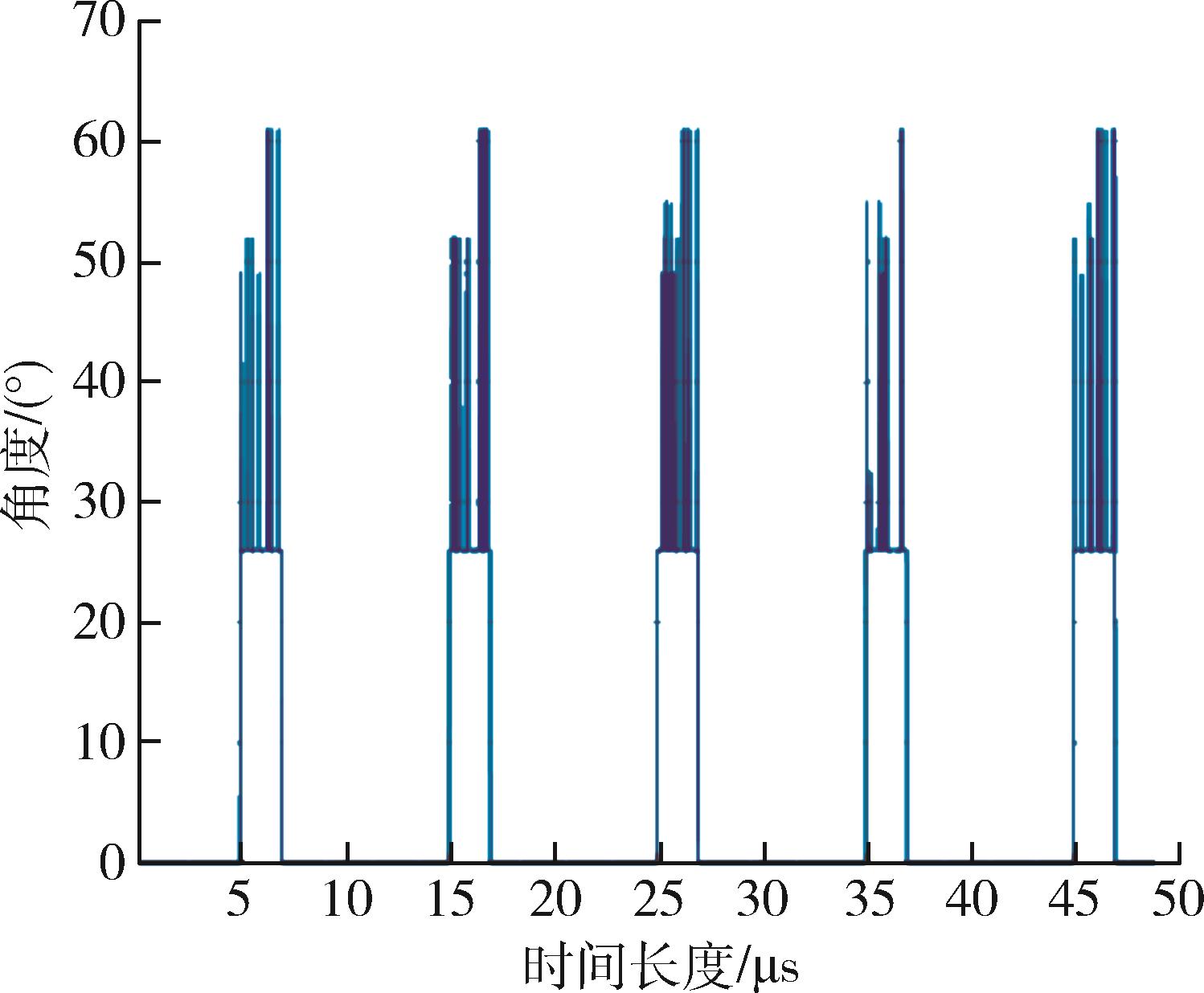

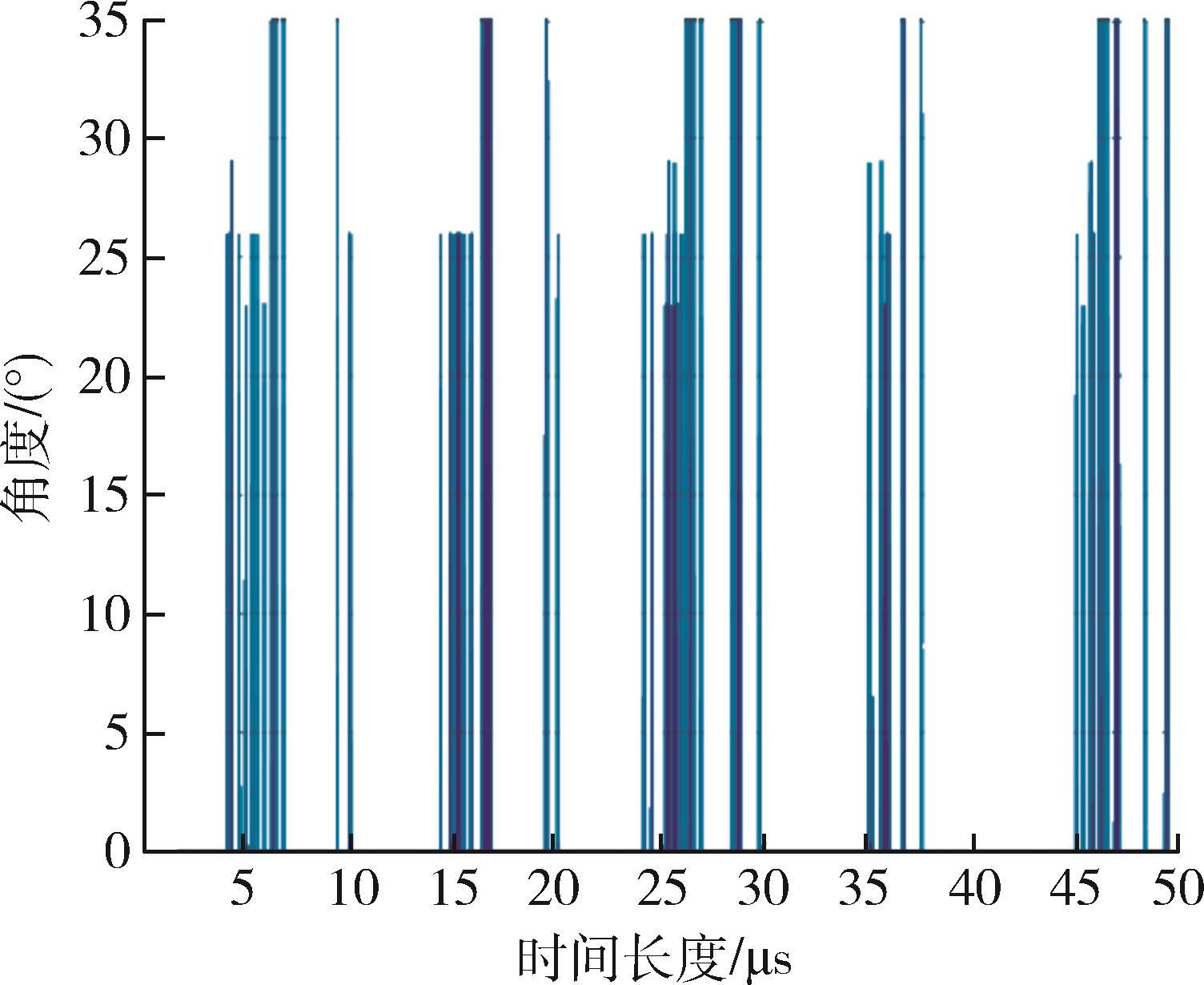

Fig. 17 Angle value after adding jamming

Fig. 18 Angle difference between radar signal and radar signal with jammings

References 14
