Protection Capability Comparison of Different Radar in Front Doors Coupling

doi:10.3969/j.issn.1009-086x.2024.01.015

Abstract

Abstract:

Aiming at the problem that radar is easy to be damaged when being attacked by HPM weapons， this paper theoretically analyzes the relationship between the farthest protection boundary to antenna gain and receiving front-end limiter’s capability， and compares the capability of reflector radar and active phased array radar against front door coupling attack from the perspective of spatial filtering. The analysis shows that only when the HPM weapon is near the main lobe range of the reflector radar antenna， its front door coupling attack effect is stronger than that of the active phased array radar； on the contrary， it is weaker than active phased array radar. Because the main beam of the reflector antenna radar is very narrow， the attack time window is very short， so the reflector antenna radar has stronger protection ability when facing HPM weapons.

Key words: radar, high power microwave, front door coupling, protection ability, gain, lobe

摘要：

针对雷达遭受高功率微波武器攻击时容易损伤的问题，理论分析了雷达最远防护边界和雷达天线增益及接收机限幅器能力的关系，从空间滤波的角度，对比了反射面雷达和有源相控阵雷达抗前门耦合攻击的能力。分析得出只有高功率微波武器处于反射面雷达天线的主瓣范围附近时，对其前门耦合攻击效果才强于有源相控阵雷达；反之，要弱于有源相控阵雷达。由于反射面天线雷达主波束很窄，造成攻击的时机很短，所以反射面雷达在面对高功率微波武器时防护能力更强。

关键词: 雷达, 高功率微波, 前门耦合, 防护能力, 增益, 波瓣

CLC Number:

TN95

Xin HU, Jiangping YANG, Cangzhen MENG, Zhifang ZUO, Yi XU, Yuxi XIE. Protection Capability Comparison of Different Radar in Front Doors Coupling[J]. Modern Defense Technology, 2024, 52(1): 116-123.

胡欣, 杨江平, 孟藏珍, 左治方, 许一, 谢雨希. 雷达抗前门耦合攻击防护能力对比分析[J]. 现代防御技术, 2024, 52(1): 116-123.

Figures/Tables 12

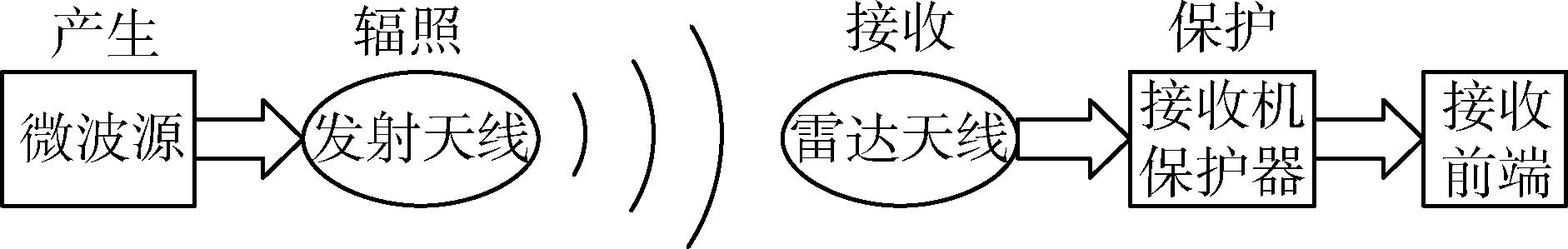

Fig. 1 Coupling path of high power microwave to radar antenna

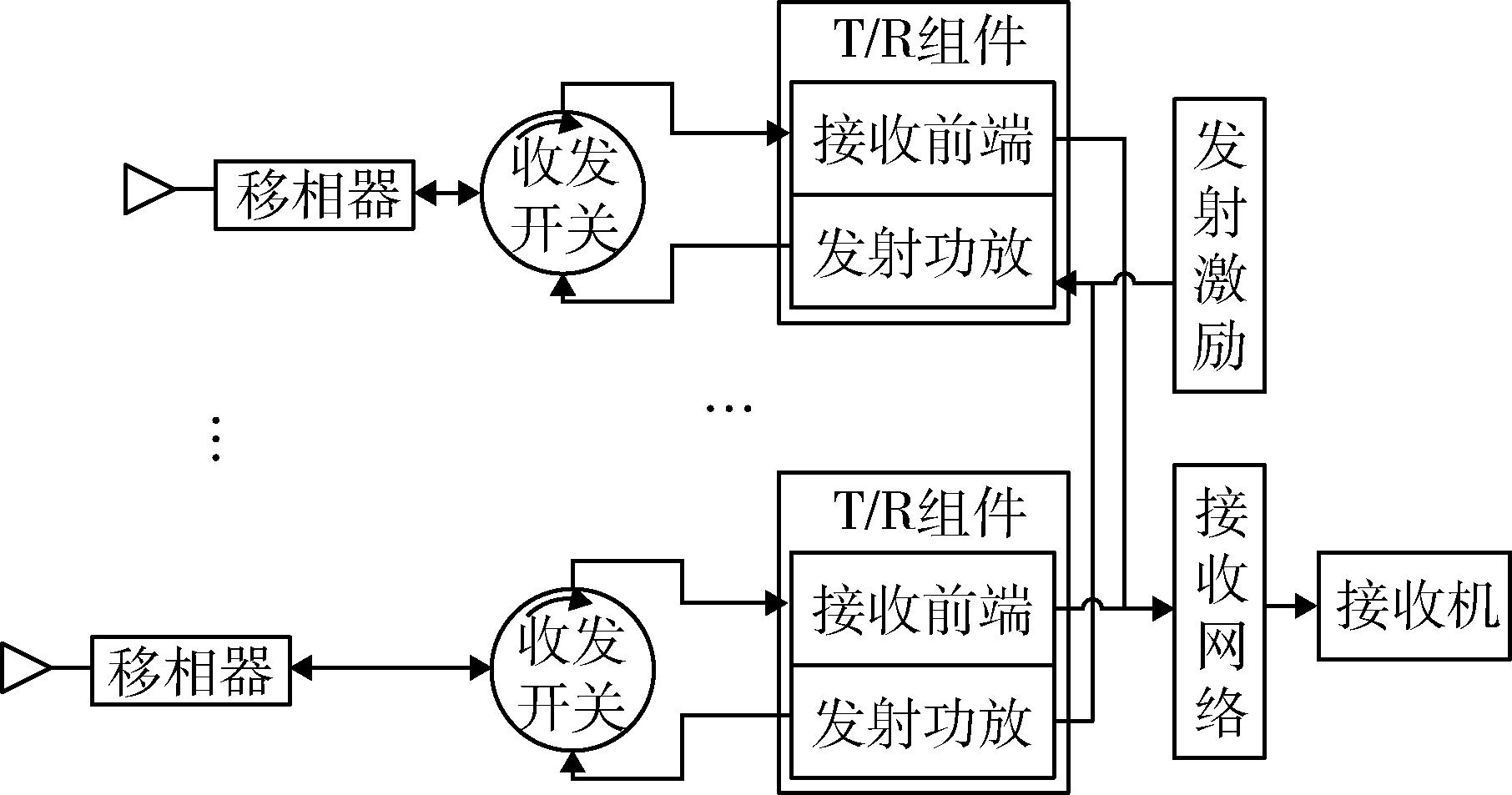

Fig. 2 Structure diagram of active phased array radar antenna

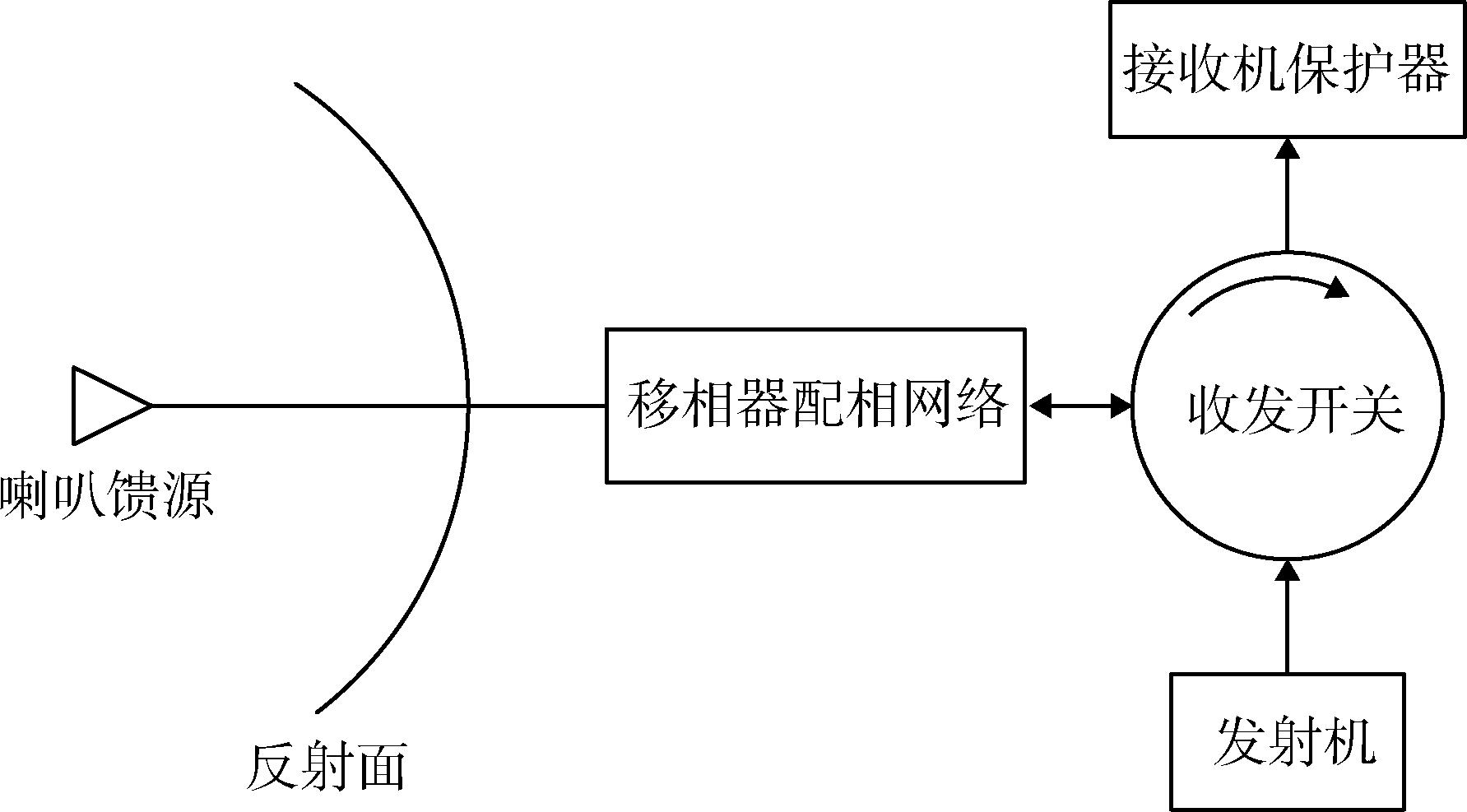

Fig. 3 Structure diagram of reflector radar antenna

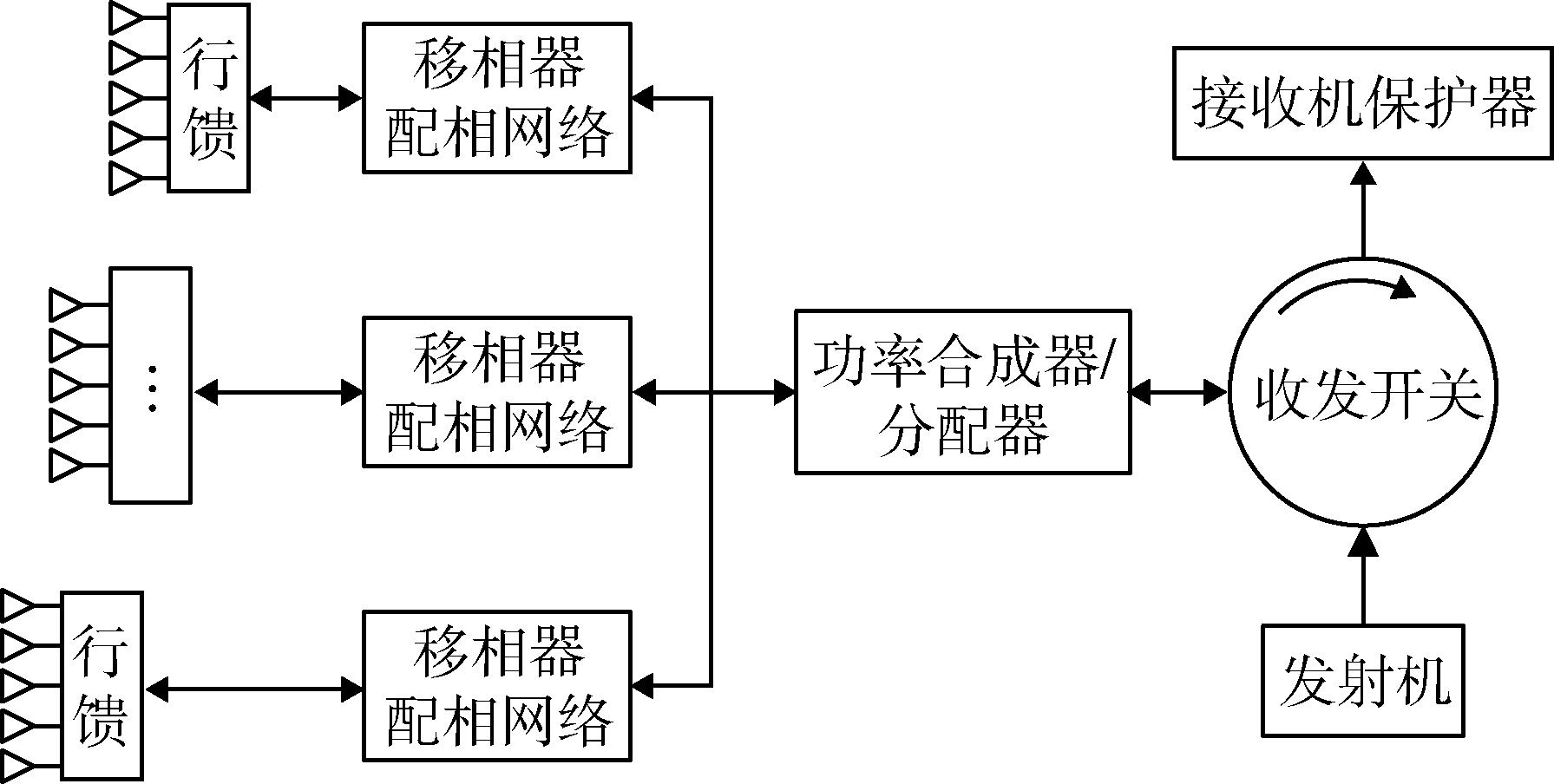

Fig. 4 Structure diagram of passive phased array radar antenna

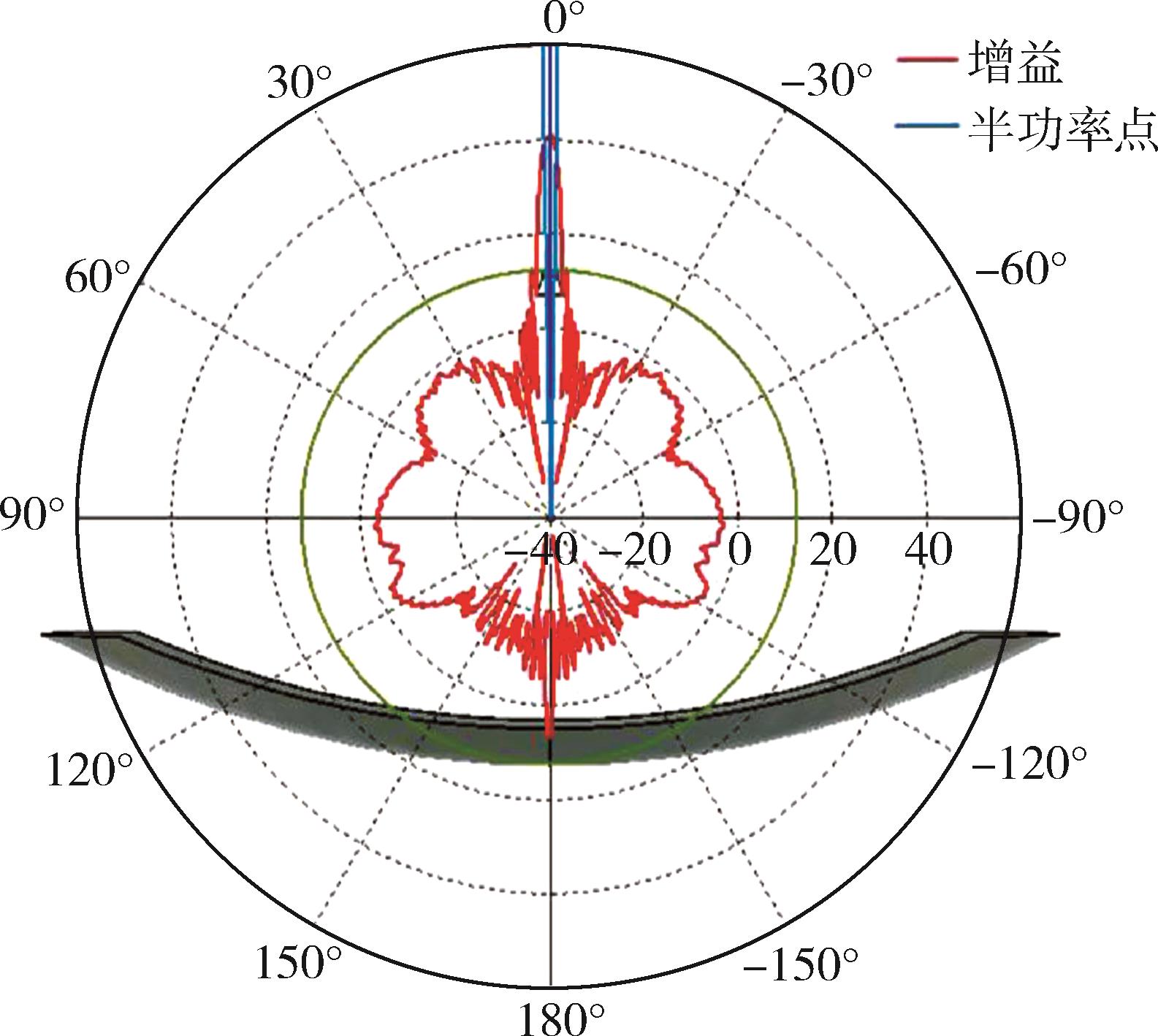

Fig. 5 Horizontal gain of common reflector antenna

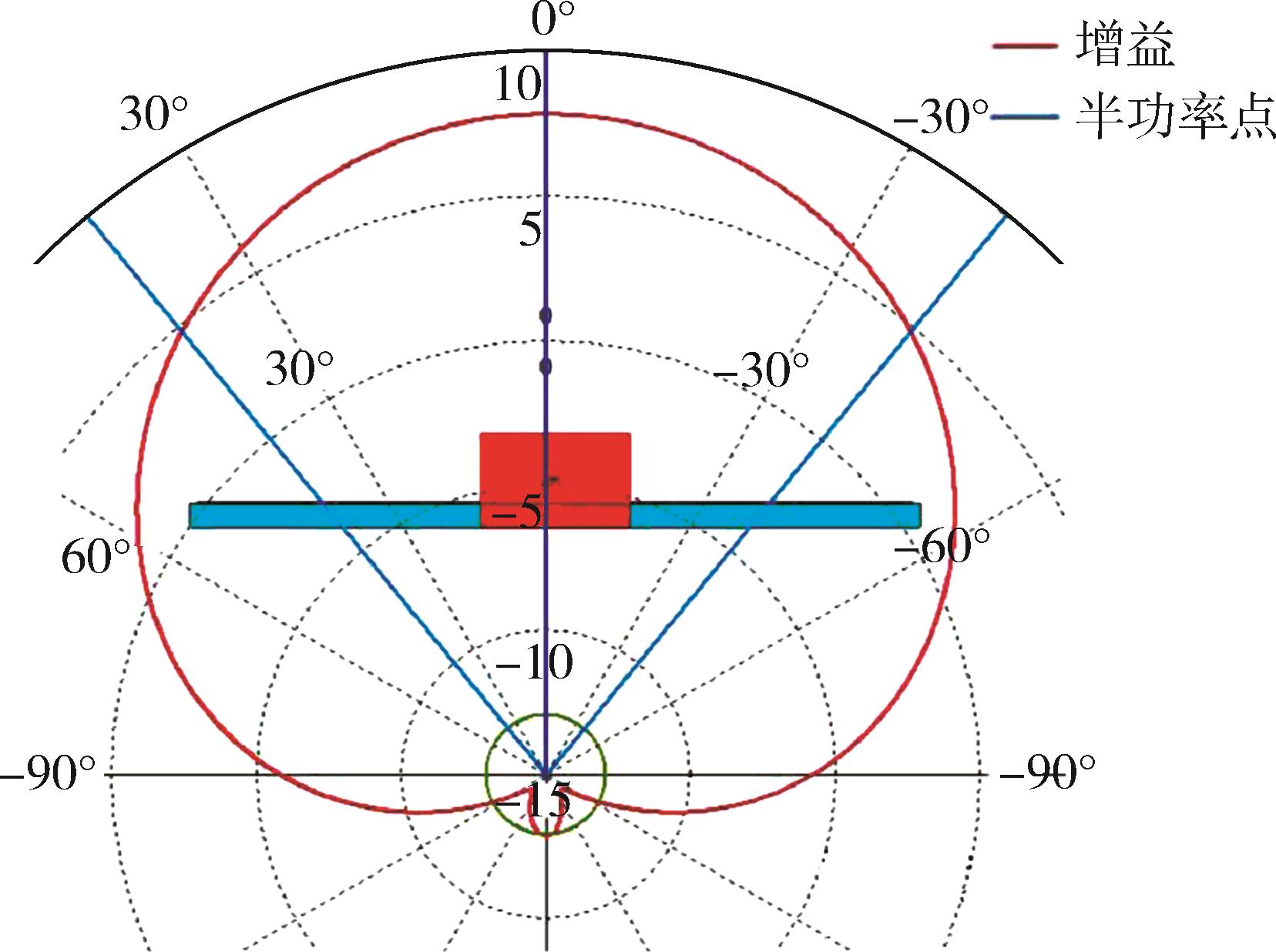

Fig. 6 Horizontal gain of common patch antenna

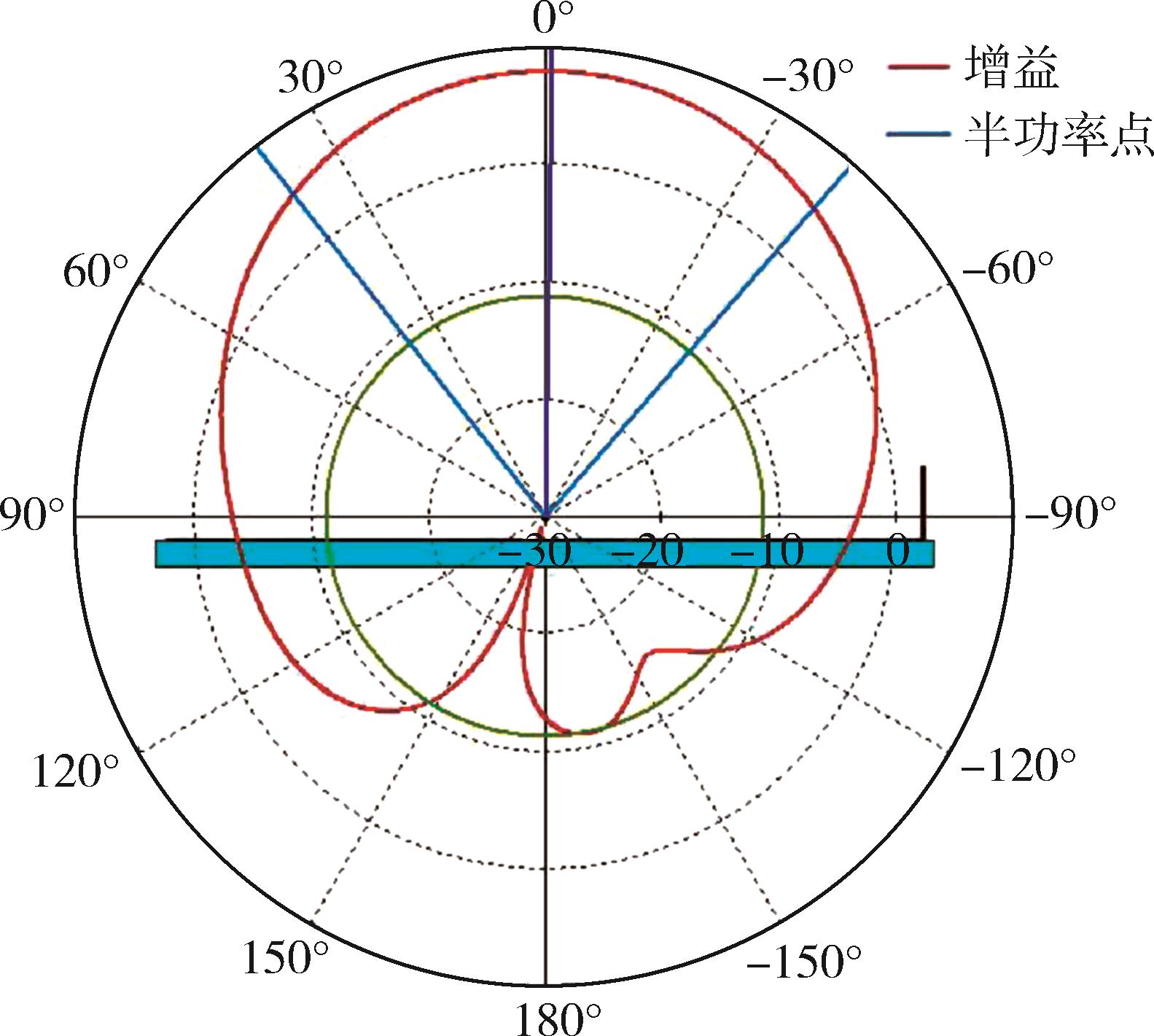

Fig. 7 Vertical gain of common reflector antenna

Fig. 8 Vertical gain of common patch antenna

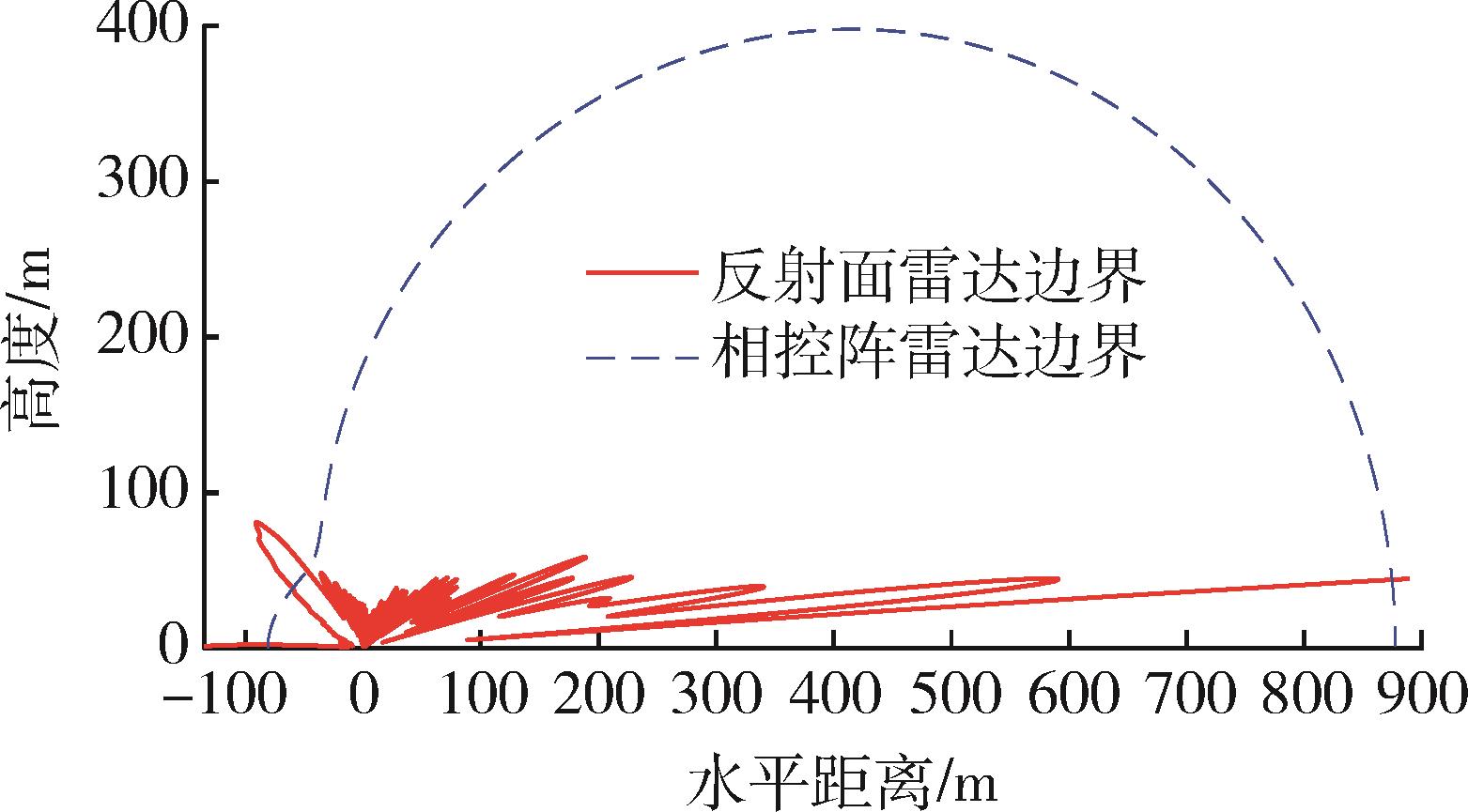

Fig. 9 Farthest protective boundary of the two radars on the horizontal plane

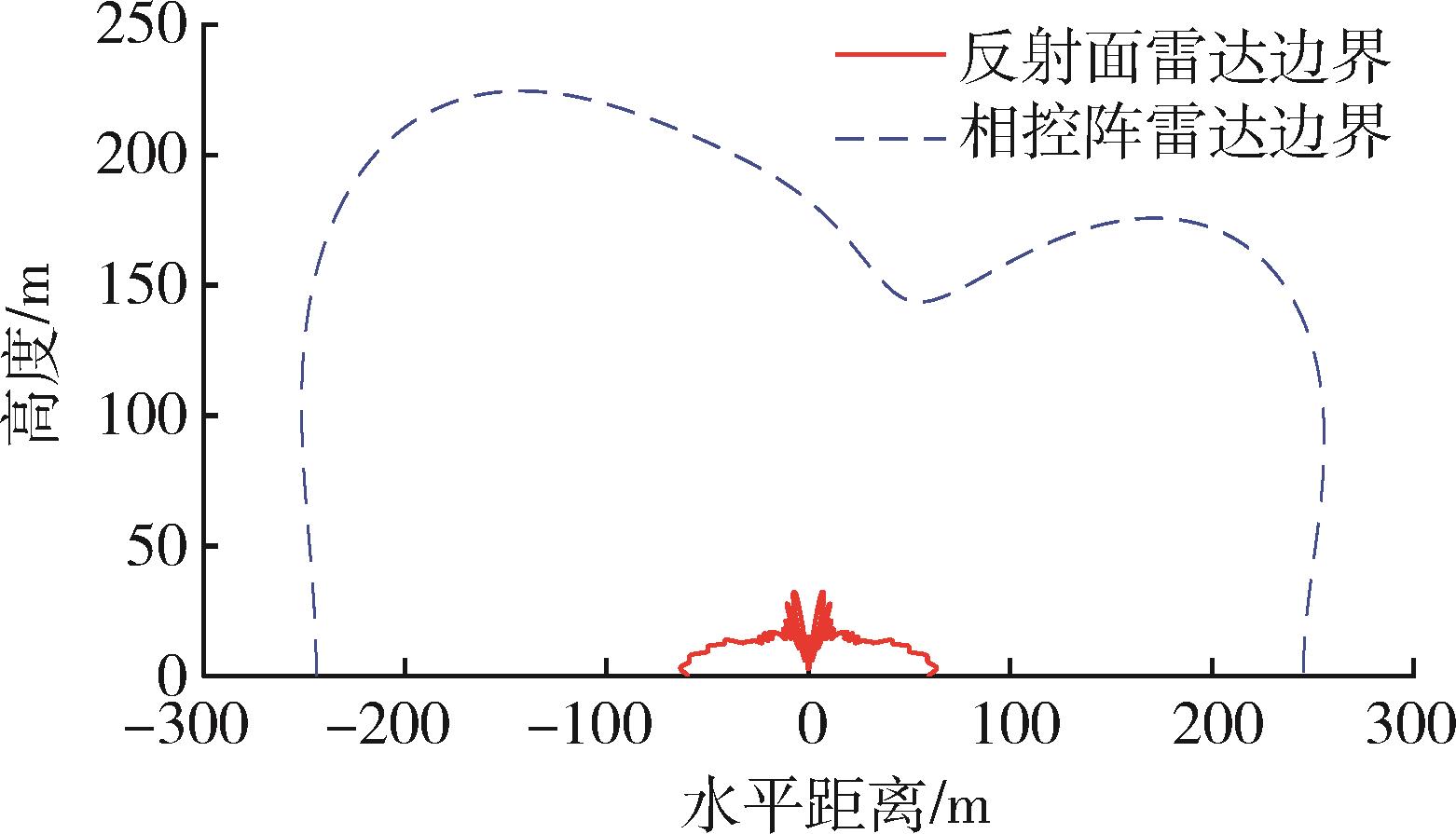

Fig. 10 Farthest protective boundary of the two radars in the vertical plane

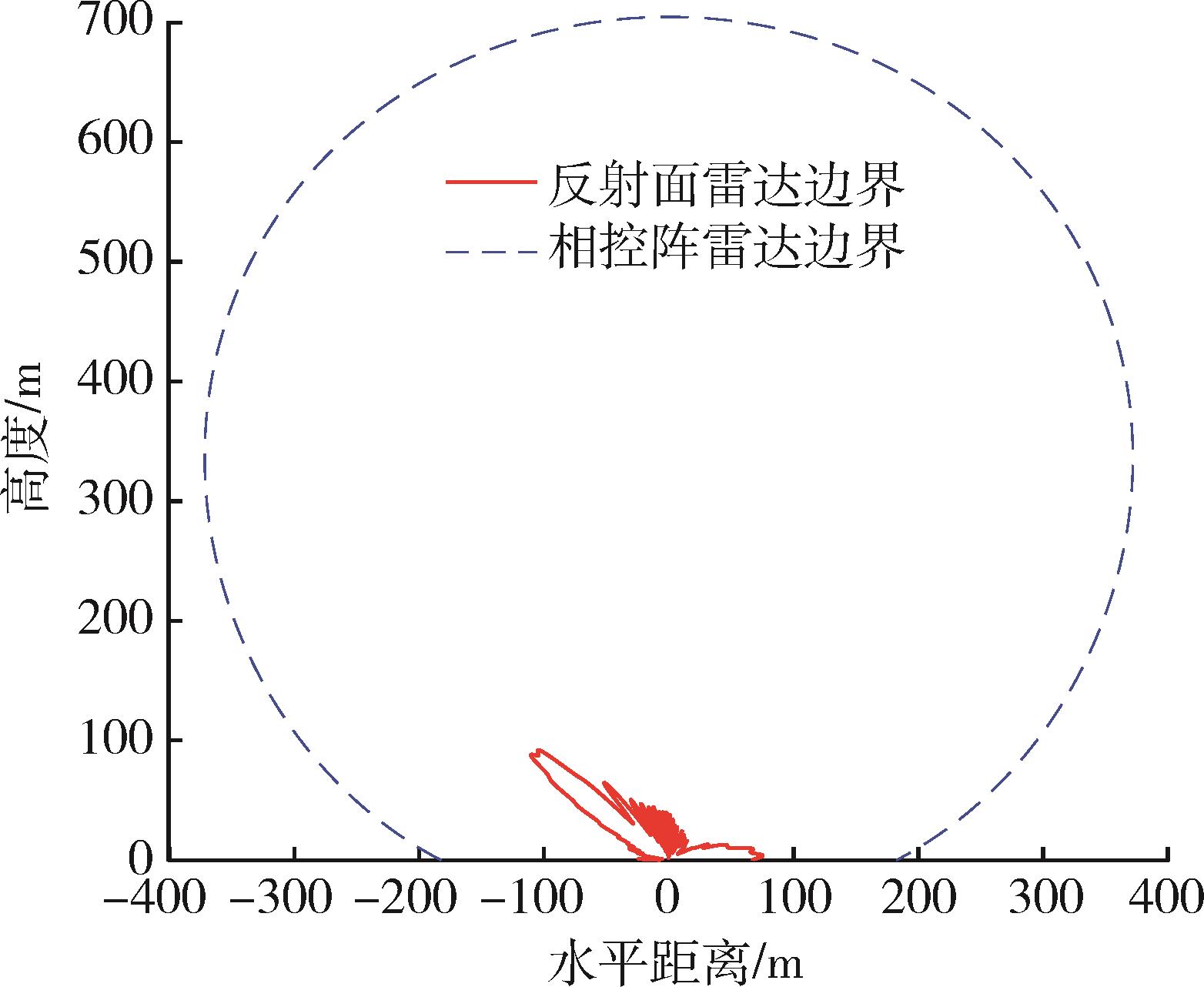

Fig. 11 Farthest protective boundary in the vertical direction deviating from the main lobe orientation of 90°

Fig. 12 Farthest protective boundary deviating from the main lobe of 45°

References 16

1	张胜涛，赵英俊，耶亚林. 电磁脉冲弹对雷达"前门"损伤研究［J］. 航天电子对抗， 2007， 23（3）： 18-20.
	ZHANG Shengtao， ZHAO Yingjun， YE Yalin. Research on Damage of Electromagnetic Pulse Bomb to Radar Through "Front Door" Couple［J］. Aerospace Electronic Warfare， 2007， 23（3）： 18-20.
2	余世里. 高功率微波武器效应及防护［J］. 微波学报， 2014， 30（增2）： 147-150.
	YU Shili.High Power Microwave Weapons Effect and Hardening［J］. Journal of Microwaves， 2014， 30（S2）： 147-150.
3	HAO Lingjun， XIAO Yujie， XIE Jun， et al. Construction and Transmission Mechanism of Exterior Ballistics of High-Power Microwave Weapons［J］. Soft Computing， 2021， 25（18）： 12401-12414.
4	牛卉，伍洋，李明. 国外高功率微波武器发展情况研究［J］. 飞航导弹， 2021（8）： 12-16， 23.
	NIU Hui， WU Yang， LI Ming. Research on the Development of High Power Microwave Weapons Abroad［J］. Aerodynamic Missile Journal， 2021（8）： 12-16， 23.
5	王永芳，许健明，徐晓艳. 基于专利分析国外高功率微波武器发展情况［J］. 国防科技， 2022， 43（6）： 14-19.
	WANG Yongfang， XU Jianming， XU Xiaoyan. An Analysis of the Development of Foreign High Power Microwave Weapons Based on Patents［J］. National Defense Technology， 2022， 43（6）： 14-19.
6	潘红伟. 面向先进威胁的地面对空情报雷达发展方向分析［J］. 电子世界， 2021（11）： 101-103.
	PAN Hongwei. Analysis of the Development Direction of Ground-to-Air Intelligence Radar Facing Advanced Threats［J］. Electronics World， 2021（11）： 101-103.
7	GU Xiaodong， CUI Donghua， LU Fengbo， et al. Analysis on Damage Efficiency of High Power Microwave to Marine Navigation Radar［C］∥2020 23rd International Microwave and Radar Conference （MIKON）. Piscataway， NJ， USA： IEEE， 2020： 271-273.
8	任雪峰，钱国栋. 相控阵雷达抗高功率微波武器损毁能力分析［J］. 雷达与对抗， 2019， 39（3）： 5-7.
	REN Xuefeng， QIAN Guodong. Analysis of Anti-Damage Capability of Phased Array Radar Against High-Power Microwave Weapons［J］. Radar & ECM， 2019， 39（3）： 5-7.
9	孟泽，柴晋飞，王剑峰. 相控阵雷达在高功率微波弹攻击下的生存能力分析［J］. 舰船电子对抗， 2017， 40（1）： 29-34.
	MENG Ze， CHAI Jinfei， WANG Jianfeng. Viability Analysis of Phased Array Radar Attacked by High-Power Microwave Bomb［J］. Shipboard Electronic Countermeasure， 2017， 40（1）： 29-34.
10	翁叶浩. 强电磁脉冲下低噪声放大器的响应特性研究［D］. 西安：西安电子科技大学， 2021.
	WENG Yehao. Research on Response Characteristics of Low Noise Amplifier under Strong Electromagnetic Pulse［D］. Xi'an： Xidian University， 2021.
11	任茂仁. 低噪声放大器的高功率微波效应研究［D］. 成都：电子科技大学， 2022.
	REN Maoren. Research on High Power Microwave Effects of Low Noise Amplifiers［D］. Chengdu： University of Electronic Science and Technology of China， 2022.
12	王剑峰，游睿. 地面雷达强电磁脉冲防护方法概述［J］. 电子测试， 2020， 31（13）： 84-86， 79.
	WANG Jianfeng， YOU Rui. The Protective Method of High-Power Electromagnetic Pluse for Ground Radar［J］. Electronic Test， 2020， 31（13）： 84-86， 79.
13	钟顺时. 天线理论与技术［M］. 北京：电子工业出版社， 2011.
	ZHONG Shunshi. Antenna Theory and Techniques［M］. Beijing： Publishing House of Electronics Industry， 2011.
14	李赟. 具有PIN限幅器的低噪声放大器的HPM扰乱效应研究［D］. 西安：西安电子科技大学， 2020.
	LI Yun. Interference Effect of HPM on a Low Noise Amplifier with a PIN Limiter［D］. Xi'an： Xidian University， 2020.
15	王明. PIN限幅器高功率微波重复脉冲效应机理研究［D］. 北京：中国工程物理研究院， 2018.
	WANG Ming. Studies on the Damage Mechanism of PIN Limiter Under Repeated High Power Microwave Pulse［D］. Beijing： China Academy of Engineering Physics， 2018.
16	张煜晨. 射频前端抗强电磁脉冲PIN限幅器研究与设计［D］. 西安：西安电子科技大学， 2020.
	ZHANG Yuchen. Research and Design of PIN Limiter for RF Front-End to Resist Strong Electromagnetic Pulse［D］. Xi'an： Xidian University， 2020.
