Modern Defense Technology ›› 2023, Vol. 51 ›› Issue (2): 14-22.DOI: 10.3969/j.issn.1009-086x.2023.02.002
• AIRCRAFT TECHNOLOGY • Previous Articles Next Articles
Yutian CHEN1, Yuxin CHEN2, Haijiao ZHANG1, Shuying DONG2, Lu XU1, Yujing WANG1, Yue QIU1
Received:
2022-06-22
Revised:
2022-09-21
Online:
2023-04-28
Published:
2023-05-05
陈雨田1, 陈彧欣2, 张海礁1, 董淑英2, 徐璐1, 王宇晶1, 邱越1
作者简介:
陈雨田(1988-),男,湖北京山人。工程师,硕士,研究方向为微小型飞行器无缆化、电装工艺。
CLC Number:
Yutian CHEN, Yuxin CHEN, Haijiao ZHANG, Shuying DONG, Lu XU, Yujing WANG, Yue QIU. Research and Experimental Verification of Current-Carrying Capacity of Electrical Layer in Flexible PCB Cable[J]. Modern Defense Technology, 2023, 51(2): 14-22.
陈雨田, 陈彧欣, 张海礁, 董淑英, 徐璐, 王宇晶, 邱越. 柔性电缆PCB内电层载流量研究与实验验证[J]. 现代防御技术, 2023, 51(2): 14-22.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.xdfyjs.cn/EN/10.3969/j.issn.1009-086x.2023.02.002
温升/℃ | 10 | 20 | 30 | |||||||
---|---|---|---|---|---|---|---|---|---|---|
覆铜厚度/Oz | 1/2 | 1 | 2 | 1/2 | 1 | 2 | 1/2 | 1 | 2 | |
线宽/inch | 线宽/mm | 最大电流/A | ||||||||
0.010 | 0.25 | 0.5 | 1.0 | 1.4 | 0.6 | 1.2 | 1.6 | 0.7 | 1.5 | 2.2 |
0.015 | 0.38 | 0.7 | 1.2 | 1.6 | 0.8 | 1.3 | 2.4 | 1.0 | 1.6 | 3.0 |
0.020 | 0.51 | 0.7 | 1.3 | 2.1 | 1.0 | 1.7 | 3.0 | 1.2 | 2.4 | 3.6 |
0.025 | 0.64 | 0.9 | 1.7 | 2.5 | 1.2 | 2.2 | 3.3 | 1.5 | 2.8 | 4.0 |
0.030 | 0.76 | 1.1 | 1.9 | 3.0 | 1.4 | 2.5 | 4.0 | 1.7 | 3.2 | 5.0 |
0.050 | 1.27 | 1.5 | 2.6 | 4.0 | 2.0 | 3.6 | 6.0 | 2.6 | 4.4 | 7.3 |
0.075 | 1.91 | 2.0 | 3.5 | 5.7 | 2.8 | 4.5 | 7.8 | 3.5 | 6.0 | 10.0 |
0.100 | 2.54 | 2.6 | 4.2 | 6.9 | 3.5 | 6.0 | 9.9 | 4.3 | 7.5 | 12.5 |
0.200 | 5.08 | 4.2 | 7.0 | 11.5 | 6.0 | 10.0 | 11.0 | 7.5 | 13.0 | 20.5 |
0.250 | 6.35 | 5.0 | 8.3 | 12.3 | 7.2 | 12.3 | 20.0 | 9.0 | 15.0 | 24.5 |
Table 1 Linewidth, temperature rise, and current-carrying capacity in MIL-STD-275
温升/℃ | 10 | 20 | 30 | |||||||
---|---|---|---|---|---|---|---|---|---|---|
覆铜厚度/Oz | 1/2 | 1 | 2 | 1/2 | 1 | 2 | 1/2 | 1 | 2 | |
线宽/inch | 线宽/mm | 最大电流/A | ||||||||
0.010 | 0.25 | 0.5 | 1.0 | 1.4 | 0.6 | 1.2 | 1.6 | 0.7 | 1.5 | 2.2 |
0.015 | 0.38 | 0.7 | 1.2 | 1.6 | 0.8 | 1.3 | 2.4 | 1.0 | 1.6 | 3.0 |
0.020 | 0.51 | 0.7 | 1.3 | 2.1 | 1.0 | 1.7 | 3.0 | 1.2 | 2.4 | 3.6 |
0.025 | 0.64 | 0.9 | 1.7 | 2.5 | 1.2 | 2.2 | 3.3 | 1.5 | 2.8 | 4.0 |
0.030 | 0.76 | 1.1 | 1.9 | 3.0 | 1.4 | 2.5 | 4.0 | 1.7 | 3.2 | 5.0 |
0.050 | 1.27 | 1.5 | 2.6 | 4.0 | 2.0 | 3.6 | 6.0 | 2.6 | 4.4 | 7.3 |
0.075 | 1.91 | 2.0 | 3.5 | 5.7 | 2.8 | 4.5 | 7.8 | 3.5 | 6.0 | 10.0 |
0.100 | 2.54 | 2.6 | 4.2 | 6.9 | 3.5 | 6.0 | 9.9 | 4.3 | 7.5 | 12.5 |
0.200 | 5.08 | 4.2 | 7.0 | 11.5 | 6.0 | 10.0 | 11.0 | 7.5 | 13.0 | 20.5 |
0.250 | 6.35 | 5.0 | 8.3 | 12.3 | 7.2 | 12.3 | 20.0 | 9.0 | 15.0 | 24.5 |
序号 | 测试前阻值/Ω | 测试后阻值/Ω | 测试后外观 | 测试结果 |
---|---|---|---|---|
1 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
2 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
3 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
4 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
5 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
Table2 Test results of impulse current under a copper width of 5 mm and thickness of 1/2 Oz
序号 | 测试前阻值/Ω | 测试后阻值/Ω | 测试后外观 | 测试结果 |
---|---|---|---|---|
1 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
2 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
3 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
4 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
5 | 0.03 | 0.03 | 无曲翘、烧蚀 | 通过 |
序号 | 测试前阻值/Ω | 测试后阻值/Ω | 测试后外观 | 测试结果 |
---|---|---|---|---|
1 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
2 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
3 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
4 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
5 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
Table3 Test results of impulse current under a copper width of 2 mm and thickness of 1/2 Oz
序号 | 测试前阻值/Ω | 测试后阻值/Ω | 测试后外观 | 测试结果 |
---|---|---|---|---|
1 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
2 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
3 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
4 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
5 | 0.06 | 0.06 | 无曲翘、烧蚀 | 通过 |
状态 | 产品 | |||
---|---|---|---|---|
实验样件 | 正式产品 | |||
特征 | 散热情况 | 特征 | 散热情况 | |
PCB板层数 | 四层 | 一般 | 多层 | 一般 |
PCB板状态 | 刚板 | 一般 | 刚挠结合板 | 良好 |
PCB安装状态 | 外部空间独立 | 一般 | 内部贴金属舱壁 | 良好 |
供电线宽 | 5 mm | 良好 | 5 mm | 良好 |
供电电流 | 最大10 A | 良好 | 2 A | 良好 |
工作时间 | 5 min | — | 20 s | — |
Table 4 Comparison of working conditions between test sample and formal product
状态 | 产品 | |||
---|---|---|---|---|
实验样件 | 正式产品 | |||
特征 | 散热情况 | 特征 | 散热情况 | |
PCB板层数 | 四层 | 一般 | 多层 | 一般 |
PCB板状态 | 刚板 | 一般 | 刚挠结合板 | 良好 |
PCB安装状态 | 外部空间独立 | 一般 | 内部贴金属舱壁 | 良好 |
供电线宽 | 5 mm | 良好 | 5 mm | 良好 |
供电电流 | 最大10 A | 良好 | 2 A | 良好 |
工作时间 | 5 min | — | 20 s | — |
温度/ ℃ | 电流/A | |||||
---|---|---|---|---|---|---|
5 | 6 | 7 | 8 | 9 | 10 | |
20 | 0.506 | 0.728 | 0.991 | 1.294 | 1.638 | 2.022 |
25 | 0.514 | 0.740 | 1.007 | 1.316 | 1.665 | 2.056 |
30 | 0.522 | 0.752 | 1.024 | 1.337 | 1.692 | 2.089 |
35 | 0.533 | 0.768 | 1.045 | 1.365 | 1.728 | 2.133 |
40 | 0.542 | 0.780 | 1.062 | 1.387 | 1.755 | 2.167 |
45 | 0.550 | 0.792 | 1.078 | 1.408 | 1.782 | 2.200 |
50 | 0.558 | 0.804 | 1.094 | 1.429 | 1.809 | 2.233 |
55 | 0.569 | 0.820 | 1.116 | 1.458 | 1.845 | 2.278 |
60 | 0.578 | 0.832 | 1.132 | 1.479 | 1.872 | 2.311 |
65 | 0.586 | 0.844 | 1.149 | 1.500 | 1.899 | 2.344 |
70 | 0.597 | 0.860 | 1.171 | 1.529 | 1.935 | 2.389 |
75 | 0.606 | 0.872 | 1.187 | 1.550 | 1.962 | 2.422 |
80 | 0.614 | 0.884 | 1.203 | 1.572 | 1.989 | 2.456 |
85 | 0.625 | 0.900 | 1.225 | 1.600 | 2.025 | 2.500 |
90 | 0.633 | 0.912 | 1.241 | 1.621 | 2.052 | 2.533 |
95 | 0.642 | 0.924 | 1.258 | 1.643 | 2.079 | 2.567 |
100 | 0.650 | 0.936 | 1.274 | 1.664 | 2.106 | 2.600 |

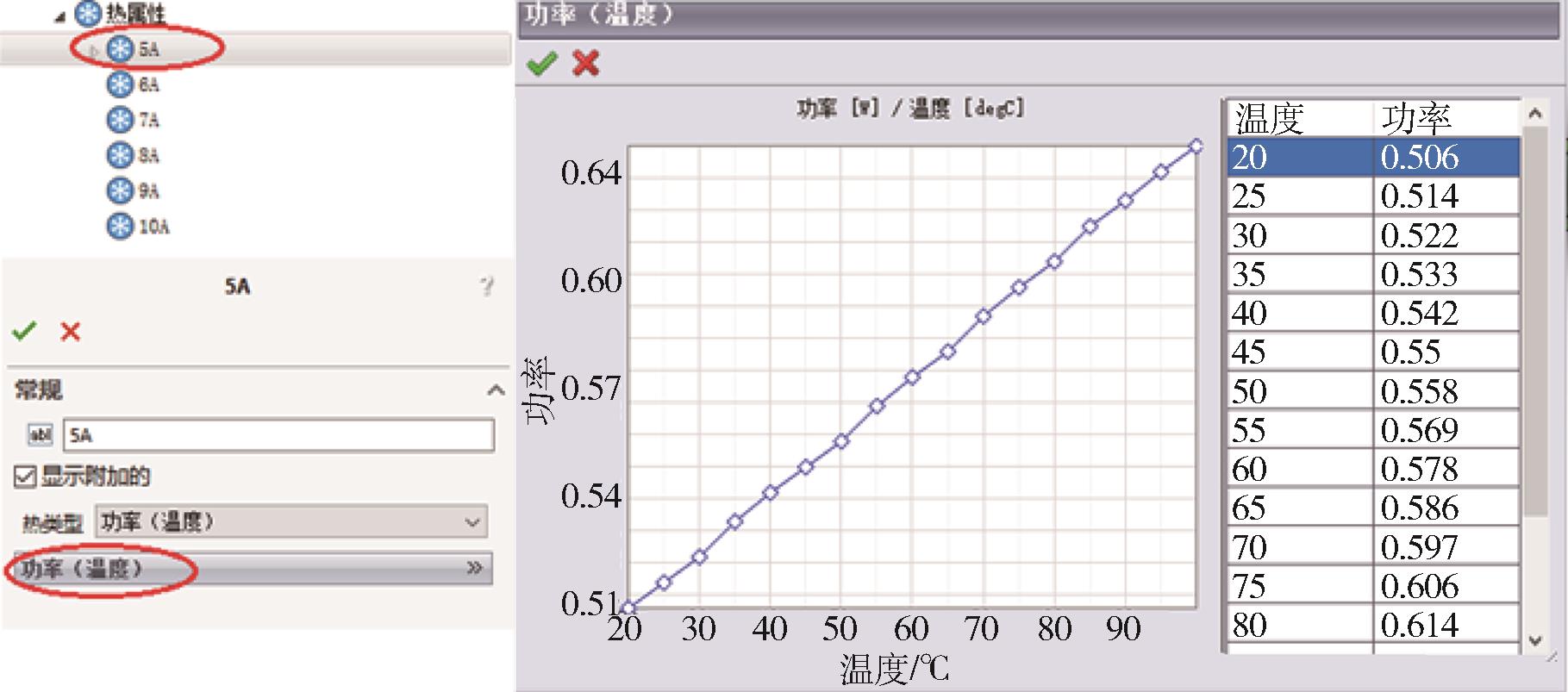

Table 5 Power parameters under different current conditions (at a copper width of 5 mm and thickness of 1/2 Oz)
温度/ ℃ | 电流/A | |||||
---|---|---|---|---|---|---|
5 | 6 | 7 | 8 | 9 | 10 | |
20 | 0.506 | 0.728 | 0.991 | 1.294 | 1.638 | 2.022 |
25 | 0.514 | 0.740 | 1.007 | 1.316 | 1.665 | 2.056 |
30 | 0.522 | 0.752 | 1.024 | 1.337 | 1.692 | 2.089 |
35 | 0.533 | 0.768 | 1.045 | 1.365 | 1.728 | 2.133 |
40 | 0.542 | 0.780 | 1.062 | 1.387 | 1.755 | 2.167 |
45 | 0.550 | 0.792 | 1.078 | 1.408 | 1.782 | 2.200 |
50 | 0.558 | 0.804 | 1.094 | 1.429 | 1.809 | 2.233 |
55 | 0.569 | 0.820 | 1.116 | 1.458 | 1.845 | 2.278 |
60 | 0.578 | 0.832 | 1.132 | 1.479 | 1.872 | 2.311 |
65 | 0.586 | 0.844 | 1.149 | 1.500 | 1.899 | 2.344 |
70 | 0.597 | 0.860 | 1.171 | 1.529 | 1.935 | 2.389 |
75 | 0.606 | 0.872 | 1.187 | 1.550 | 1.962 | 2.422 |
80 | 0.614 | 0.884 | 1.203 | 1.572 | 1.989 | 2.456 |
85 | 0.625 | 0.900 | 1.225 | 1.600 | 2.025 | 2.500 |
90 | 0.633 | 0.912 | 1.241 | 1.621 | 2.052 | 2.533 |
95 | 0.642 | 0.924 | 1.258 | 1.643 | 2.079 | 2.567 |
100 | 0.650 | 0.936 | 1.274 | 1.664 | 2.106 | 2.600 |
温度/ ℃ | 电流/A | |||||
---|---|---|---|---|---|---|
2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |
20 | 0.202 | 0.316 | 0.455 | 0.619 | 0.809 | 1.024 |
25 | 0.206 | 0.321 | 0.463 | 0.630 | 0.822 | 1.041 |
30 | 0.209 | 0.326 | 0.470 | 0.640 | 0.836 | 1.058 |
35 | 0.213 | 0.333 | 0.480 | 0.653 | 0.853 | 1.080 |
40 | 0.217 | 0.339 | 0.488 | 0.664 | 0.867 | 1.097 |
45 | 0.220 | 0.344 | 0.495 | 0.674 | 0.880 | 1.114 |
50 | 0.223 | 0.349 | 0.503 | 0.684 | 0.893 | 1.131 |
55 | 0.228 | 0.356 | 0.513 | 0.698 | 0.911 | 1.153 |
60 | 0.231 | 0.361 | 0.520 | 0.708 | 0.924 | 1.170 |
65 | 0.234 | 0.366 | 0.528 | 0.718 | 0.938 | 1.187 |
70 | 0.239 | 0.373 | 0.538 | 0.732 | 0.956 | 1.209 |
75 | 0.242 | 0.378 | 0.545 | 0.742 | 0.969 | 1.226 |
80 | 0.246 | 0.384 | 0.553 | 0.752 | 0.982 | 1.243 |
85 | 0.250 | 0.391 | 0.563 | 0.766 | 1.000 | 1.266 |
90 | 0.253 | 0.396 | 0.570 | 0.776 | 1.013 | 1.283 |
95 | 0.257 | 0.401 | 0.578 | 0.786 | 1.027 | 1.299 |
100 | 0.260 | 0.406 | 0.585 | 0.796 | 1.040 | 1.316 |
Table 6 Power parameters under different current conditions (at a copper width of 2 mm and thickness of 1/2 Oz)
温度/ ℃ | 电流/A | |||||
---|---|---|---|---|---|---|
2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |
20 | 0.202 | 0.316 | 0.455 | 0.619 | 0.809 | 1.024 |
25 | 0.206 | 0.321 | 0.463 | 0.630 | 0.822 | 1.041 |
30 | 0.209 | 0.326 | 0.470 | 0.640 | 0.836 | 1.058 |
35 | 0.213 | 0.333 | 0.480 | 0.653 | 0.853 | 1.080 |
40 | 0.217 | 0.339 | 0.488 | 0.664 | 0.867 | 1.097 |
45 | 0.220 | 0.344 | 0.495 | 0.674 | 0.880 | 1.114 |
50 | 0.223 | 0.349 | 0.503 | 0.684 | 0.893 | 1.131 |
55 | 0.228 | 0.356 | 0.513 | 0.698 | 0.911 | 1.153 |
60 | 0.231 | 0.361 | 0.520 | 0.708 | 0.924 | 1.170 |
65 | 0.234 | 0.366 | 0.528 | 0.718 | 0.938 | 1.187 |
70 | 0.239 | 0.373 | 0.538 | 0.732 | 0.956 | 1.209 |
75 | 0.242 | 0.378 | 0.545 | 0.742 | 0.969 | 1.226 |
80 | 0.246 | 0.384 | 0.553 | 0.752 | 0.982 | 1.243 |
85 | 0.250 | 0.391 | 0.563 | 0.766 | 1.000 | 1.266 |
90 | 0.253 | 0.396 | 0.570 | 0.776 | 1.013 | 1.283 |
95 | 0.257 | 0.401 | 0.578 | 0.786 | 1.027 | 1.299 |
100 | 0.260 | 0.406 | 0.585 | 0.796 | 1.040 | 1.316 |
电流/A | 实测温度/℃ | 仿真温度/℃ |
---|---|---|
5 | 37.0 | 39.863 |
6 | 43.9 | 45.809 |
7 | 51.7 | 54.625 |
8 | 61.8 | 64.645 |
9 | 77.3 | 76.712 |
10 | 91.0 | 89.635 |

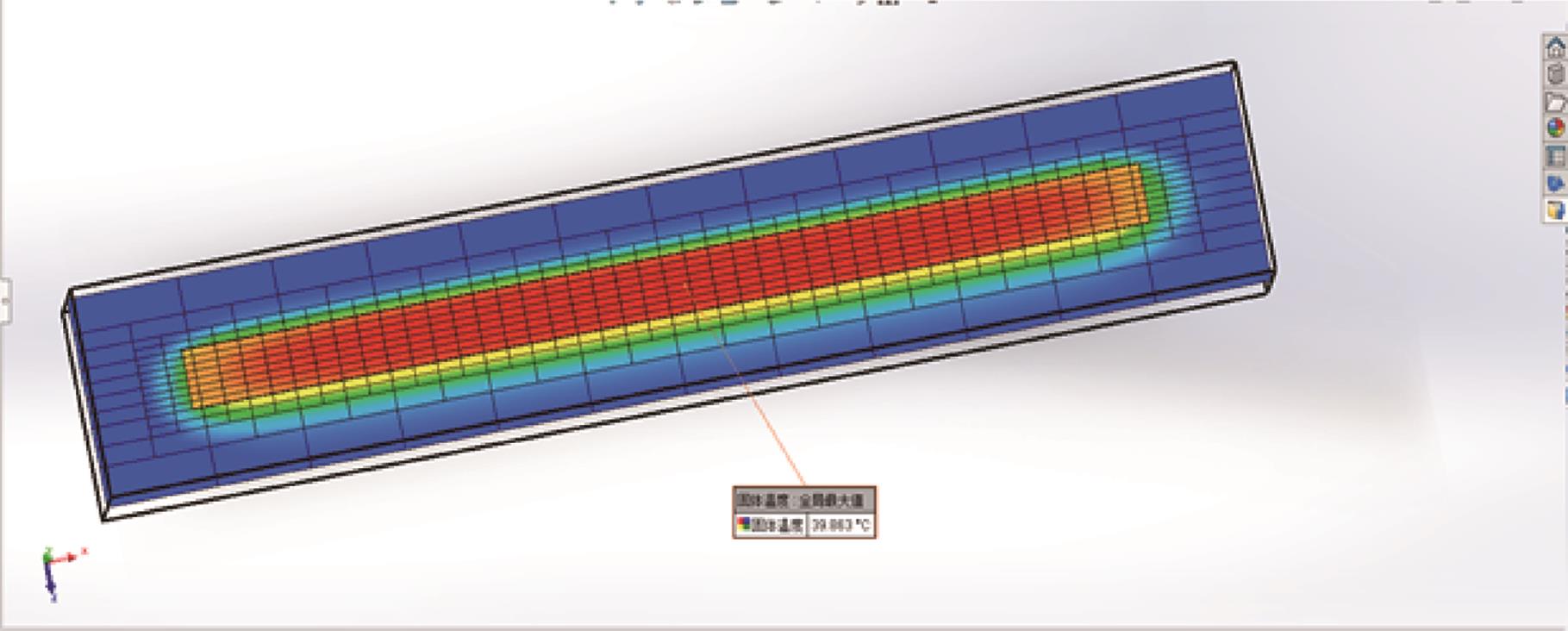

Table 7 Circuit board simulation results (at a copper width of 5 mm and thickness of 1/2 Oz)
电流/A | 实测温度/℃ | 仿真温度/℃ |
---|---|---|
5 | 37.0 | 39.863 |
6 | 43.9 | 45.809 |
7 | 51.7 | 54.625 |
8 | 61.8 | 64.645 |
9 | 77.3 | 76.712 |
10 | 91.0 | 89.635 |
电流/A | 实测温度/℃ | 仿真温度/℃ |
---|---|---|
2.0 | 30.4 | 30.948 |
2.5 | 33.7 | 34.479 |
3.0 | 37.4 | 38.704 |
3.5 | 42.5 | 43.886 |
4.0 | 49.4 | 49.992 |
4.5 | 57.8 | 57.380 |
Table 8 Circuit board simulation results (at a copper width of 2 mm and thickness of 1/2 Oz)
电流/A | 实测温度/℃ | 仿真温度/℃ |
---|---|---|
2.0 | 30.4 | 30.948 |
2.5 | 33.7 | 34.479 |
3.0 | 37.4 | 38.704 |
3.5 | 42.5 | 43.886 |
4.0 | 49.4 | 49.992 |
4.5 | 57.8 | 57.380 |
1 | 陈世适,姜臻,董晓飞,等.微小型飞行器发展现状及关键技术浅析[J].无人系统技术,2018,1(1):38-53. |
CHEN Shishi, JIANG Zhen, DONG Xiaofei, et al. Analysis of the Development Status and Key Technologies of Microsmall Aircraft [J]. Unmanned System Technology, 2018,1(1): 38-53. | |
2 | 汪顺尧.印制电路板制造技术探究[J].电子制作,2021(10):78-79,43. |
WANG Shunyao. Research on the Manufacturing Technology of Printed Circuit Board [J]. Electronic Production, 2021(10): 78-79,43. | |
3 | MIL-STD-275E. Printed Wiring for Electronic Equipment [S].1984. |
4 | 高峰鸽,宜健.PCB电源布线设计-印制导线温升与导线宽度和负载电流的关系[J].无线通信技术,2011,20(4):52-56. |
GAO Fengge, YI Jian.PCB Power Wiring Design-the Relationship Between Printed Wire Temperature Rise and Wire Width and Load Current [J].Wireless Communication Technology, 2011,20 (4): 52-56. | |
5 | . 军用电子设备印制电路板设计要求 [S].2000. |
. Design Requirements for Printed Boards of Military Electronic Equipments [S].2000. | |
6 | 党旭辉,李清莲,廖双.30 A载流能力PCB设计与实验验证[J].现代信息科技,2021,5(15):60-62,66. |
DANG Xuhui, LI Qinglian, LIAO Shuang.30A Flow Capacity PCB Design and Experimental Validation [J].Modern Information Technology, 2021,5(15):60-62,66. | |
7 | 赵艳雯,陆坚.敷铜PCB走线与过孔的电流承载能力[J].电子与封装,2011,11(9):11-14,22. |
ZHAO Yanwen, LU Jian. The Current Carrying Capacity of Copper PCB Wire Application and Overhole [J]. Electronics and Packaging, 2011,11(9): 11-14,22. | |
8 | 钮冬科,金晓怡,张向伟,等.基于Flotherm的电子电路热仿真分析与研究[J].现代电子技术,2015,38(6):16-19,24. |
NIU Dongke, JIN Xiaoyi, ZHANG Xiangwei, et al. Analysis and Study of Electronic Simulation Based on Flotherm[J]. Modern Electronic Technology, 2015,38 (6): 16-19,24. | |
9 | 曲行柱.Flotherm软件在电子元器件系统热设计中的应用[J].电子元件与材料,2014,33(10):101-102. |
QU Xingzhu. Application of Flotherm Software in the Thermal Design of Electronic Component Systems [J]. Electronic Components and Materials, 2014,33(10): 101-102. | |
10 | 王水发.基于Flotherm的热仿真分析[J].电子质量,2015(8):77-80. |
WANG Shuifa. Thermal Simulation Analysis Based on Flotherm [J]. Electronic Quality, 2015 (8): 77-80. | |
11 | 马岩.印制电路板详细模型的热仿真分析[J].机械设计与制造工程,2016,45(1):52-55. |
MA Yan. Thermal Simulation Analysis of the Detailed Model of the PCB [J]. Mechanical Design and Manufacturing Engineering, 2016,45(1): 52-55. | |
12 | 庄春跃,刘宽耀,刘伟平,等.星载印制电路板的热仿真[J].制导与引信,2018,39(3):60-64. |
ZHUANG Chunyue, LIU Kuanyao, LIU Weiping, et al. Thermal Simulation of STPCB [J]. Guidance and Fexes, 2018,39 (3): 60-64. | |
13 | 陈洁茹,朱敏波,齐颖.Icepak在电子设备热设计中的应用[J].电子机械工程,2005(1):14-16. |
CHEN Jieru, ZHU Minbo, QI Ying. Application of Icepak in the Thermal Design of Electronic Devices [J]. Electronic and Mechanical Engineering, 2005(1):14-16. | |
14 | 王婷,邹颖,李哲,等.基于Icepak的板级电路的热设计及热仿真分析[J].现代计算机,2021(17):55-59. |
WANG Ting, ZOU Ying, LI Zhe, et al. Thermal Design and Thermal Simulation Analysis of Plate-Level Circuits Based on Icepak [J]. Modern Computer, 2021 (17): 55-59. | |
15 | 李长民,任立立,邵明亮.PCB布线中电流生热的仿真与实践[J].电子质量,2020(5):132-134,139. |
LI Changmin, REN Lili, SHAO Mingliang. Simulation and Practice of Current Thermogenic in PCB Wiring [J]. Electronic Quality, 2020 (5): 132-134,139. |
[1] | Meng ZHAO, Mingyu WANG, Lianjie XIE, Jian WANG, Rui QIAO. Research on Motion Characteristics of Ballistic Missile and Decoy [J]. Modern Defense Technology, 2023, 51(1): 135-144. |
[2] | Haijin HUANG, Han JI, Xiaojia LIU, Bo YANG, Ning WANG. Research on Missile Equipment Health Management System for After-Sales Support [J]. Modern Defense Technology, 2023, 51(1): 75-85. |
[3] | Yu-xi XIE, Jiang-ping YANG, Zhi-jian SUN, Yi-yuan LI, Xin HU. Construction of Radar Fault Cause Knowledge Graph [J]. Modern Defense Technology, 2022, 50(5): 114-121. |
[4] | Qi ZHANG, Yu ZHOU, Xiao-ming ZHANG, Ming-yi CHI, Bing YI. Research on Error Correction Method for Segmentation Area of Infrared Theodolite with Large Field of View [J]. Modern Defense Technology, 2022, 50(5): 133-139. |
[5] | Xiao-wen ZHANG, Zhi-mei HAO, Qiang WANG. Study of Full-polarization Interference Technology on Polarization Measurement of Array Radar [J]. Modern Defense Technology, 2022, 50(5): 77-84. |
[6] | Chao-qi LIU, Li-hua WEN. Development Status of End Defense Missile and Design Analysis of the Missile Family Architecture [J]. Modern Defense Technology, 2022, 50(4): 45-51. |
[7] | Xiao-wei CHEN, Chao YANG, Zi-li JI. Optimization Method of Operational Test Index Set Based on Rough Set and Genetic Algorithm [J]. Modern Defense Technology, 2022, 50(3): 90-96. |
[8] | Yong LIU, Hong-chao ZHOU, Zhao YANG, Jin XU. Evaluation Method of Missile Saturation Ability Based on Attack-Defense Countering Sequence [J]. Modern Defense Technology, 2022, 50(3): 97-102. |
[9] | Xi-xuan FENG, Xiao-qiang TIAN. Study on Patriot Weapon System Maintenance Support of the U.S. Military [J]. Modern Defense Technology, 2022, 50(1): 87-93. |
[10] | HUANG Yang-yang, JIANG Yi, LI Yu-long, ZHANG Man-man, YANG Chang-zhi. Impact Analysis of Structure Characteristics of Cluster Bombs on Separation Characteristics [J]. Modern Defense Technology, 2021, 49(2): 35-42. |
[11] | LIU Bo. Mechanism Analysis of Inlet with Different Suction Slots Layout by Numerical Simulation [J]. Modern Defense Technology, 2021, 49(2): 43-48. |
[12] | ZHANG Li, ZHANG Jia-jun, LI Xin-yu, SI Xiao-liang. Researh on Electrostatic Discharge Effect of Missile and Application of Protective Device for It [J]. Modern Defense Technology, 2021, 49(1): 40-46. |
[13] | HUANG Zhi-qiang, ZHENG Wang-hui, JIN Jing-feng. Research and Testing Verification on Anti Loosening of Locking Thread Technique [J]. Modern Defense Technology, 2021, 49(1): 91-97. |
[14] | ZHAO Shu-jun. A Kind of Software Development Lifecycle Model for Missle Software [J]. Modern Defense Technology, 2020, 48(6): 48-52. |
[15] | WANG Lei, LIN Tao. Research on Equipment Maintenance Support Mode in the New Period [J]. Modern Defense Technology, 2020, 48(5): 86-91. |
Viewed | ||||||
Full text |
|
|||||
Abstract |
|
|||||
