Airspace Configuration Method of AWACS in Polygonal Responsibility Area in Air Defense Operations

doi:10.3969/j.issn.1009-086x.2024.01.010

Abstract

Abstract:

Aiming at the problem of airspace configuration of AWACS in irregular polygonal responsibility area in air defense operations， based on the real-time detection area formed by the shortest direct flight distance and the smallest turning diameter of the AWACS patrol route， the AWACS responsibility subarea and the corresponding available airspace for AWACS patrol are determined through optimization algorithm. Based on the evaluation criteria of AWACS stability coverage， the airspace configuration is further optimized， and finally the optimization scheme of AWACS airspace configuration is obtained. The feasibility of this method in planning AWACS airspace configuration in irregular polygon responsibility area and the effectiveness of improving operational efficiency are verified by numerical simulation. The method has strong practical value and military value.

Key words: irregular polygon, AWACS（airborne warning and control system）, responsibility subarea, available airspace, operational efficiency

摘要：

针对防空作战中不规则多边形责任区预警机空域配置问题，基于预警机巡逻航线最短直飞距离和最小转弯直径所形成的实时探测区，通过寻优算法确定预警机责任子区和相应的预警机巡逻可用空域，再基于预警机稳定覆盖度评估准则，对其空域配置进一步寻优，得到预警机空域配置优化方案。通过算例仿真验证了此种方法在不规则多边形责任区中规划预警机空域配置的可行性和提升作战效能的有效性，其方法具有较强的实用价值和军事价值。

关键词: 不规则多边形, 预警机, 责任子区, 可用空域, 作战效能

CLC Number:

TN95

Wei QI, Haijie WANG, Dongsheng CHENG, Aoyue ZHENG. Airspace Configuration Method of AWACS in Polygonal Responsibility Area in Air Defense Operations[J]. Modern Defense Technology, 2024, 52(1): 74-82.

祁炜, 王海杰, 程东升, 郑澳粤. 防空作战中多边形责任区预警机空域配置方法[J]. 现代防御技术, 2024, 52(1): 74-82.

Figures/Tables 17

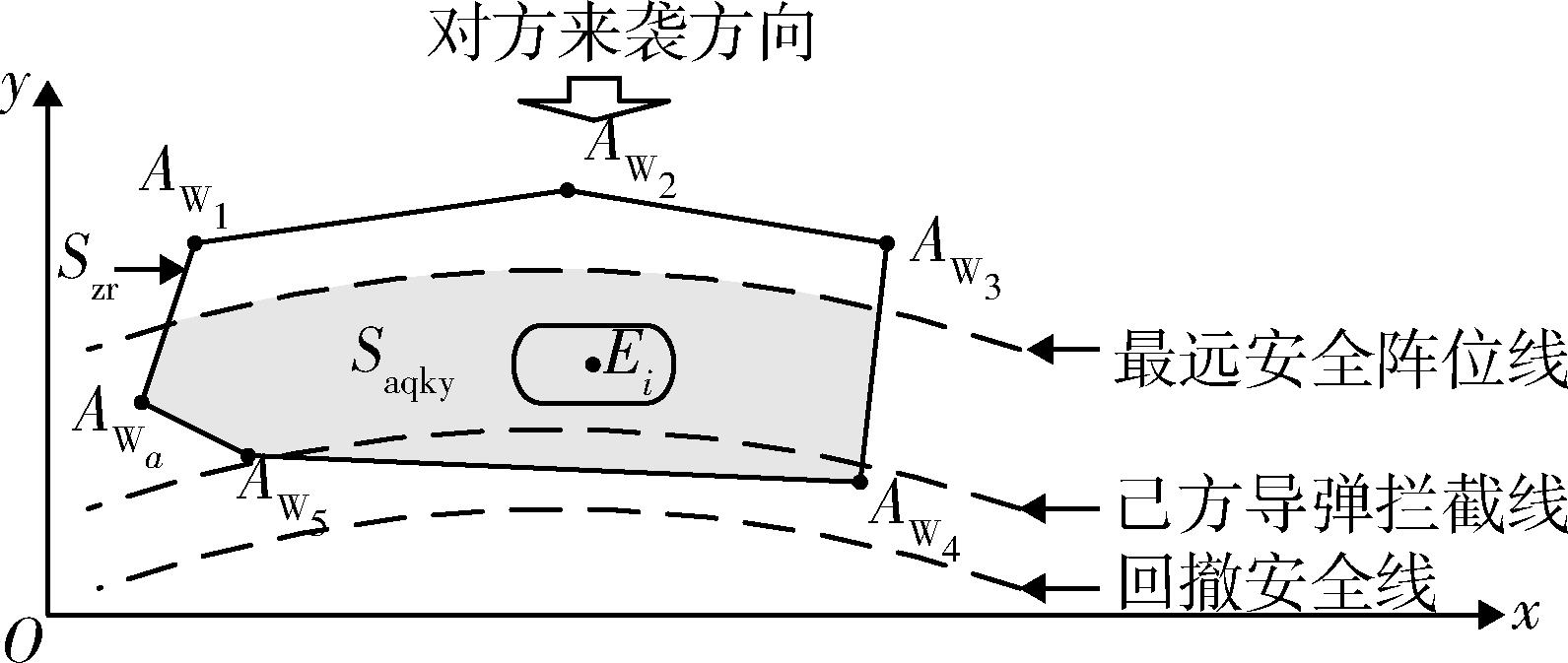

Fig. 1 Patrol airspace diagram of AWACS

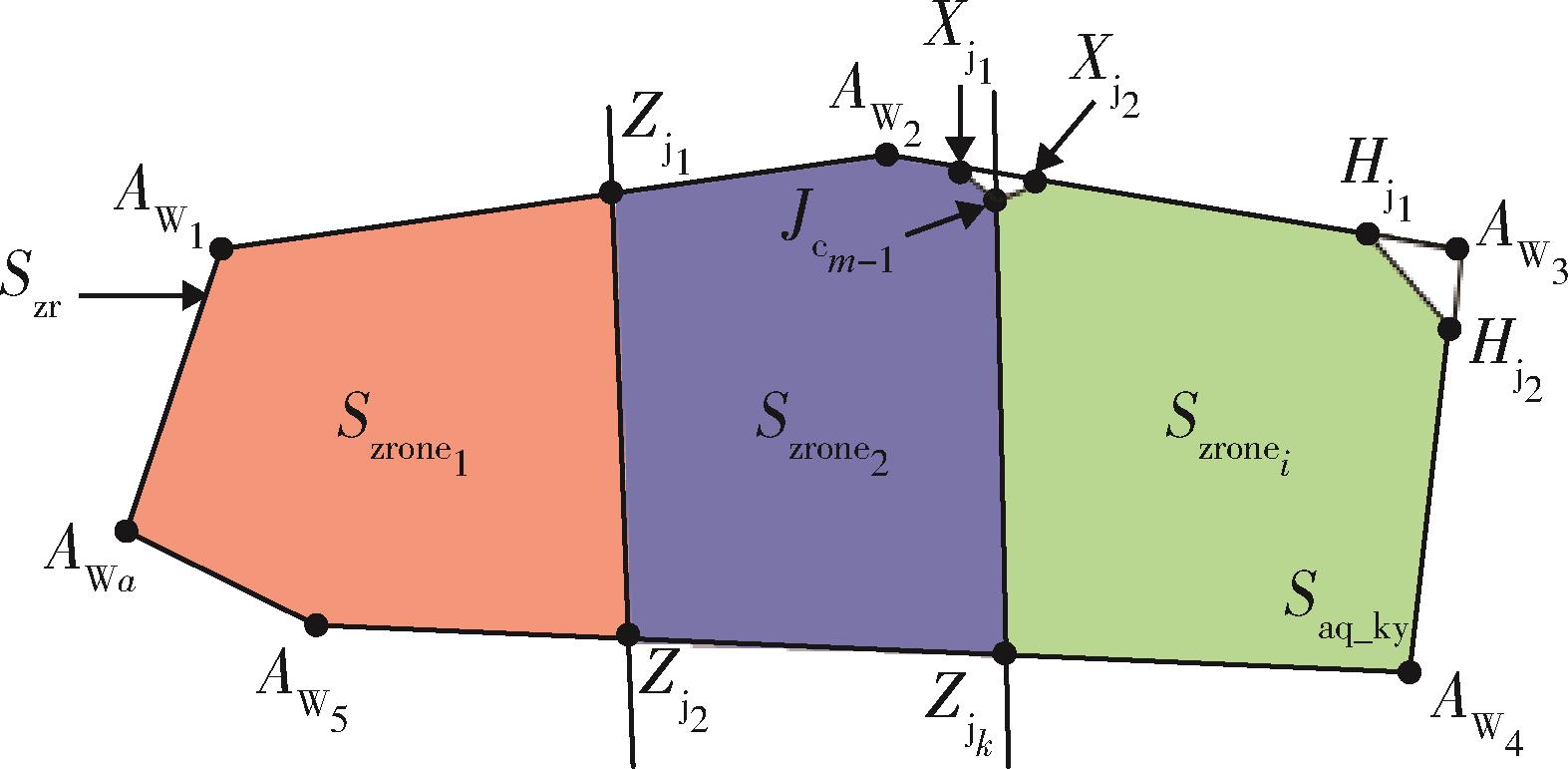

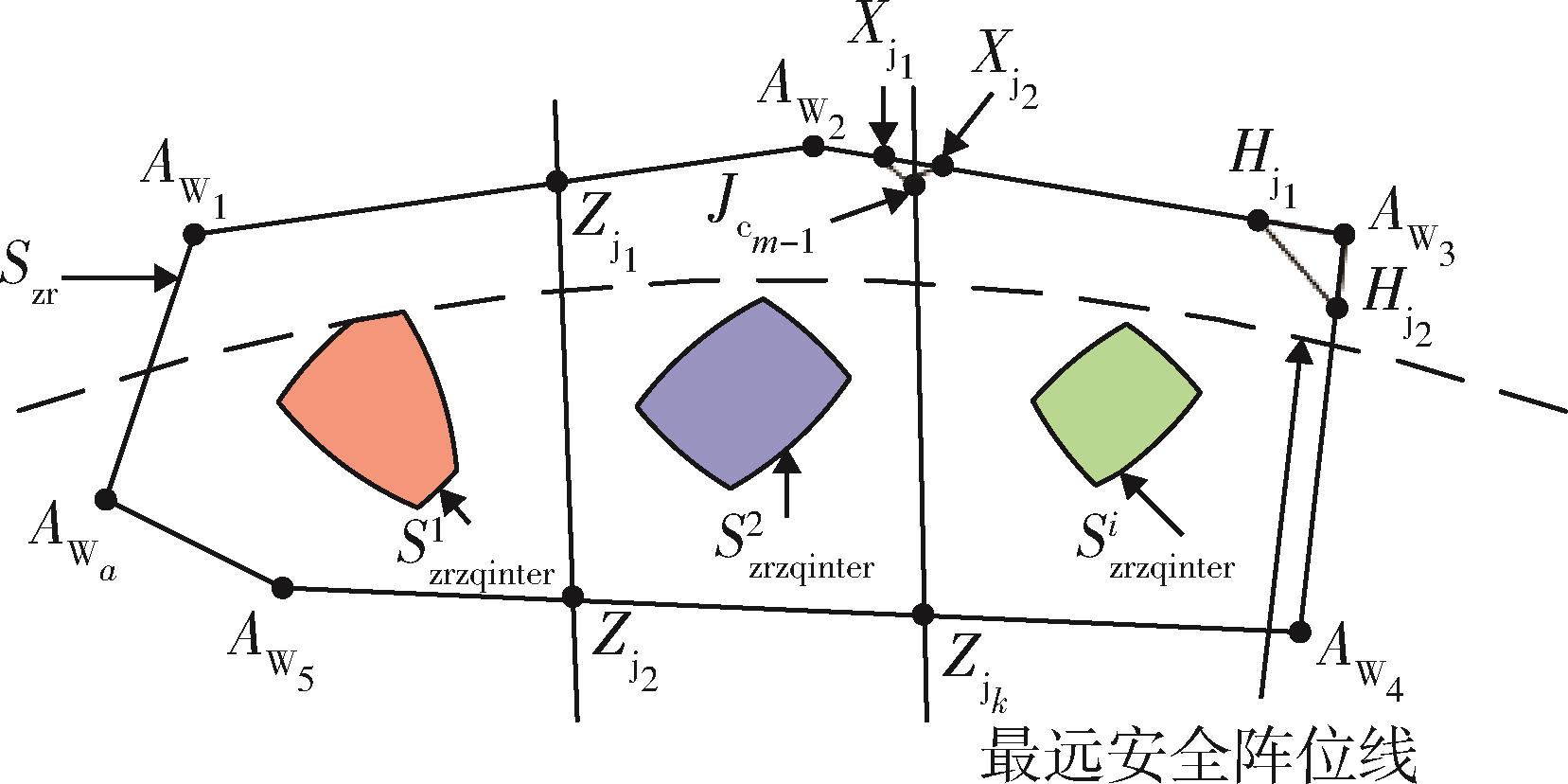

Fig. 2 Vertexes diagram of responsibility subarea

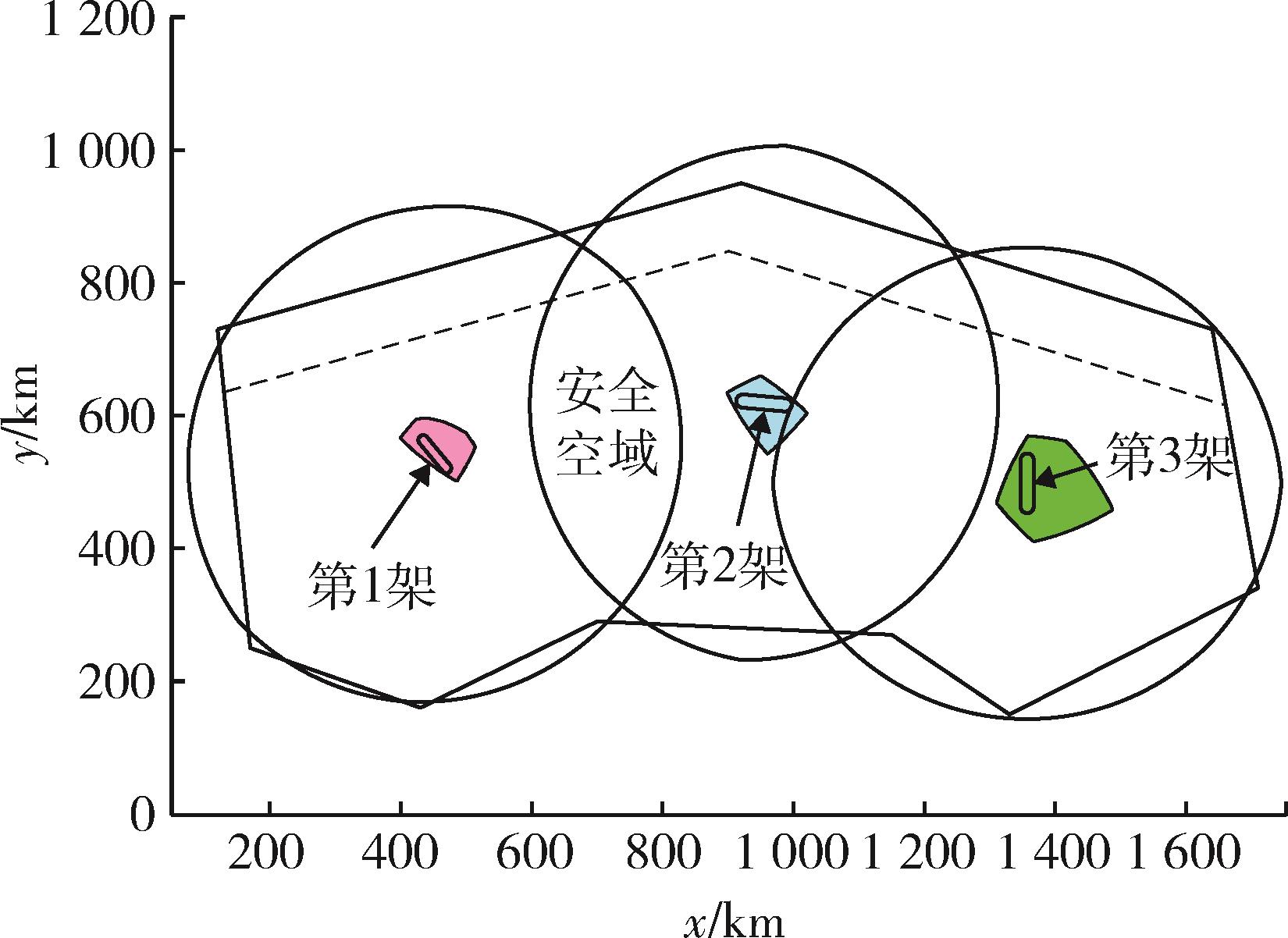

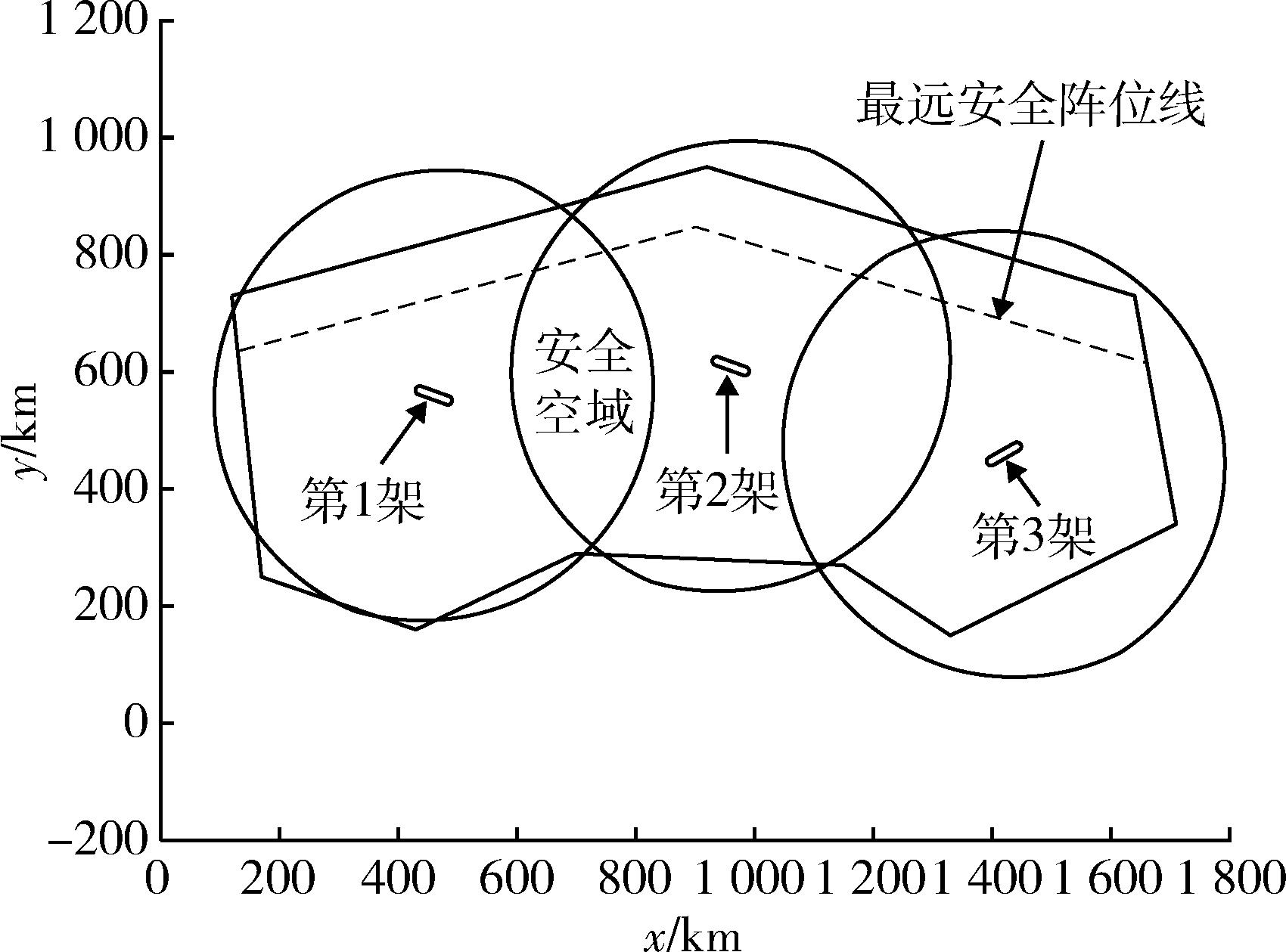

Fig. 3 Responsibility airspace distribution diagram of AWACS

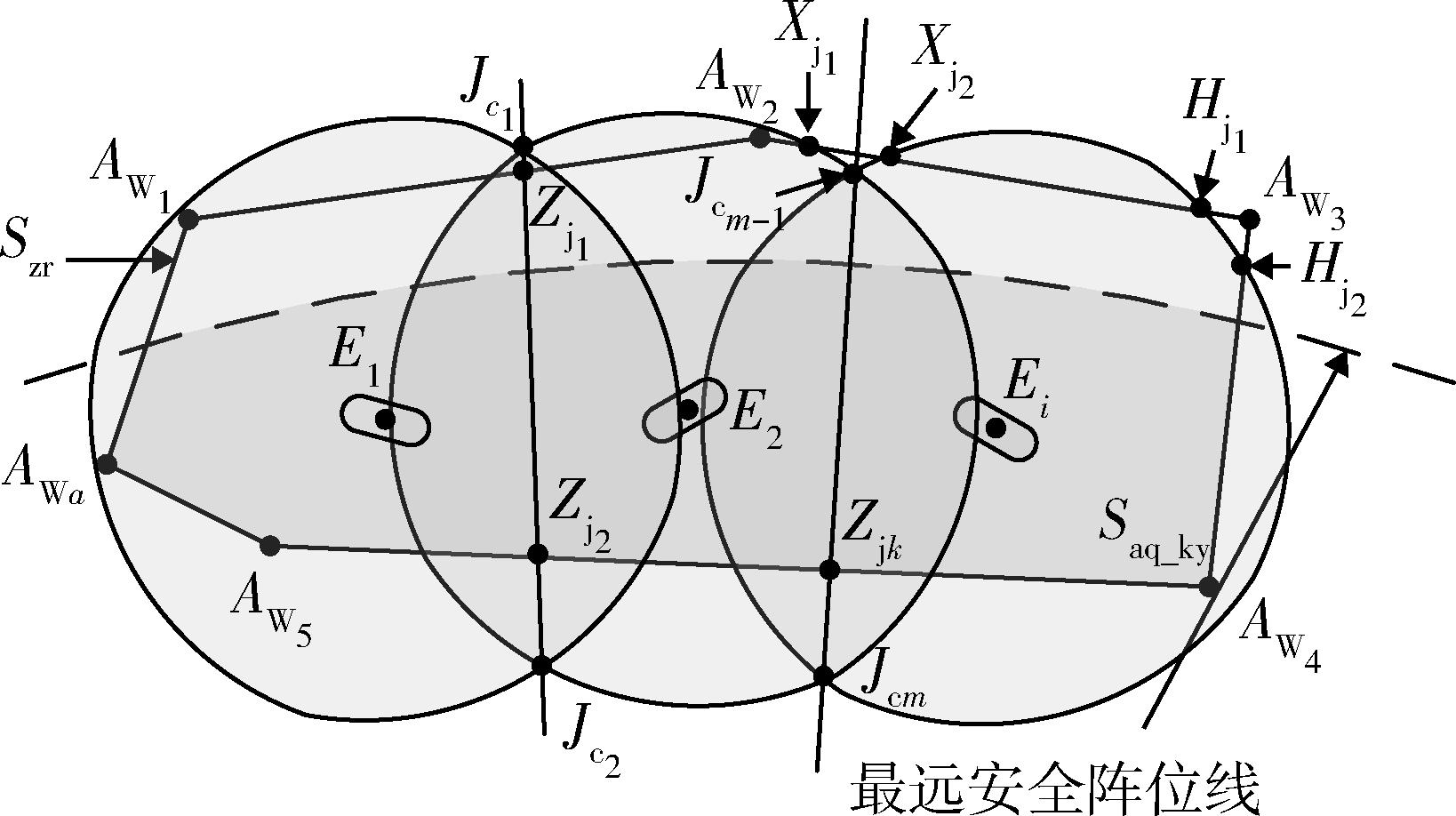

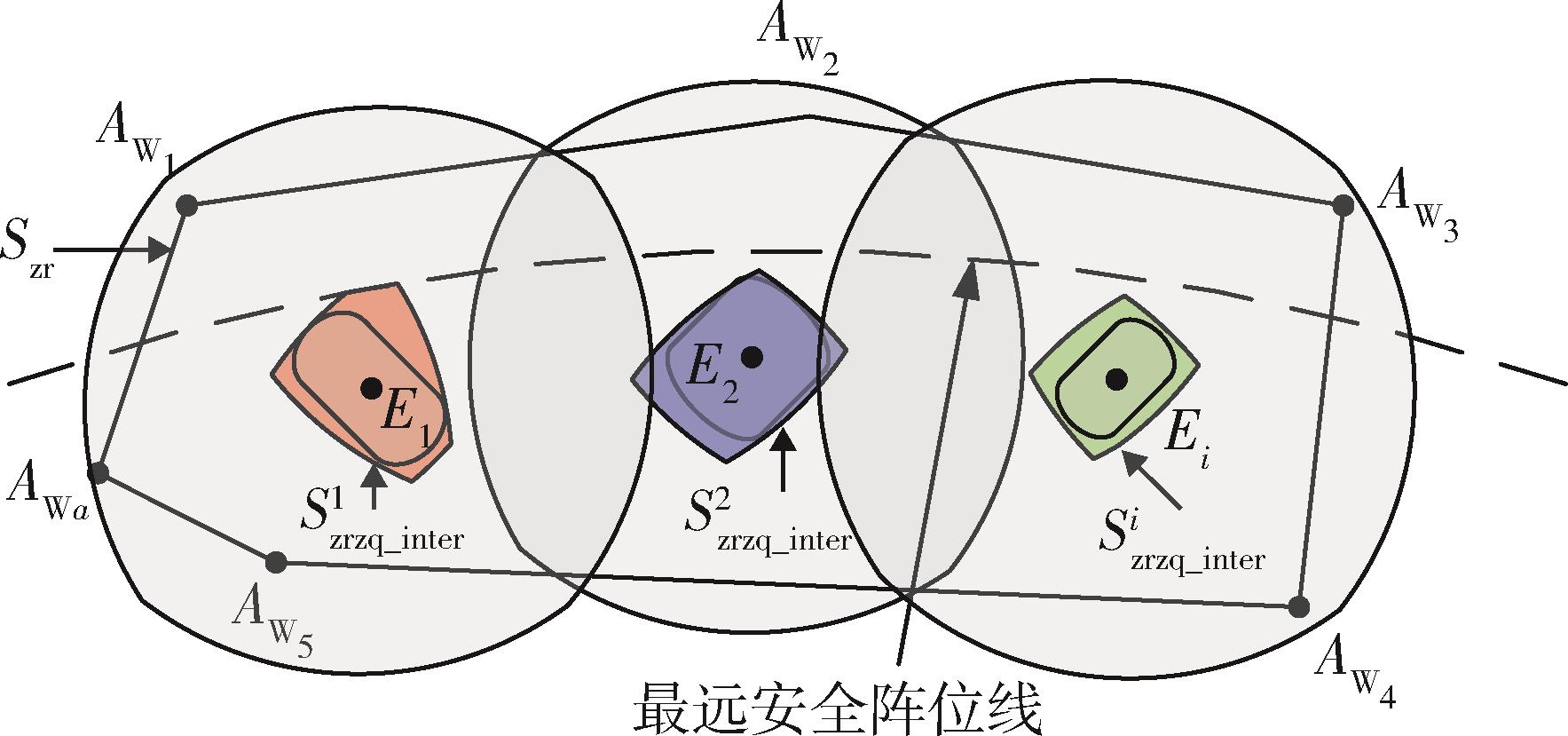

Fig. 4 Available airspace distribution diagram of each AWACS for real-time detecting

Fig. 5 Optimal airspace configuration diagram of AWACS

Table 1 Step value setting of airspace configuration parameters of AWACS

含义	参数	值	含义	参数	值
初始阵位中心坐标步进值	$Δ x 1$ /km	10	直飞航线步进值	$δ d z_L$ /km	5
转弯直径步进值	$δ d z_W$ /km	5	初始航线倾角步进值	$α t u m_1$ /（°）	10
优化航线倾角步进值	$α t u m_2$ /（°）	5	矩阵法计算误差值	$Δ γ$	0.003
优化阵位中心坐标步进值	$Δ x 2$ /km	1

Table 1 Step value setting of airspace configuration parameters of AWACS

含义	参数	值	含义	参数	值
初始阵位中心坐标步进值	$Δ x 1$ /km	10	直飞航线步进值	$δ d z_L$ /km	5
转弯直径步进值	$δ d z_W$ /km	5	初始航线倾角步进值	$α t u m_1$ /（°）	10
优化航线倾角步进值	$α t u m_2$ /（°）	5	矩阵法计算误差值	$Δ γ$	0.003
优化阵位中心坐标步进值	$Δ x 2$ /km	1

Fig. 6 Airspace configuration diagram of early warning aircrafts

Table 2 Preliminary scheme for airspace configuration of AWACS

架次	航线中心点/km	航线倾角/（°）	W_Y /km	L_Y /km
1	（460，560）	20	15	50
2	（960，610）	20	15	50
3	（1 420，460）	-30	15	50

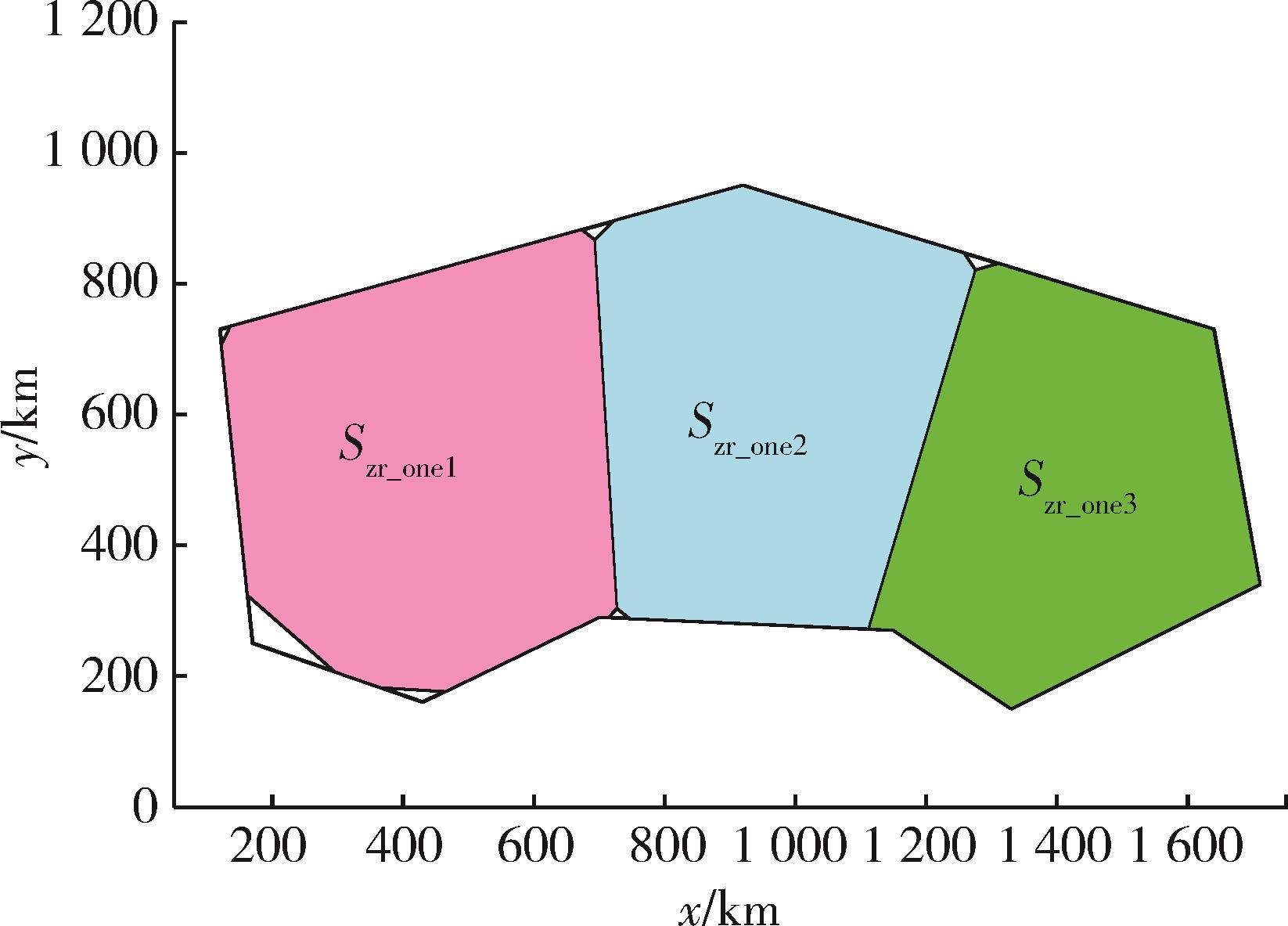

Fig. 7 Divided responsibility subarea diagram

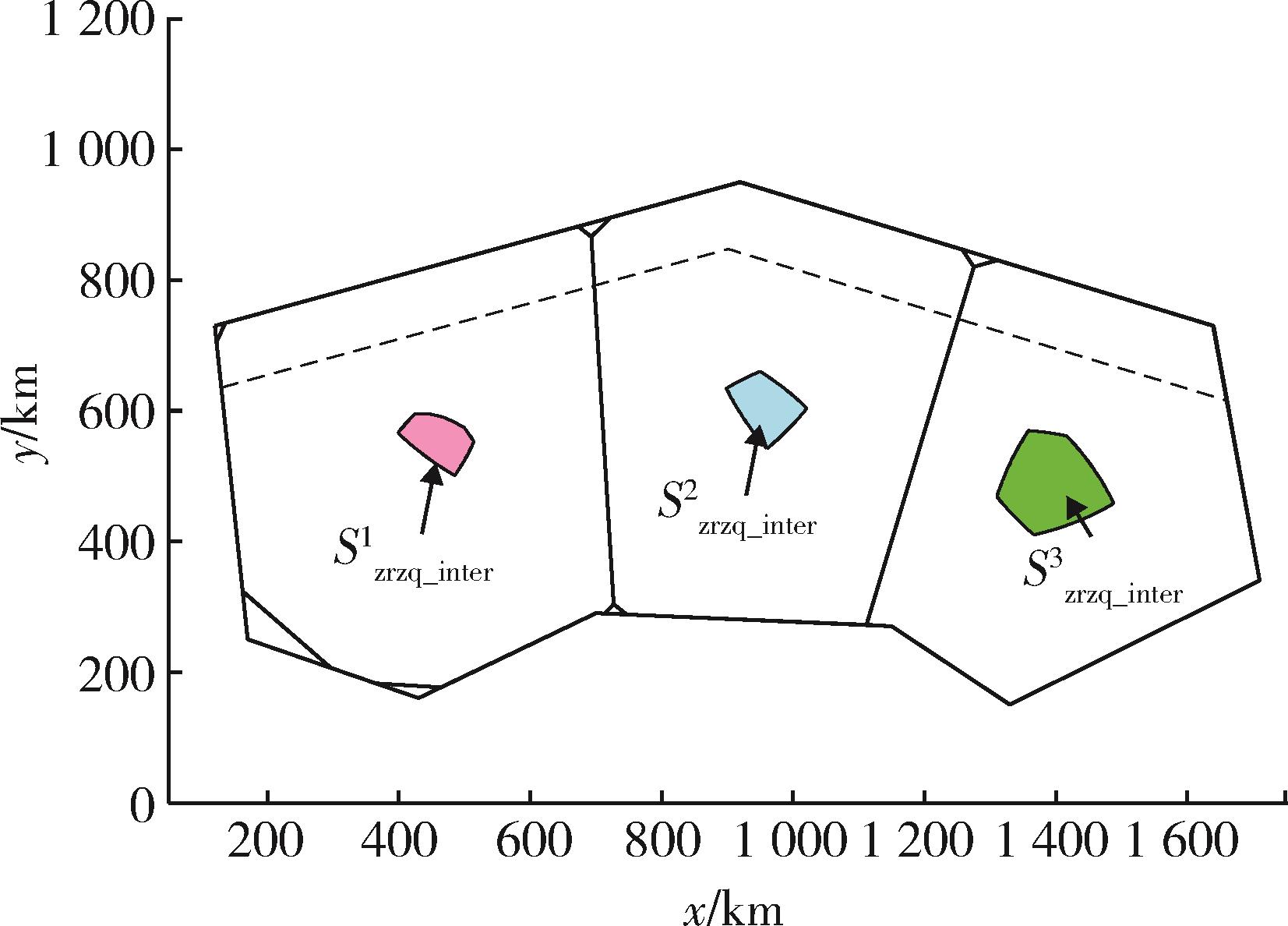

Fig. 8 Available airspace distribution diagram of each AWACS

Fig. 9 Route optimization diagram of each AWACS

Table 3 Route optimization parameters of AWACS

架次	航线中心点/km	航线倾角/（°）	W_Y /km	L_Y /km
1	（452，542）	50	15	55
2	（955，619）	5	20	65
3	（1 357，498）	-90	20	70

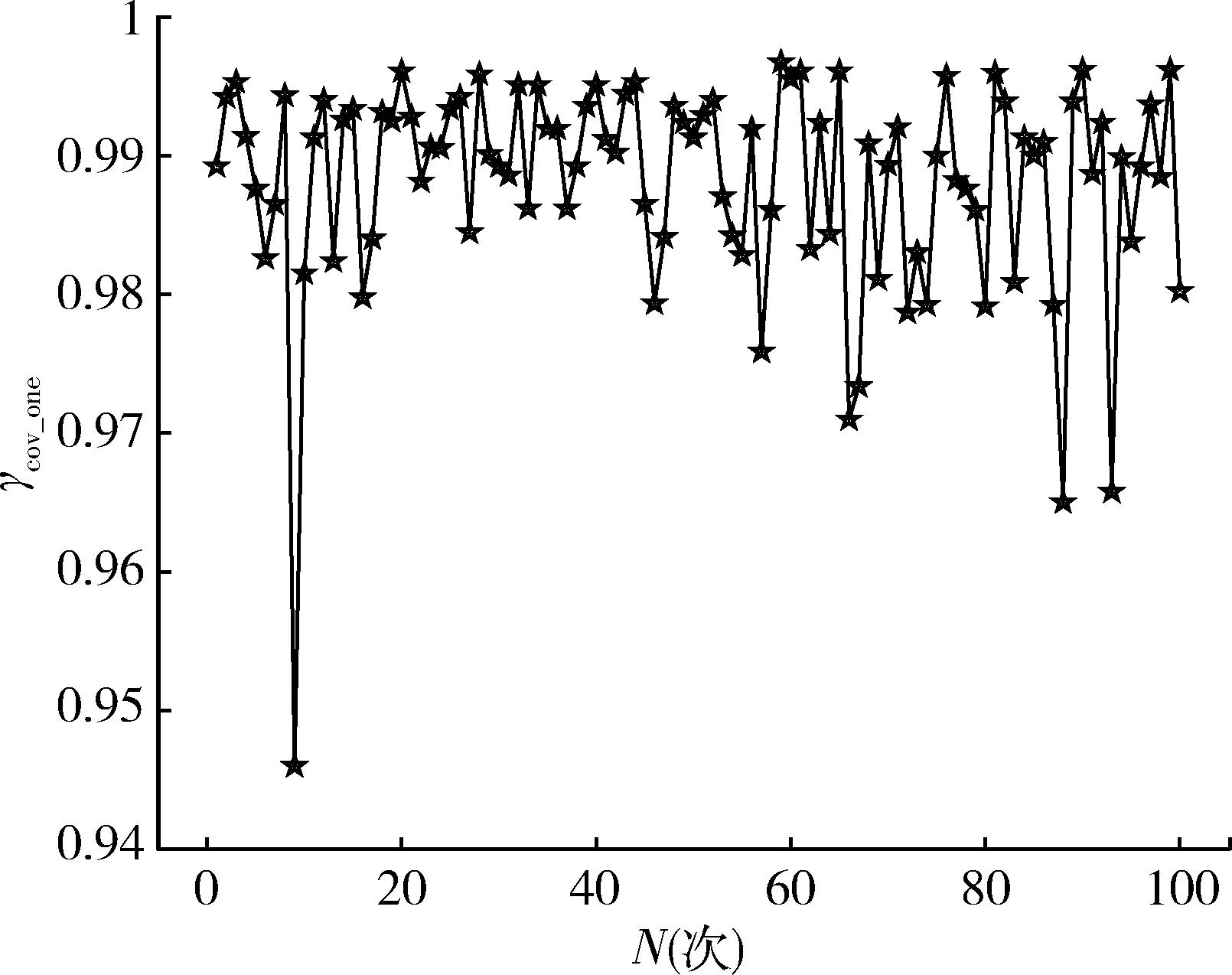

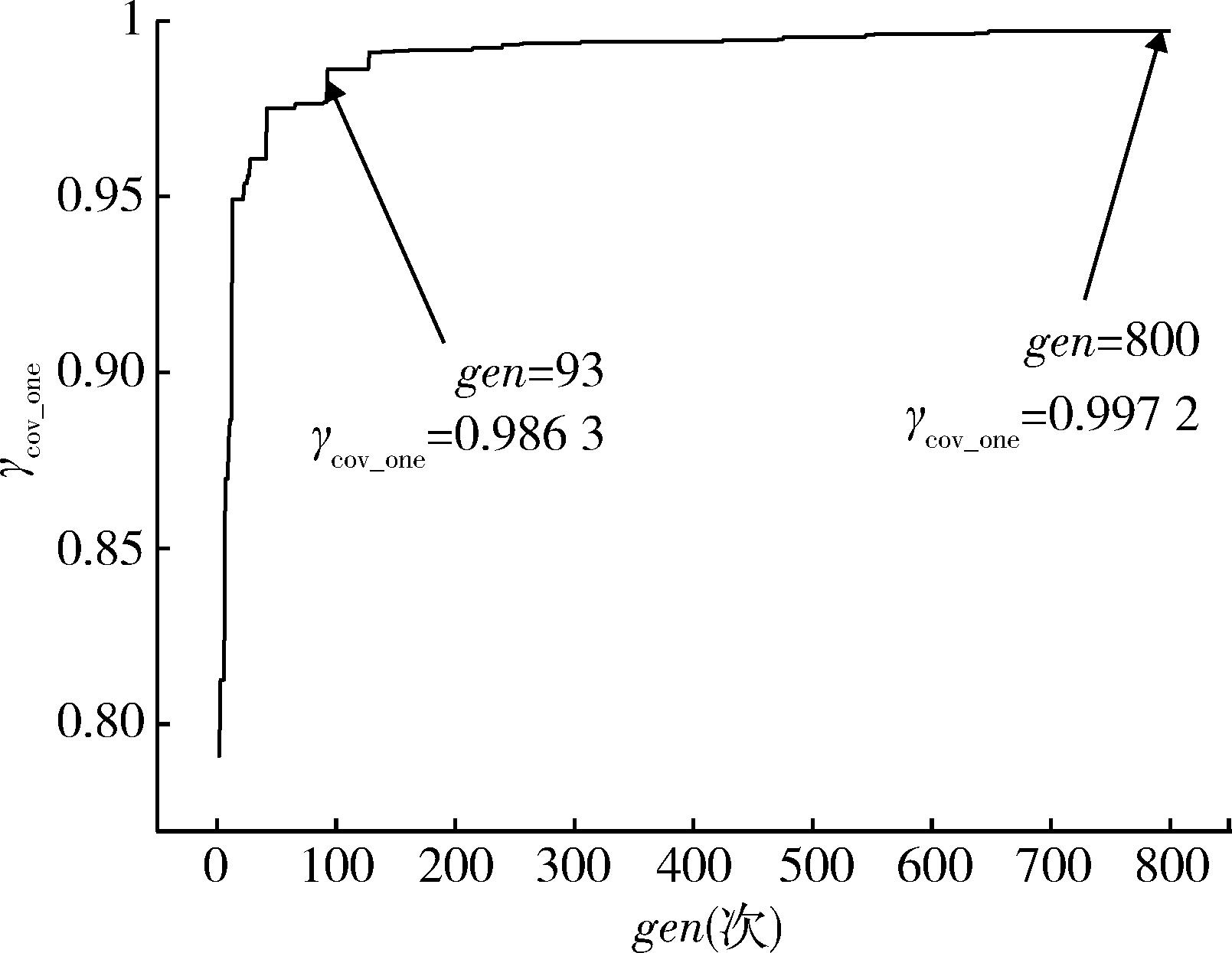

Fig. 10 Simulation iteration times and coverage diagram

Fig. 11 Coverage diagram of simulation iteration times is 100

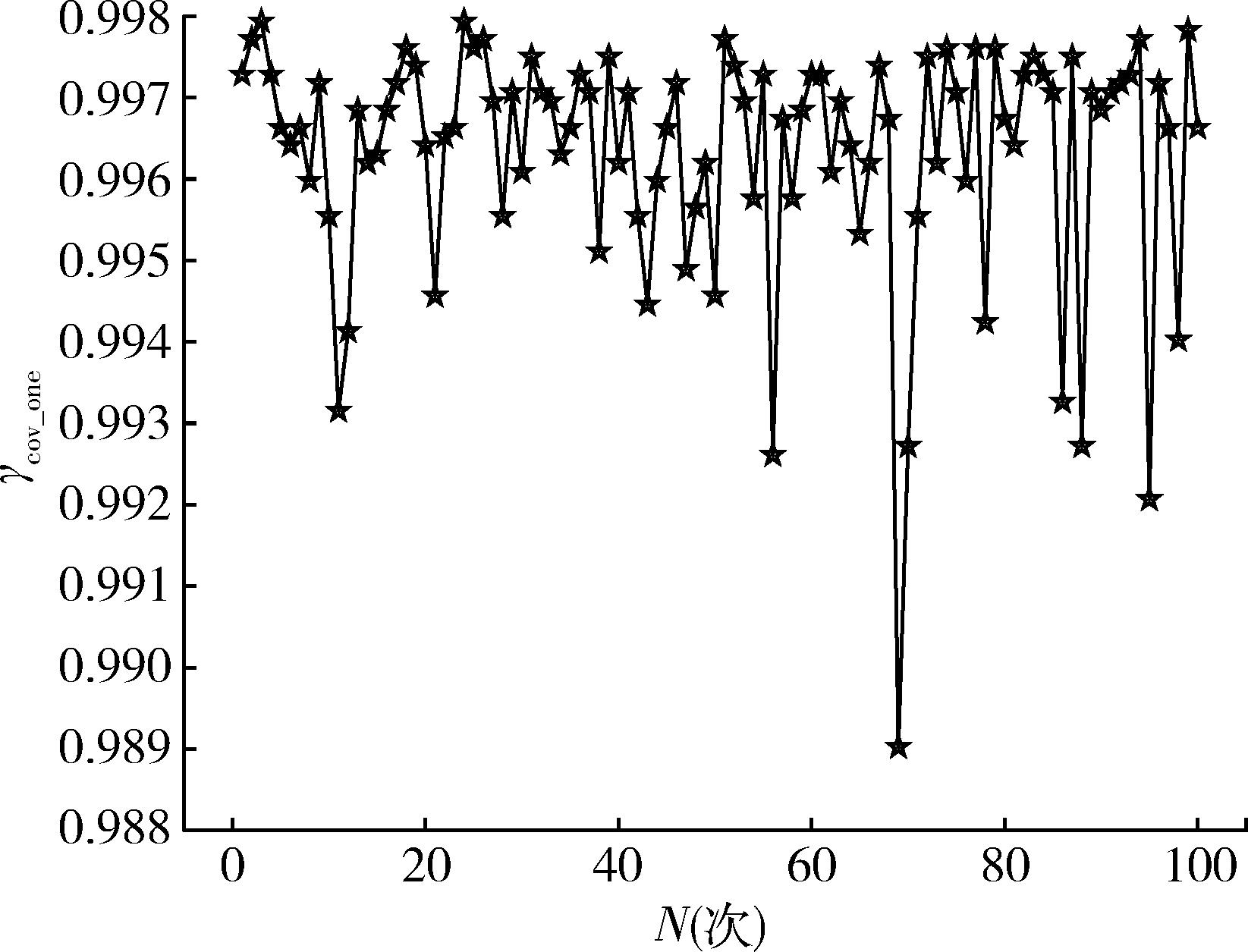

Fig. 12 Coverage diagram of simulation iteration times is 800

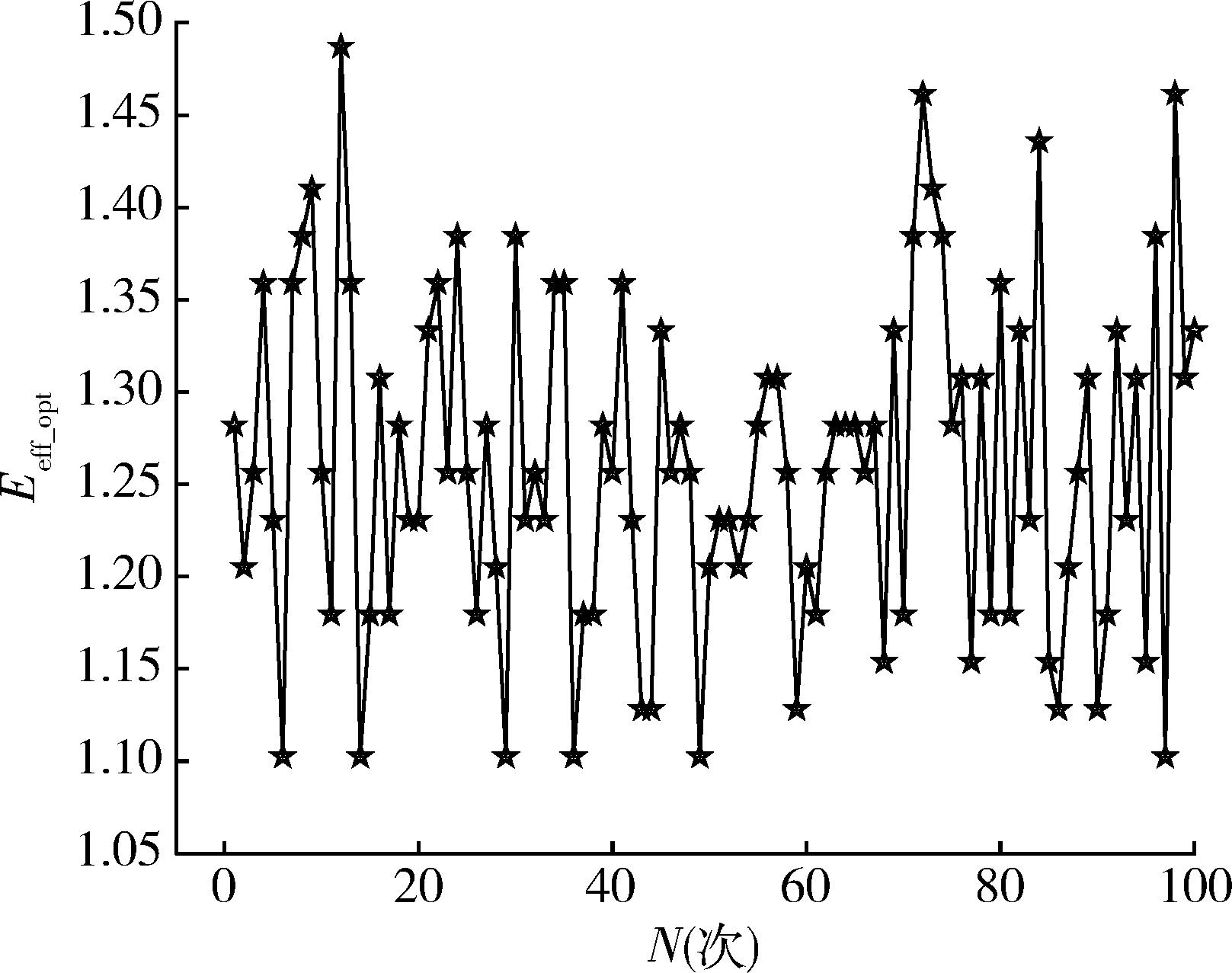

Fig. 13 Operational effectiveness diagram of simulation iteration times is 100

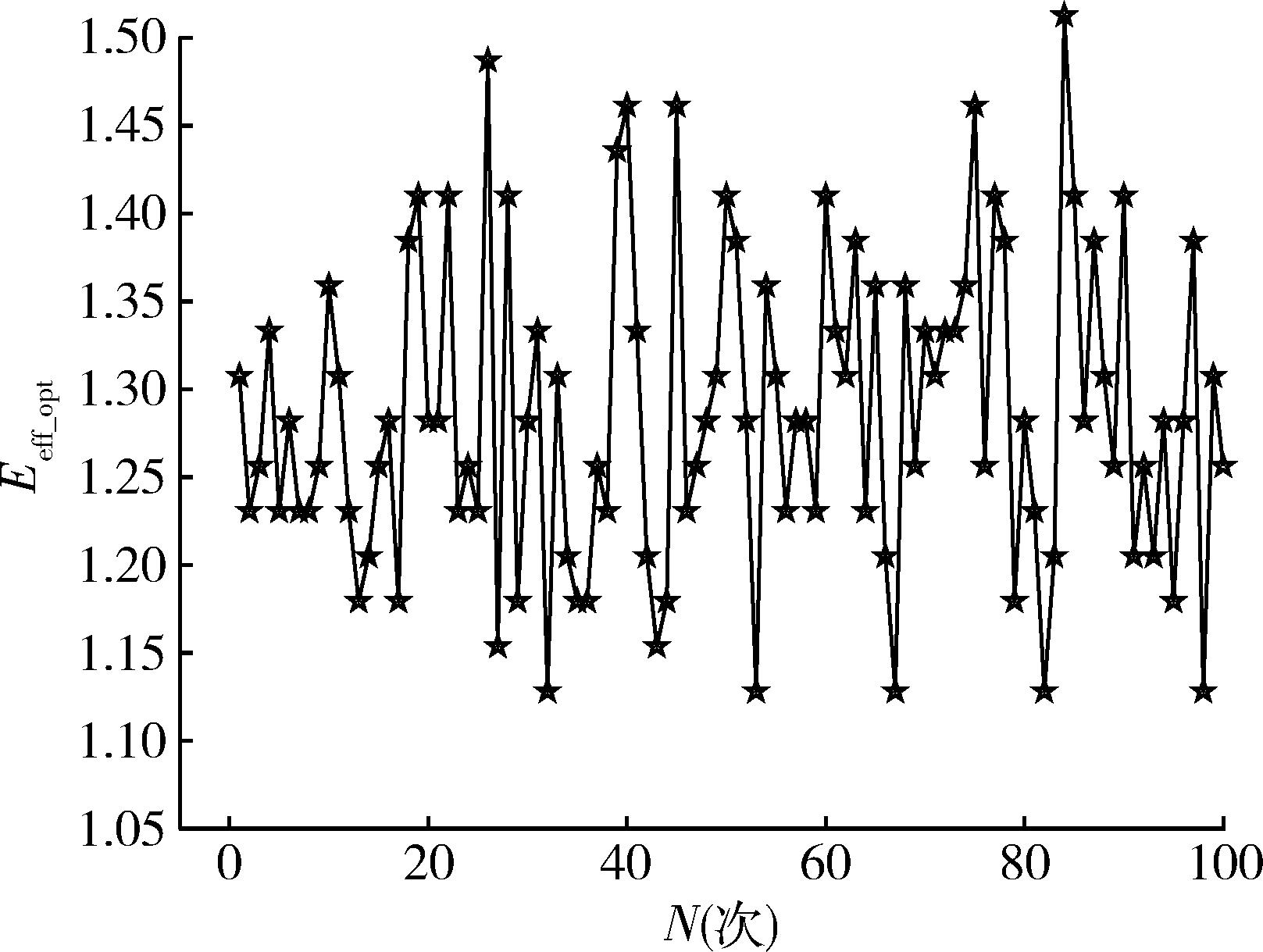

Fig. 14 Operational effectiveness diagram of simulation iteration times is 800
