Research on Time/Frequency-Domain Index Mapping of Air-Defense Missile Rolling Channel Control

doi:10.3969/j.issn.1009-086x.2024.04.004

Abstract

Abstract:

In the design of air-defense missile control system， how to quickly and efficiently design the control system to meet the given index has always been a hot issue. In this paper， the control structure is designed from the mathematical point of view. Taking the design of the rolling channel control system as an example， the mapping relationship between the time-domain index， the frequency-domain index and the control parameters， and the mapping relationship between the time-domain index and the frequency-domain index are established by using the analytical method， the root locus method and the amplitude-phase characteristic Bode diagram method. The mapping relationship can give consideration to both time-domain and frequency-domain indexes to design control parameters more quickly and efficiently， and can also obtain the rule of index changes when control parameters change. Finally， the correlation among system time constant， rise time， cut-off frequency and closed loop bandwidth is established analytically. Through this correlation， a clearer physical understanding of the system can be established， which is helpful to guide how to take measures when the system oscillates or diverges in engineering design.

Key words: control structure, time-domain index, frequency-domain index, control parameters, mapping relation

摘要：

在防空导弹控制系统设计时，如何快速高效设计出满足给定指标的控制系统一直是热点问题。以滚动通道控制设计为例，从数学角度出发设计控制结构，采用解析法、根轨迹法和幅相特性Bode图法建立了时/频域指标与控制参数之间的映射关系，以及时/频域指标之间的映射关系。该映射关系可兼顾时域指标和频域指标来更快速高效设计控制参数，而且还可以得到控制参数变化时指标变化的规律。这有助于根据系统需要实现的性能指标进行控制系统的设计。最后用解析法建立系统时间常数、上升时间、截止频率和闭环带宽之间的关联关系。通过该关联关系对系统可建立更加清晰的物理认识，有利于指导在工程设计中当系统出现振荡或者发散现象时如何采取解决措施。

关键词: 控制结构, 时域指标, 频域指标, 控制参数, 映射关系

CLC Number:

TJ765.2

Shuaihao YAN, Mingying WEI, Yongbin ZHENG. Research on Time/Frequency-Domain Index Mapping of Air-Defense Missile Rolling Channel Control[J]. Modern Defense Technology, 2024, 52(4): 33-44.

闫帅豪, 魏明英, 郑勇斌. 基于防空导弹滚动通道控制时/频域指标映射关系研究[J]. 现代防御技术, 2024, 52(4): 33-44.

Figures/Tables 32

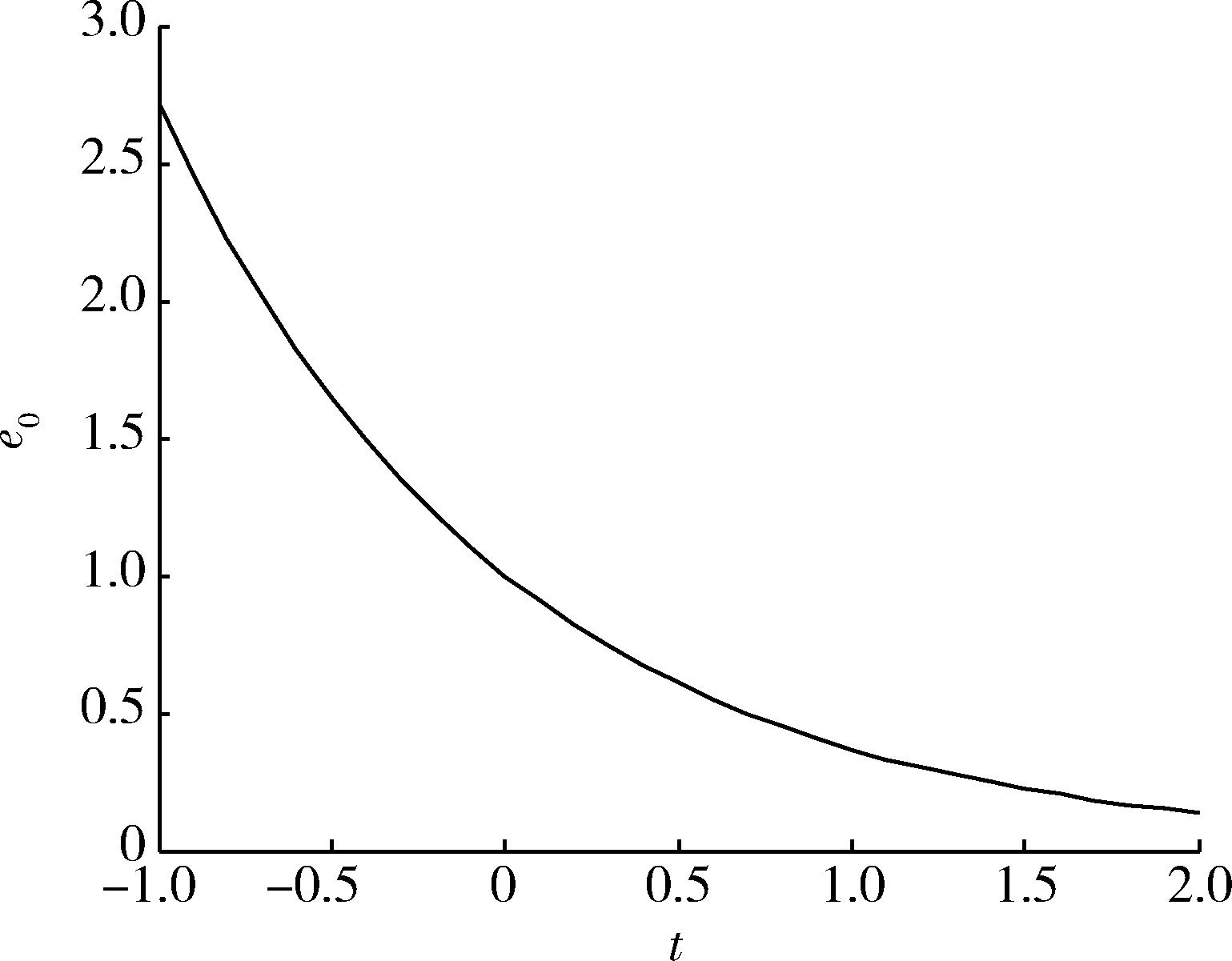

Fig. 1 Exponential function curve for negative

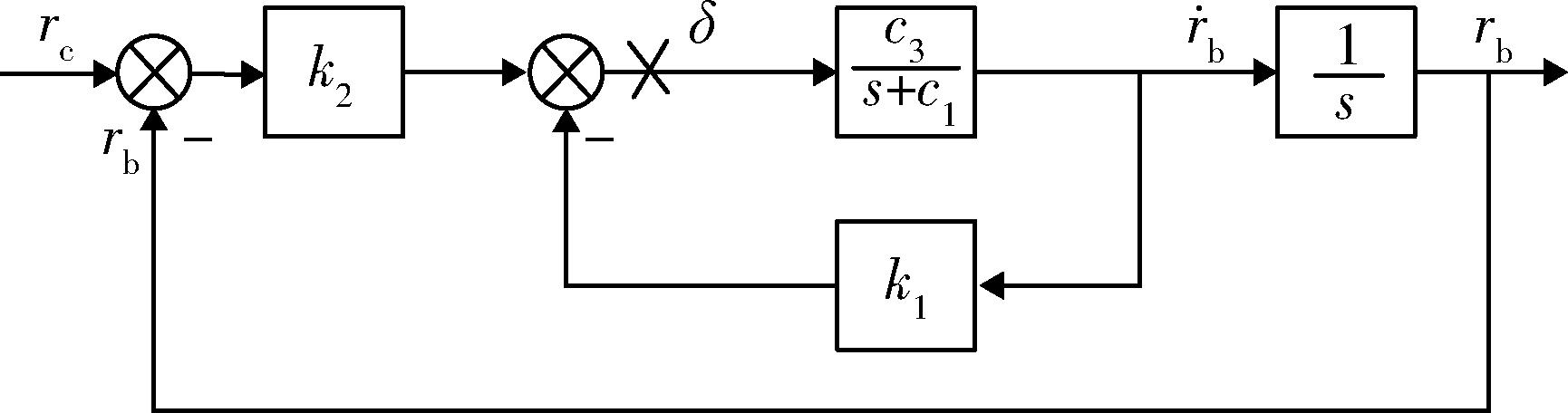

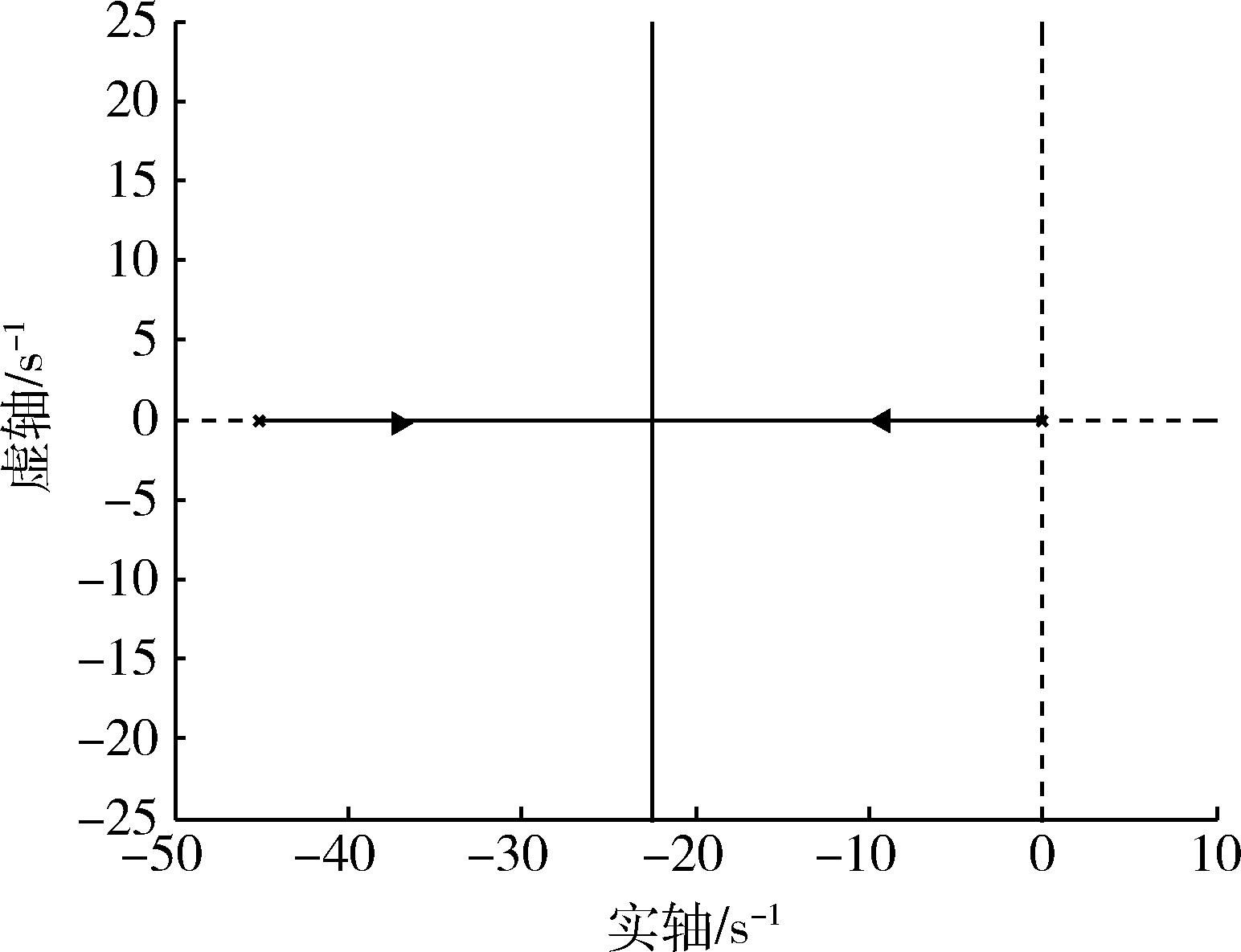

Fig. 2 Block diagram of system control structure

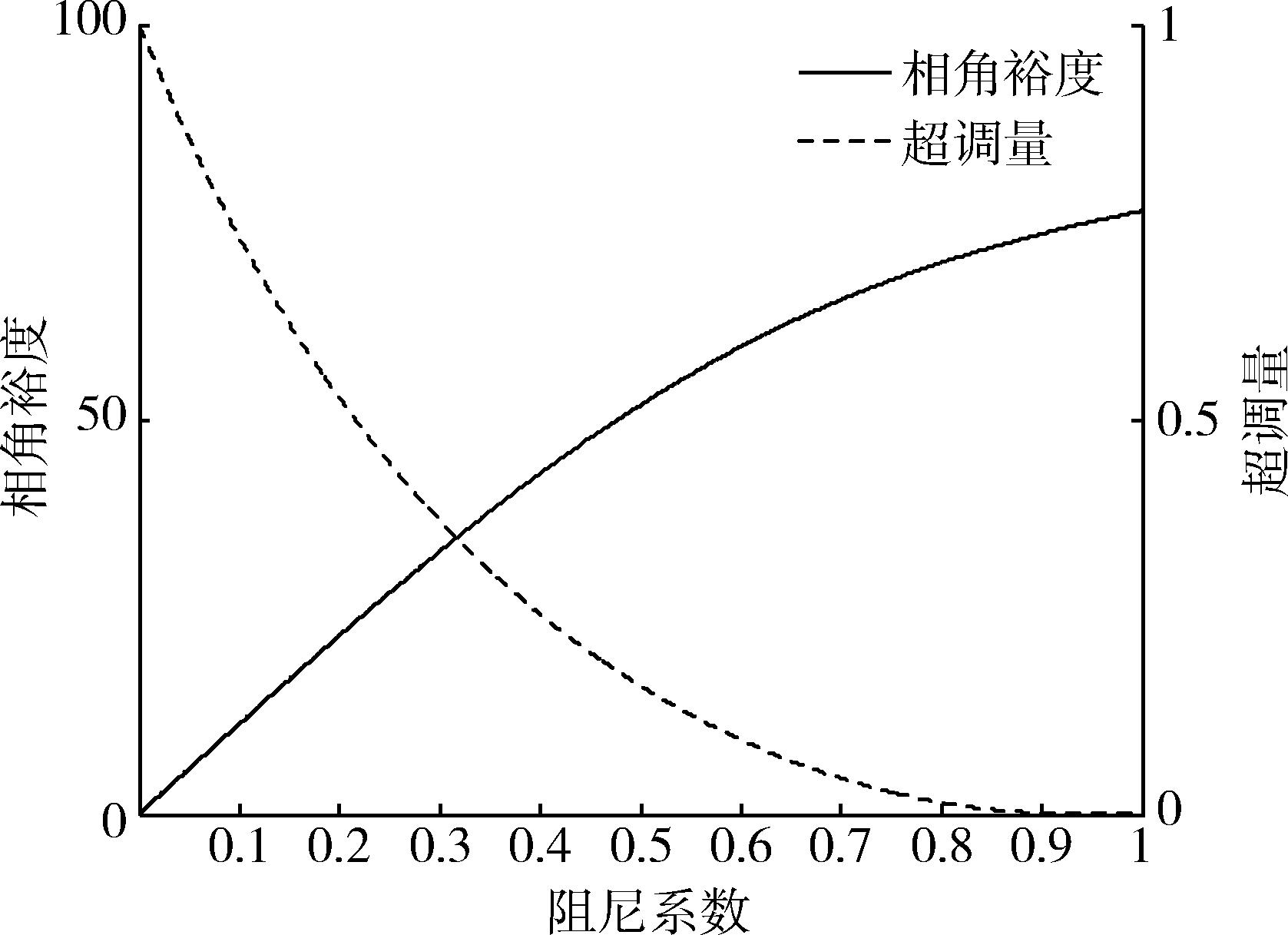

Fig. 3 System σ%,γ and ξ relationship diagram

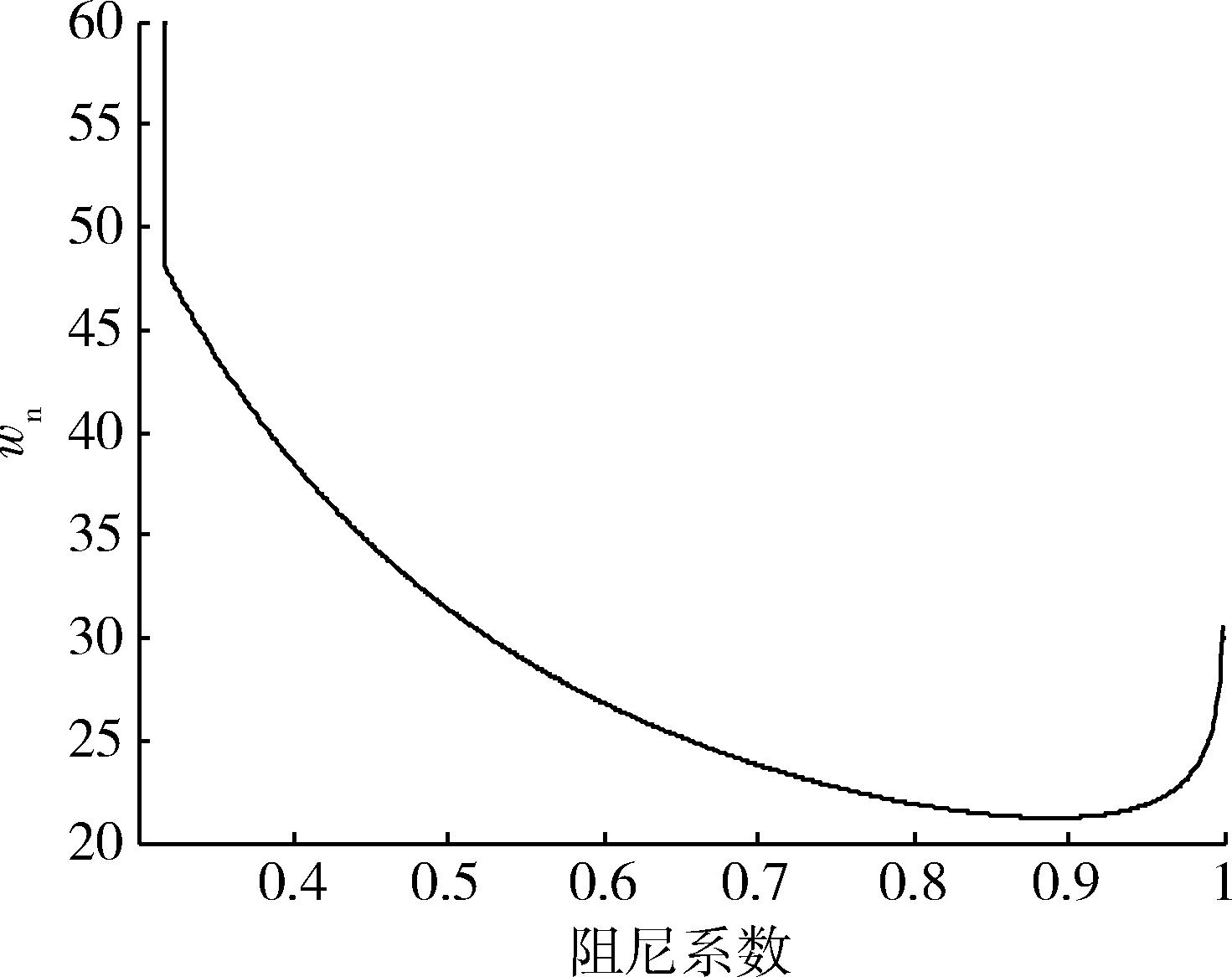

Fig. 4 Damping and frequency range

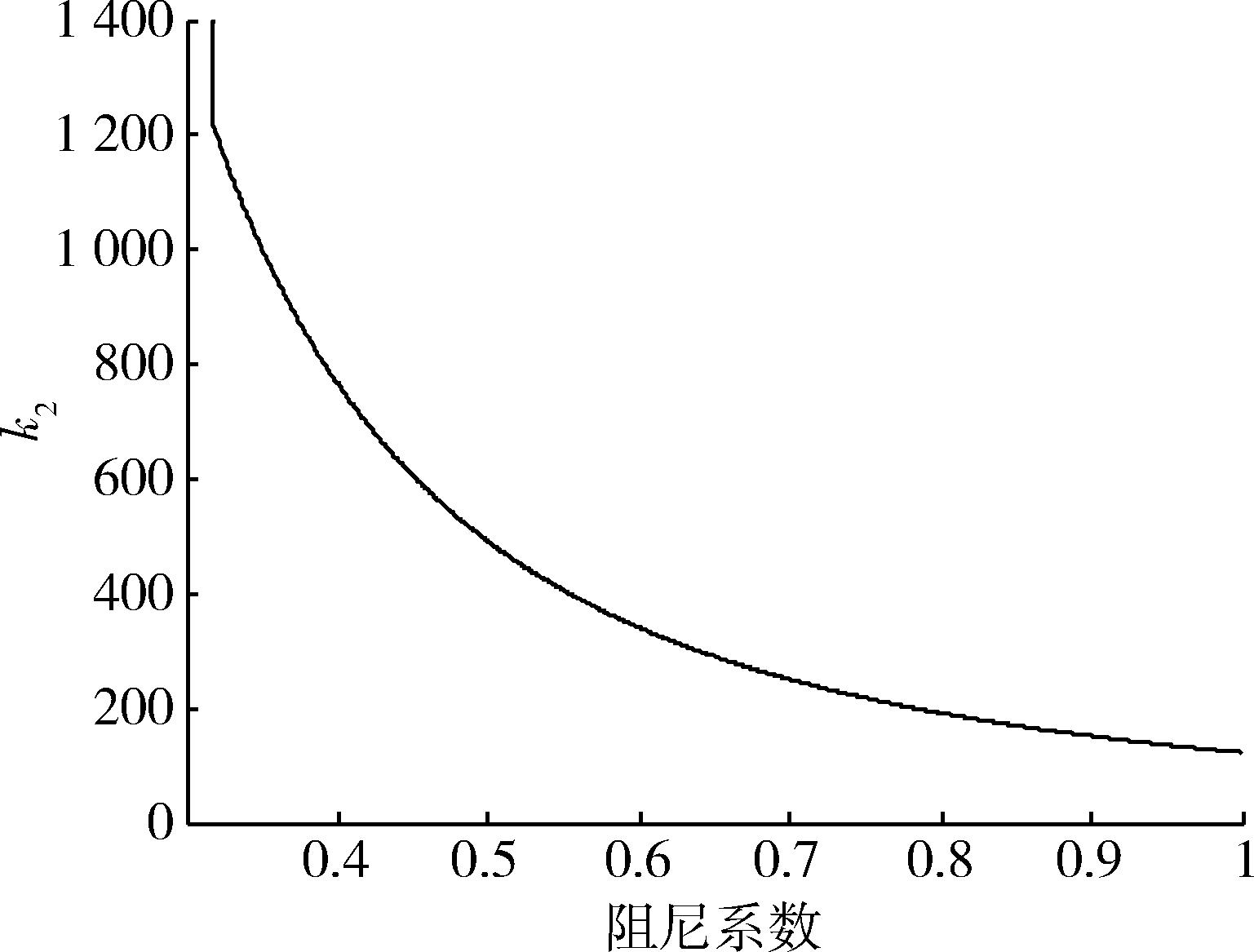

Fig. 5 Range of control parameters k2

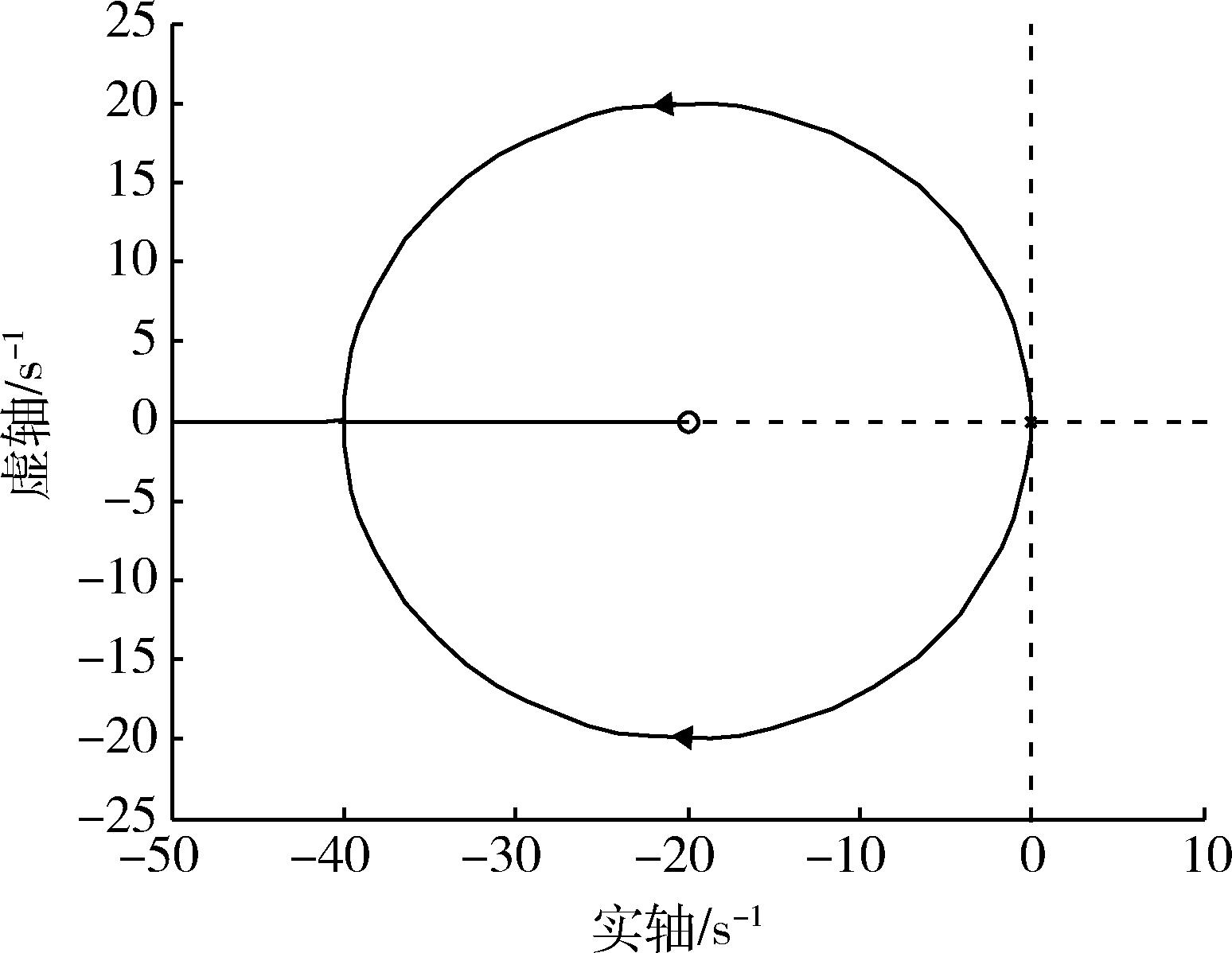

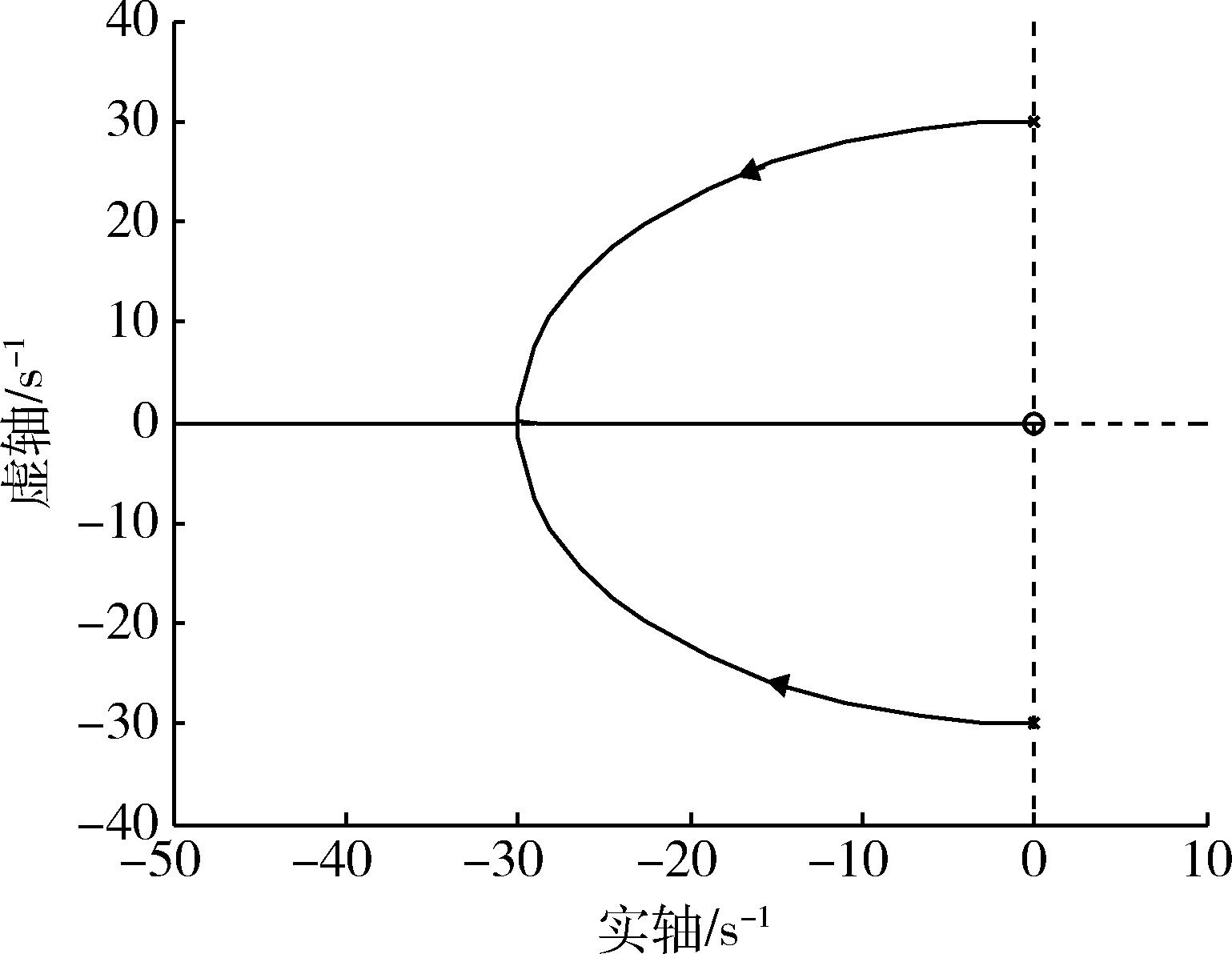

Fig. 6 System root trajectory after parameters are determined

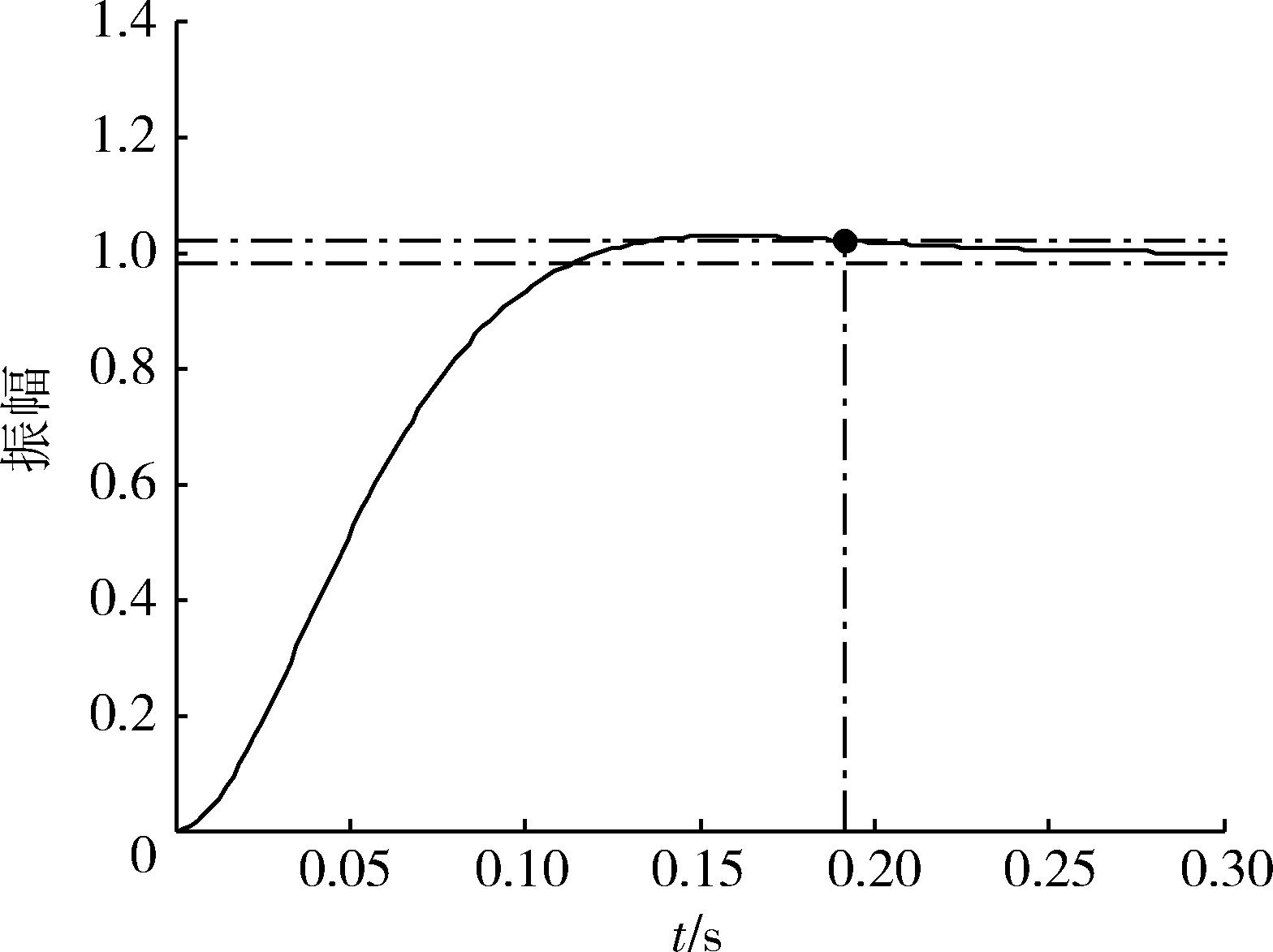

Fig. 7 Unit step response curve of the system

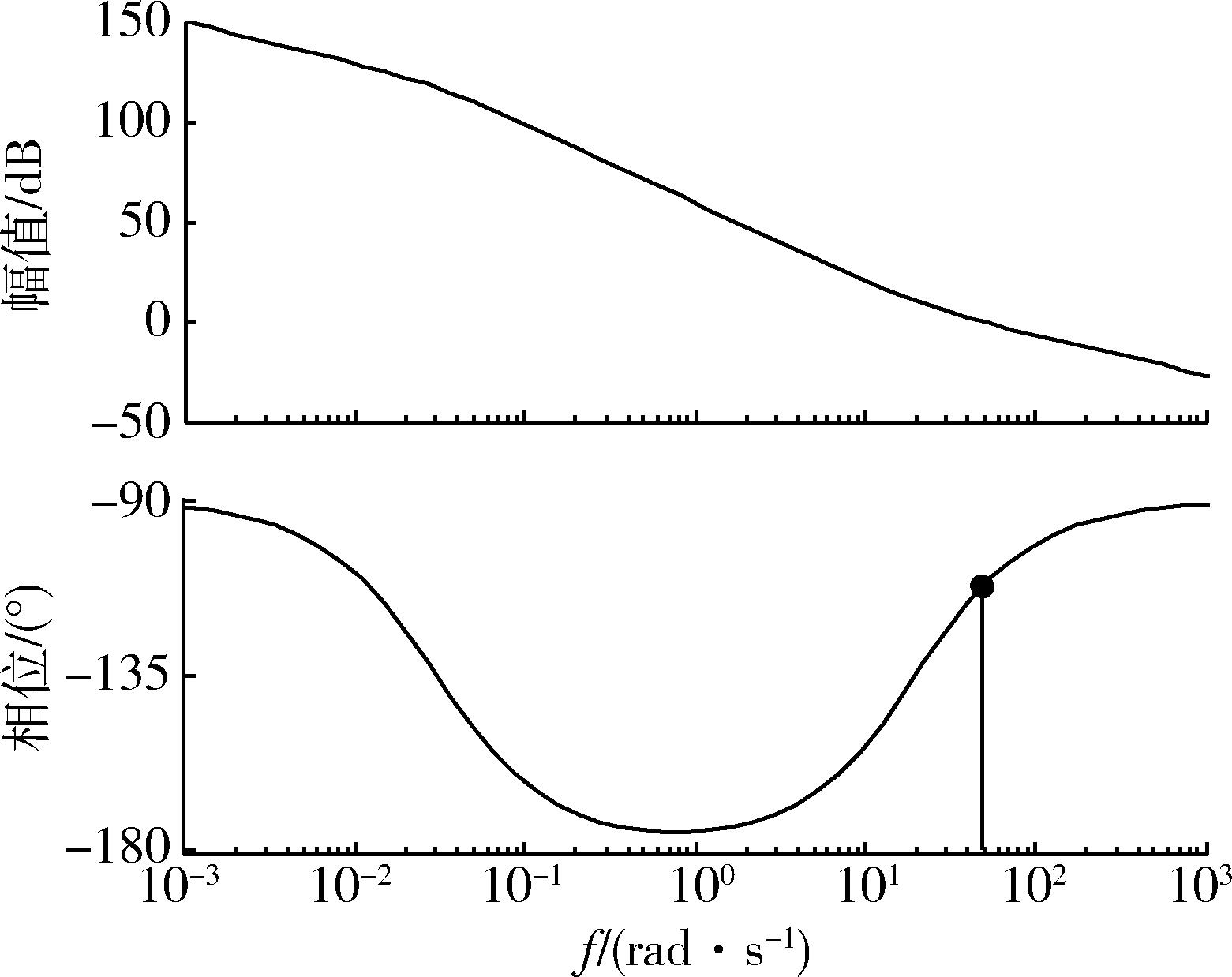

Fig. 8 System open-loop logarithmic amplitude-phase characteristic curve

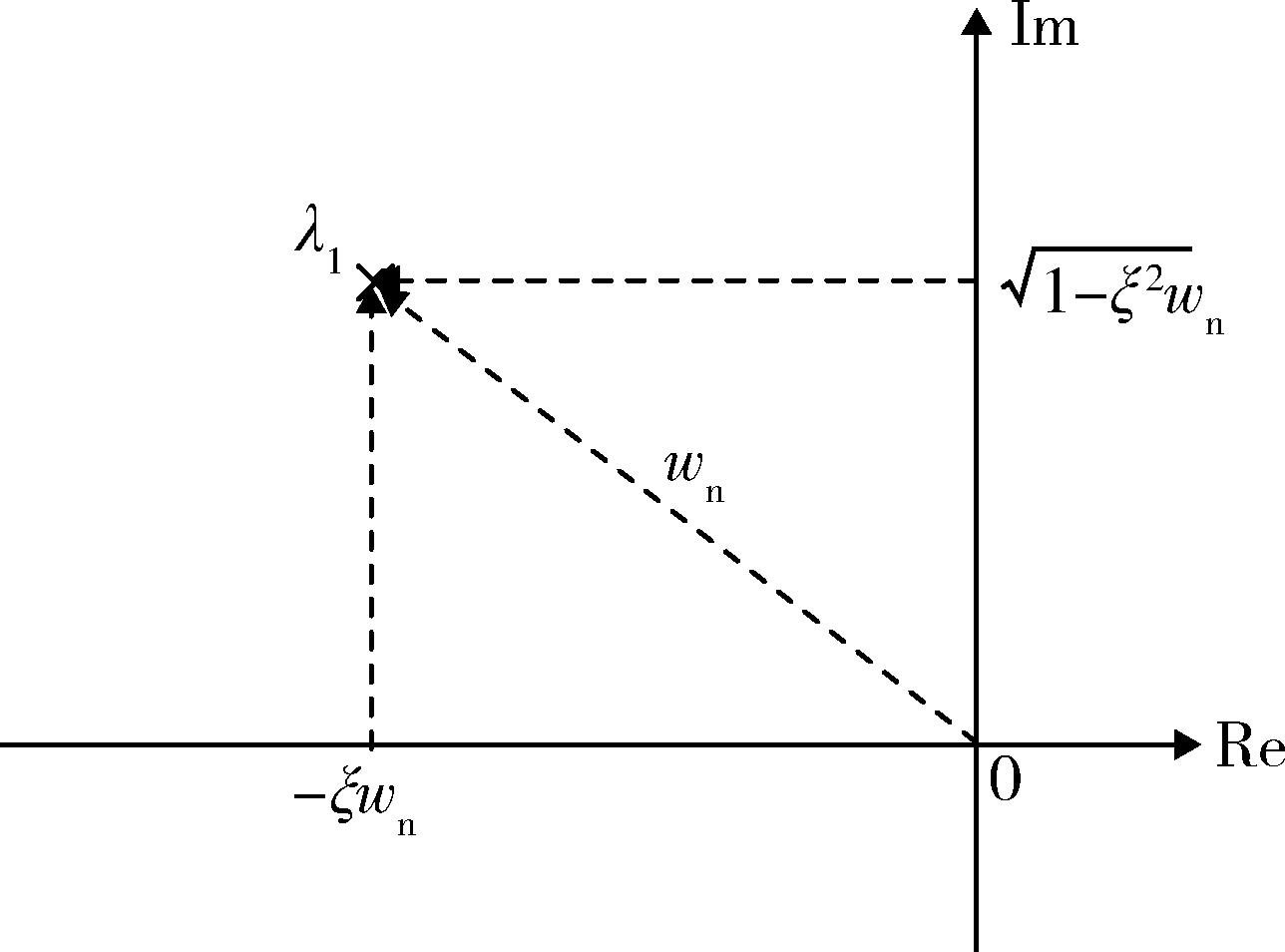

Fig. 9 Poles of an underdamped second-order system

Table 1 Influence of pole position on time domain index

极点位置	闭环传函	$ξ, w n$	$t s$	超调量 $σ %$
$1 . (- 2, ± 23)$	$16 s 2 + 4 s + 16$	$ξ = 0.5 ω n = 4$	$1.75$	$16.3 %$
$2 . (- 2, ± 43)$	$52 s 2 + 4 s + 52$	$ξ = 0.28 ω n = 7.21$	$1.75$	$40.4 %$
$3 . (- 4, ± 23)$	$28 s 2 + 8 s + 28$	$ξ = 0.76 ω n = 5.29$	$0.875$	$2.7 %$
$4 . (- 4, ± 43)$	$64 s 2 + 8 s + 64$	$ξ = 0.5 ω n = 8$	$0.875$	$16.3 %$

Table 1 Influence of pole position on time domain index

极点位置	闭环传函	$ξ, w n$	$t s$	超调量 $σ %$
$1 . (- 2, ± 23)$	$16 s 2 + 4 s + 16$	$ξ = 0.5 ω n = 4$	$1.75$	$16.3 %$
$2 . (- 2, ± 43)$	$52 s 2 + 4 s + 52$	$ξ = 0.28 ω n = 7.21$	$1.75$	$40.4 %$
$3 . (- 4, ± 23)$	$28 s 2 + 8 s + 28$	$ξ = 0.76 ω n = 5.29$	$0.875$	$2.7 %$
$4 . (- 4, ± 43)$	$64 s 2 + 8 s + 64$	$ξ = 0.5 ω n = 8$	$0.875$	$16.3 %$

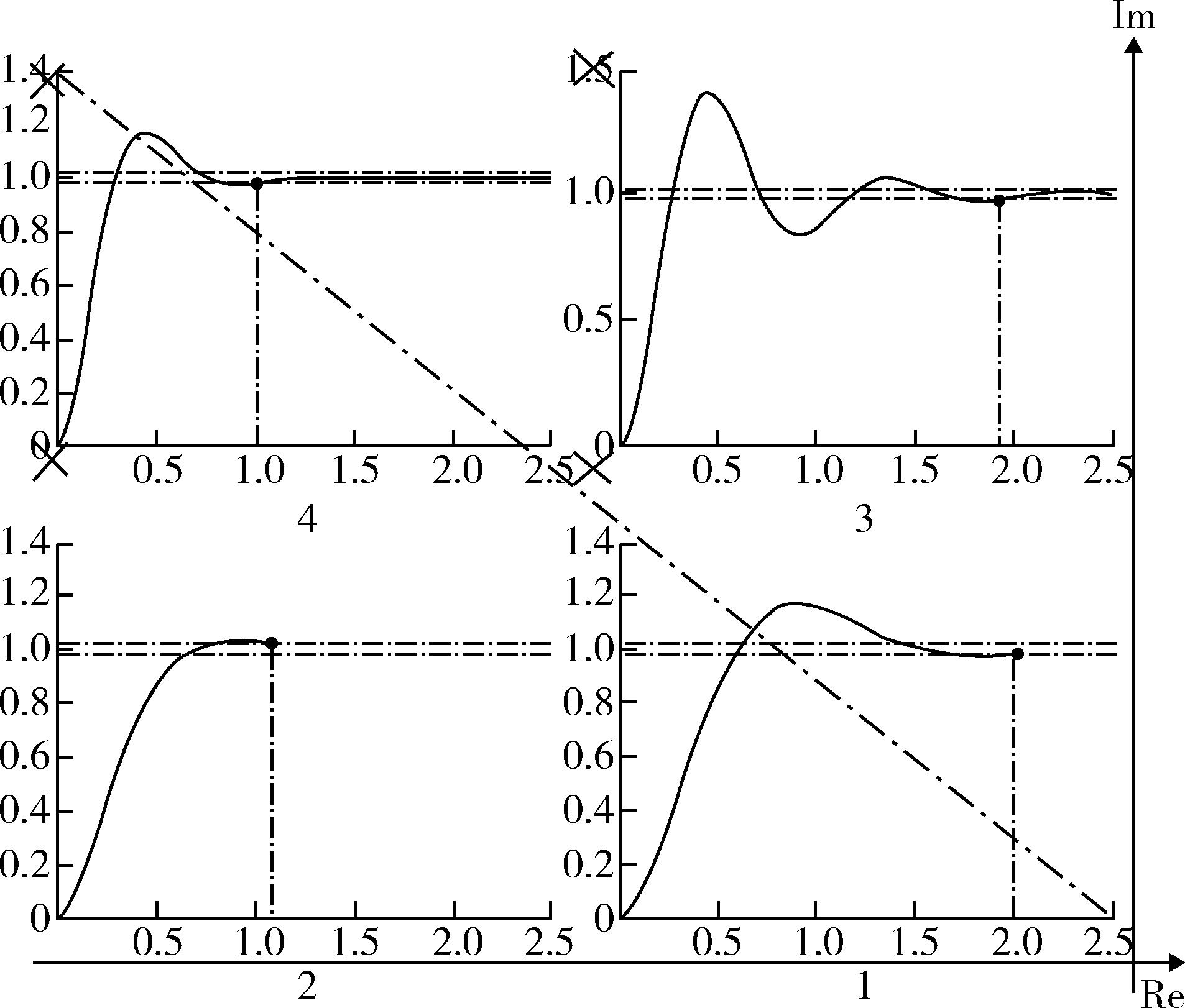

Fig. 10 Influence of pole position on time-domain index

Fig. 11 Root locus curve as k1 increases

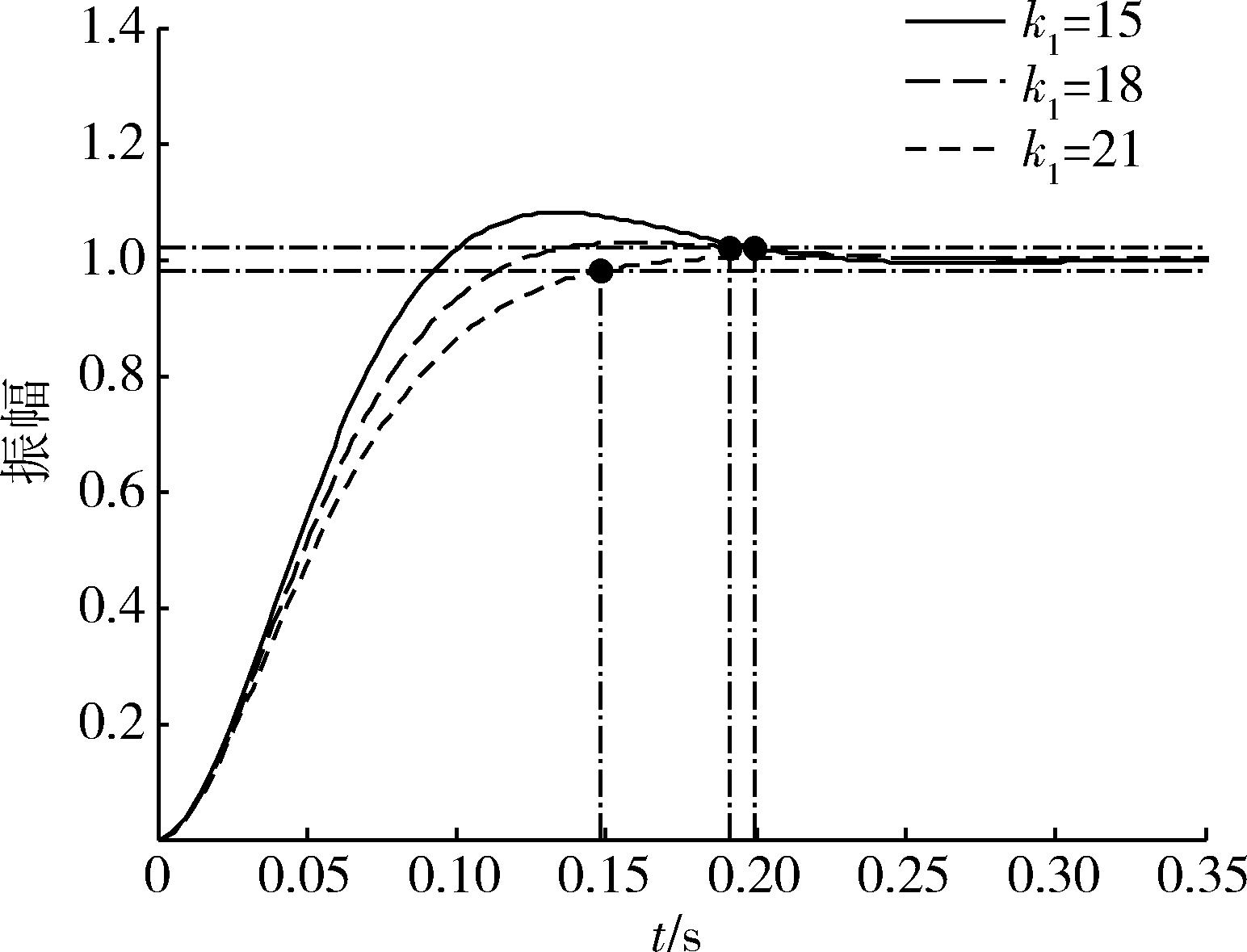

Fig. 12 System response when k1 changes

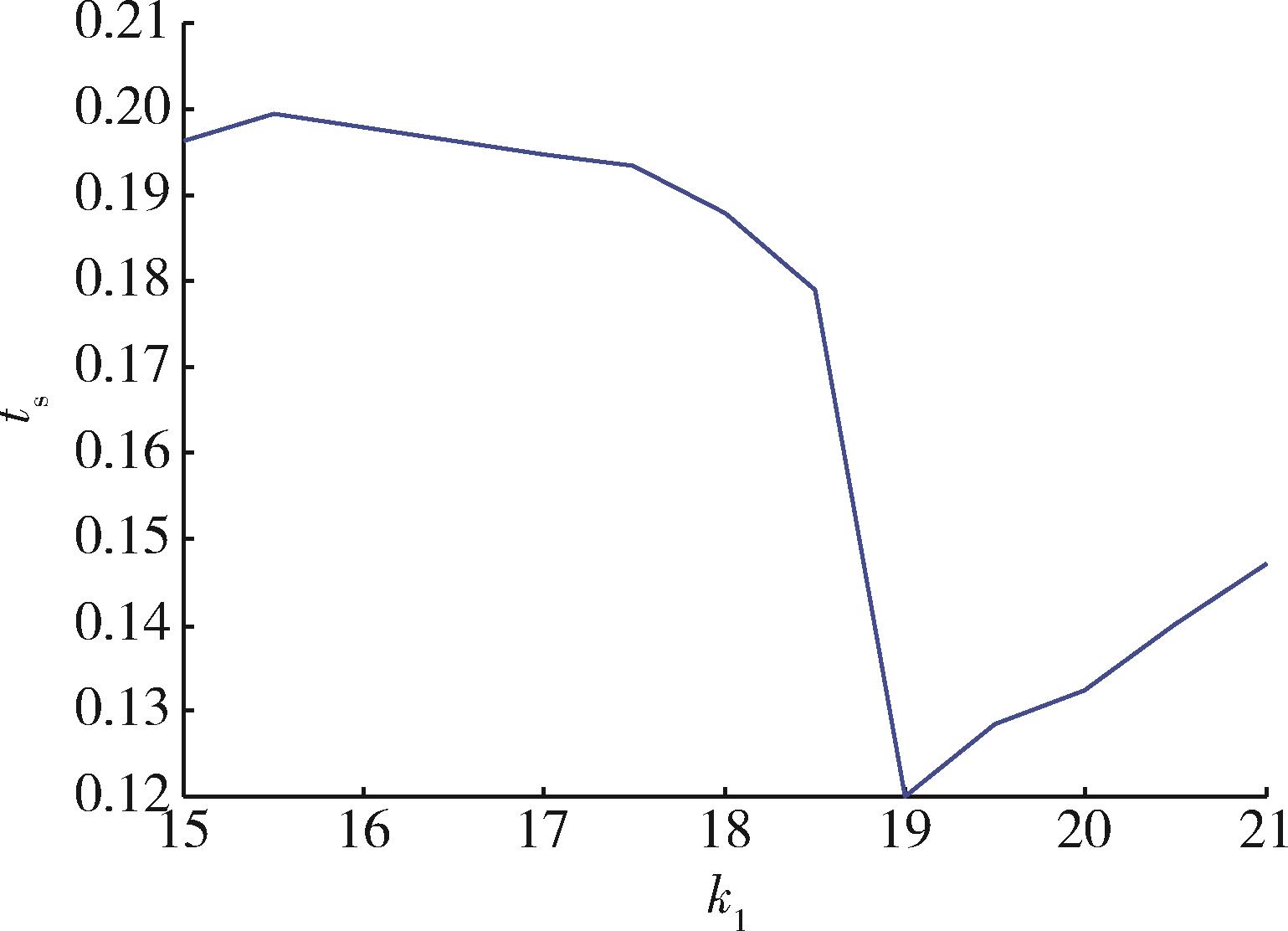

Fig. 13 Adjustment time curve when k1 changes

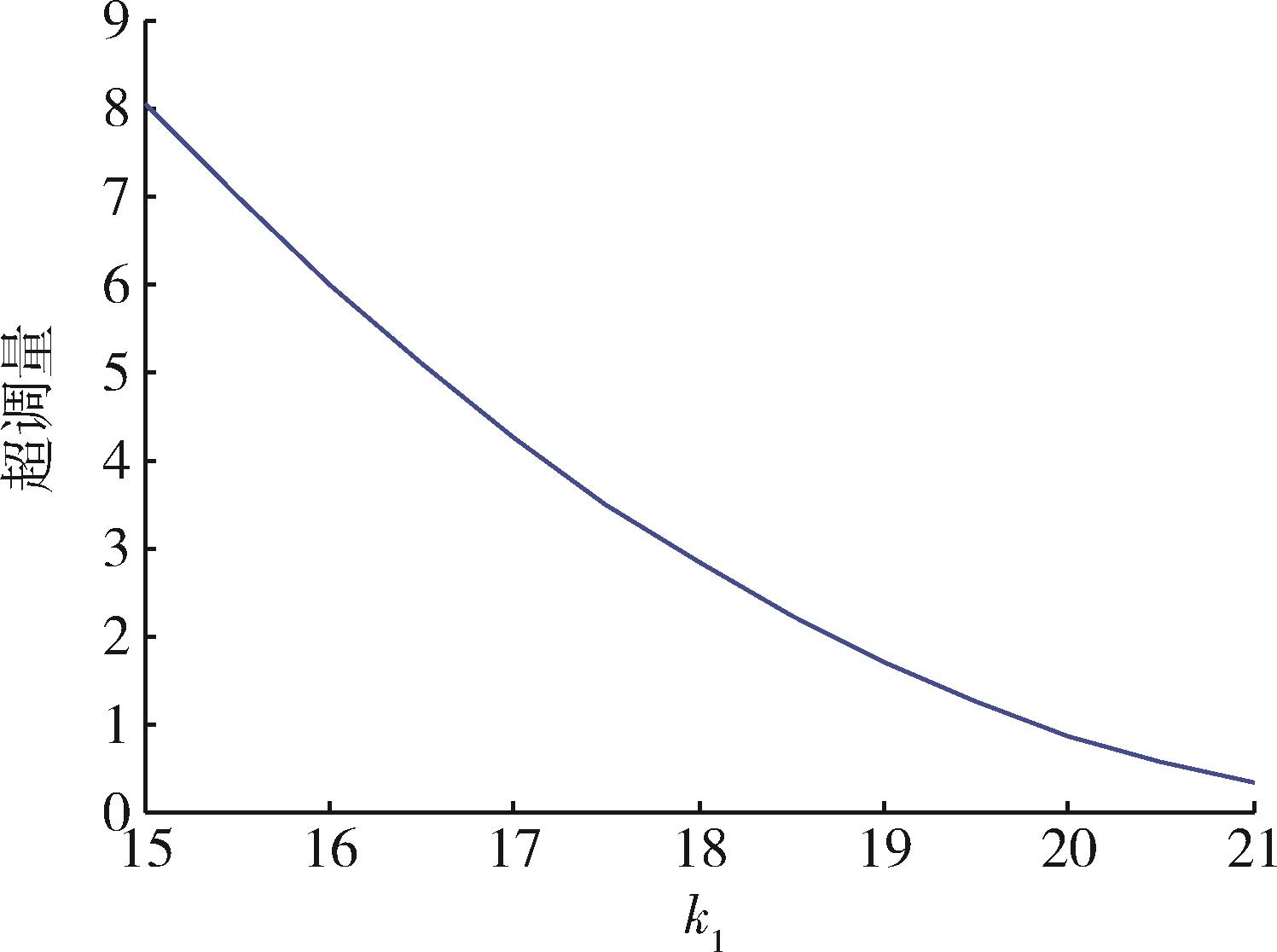

Fig. 14 Overshoot change curve when k1 changes

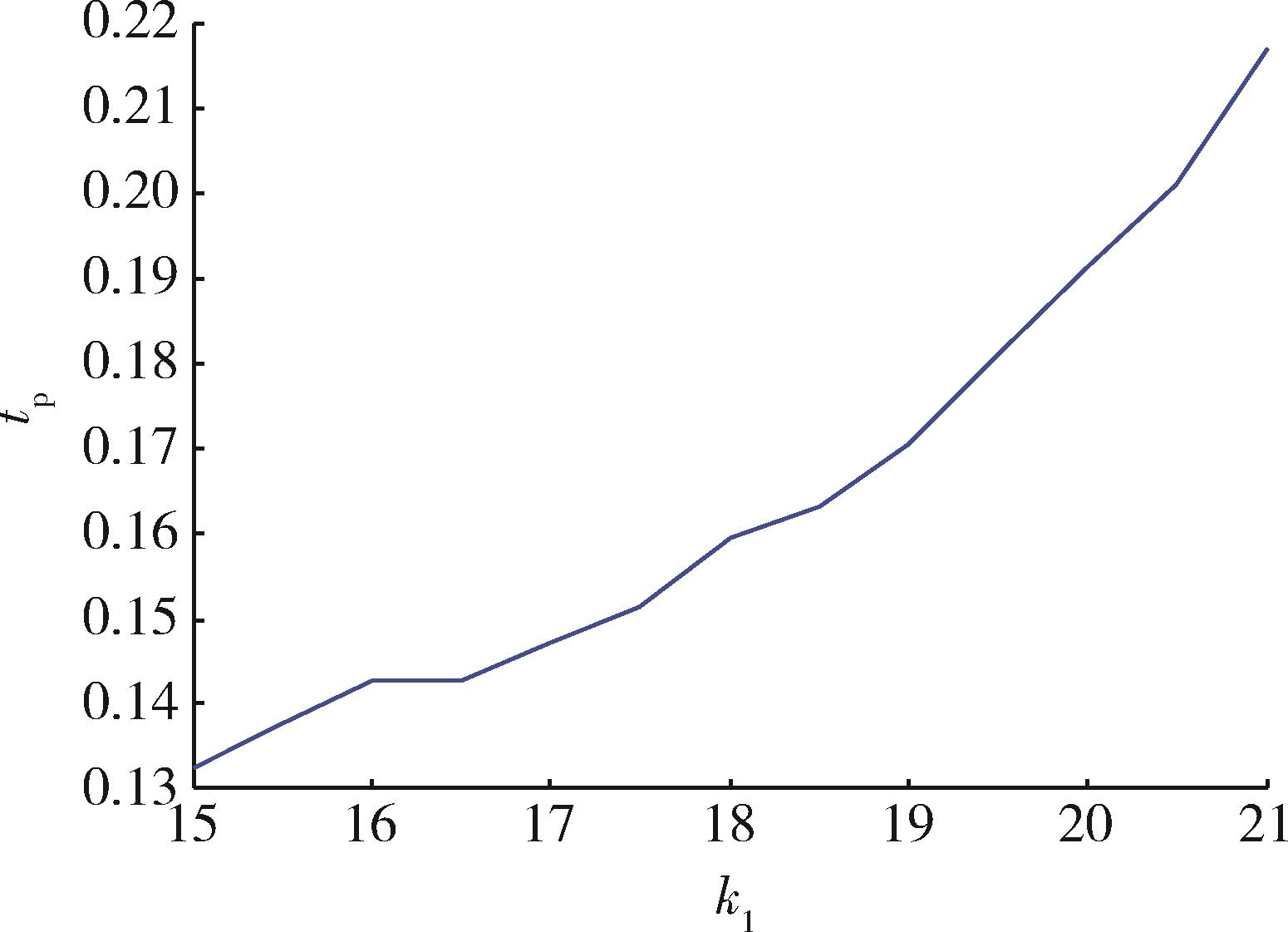

Fig. 15 Curve of peak time change when k1 changes

Fig. 16 Root locus as k2 is increased

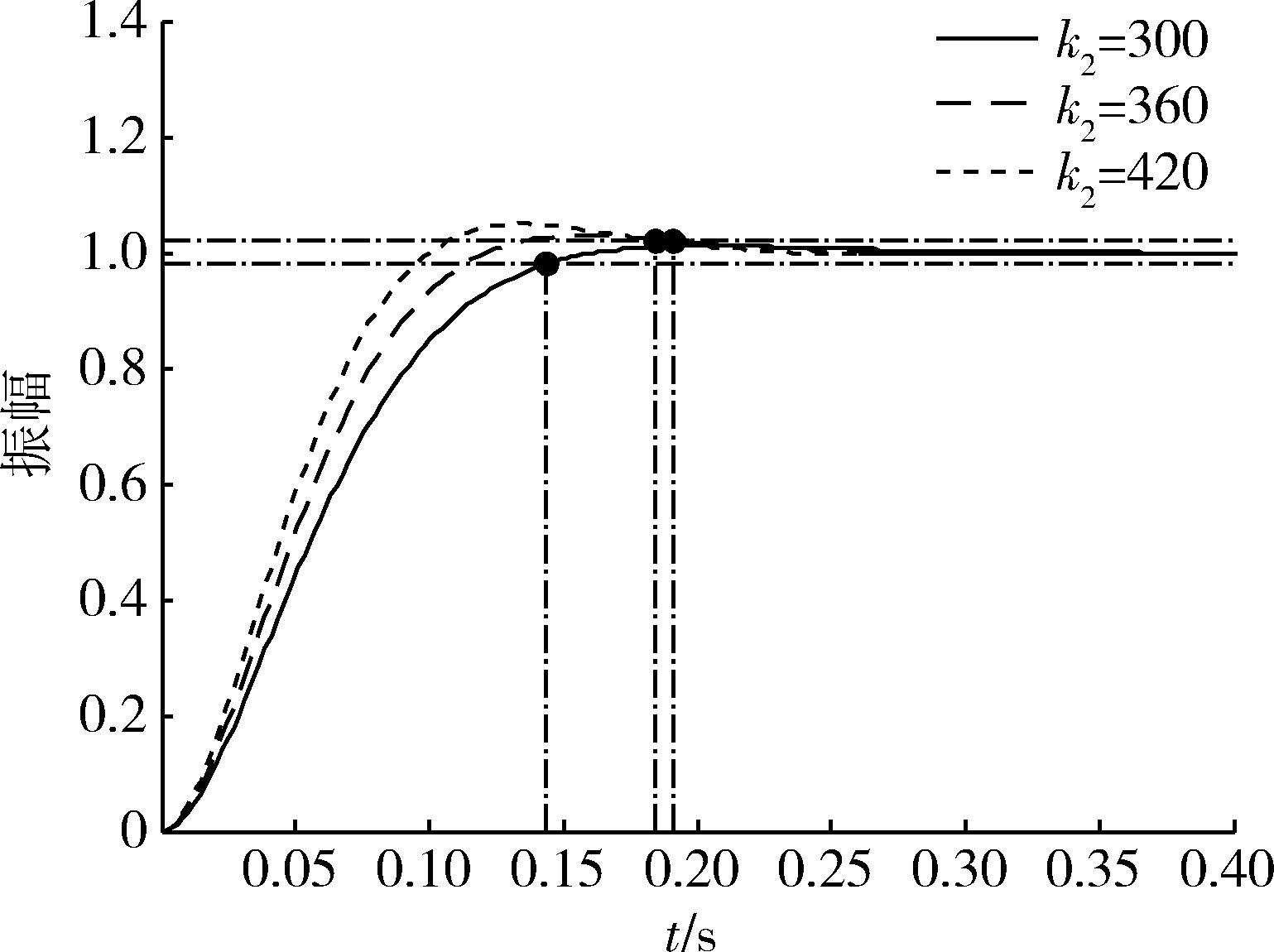

Fig. 17 System response when k2 changes

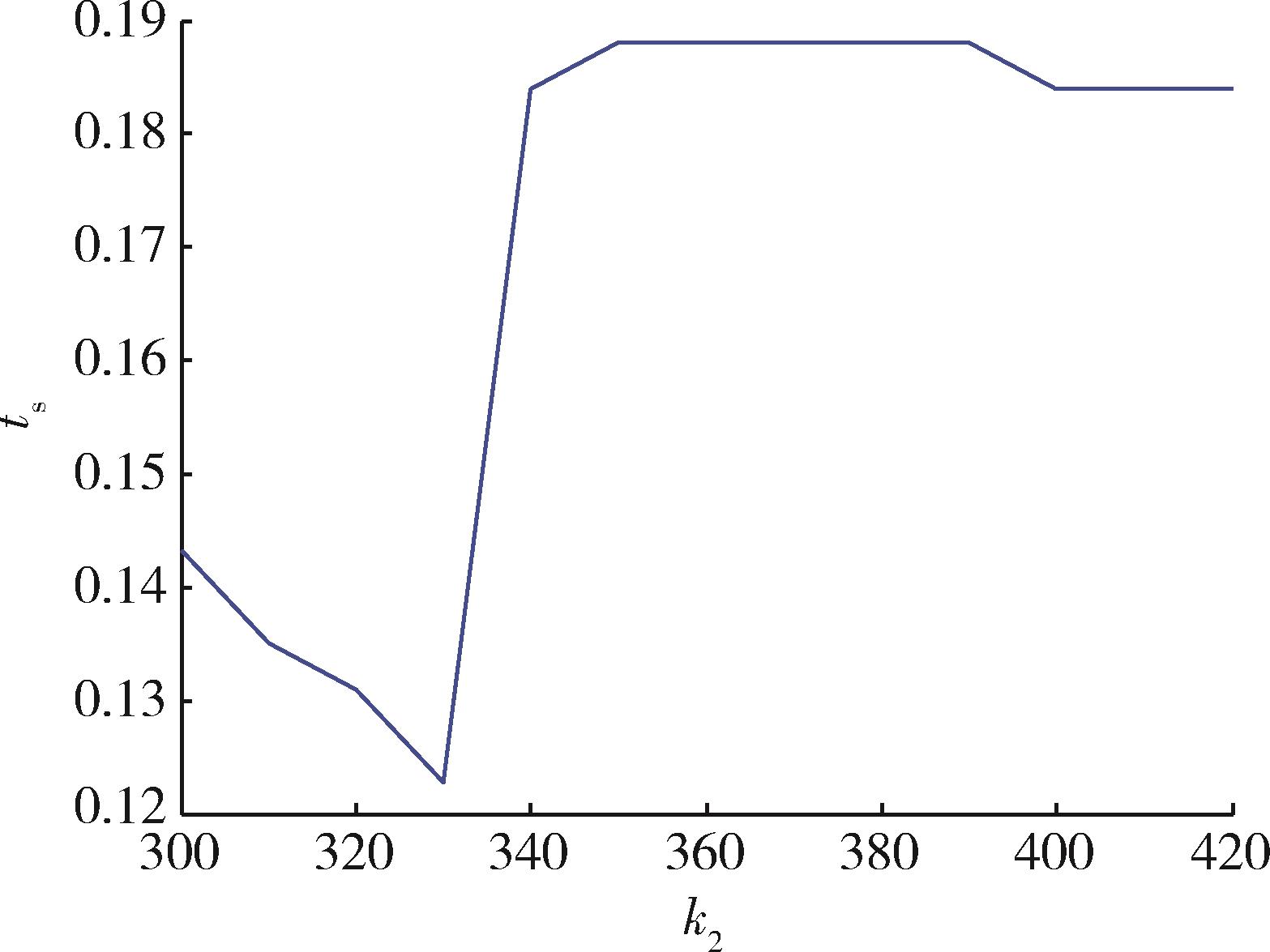

Fig. 18 Adjustment time curve when k2 changes

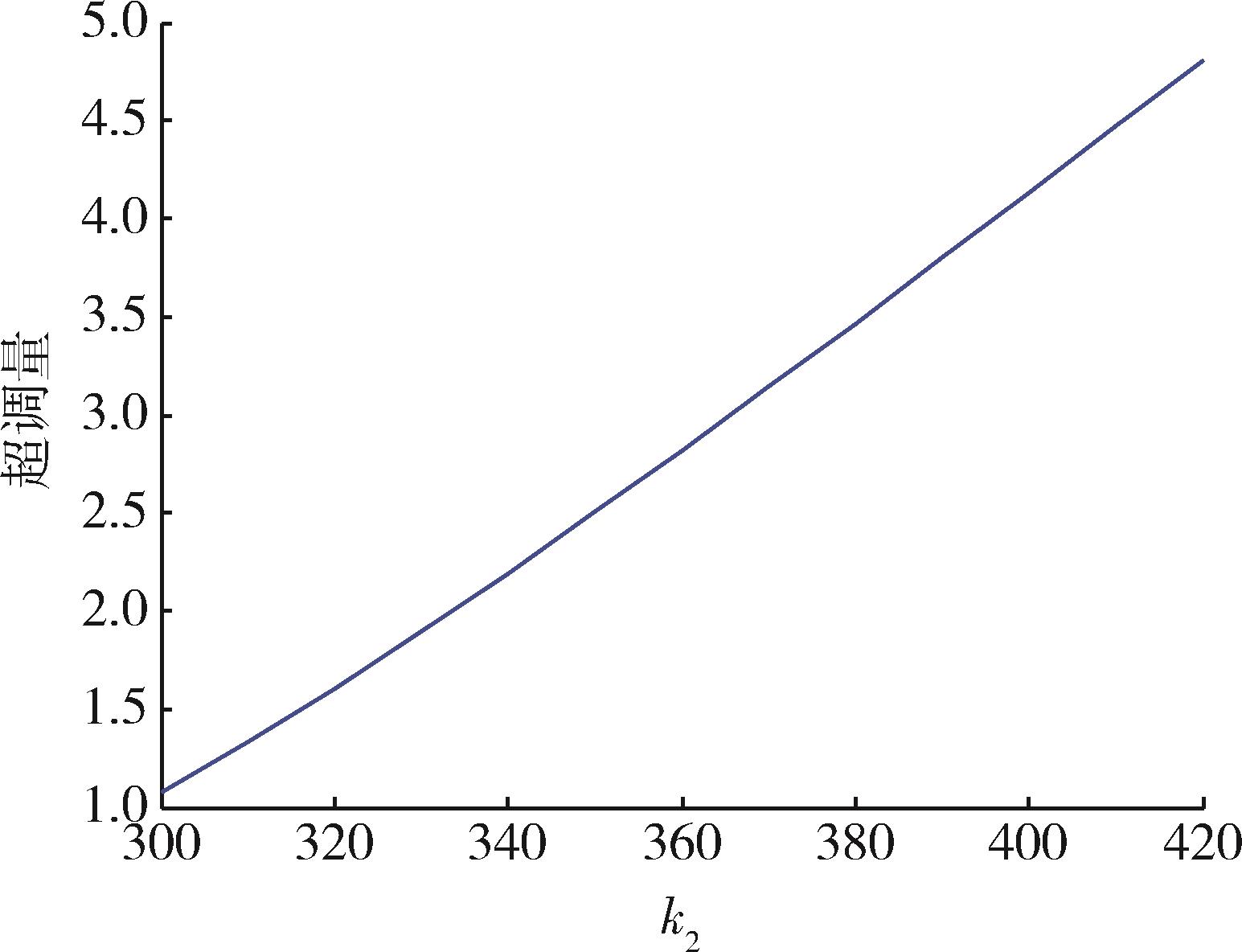

Fig. 19 Overshoot change curve when k2 changes

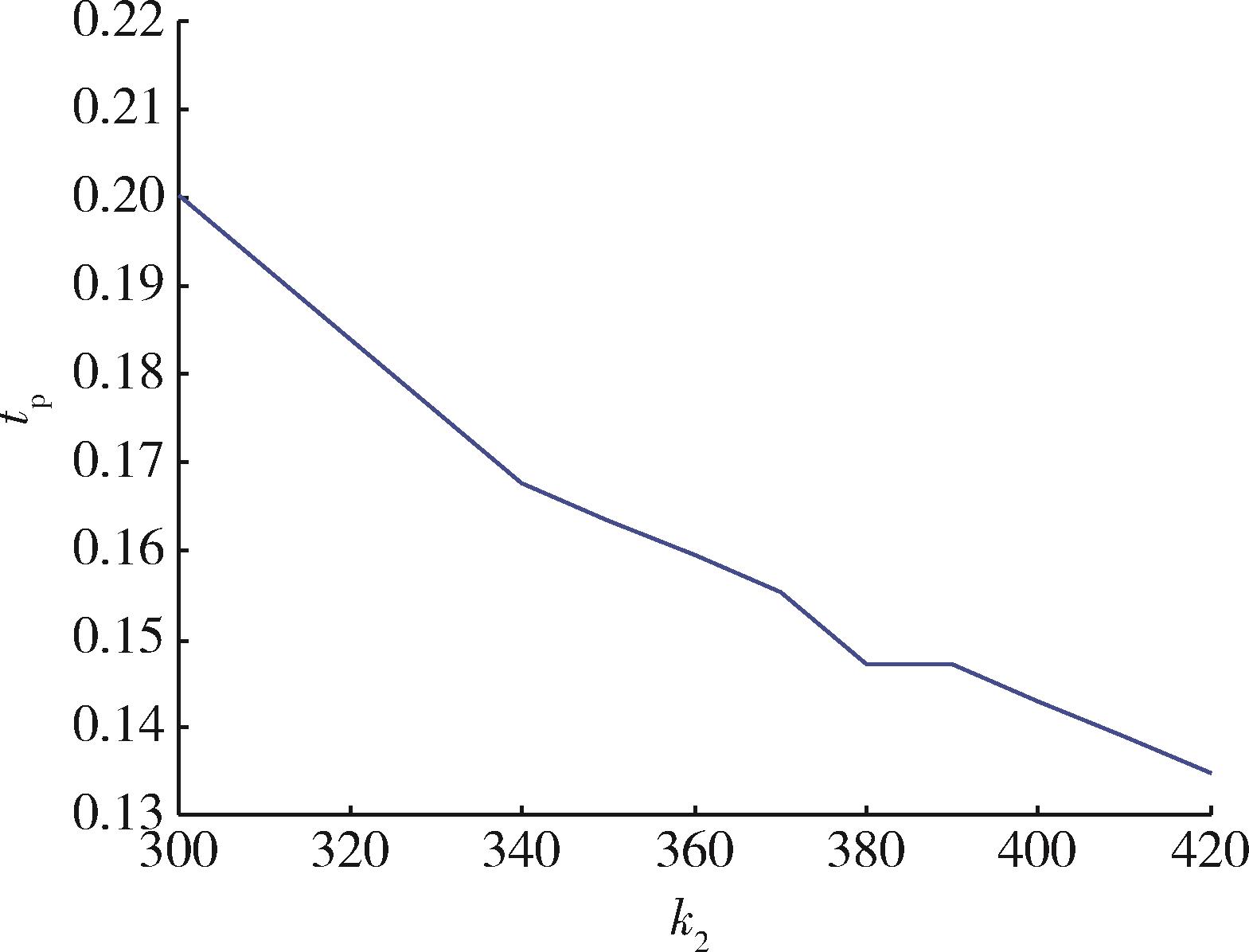

Fig. 20 Curve of peak time change when k2 changes

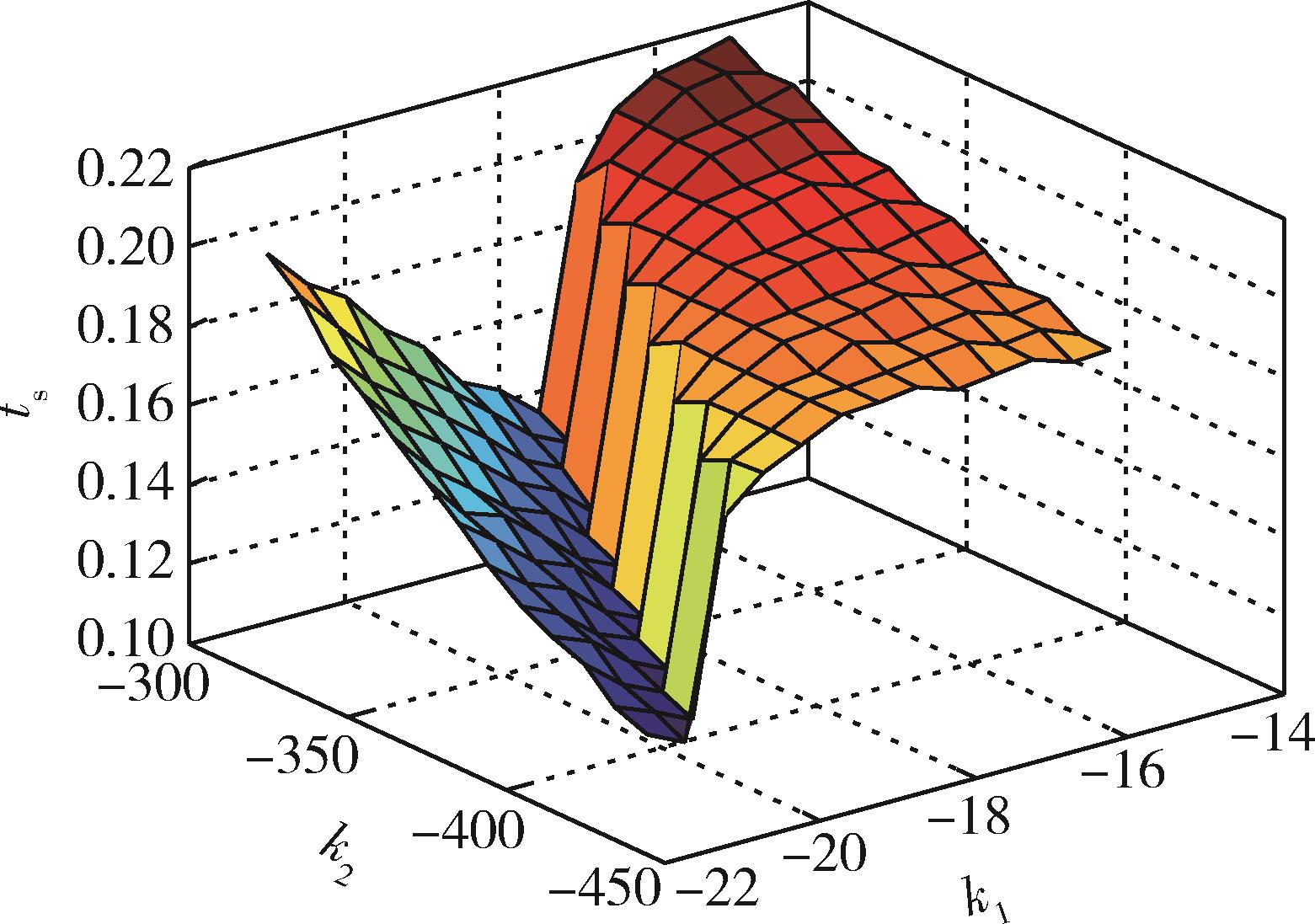

Fig. 21 (k1,k2,ts) 3D image

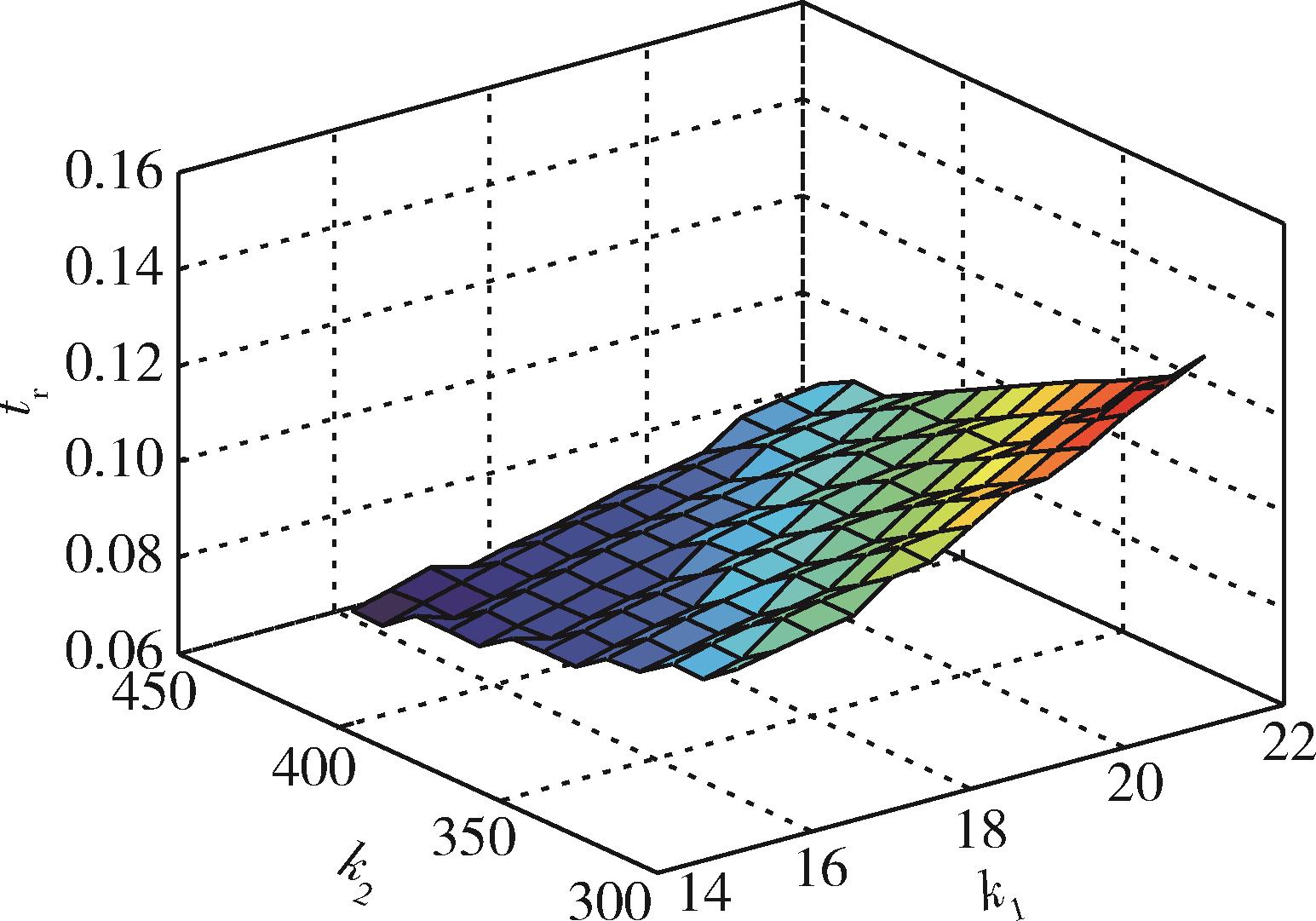

Fig. 22 (k1,k2,tr) 3D image

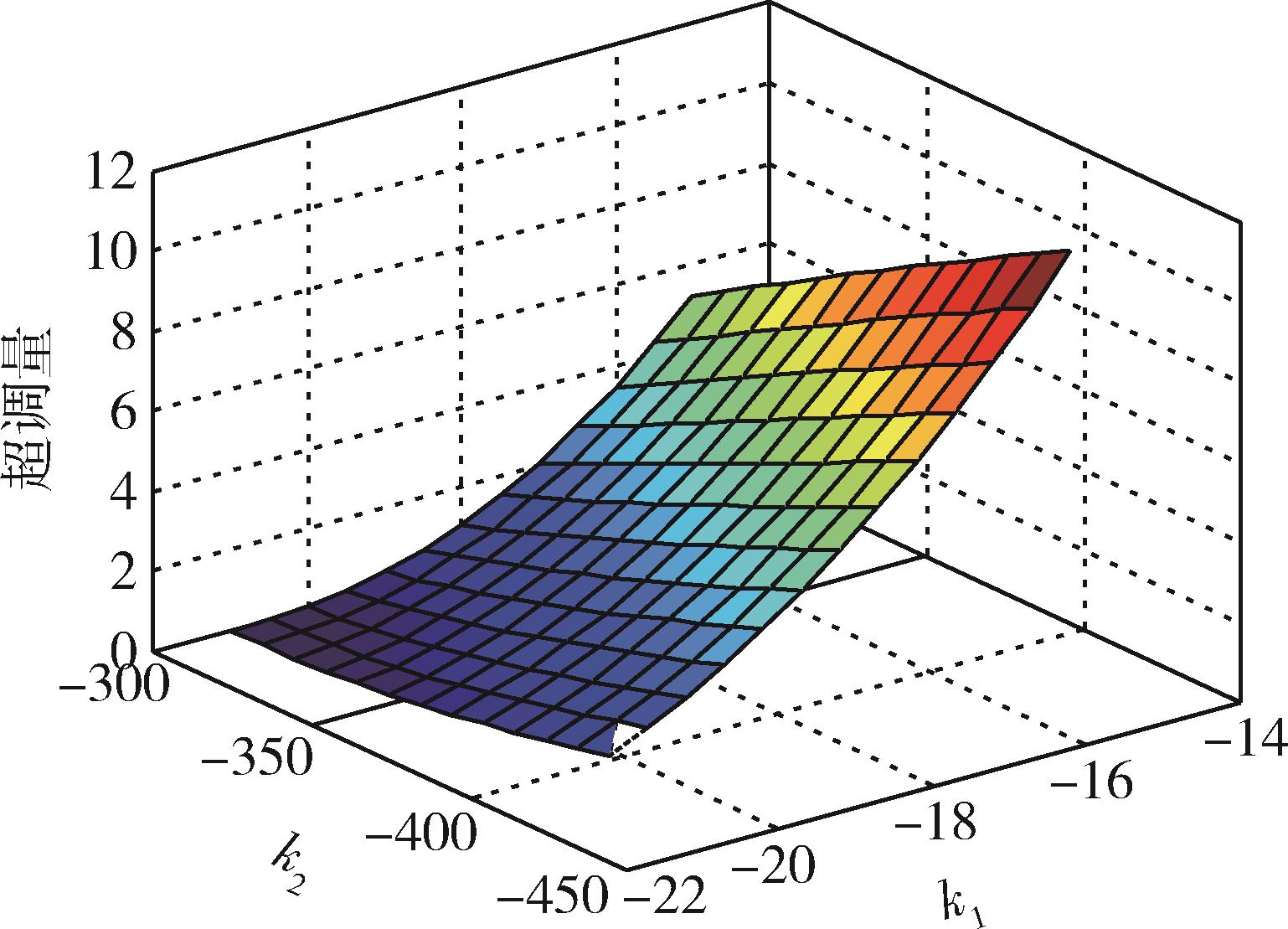

Fig. 23 (k1,k2,σ%) 3D image

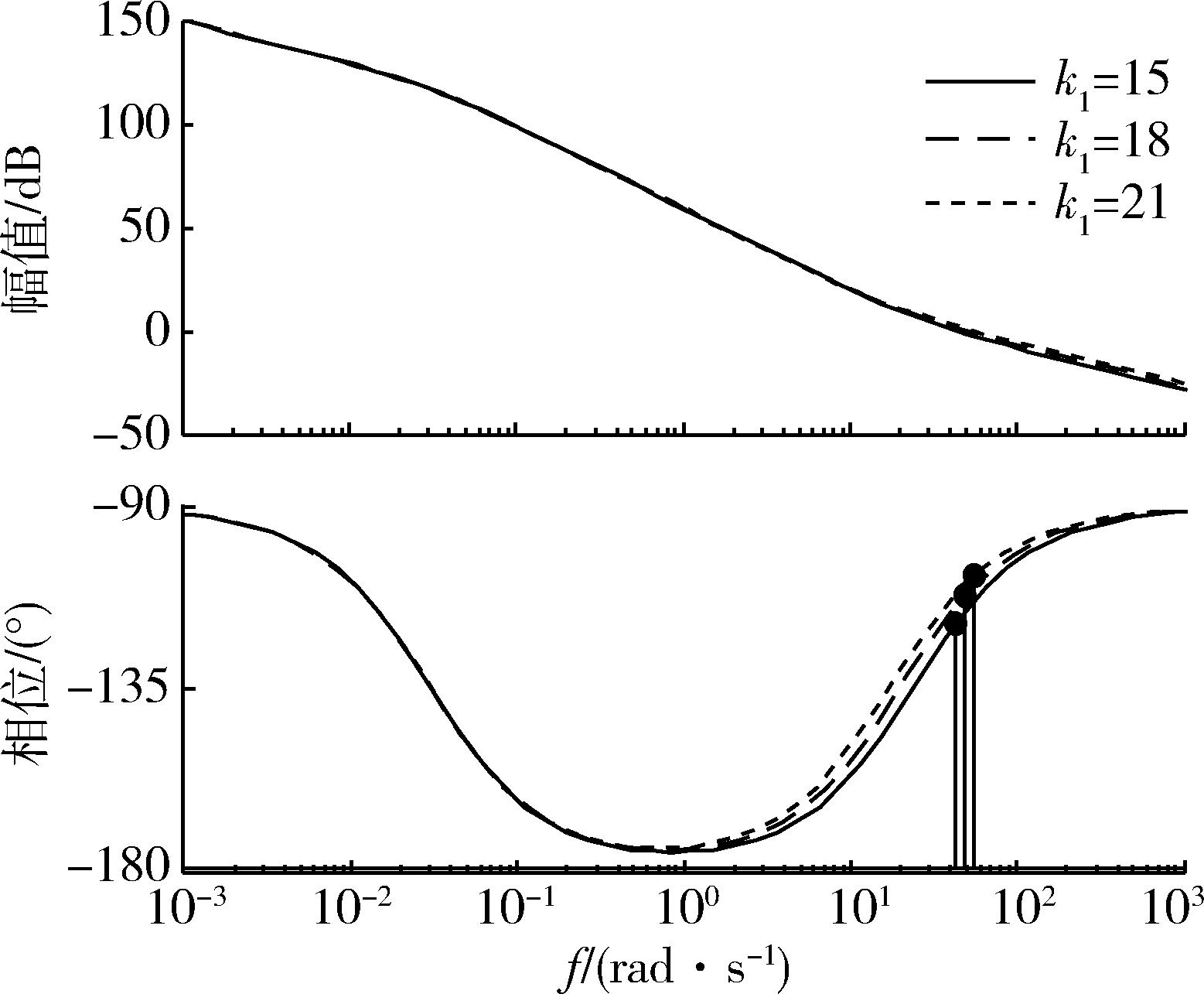

Fig. 24 Bode diagram of k1 change

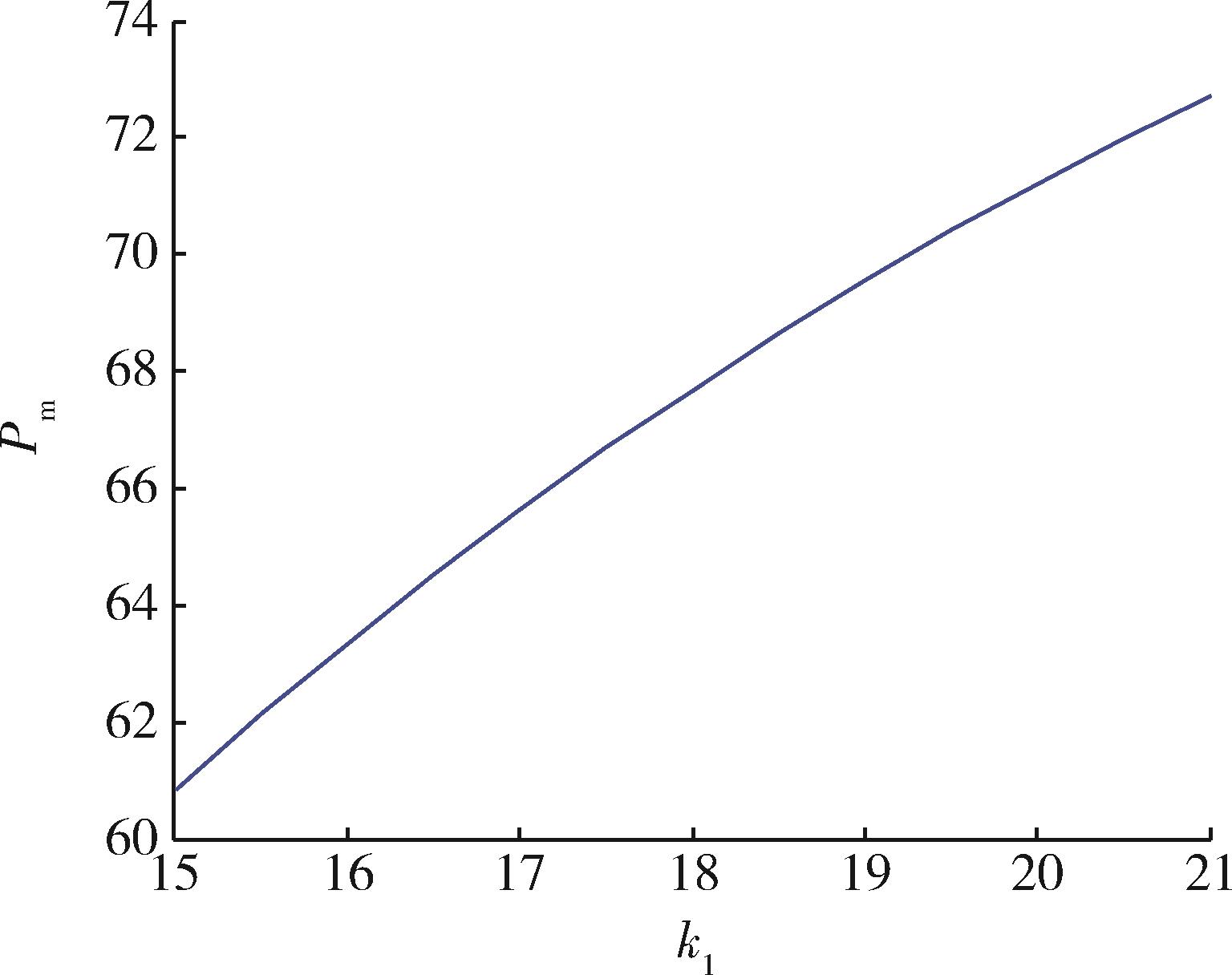

Fig. 25 Curve of phase margin change when k1 changes

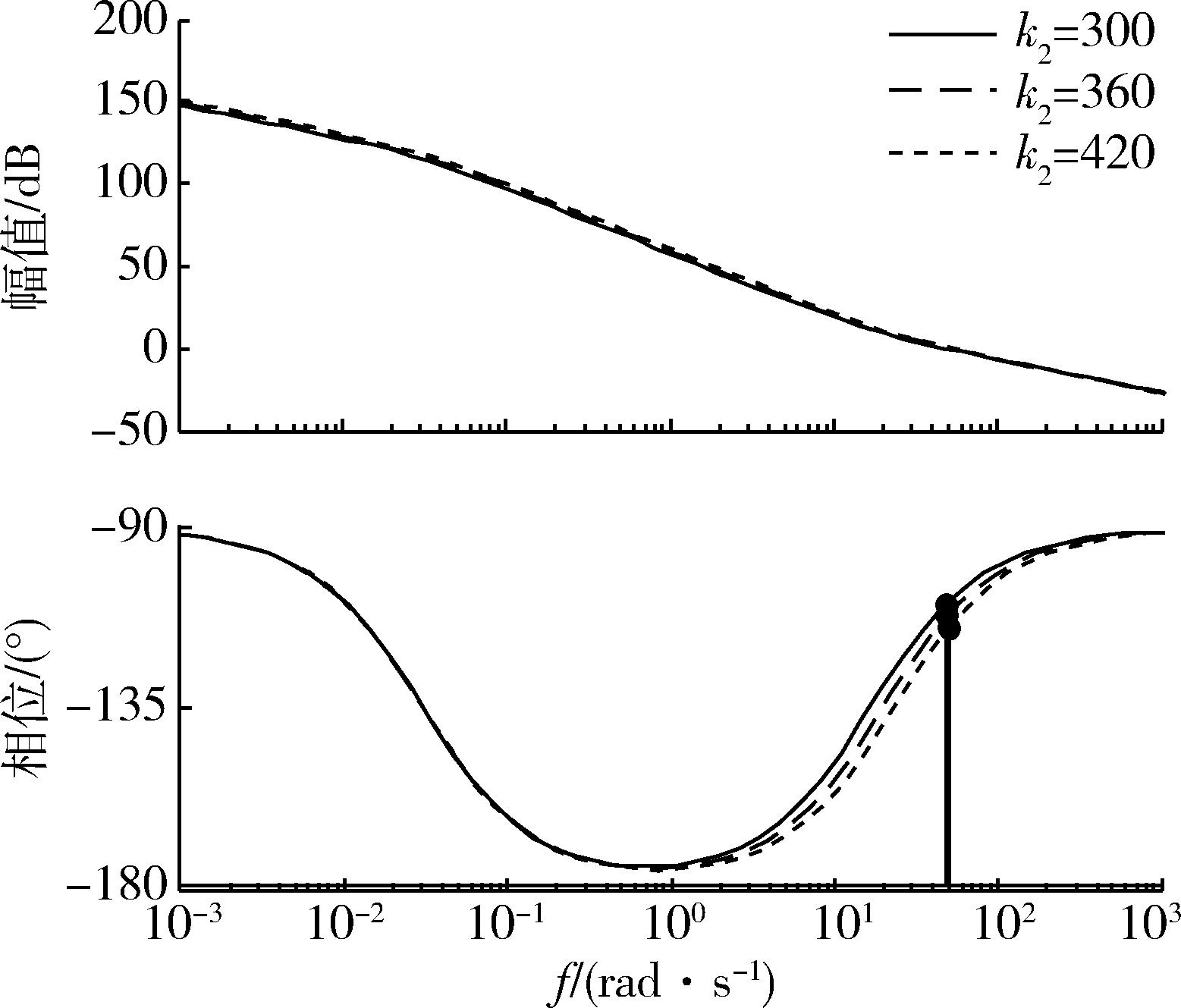

Fig. 26 bode diagram of k2 change

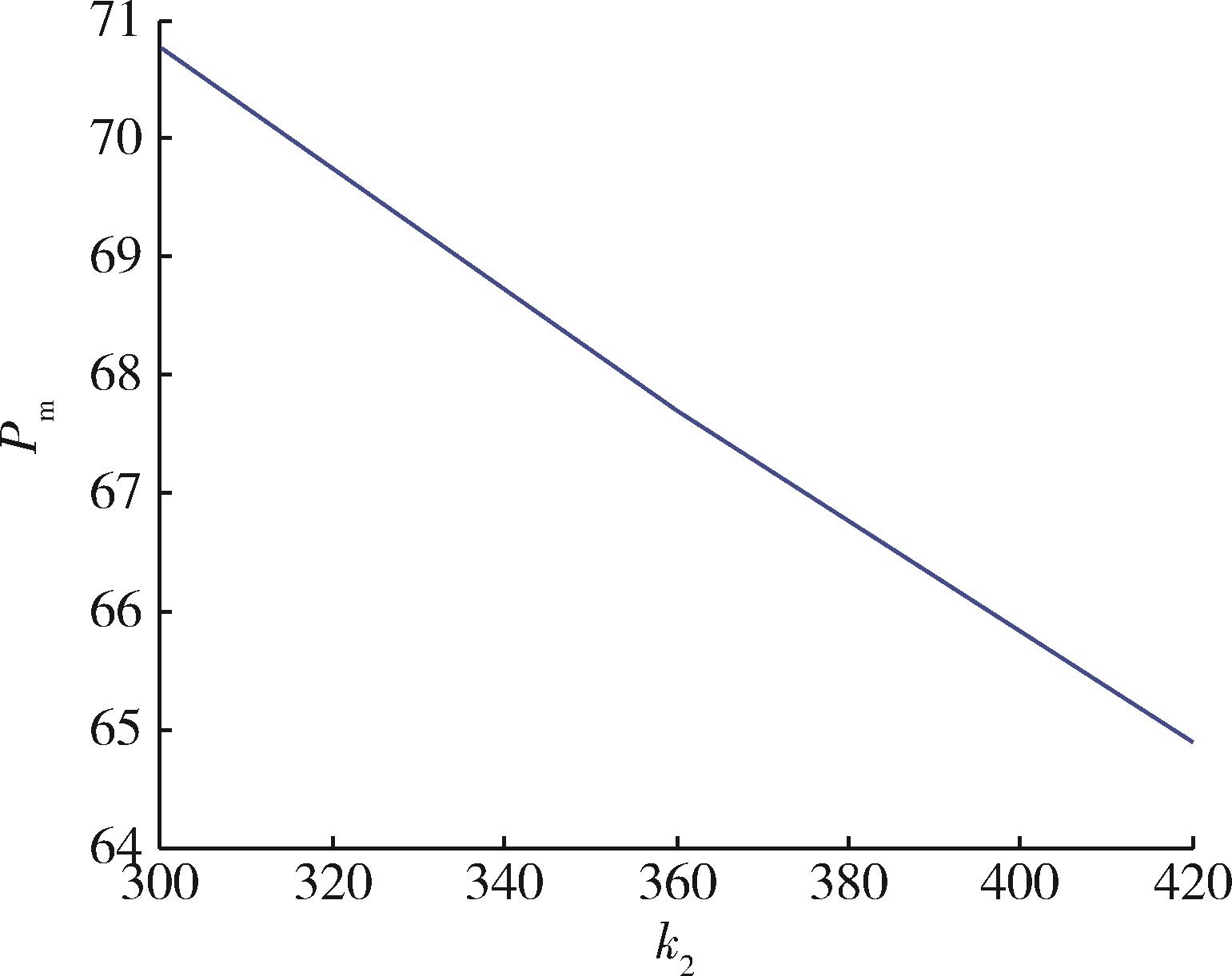

Fig. 27 Curve of phase margin change when k2 changes

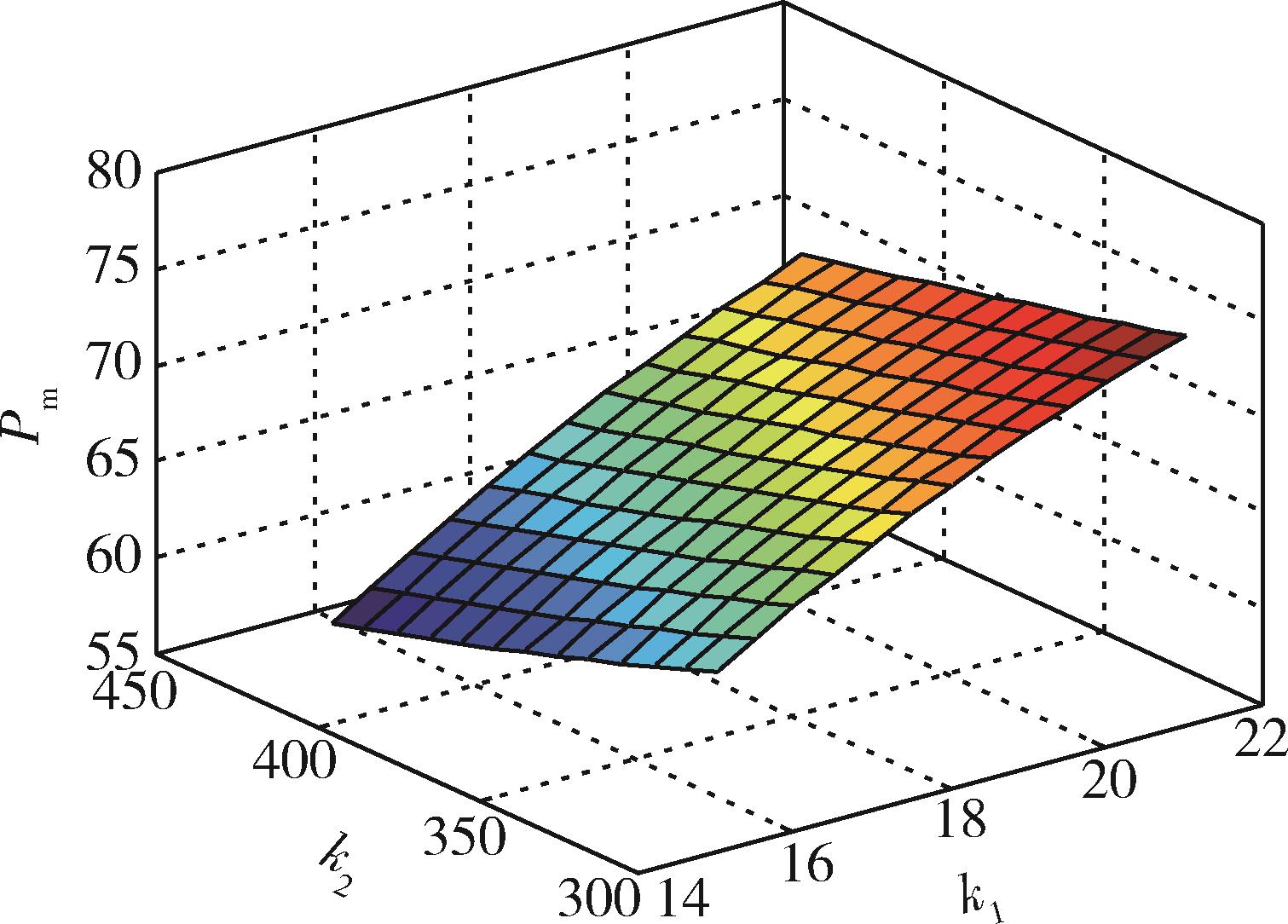

Fig. 28 (k1,k2,Pm) 3D image

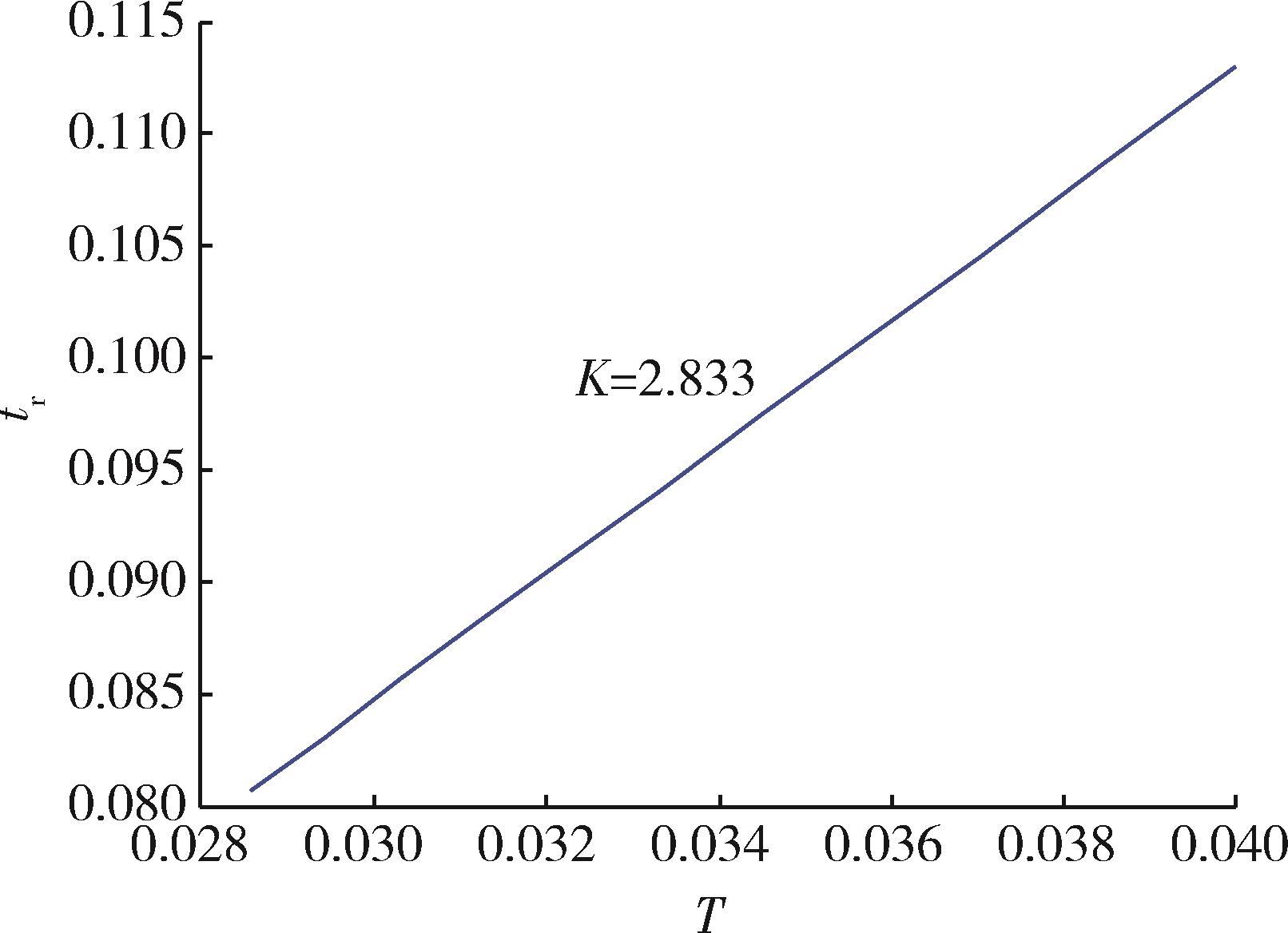

Fig. 29 Relationship between rise time and time parameter T

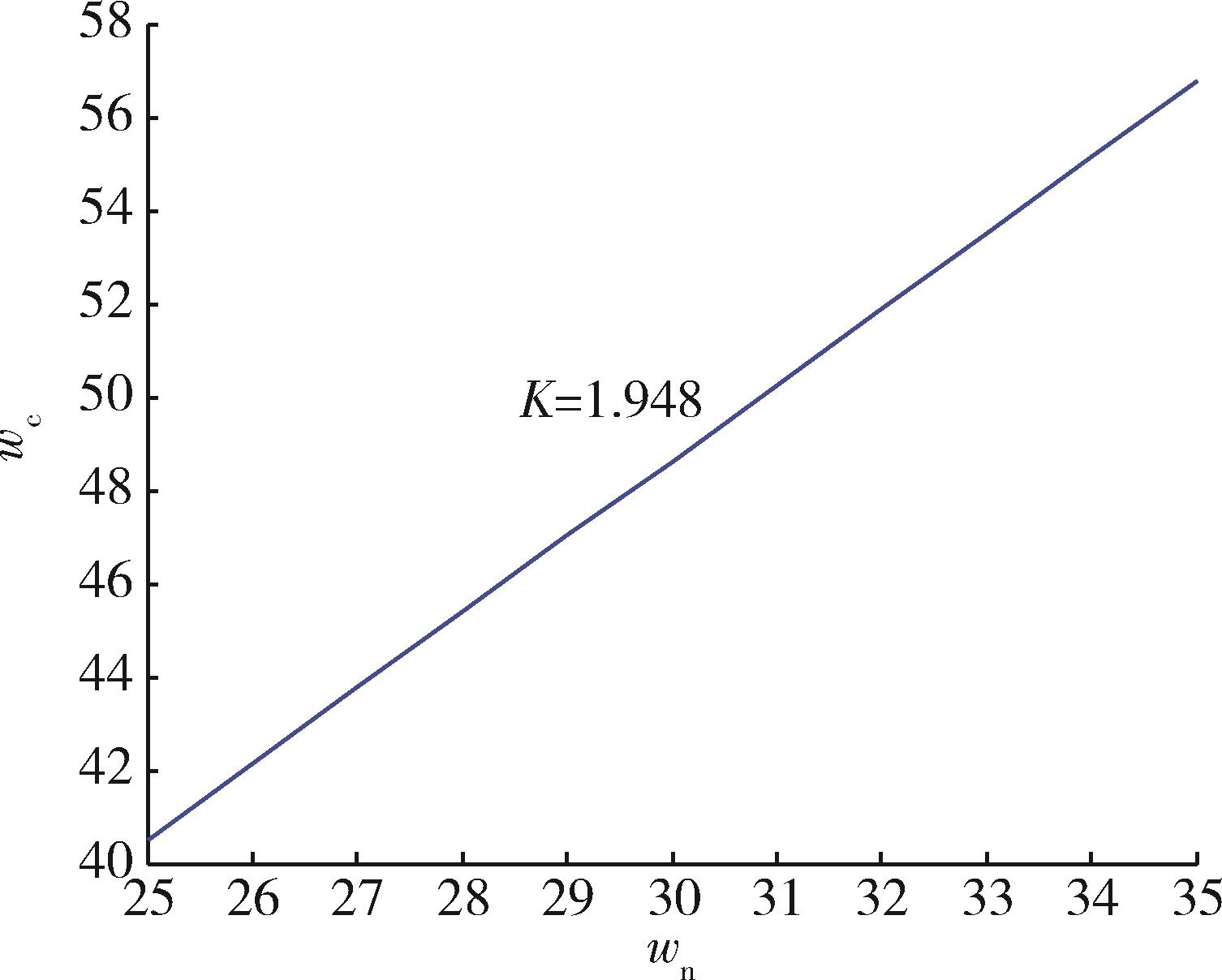

Fig. 30 wn and wc relationship curve

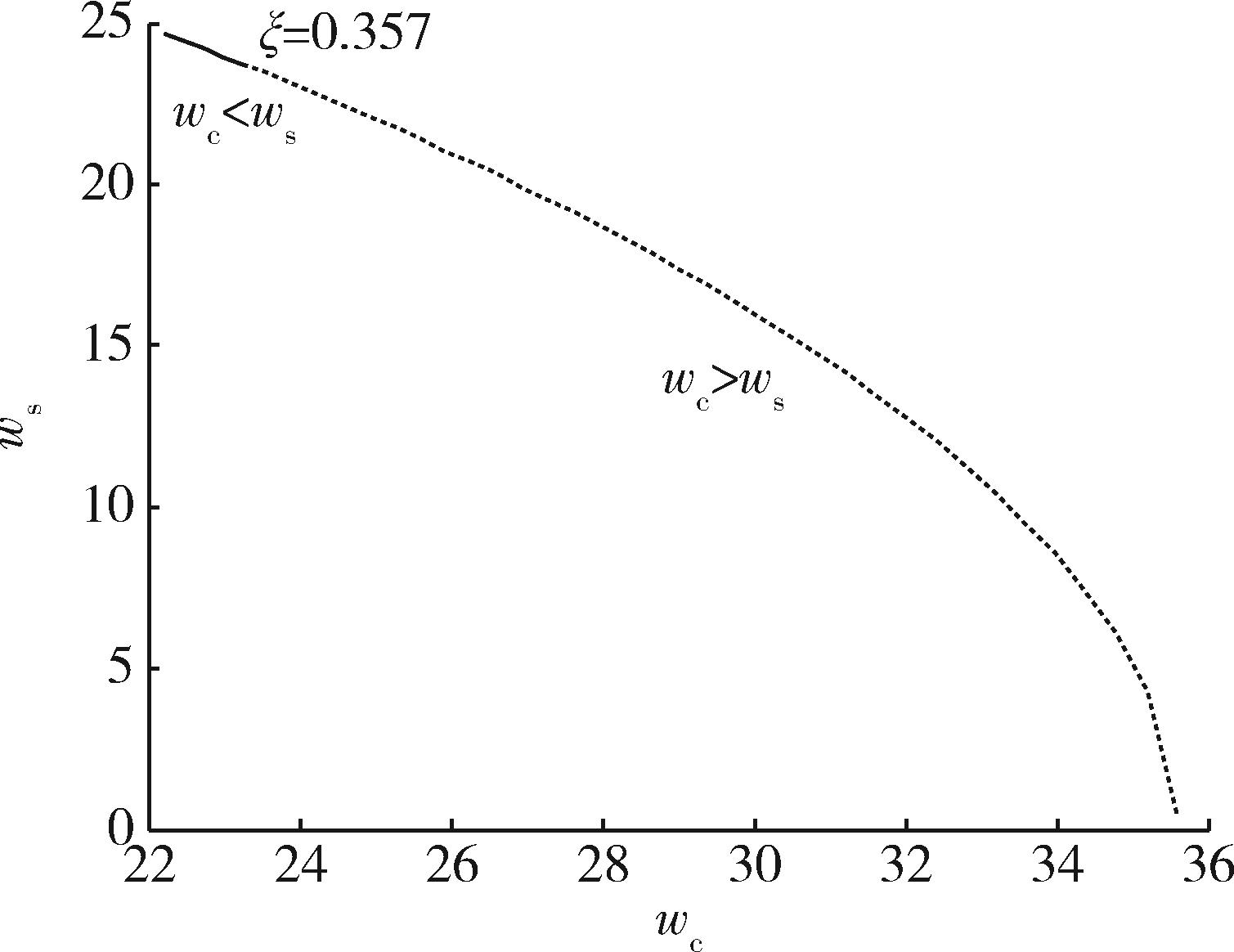

Fig. 31 Relationship between wc and ws with increasing damping
