Trajectory Optimization for Climbing Phase of Hypersonic Missile with Multi-objective and Multi-degree-of-freedom

doi:10.3969/j.issn.1009-086x.2024.06.008

Abstract

Abstract:

In order to solve the trajectory optimization problem of air-breathing hypersonic missile， which can reflect its dynamic characteristics more truly and meet the requirements of multiple optimization indexes in the climbing phase， a trajectory optimization design method for air-breathing hypersonic missile with multi-degree-of-freedom is proposed. Under multiple constraints such as overload and dynamic pressure， the weighted summation method is used to design the double optimal target， and the hp adaptive pseudo-spectrum method is used to design and analyze the climbing trajectory of the air-breathing hypersonic missile. Simulation results show that this method can effectively solve the comprehensive optimization problem considering the minimum climb time and the minimum fuel consumption at the same time， and the multi-degree-of-freedom design can reflect the dynamic characteristics of the air-breathing hypersonic missile climbing stage more truly. Improved trajectory performance provides a new idea for trajectory optimization design of air-breathing hypersonic missile.

Key words: air-breathing supersonic missile, hp adaptive pseudo-spectral method, multi-degree-of-freedom trajectory optimization, multi-objective weighted sum, climb trajectory

摘要：

为解决吸气式高超声速导弹在爬升段更真实地反映其动力学特点以及满足多优化指标需求的轨迹优化问题，提出了一种针对吸气式高超声速导弹多自由度的轨迹优化设计方法。在过载和动压等多约束条件下，运用加权求和法设计双优化目标，采用hp自适应伪谱法对吸气式高超声速导弹爬升段弹道进行了综合优化设计分析。仿真结果表明，该方法能有效解决同时考虑最小爬升时间和最少燃料消耗的综合优化问题，多自由度设计也能够更真实地反映吸气式高超声速导弹爬升段的动力学特点。为吸气式高超声速导弹轨迹优化设计提供了新思路。

关键词: 吸气式高超声速导弹, hp自适应伪谱法, 多自由度轨迹优化, 多目标加权求和, 爬升段轨迹

CLC Number:

TJ765.2

Suyu YAN, Chao MING, Xiaoming WANG, Zhihua WEI, Kaiyuan YANG. Trajectory Optimization for Climbing Phase of Hypersonic Missile with Multi-objective and Multi-degree-of-freedom[J]. Modern Defense Technology, 2024, 52(6): 52-60.

严苏豫, 明超, 王晓鸣, 位志华, 杨凯源. 高超声速导弹爬升段多目标多自由度轨迹优化[J]. 现代防御技术, 2024, 52(6): 52-60.

Figures/Tables 6

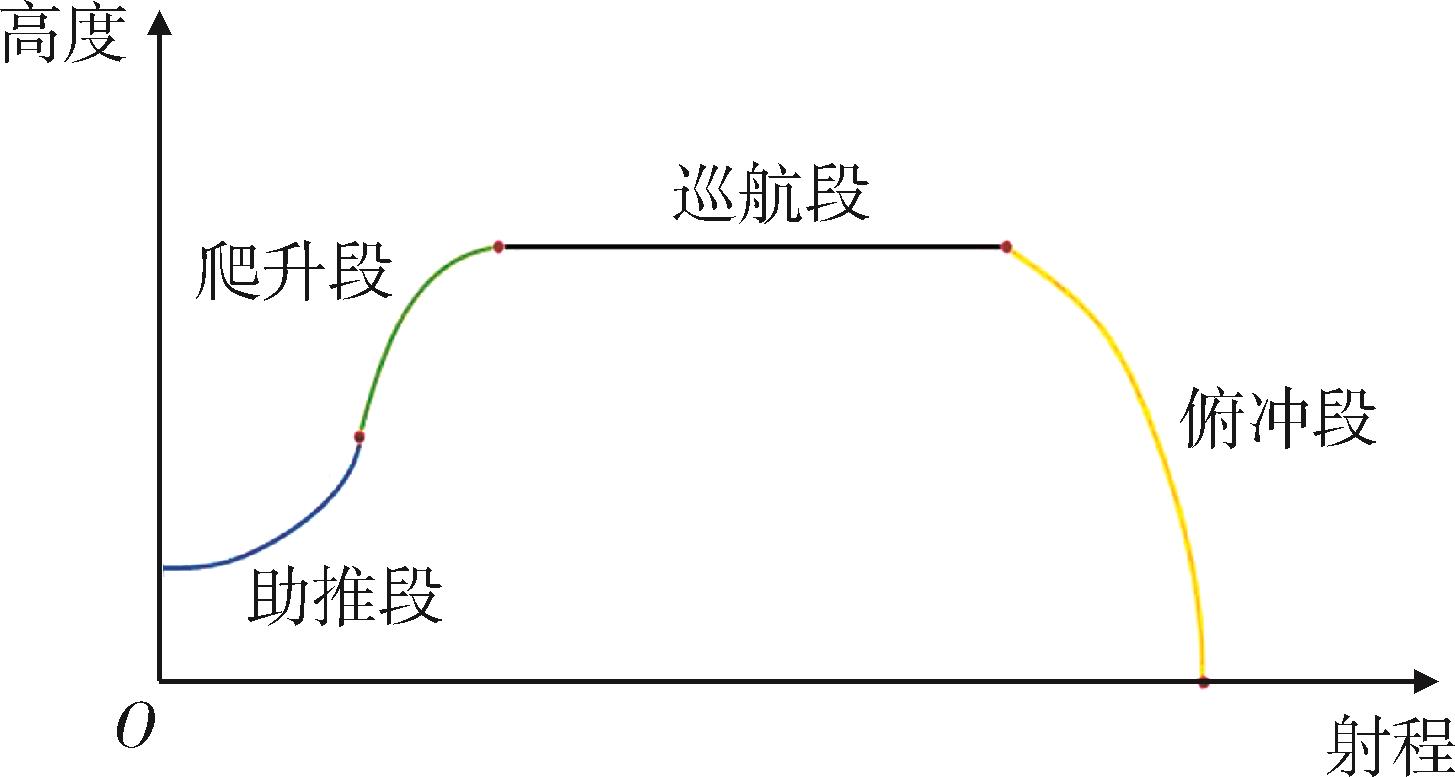

Fig. 1 Schematic diagram of trajectory of air-breathing hypersonic missile

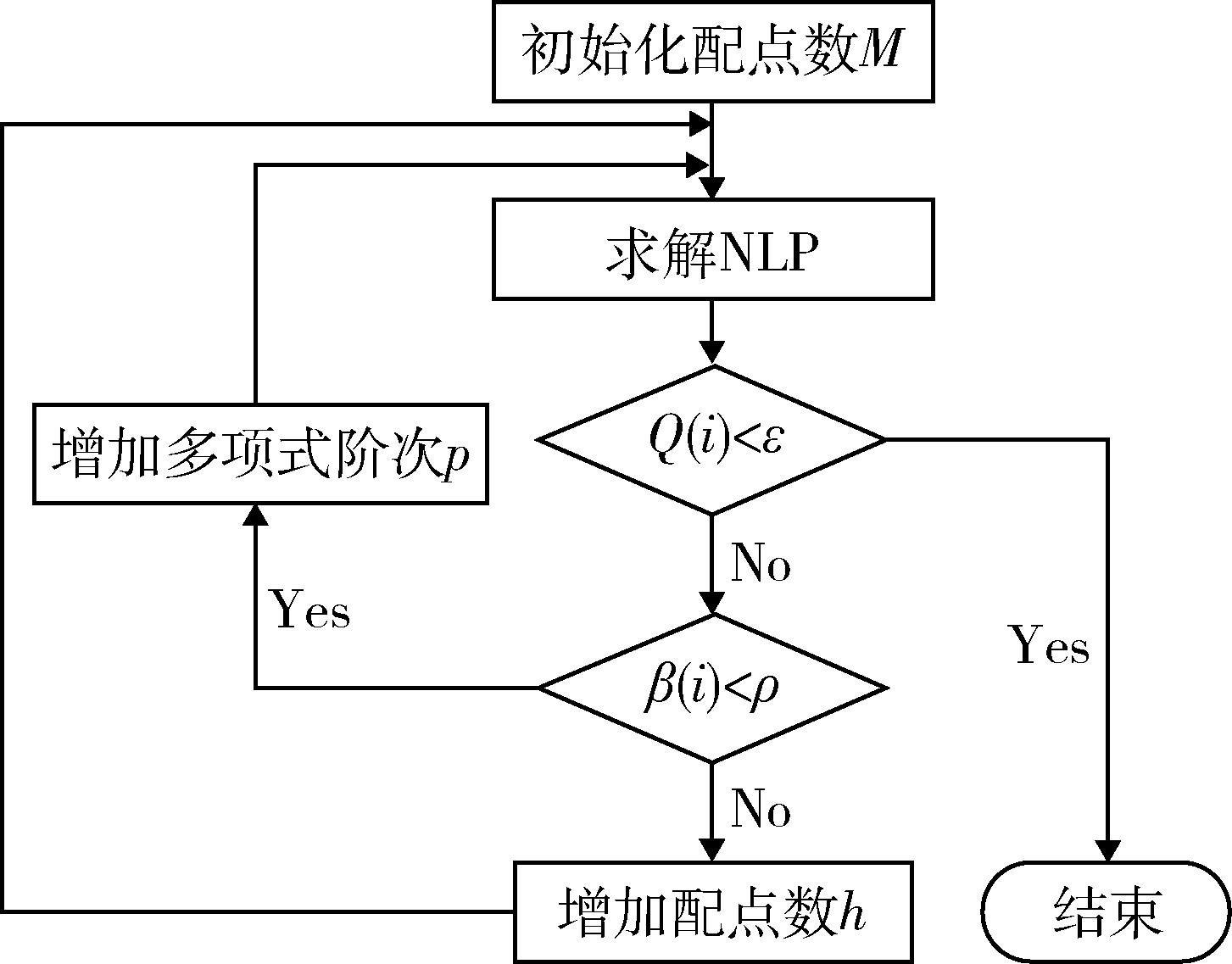

Fig. 2 Hp adaptive pseudo-spectral method iterative flow chart

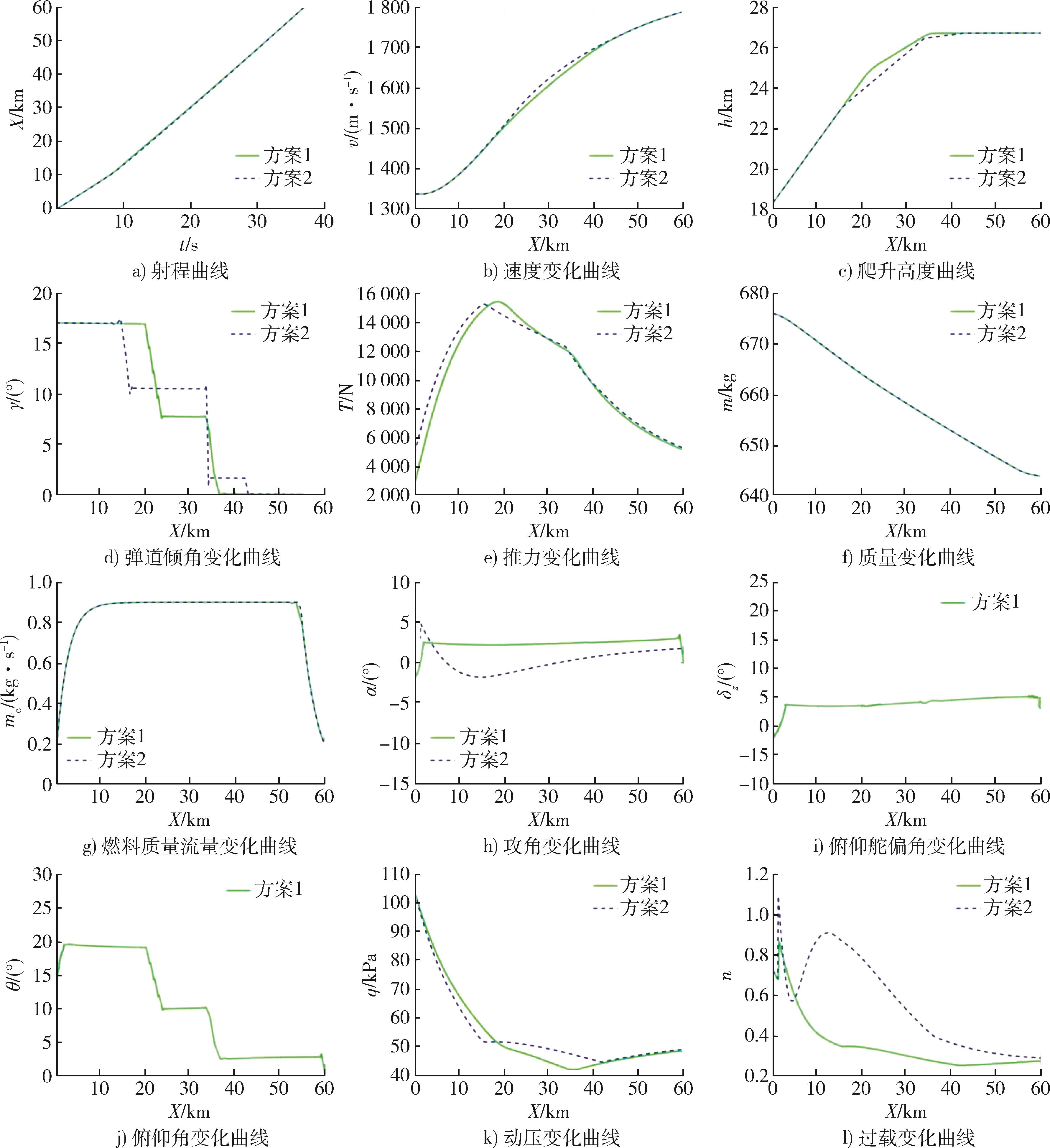

Fig. 3 Trajectory simulation considering pitch angle attitude change

Table 1 Performance data of the optimal trajectory

方案	时间/s	高度/km	射程/km	质量/kg	性能指标
1	37.19	26.7	60	643.8	-371.4
2	37.21	26.7	60	642.7	-370.7

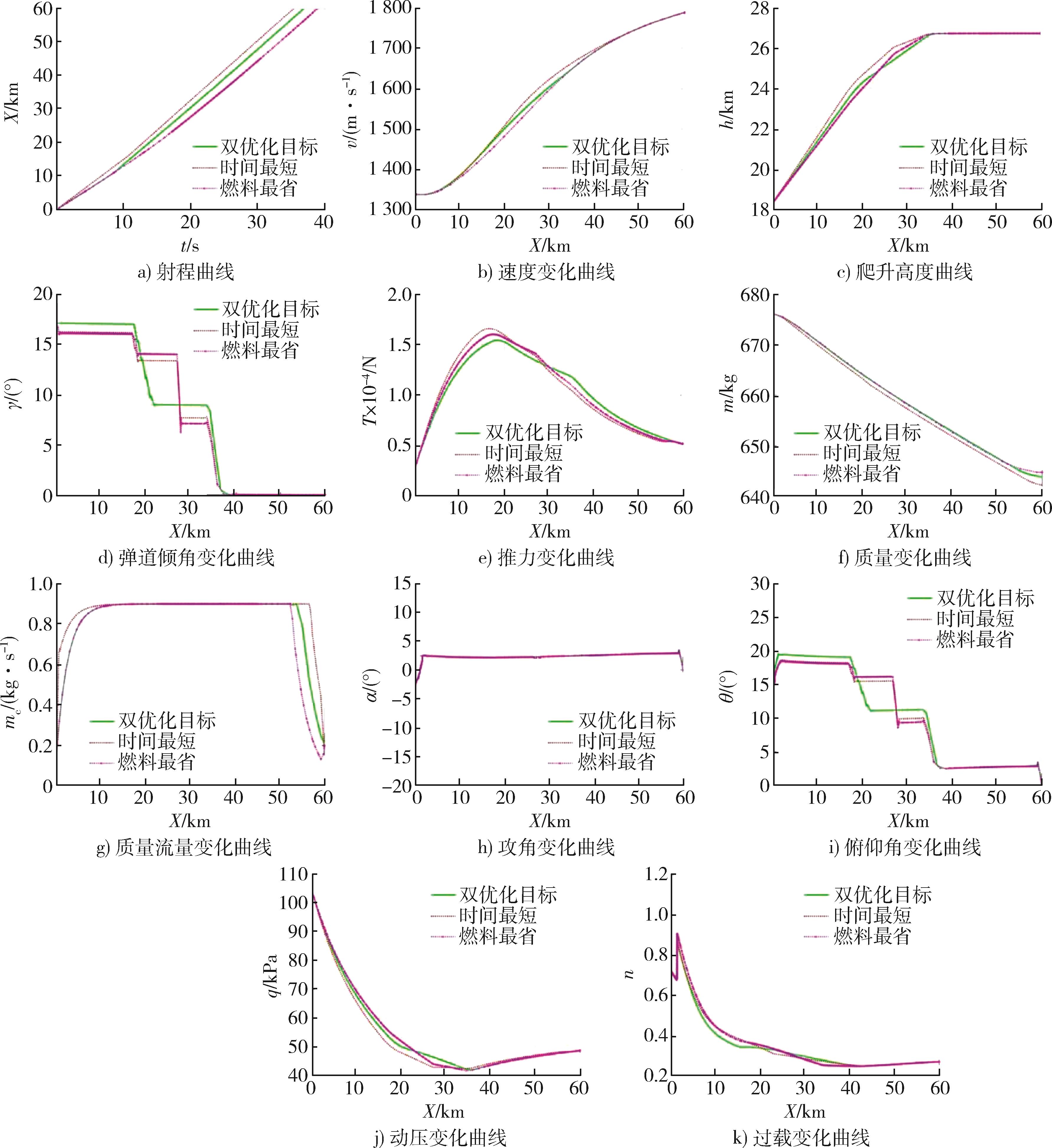

Fig. 4 Trajectory simulation considering multi-objective optimization

Table 2 Performance data of the terminal trajectory

$λ$	时间/s	高度/km	射程/km	质量/kg	性能指标
$0$	35.4	26.7	60	641.7	-370.9
$0.6$	37.2	26.7	60	643.8	-371.4
$1.0$	39.3	26.7	60	644.5	-371.0

Table 2 Performance data of the terminal trajectory

$λ$	时间/s	高度/km	射程/km	质量/kg	性能指标
$0$	35.4	26.7	60	641.7	-370.9
$0.6$	37.2	26.7	60	643.8	-371.4
$1.0$	39.3	26.7	60	644.5	-371.0

References 20

1	ANDREADIS D. Scramjet Engines Enabling the Seamless Integration of Air & Space Operation［J］. Industrial Physicist， 2004， 10（4）： 24-27.
2	刘清楷，陈坚，汪立新，等. 高超声速飞行器俯冲段制导控制方法研究［J］. 现代防御技术， 2017， 45（6）： 74-81.
	LIU Qingkai， CHEN Jian， WANG Lixin， et al. Guidance and Control Design for Hypersonic Vehicle in Dive Phase［J］. Modern Defence Technology， 2017， 45（6）： 74-81.
3	方洋旺，柴栋，毛东辉，等. 吸气式高超声速飞行器制导与控制研究现状及发展趋势［J］. 航空学报， 2014， 35（7）： 1776-1786.
	FANG Yangwang， CHAI Dong， MAO Donghui， et al. Status and Development Trend of the Guidance and Control for Air-Breathing Hypersonic Vehicle［J］. Acta Aeronautica et Astronautica Sinica， 2014， 35（7）： 1776-1786.
4	冯绍东. 高超声速巡航导弹爬升段轨迹优化研究［D］. 长沙：国防科技大学， 2017.
	FENG Shaodong. Research on Ascent Phase Trajectory Optimization of Hypersonic Cruise Missile［D］. Changsha： National University of Defense Technology， 2017.
5	文成馀. 高超声速飞行器爬升段不确定性控制研究［D］. 南京：南京航空航天大学， 2020.
	WEN Chengyu. Research on Uncertainty Control for Climbing Phase of Hypersonic Vehicle［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2020.
6	王华，杨存富，刘恒军. 以冲压发动机为动力的导弹爬升弹道研究［J］. 现代防御技术， 2008， 36（4）： 27-30， 41.
	WANG Hua， YANG Cunfu， LIU Hengjun. Research on Climb Trajectory of Ramjet Engine Powered Missile［J］. Modern Defence Technology， 2008， 36（4）： 27-30， 41.
7	陈功，傅瑜，郭继峰. 飞行器轨迹优化方法综述［J］. 飞行力学， 2011， 29（4）： 1-5.
	CHEN Gong， FU Yu， GUO Jifeng. Survey of Aircraft Trajectory Optimization Methods［J］. Flight Dynamics， 2011， 29（4）： 1-5.
8	BETTS J T. Survey of Numerical Methods for Trajectory Optimization［J］. Journal of Guidance， Control， and Dynamics， 1998， 21（2）： 193-207.
9	FAN Jing. Optimal Speed of Hypersonic Cruise Flight［J］. Theoretical and Applied Mechanics Letters， 2011， 1（1）： 012004.
10	丁洪波，蔡洪. 基于特征参数的吸气式高超声速飞行器上升段轨迹优化［J］. 固体火箭技术， 2012， 35（3）： 296-300， 310.
	DING Hongbo， CAI Hong. A Characteristic Parameter Trajectory Optimization Method for the Ascent Phase of the Air-Breathing Hypersonic Flight Vehicle［J］. Journal of Solid Rocket Technology， 2012， 35（3）： 296-300， 310.
11	葛晖. 高超声速飞行器上升段轨迹优化及闭环最优制导技术研究［D］. 上海：上海交通大学， 2012.
	GE Hui. Research on Trajectory Optimization and Closed-Loop Optimal Guidance Technology of Hypersonic Vehicle in Ascending Phase［D］. Shanghai： Shanghai Jiaotong University， 2012.
12	张泰. 吸气式高超声速飞行器轨迹优化研究［D］. 哈尔滨：哈尔滨工业大学， 2013.
	ZHANG Tai. Research on Trajectory Optimization of Air-Breathing Hypersonic Vehicle［D］. Harbin： Harbin Institute of Technology， 2013.
13	杨旭曦. 基于自适应动态规划的吸气式高超声速飞行器的轨迹跟踪控制［D］. 天津：天津理工大学， 2022.
	YANG Xuxi. Trajectory Tracking Control for the Air-Breathing Hypersonic Vehicle Via Adaptive Dynamic Programming［D］. Tianjin： Tianjin University of Technology， 2022.
14	赵鹏. 高超声速助推/吸气巡航飞行器动力学特性及轨迹优化［D］. 哈尔滨：哈尔滨工业大学， 2022.
	ZHAO Peng. Dynamic Characteristics and Trajectory Optimization of Hypersonic Boost/Inhale Cruise Vehicle［D］. Harbin： Harbin Institute of Technology， 2022.
15	明超，孙瑞胜，白宏阳，等. 吸气式超声速导弹爬升段多约束轨迹优化［J］. 宇航学报， 2016， 37（9）： 1063-1071.
	MING Chao， SUN Ruisheng， BAI Hongyang， et al. Climb Trajectory Optimization with Multiple Constraints for Air-Breathing Supersonic Missile［J］. Journal of Astronautics， 2016， 37（9）： 1063-1071.
16	许红羊，凡永华，仝希，等. 考虑动压限制的高超声速飞行器控制系统设计［J］. 西北工业大学学报， 2019， 37（1）： 41-47.
	XU Hongyang， FAN Yonghua， TONG Xi， et al. Designing Control System of Hypersonic Vehicle with Dynamic Pressure Constraints Considered［J］. Journal of Northwestern Polytechnical University， 2019， 37（1）： 41-47.
17	杨光宇. 巡航导弹弹道轨迹优化研究与分析［D］. 太原：中北大学， 2021.
	YANG Guangyu. Research and Analysis of Cruise Missile Ballistic Trajectory Optimization［D］. Taiyuan： North University of China， 2021.
18	DARBY C L， HAGER W W， RAO A V. An HP-Adaptive Pseudospectral Method for Solving Optimal Control Problems［J］. Optimal Control Applications and Methods， 2011， 32（4）： 476-502.
19	王娜，陈洁卿，明超，等. 基于hp自适应伪谱法的变后掠翼导弹弹道优化设计［J］. 弹道学报， 2016， 28（4）： 24-29.
	WANG Na， CHEN Jieqing， MING Chao， et al. Optimization Design for Trajectory of Morphing-Wing Missile Based on Hp-Adaptive Pseudo-Spectral Method［J］. Journal of Ballistics， 2016， 28（4）： 24-29.
20	李惠峰. 高超声速飞行器制导与控制技术［M］. 北京：中国宇航出版社， 2012.
	LI Huifeng. Control Technology for Hypersonic Vehicle［M］. Beijing： China Astronautic Publishing House， 2012.
