Simulation Method of Target Track Based on Embedded Particle Swarm Optimization Algorithm

doi:10.3969/j.issn.1009-086x.2024.05.007

Abstract

Abstract:

A target track simulation method based on embedded PSO is proposed to address the fidelity and universal applicability issues of radar-moving target track simulation. Firstly， the principle of simulation moving target track by UAV is analyzed， the motion model and coupling relationship between the UAV and the simulated target is discussed and the control quantity and control equation are determined. Then， based on constraint conditions of target motion track simulation， the objective optimization fitness function is proposed by UAV performance and energy consumption， and the optimal control model of target track simulation is established. Finally， in order to improve the accuracy and practicality of the model solution， the particle swarm optimization algorithm is improved and embedded in the model solution， achieving effective simulation of different motion tracks of the target. The simulation results indicate that this method can have wide applicability for simulating the track of moving targets.

Key words: radar target, moving track, simulation, PSO, UAV

摘要：

针对雷达运动目标轨迹模拟逼真度和普遍适用性问题，提出一种基于嵌入式粒子群算法的目标航迹模拟方法。分析了无人机模拟运动目标航迹的基本原理，论述了无人机和模拟目标之间的运动模型和耦合关系，确定了耦合因子和控制量。分析了目标运动轨迹模拟的约束条件，并结合无人机性能和能耗等因素给出了目标优化适应度函数，建立了目标航迹模拟的最优控制模型。为提高模型解算的精确度和实用性，将粒子群算法进行改进，并嵌入到模型求解中，实现了对目标航迹的有效模拟。仿真结果表明：该方法对实现运动目标轨迹模拟具有广泛适用。

关键词: 雷达目标, 运动轨迹, 模拟仿真, 粒子群算法, 无人机

CLC Number:

TN97

Yanyan MA, Qiang LIN, Chuang NIU, Haida YANG. Simulation Method of Target Track Based on Embedded Particle Swarm Optimization Algorithm[J]. Modern Defense Technology, 2024, 52(5): 51-60.

马艳艳, 林强, 牛闯, 杨海达. 基于嵌入式粒子群算法的目标航迹模拟方法[J]. 现代防御技术, 2024, 52(5): 51-60.

Figures/Tables 8

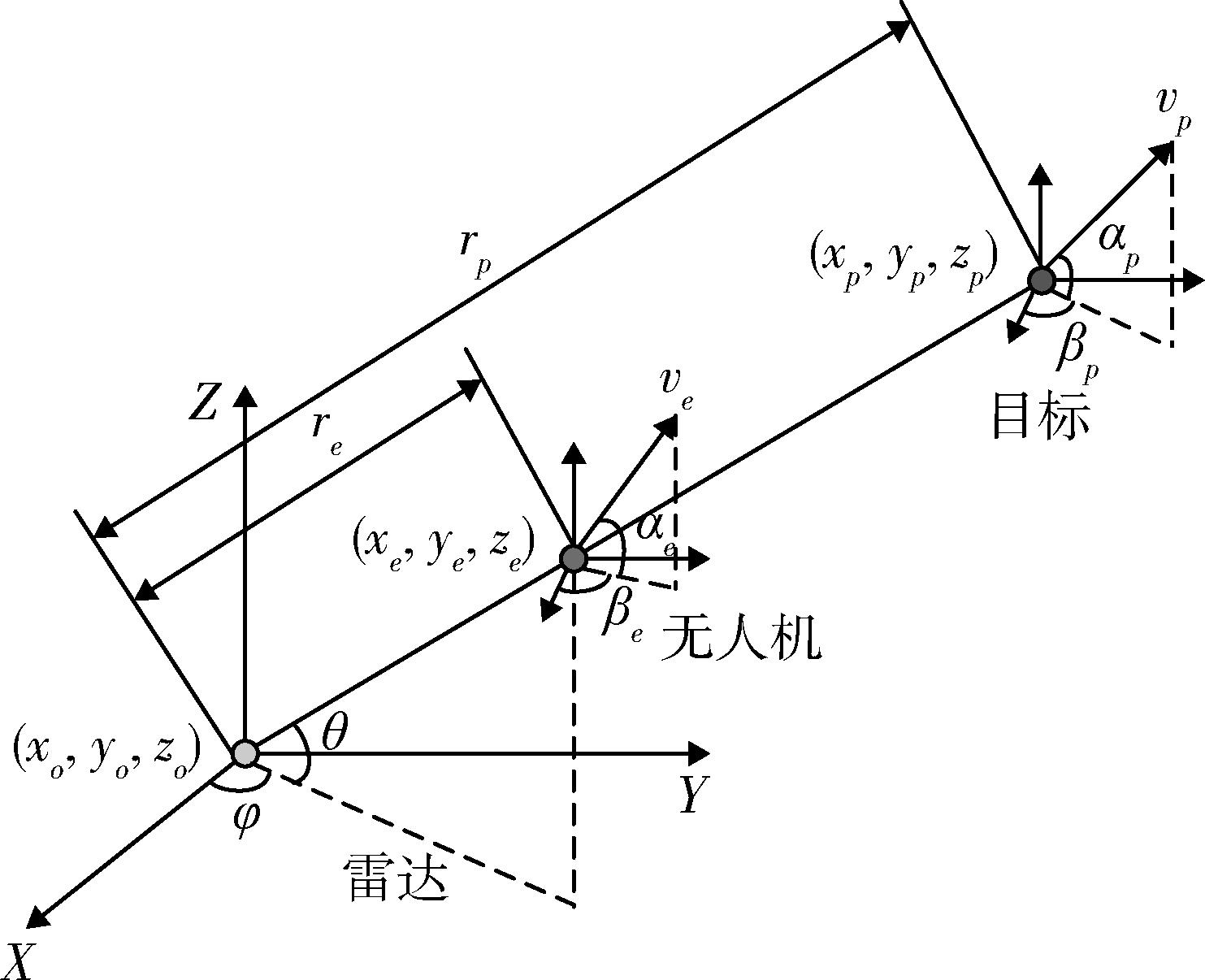

Fig. 1 Dynamic relationship between UAV and the simulated targets

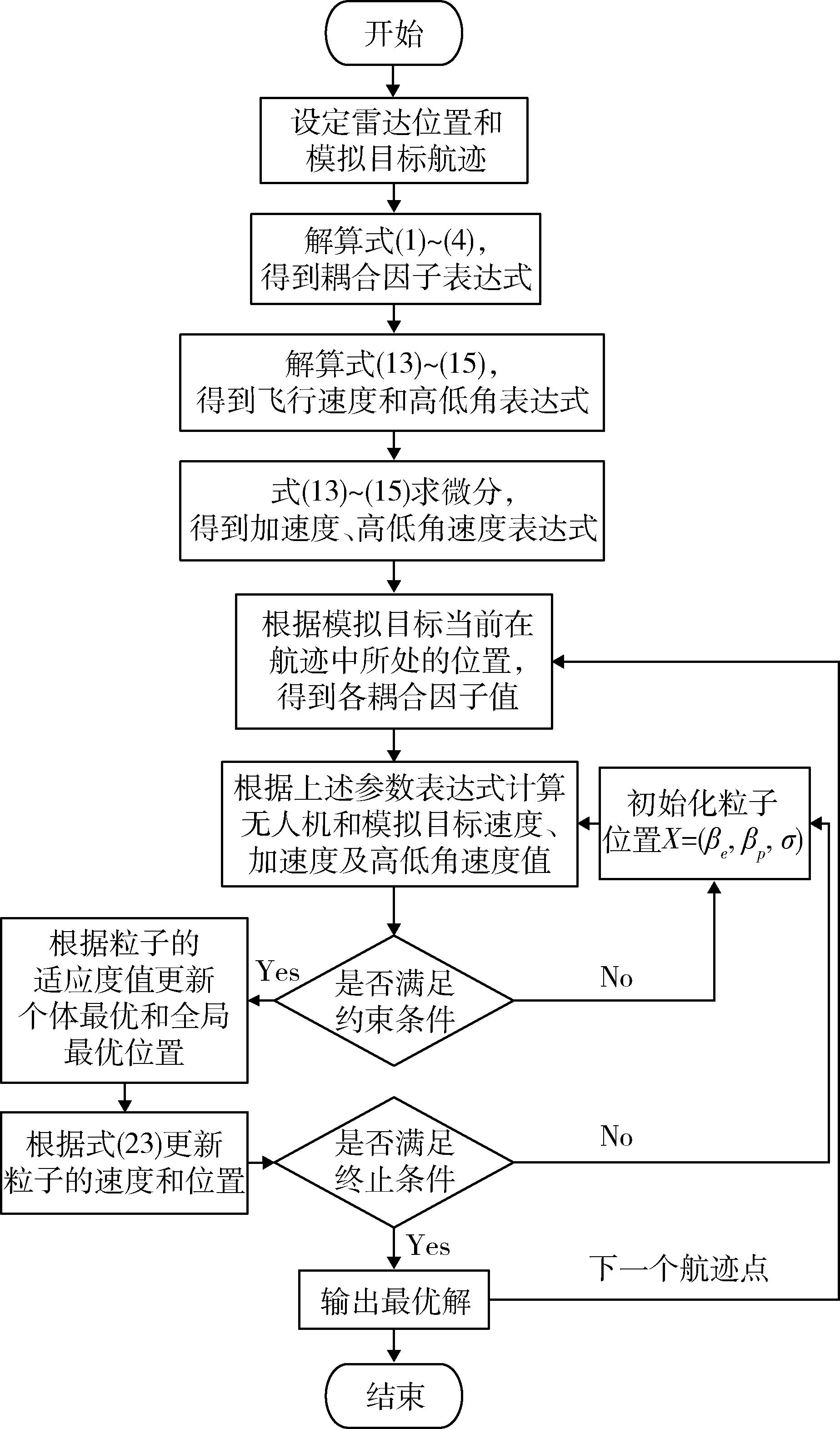

Fig. 2 Solution flowchart

Table 1 Constraint conditions

参数	v_e /（m/s）	v_p /（m/s）	$u 1$ /（m/s²）	$u 2$ /（rad/s）	$σ$
最大值	100	400	30	0.4	0.50
最小值	10	200	-30	-0.4	0.25

Table 1 Constraint conditions

参数	v_e /（m/s）	v_p /（m/s）	$u 1$ /（m/s²）	$u 2$ /（rad/s）	$σ$
最大值	100	400	30	0.4	0.50
最小值	10	200	-30	-0.4	0.25

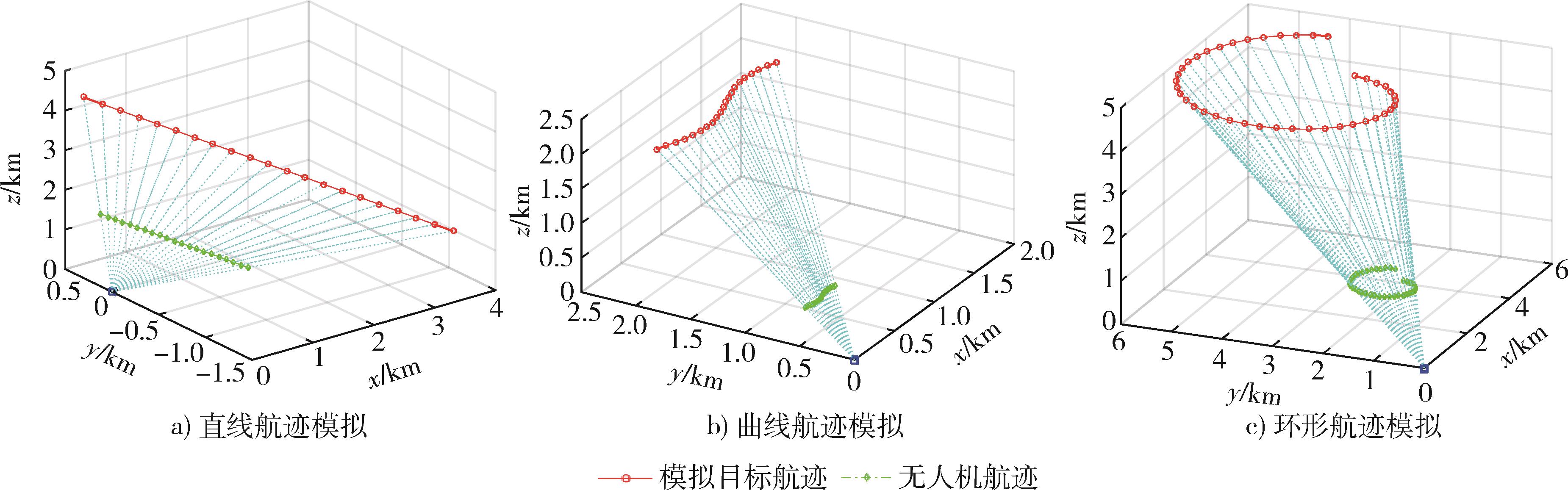

Fig. 3 Effect of UAV simulation of target track

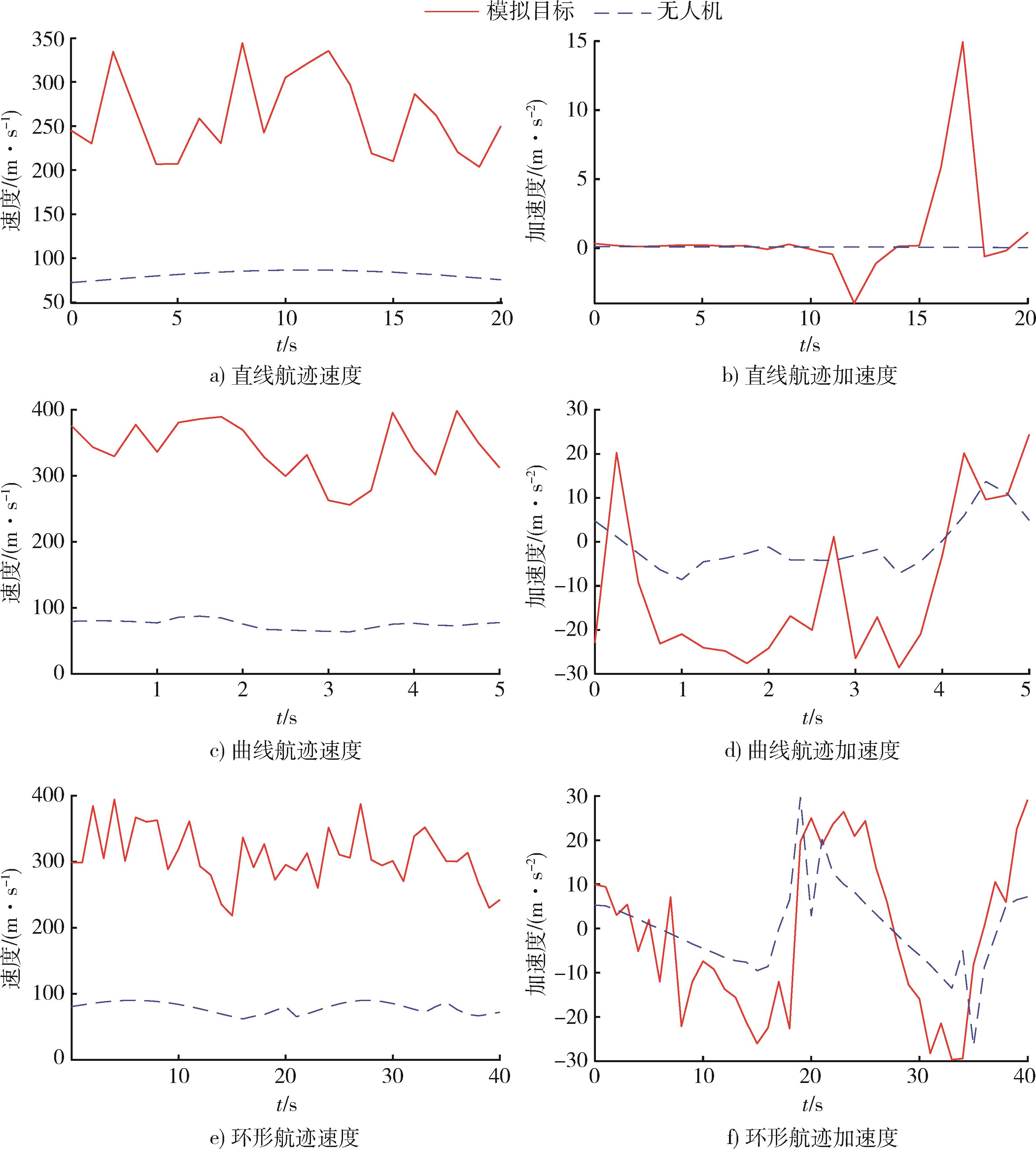

Fig. 4 Variation diagram of velocity and accelerated velocity

Fig. 5 Variation diagram of angle and angle speed

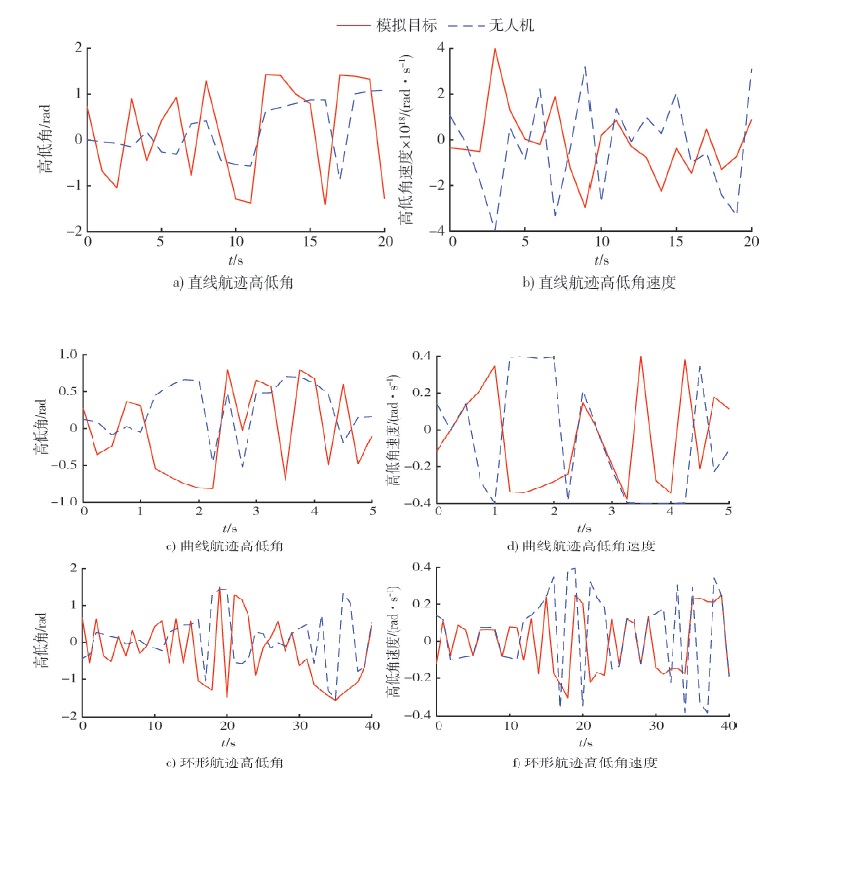

Fig. 6 Variation diagram of altitude angle and altitude angle speed

Table 2 Maximum and minimum values of parameters

参数	直线航迹		曲线航迹		环形航迹
参数	最大值	最小值	最大值	最小值	最大值	最小值
v_p /（m/s）	344.314 1	203.699 5	398.584 9	256.109 6	394.679 7	218.487 0
v_e /（m/s）	86.648 1	72.280 9	87.413 9	63.628 6	90.180 3	62.058 7
$v ˙$ _p /（m/s²）	14.924 7	-3.984 9	24.399 9	-28.579 2	29.117 6	-29.668 8
$v ˙$ _e /（m/s²）	0.103 1	0.039 5	13.715 9	-8.585 4	29.723 0	-26.565 3
$α ˙$ _p /（rad/s）	3.992 7×10^-18	-2.964 7×10^-18	0.399 7	-0.375 3	0.250 1	-0.303 4
$α ˙$ _e /（rad/s）	3.204 4×10^-18	-3.961 5×10^-18	0.397 2	-0.400 0	0.395 5	-0.381 5

Table 2 Maximum and minimum values of parameters

参数	直线航迹		曲线航迹		环形航迹
参数	最大值	最小值	最大值	最小值	最大值	最小值
v_p /（m/s）	344.314 1	203.699 5	398.584 9	256.109 6	394.679 7	218.487 0
v_e /（m/s）	86.648 1	72.280 9	87.413 9	63.628 6	90.180 3	62.058 7
$v ˙$ _p /（m/s²）	14.924 7	-3.984 9	24.399 9	-28.579 2	29.117 6	-29.668 8
$v ˙$ _e /（m/s²）	0.103 1	0.039 5	13.715 9	-8.585 4	29.723 0	-26.565 3
$α ˙$ _p /（rad/s）	3.992 7×10^-18	-2.964 7×10^-18	0.399 7	-0.375 3	0.250 1	-0.303 4
$α ˙$ _e /（rad/s）	3.204 4×10^-18	-3.961 5×10^-18	0.397 2	-0.400 0	0.395 5	-0.381 5
